Description

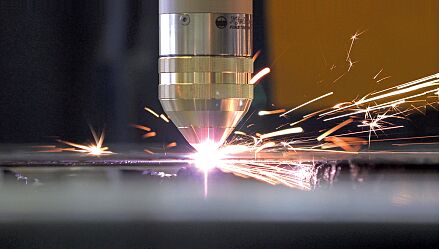

As part of the Kjellberg Finsterwalde Group, we have been offering a wide range of products and technologies for plasma cutting, welding and special machinery for 100 years. As the oldest manufacturer of plasma cutting technology on the market, we are one of the world leaders in this field. The new, pioneering Q-Series from Kjellberg Finsterwalde combines exceptional precision plasma cutting with the complex demands of digitalised production. In cooperation with partners, networks and associations such as the IBN network, further innovative products and technologies are being developed. The aim is to offer coordinated, digitised and networked ecosystems as total solutions for plasma cutting in the future. In the future, processes along the entire value chain will automate and optimise companies' production and, in the long term, reduce error rates to a minimum.
We know how.
Since 1922.
Made in Germany.
We know how.
Since 1922.
Made in Germany.
Download
-
Brochure-Smart-Focus-pl-en-050323.pdffile size: 922.14 KB
-
Q-Series-pl-01-03-23-web.pdffile size: 1.41 MB
Products
Q-Series
Q-Series

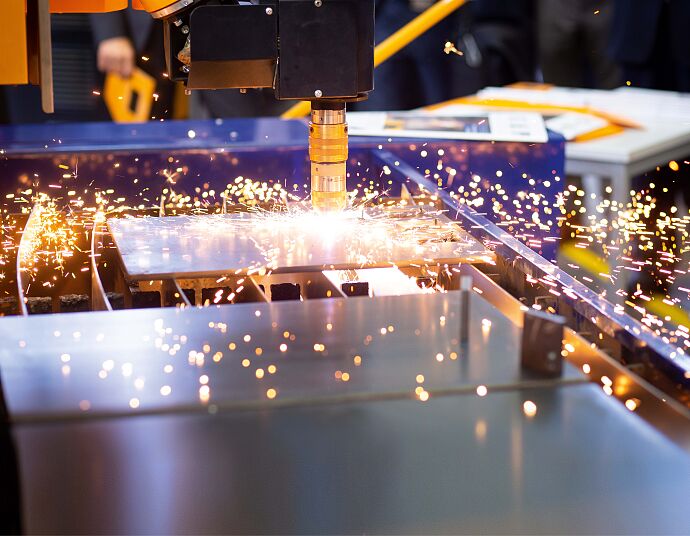

At the Stom Tool trade fair, Kjellberg Finsterwalde presents the latest addition to the Q-Series: Q 4500. With a cutting current range of up to 450 A, it is the most powerful plasma power source for the complex requirements of digitalised production. It combines precise plasma cutting and marking at the best level and enables the user to make precise plasma cuts up to 120 mm. High cutting speeds reduce costs and increase efficiency. The browser-based HMI Q-Desk developed by Kjellberg provides process data and information of all system components in real time on standard devices (such as smartphone, tablet) independent of location. All data can be transferred and processed via the Ethernet interface using the MQTT protocol. The Kjellberg eService ensures reliability in production through remote diagnostics, remote monitoring and regular updates.
Plasma power source: Q 4500
Mains voltages:
380 - 400 V, 50/60 Hz
415 - 440 V, 50/60 Hz
440 - 480 V, 50/60 Hz
Max. connected load: 109 kVA
Mains fuse, slow: 200 A
Protection class: IP 21S
Open-circuit voltage: 400 V
Cutting current (100 % duty cycle): 20 – 450 A
Marking current (100 % duty cycle): 5 – 50 A
Cutting range mild steel
Recommended: 0.5 - 70 mm
Maximum at 400 A | O2: 90 mm
Maximum at 450 A | Ar/H2: 120 mm
Piercing*: 50 mm
Cutting range stainless steel with Q-Gas O2:
Maximum: 60 mm
Piercing*: 30 mm
Cutting range stainless steel with Q-Gas:
Maximum: 120 mm
Piercing*: 50 mm
Cutting range aluminium with Q-Gas O2:
Maximum: 60 mm
Piercing*: 40 mm
Cutting range aluminium with Q-Gas:
Maximum: 120 mm
Piercing*: 50 mm
Plasma gases Q-Gas O2: O2, N2, Air
Plasma gases Q-Gas: O2, N2, Ar, H2, F5 (95 % N2/5% H2), Air
Swirl gases Q-Gas O2: O2, N2, Air
Swirl gases Q-Gas: O2, N2, F5 (95 % N2/5% H2), Air
Marking gases: Ar, N2, Air
Dimensions: 1150 x 695 x 1460 mm
Weight: 354 kg
Mains voltages:
380 - 400 V, 50/60 Hz
415 - 440 V, 50/60 Hz
440 - 480 V, 50/60 Hz
Max. connected load: 109 kVA
Mains fuse, slow: 200 A
Protection class: IP 21S
Open-circuit voltage: 400 V
Cutting current (100 % duty cycle): 20 – 450 A
Marking current (100 % duty cycle): 5 – 50 A
Cutting range mild steel
Recommended: 0.5 - 70 mm
Maximum at 400 A | O2: 90 mm
Maximum at 450 A | Ar/H2: 120 mm
Piercing*: 50 mm
Cutting range stainless steel with Q-Gas O2:
Maximum: 60 mm
Piercing*: 30 mm
Cutting range stainless steel with Q-Gas:
Maximum: 120 mm
Piercing*: 50 mm
Cutting range aluminium with Q-Gas O2:
Maximum: 60 mm
Piercing*: 40 mm
Cutting range aluminium with Q-Gas:
Maximum: 120 mm
Piercing*: 50 mm
Plasma gases Q-Gas O2: O2, N2, Air
Plasma gases Q-Gas: O2, N2, Ar, H2, F5 (95 % N2/5% H2), Air
Swirl gases Q-Gas O2: O2, N2, Air
Swirl gases Q-Gas: O2, N2, F5 (95 % N2/5% H2), Air
Marking gases: Ar, N2, Air
Dimensions: 1150 x 695 x 1460 mm
Weight: 354 kg
