Description
Uniforce provides and implements state-of-the-art solutions for unmanned aerial systems (UAS), electronic and optoelectronic security systems, video analytics and tactical vision systems. We support customers at all stages, from design to implementation to operations and maintenance.
Since 2007, we have earned the trust of many customers - the military, uniformed services, state-owned companies, private companies and security system integrators.
Our areas of specialisation include, amongst others, unmanned aerial systems: reconnaissance drones, FPV drones and tethered drones. The systems offered by Uniforce are actively used by the armed forces, law enforcement and emergency services in many countries, primarily NATO member states. We also offer advanced optoelectronic systems and specialist tactical software.
At MSPO, we will be showcasing selected solutions from our range, such as:
* Orqa FPV drones, equipped with EW-resilient radio communications, optional fibre-optic communication, capable of carrying payloads ranging from 0.5 to 3.0 kg (depending on the model), and designed for missions in demanding field conditions and military scenarios
* Orqa’s comprehensive training solution, comprising a cost-effective FPV drone and an advanced flight and battlefield simulator
* Fotokite Sigma tethered UAS, equipped with a set of two visible-light cameras (0.5–16x zoom) and a thermal imaging camera, capable of carrying out non-stop missions lasting several days. Fotokite is available in two configurations: deployed from transport case (powered from a 230V mains supply), and a roof-top-box (powered from the vehicle’s electrical system or a similar source)
* Reveal Farsight software that generates 2D maps and 3D terrain models based on photos, videos or live streams from a drone. The software can operate entirely offline on mobile phones or laptops, but can also connect to ATAK networks. Farsight also enables instant, automatic terrain analysis, such as plotting approach routes that minimise the risk of detection or visualising the field of view from any point on the map (taking terrain obstacles into account).
* the AtlasMICRO drone – a ISR drone weighing just under 500 g, equipped with a visible-light camera, a thermal imaging camera and an optical flow system, enabling it to fly indoors and in areas where the GPS signal is jammed or unavailable.
* UAS parts and components, manufactured by Orqa, Atlas Aerospace and Gremsy.
Uniforce has been awarded ISO 9001:2015, ISO/IEC 27001:2022 and AQAP 2110:2016 certifications.
Since 2007, we have earned the trust of many customers - the military, uniformed services, state-owned companies, private companies and security system integrators.
Our areas of specialisation include, amongst others, unmanned aerial systems: reconnaissance drones, FPV drones and tethered drones. The systems offered by Uniforce are actively used by the armed forces, law enforcement and emergency services in many countries, primarily NATO member states. We also offer advanced optoelectronic systems and specialist tactical software.
At MSPO, we will be showcasing selected solutions from our range, such as:
* Orqa FPV drones, equipped with EW-resilient radio communications, optional fibre-optic communication, capable of carrying payloads ranging from 0.5 to 3.0 kg (depending on the model), and designed for missions in demanding field conditions and military scenarios
* Orqa’s comprehensive training solution, comprising a cost-effective FPV drone and an advanced flight and battlefield simulator
* Fotokite Sigma tethered UAS, equipped with a set of two visible-light cameras (0.5–16x zoom) and a thermal imaging camera, capable of carrying out non-stop missions lasting several days. Fotokite is available in two configurations: deployed from transport case (powered from a 230V mains supply), and a roof-top-box (powered from the vehicle’s electrical system or a similar source)
* Reveal Farsight software that generates 2D maps and 3D terrain models based on photos, videos or live streams from a drone. The software can operate entirely offline on mobile phones or laptops, but can also connect to ATAK networks. Farsight also enables instant, automatic terrain analysis, such as plotting approach routes that minimise the risk of detection or visualising the field of view from any point on the map (taking terrain obstacles into account).
* the AtlasMICRO drone – a ISR drone weighing just under 500 g, equipped with a visible-light camera, a thermal imaging camera and an optical flow system, enabling it to fly indoors and in areas where the GPS signal is jammed or unavailable.
* UAS parts and components, manufactured by Orqa, Atlas Aerospace and Gremsy.
Uniforce has been awarded ISO 9001:2015, ISO/IEC 27001:2022 and AQAP 2110:2016 certifications.
Products

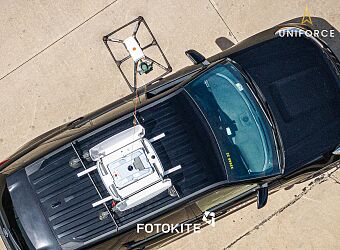

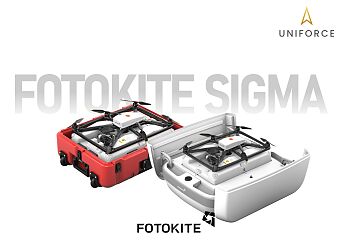

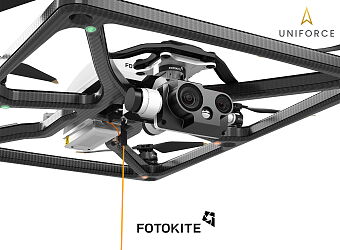

Fotokite Sigma Tethered UAV
Fotokite Sigma Tethered UAV
The Sigma Fotokite is a tethered drone that enables multi-day flights in 24/7 mode and requires no piloting skills. Fotokite is available in a transport case powered by a 230V mains supply, and as an automatically opening roof-top-box station, powered by the vehicle’s electrical system and designed for roof mounting. The built-in battery ensures a safe landing in the event of a power cut.
The drone is constructed from a 1.2 kg carbon fibre frame, providing a robust, durable and transport-ready solution. Two visible-light cameras and one thermal imaging camera provide situational awareness regardless of lighting conditions. Wi-Fi and 4G LTE modems enable video transmission – both locally and remotely. The controller is a rugged tablet with a bright screen that remains legible even in direct sunlight.
DRONE AND GROUND STATION
Take-off weight 1.3 kg
Construction: carbon fibre and advanced composites
Ceiling: 45m from the station
Flight time: 24h / 7
Dimensions: case - 635 x 483 x 343 mm; roof-top-box: 764 x 594 x 273 mm
Weight: case - 19.5 kg; roof-top-box: 29 kg
Operating temperatures: -10°C to 40°C
Ingress protection: IP55
Tether: reinforced, ultra-thin cable
THERMAL IMAGING CAMERA
Stream resolution 640 x 512
Temperature measurement: -40°C to 400°C, accuracy ± 5%
RGB CAMERAS
Stream resolution: 1920 x 1080 @30 fps
Sensor: 12 MP
Zoom: 0.5x-16x
CONTROL AND TRANSMISSION
Piloting not required, fully autonomous: take-off, flight and landing
LTE modem and video streaming: Ethernet + WiFi access point with WPA2 encryption and integrated LTE modem for video streaming
Digital security: Secure streaming and tethered control
Flight control: Fotokite Autopilot, independent of GNSS/GPS availability
OTHER
System reliability: 1-motor fail-safe, controlled descent, backup power for 120 seconds of flight, backup ground station power for power outages, backup flight control, tether break detection, automatic service alerts
Warranty: 2 years, no flight hours limit
Take-off weight 1.3 kg
Construction: carbon fibre and advanced composites
Ceiling: 45m from the station
Flight time: 24h / 7
Dimensions: case - 635 x 483 x 343 mm; roof-top-box: 764 x 594 x 273 mm
Weight: case - 19.5 kg; roof-top-box: 29 kg
Operating temperatures: -10°C to 40°C
Ingress protection: IP55
Tether: reinforced, ultra-thin cable
THERMAL IMAGING CAMERA
Stream resolution 640 x 512
Temperature measurement: -40°C to 400°C, accuracy ± 5%
RGB CAMERAS
Stream resolution: 1920 x 1080 @30 fps
Sensor: 12 MP
Zoom: 0.5x-16x
CONTROL AND TRANSMISSION
Piloting not required, fully autonomous: take-off, flight and landing
LTE modem and video streaming: Ethernet + WiFi access point with WPA2 encryption and integrated LTE modem for video streaming
Digital security: Secure streaming and tethered control
Flight control: Fotokite Autopilot, independent of GNSS/GPS availability
OTHER
System reliability: 1-motor fail-safe, controlled descent, backup power for 120 seconds of flight, backup ground station power for power outages, backup flight control, tether break detection, automatic service alerts
Warranty: 2 years, no flight hours limit

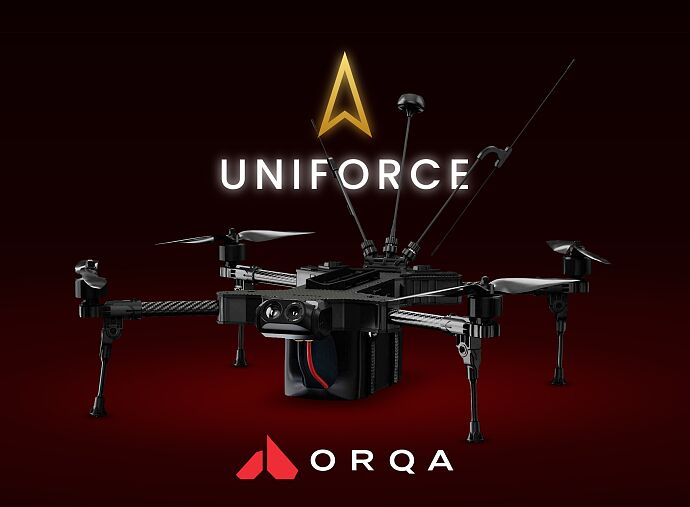

Orqa FPV UAVs
Orqa FPV UAVs
The Orqa MRM1-5, MRK1-8 and MRM2-10 are FPV drones of various sizes, capable of carrying payloads weighing between 1 and 3 kg. They are equipped with the IRONghost communication system, which offers high resistance to electronic warfare; selected variants feature additional fibre-optic communication, whilst training platforms utilise the cost-effective Ghost Protocol. The larger models achieve speeds exceeding 100 km/h and ranges of over 20 km, even when carrying a maximum payload.
Orqa is a leading European manufacturer of FPV drones and components for their production.Due to their durability, reliability and ease of maintenance in field conditions, Orqa drones are used by many NATO armies.
The design and manufacture of Orqa drones take place entirely in Europe. As a result, the continuity of supply is less susceptible to disruption during periods of geopolitical tensions.

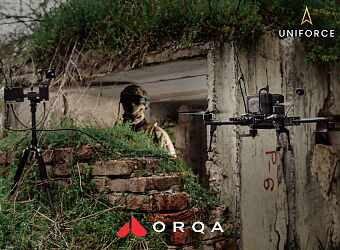

ORQA MRM2-10
Propeller size: 10”
Weight (excluding batteries): 1,142 g
Max. payload: 3 kg
Max. speed: 130 km/h
Max. flight time: 29 minutes
Max. range: 32 km
Flight controller: ORQA H7 QuadCore, supports Ardupilot, iNav, Betaflight and PX4
Camera: Orqa Justice Analogue, 1,200 TVL resolution, suitable for low-light conditions
Communications: IRONghost C2 radio operating in the 4xx/9xx MHz bands with high resistance to electronic warfare; 5.8 GHz 5W video link
Integrations: ATAK, MAVLINK support

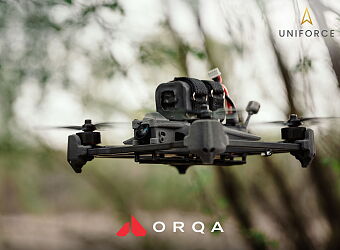

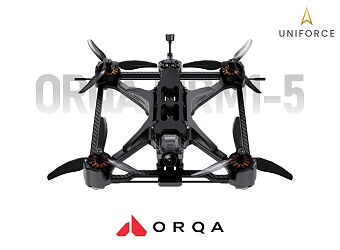

ORQA MRM1-5
Propeller size: 5”
Weight (excluding batteries): 562 g (ISM) / 590 g (IRONghost)
Max. payload: 1 kg
Max. speed: 130 km/h
Max. flight time: 15 minutes
Max. range: 15 km
Flight controller: ORQA F405, supports Ardupilot, iNav and Betaflight
Camera: Orqa Justice FPV, 1200 TVL resolution, suitable for low-light conditions
Communications: IRONghost C2 radio operating in the 4xx/9xx MHz bands with high resistance to electronic warfare, or Ghost Protocol operating in the 2.4 GHz band (training platform); 5.8 GHz video link
Propeller size: 10”
Weight (excluding batteries): 1,142 g
Max. payload: 3 kg
Max. speed: 130 km/h
Max. flight time: 29 minutes
Max. range: 32 km
Flight controller: ORQA H7 QuadCore, supports Ardupilot, iNav, Betaflight and PX4
Camera: Orqa Justice Analogue, 1,200 TVL resolution, suitable for low-light conditions
Communications: IRONghost C2 radio operating in the 4xx/9xx MHz bands with high resistance to electronic warfare; 5.8 GHz 5W video link
Integrations: ATAK, MAVLINK support
ORQA MRM1-5
Propeller size: 5”
Weight (excluding batteries): 562 g (ISM) / 590 g (IRONghost)
Max. payload: 1 kg
Max. speed: 130 km/h
Max. flight time: 15 minutes
Max. range: 15 km
Flight controller: ORQA F405, supports Ardupilot, iNav and Betaflight
Camera: Orqa Justice FPV, 1200 TVL resolution, suitable for low-light conditions
Communications: IRONghost C2 radio operating in the 4xx/9xx MHz bands with high resistance to electronic warfare, or Ghost Protocol operating in the 2.4 GHz band (training platform); 5.8 GHz video link

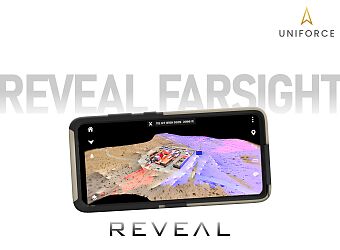

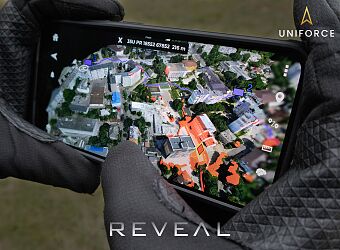

Reveal Farsight tactical software
Reveal Farsight tactical software
Running on a mobile device or computer/laptop, Farsight from Reveal Technology processes photos, videos or a stream from a drone to create an up-to-date 2D map or 3D model of the area within minutes. The 3D model includes buildings, vehicles, trees and shrubs, and topography. Farsight will prove useful as a tool for damage/incident documentation and situational awareness in emergency management. The software can also determine helicopter landing zones and analyse the field of view of observers from any point on the map. Farsight can operate fully locally, without communication with external servers, however, network connectivity allows for integration with the TAK network, in order to make locally generated models available to higher levels of operational command or remote units.
Supported system platforms: Android, iOS, Windows, Linux
BSP compatibility: compatible with most consumer and professional drones, from nano and micro class BSPs to larger designs such as the FlyEye or Bayraktar TB2
Image and video support from visible light cameras: yes
Image and video support from thermal imaging cameras: yes
Option to export models to external systems: yes
Integration with ATAK: yes
BSP compatibility: compatible with most consumer and professional drones, from nano and micro class BSPs to larger designs such as the FlyEye or Bayraktar TB2
Image and video support from visible light cameras: yes
Image and video support from thermal imaging cameras: yes
Option to export models to external systems: yes
Integration with ATAK: yes
AtlasULTRA Ground Control Station
AtlasULTRA Ground Control Station
Ground control station with superior radio range, operating on a MESH network, designed for uncompromising durability thanks to its IP65 protection rating and Gorilla Glass screen cover.
An autonomous, internal cooling and heating system enables the equipment to operate at external temperatures ranging from -20°C to +55°C.
The 7-inch, high-brightness 2000-nit screen with an anti-glare coating ensures excellent visibility even in direct sunlight.
Designed to work with Atlas Radio, it features AES256 transmission encryption and frequency hopping.
PHYSICAL CHARACTERISTICS
Dimensions: 266x176x66 mm
Weight: 1285g
Housing: PC-ABS, UL94V-0, IP65
Operating temperature: -20°C to +55°C
TEMPERATURE MANAGEMENT
Active cooling: Yes
Heating: Yes
BATTERY
Capacity: 84 Wh
Operating time: 4 hours
Charging time: approx. 55 mins
CONNECTORS
USB: USB-C PD, USB-A
Video output: HDMI 2.0
Storage and SIM: Slot for nanoSIM and MicroSDXC
Expansion: Slot for external modules
External antenna: SMA connector
DISPLAY
Screen: 7”, 1920x1200
Brightness: 2000 nits
Secondary display: OLED, 1.04”
MAIN BOARD
CPU: 8-core, MT8395, SoC
RAM: 8GB DDR4
Storage: 256GB UFS, MicroSDXC up to 2TB
OS: Linux, Android optional
CONTROLS, HAPTICS
Sticks: 2x, drift-free, with Hall effect sensor
Dials: 2x, self-centring
Programmable buttons: 10x
Physical kill switch: dedicated button + interlock
Haptics: 2 vibration servo
GNSS: GPS, GLONASS, Galileo
CONNECTIVITY
Radio: Atlas ATR-200
Frequency range: Full: 2.2–2.7 GHz, civilian: 2.4–2.4835 GHz
Frequency hopping: Yes
Internal antenna: Intelligent reflector antenna, 6 dB
Radio range: Up to 10.5 km
Mobile connectivity: 4G LTE, optional 5G
Wireless connectivity: 802.11 a/b/g/n Wi-Fi
Wired connectivity: Ethernet, SFP
Dimensions: 266x176x66 mm
Weight: 1285g
Housing: PC-ABS, UL94V-0, IP65
Operating temperature: -20°C to +55°C
TEMPERATURE MANAGEMENT
Active cooling: Yes
Heating: Yes
BATTERY
Capacity: 84 Wh
Operating time: 4 hours
Charging time: approx. 55 mins
CONNECTORS
USB: USB-C PD, USB-A
Video output: HDMI 2.0
Storage and SIM: Slot for nanoSIM and MicroSDXC
Expansion: Slot for external modules
External antenna: SMA connector
DISPLAY
Screen: 7”, 1920x1200
Brightness: 2000 nits
Secondary display: OLED, 1.04”
MAIN BOARD
CPU: 8-core, MT8395, SoC
RAM: 8GB DDR4
Storage: 256GB UFS, MicroSDXC up to 2TB
OS: Linux, Android optional
CONTROLS, HAPTICS
Sticks: 2x, drift-free, with Hall effect sensor
Dials: 2x, self-centring
Programmable buttons: 10x
Physical kill switch: dedicated button + interlock
Haptics: 2 vibration servo
GNSS: GPS, GLONASS, Galileo
CONNECTIVITY
Radio: Atlas ATR-200
Frequency range: Full: 2.2–2.7 GHz, civilian: 2.4–2.4835 GHz
Frequency hopping: Yes
Internal antenna: Intelligent reflector antenna, 6 dB
Radio range: Up to 10.5 km
Mobile connectivity: 4G LTE, optional 5G
Wireless connectivity: 802.11 a/b/g/n Wi-Fi
Wired connectivity: Ethernet, SFP
AtlasMICRO UAV
AtlasMICRO UAV
The AtlasMICRO is a reconnaissance drone weighing just 500 g. Its advanced high-resolution video and photo imaging capabilities increase reconnaissance effectiveness. The 3-axis gimbal compensates for unwanted movements whilst filming with two cameras (visible light and thermal), ensuring stable footage.
The drone’s low acoustic signature and compact size allow it to carry out surveillance and reconnaissance at close range, with minimal risk of detection.
The AtlasMICRO enables flights by day and by night, as well as inside complex buildings and urban environments, even without a GNSS signal. The radio communication protocols used ensure the secure transmission of encrypted data.
The AtlasMICRO offers integration with ATAK.
PHYSICAL CHARACTERISTICS
Weight: 495 g
Enclosure: PC-ABS, UL94V-0
Ingress protection: IP44
OPERATION ENVIRONMENT
Operating temperature: -20°C to +55°C
Relative humidity: 5-95%, non-condensing
CAMERAS
Picture resolution: 64 MP (9248 x 6944)
Video resolution: 4K (3840 x 2160) @60fps
Thermal imaging: 640 x 512 @50fps
Gimbal: 3-axis, stabilised
PROPULSION
Max flight time: 35 min
Max. speed: 17 m/s (61 km/h)
Max. wind speed: 10 m/s
Max. ceiling: 3500 m asl
Hand/vehicle take-off: Yes, at speeds up to 20km/h
COMMUNICATIONS
Primary radio: Atlas ATR-200, max power 1W
AtlasMESH operation: Yes
Frequency range: Civil: 2.4-2.4835 Ghz; Full: 2.2-2.7 Ghz
Frequency hopping: Yes
Radio range: 9,5 km
Certifications: MIC, FCC
MASTER BOARD
Flight controller: Atlas FCM
Object tracking: Yes
Codecs: H.264 / H.265
Storage: MicroSDXC up to 2TB
Storage security: AES256 encryption
SENSORS
GNSS: GPS, GLONASS, Galileo
Obstacle avoidance: Forward-facing ToF lidar
Navigation without GPS: Optical flow (daytime)
Altitude radar: Microwave altimeter
Barometer: High-precision, self-calibrating
Other: Compass, gyroscope, IMU, thermometer
BATTERY
Battery capacity: 3600 mAh
Battery management: Yes, Smart Battery
Weight: 495 g
Enclosure: PC-ABS, UL94V-0
Ingress protection: IP44
OPERATION ENVIRONMENT
Operating temperature: -20°C to +55°C
Relative humidity: 5-95%, non-condensing
CAMERAS
Picture resolution: 64 MP (9248 x 6944)
Video resolution: 4K (3840 x 2160) @60fps
Thermal imaging: 640 x 512 @50fps
Gimbal: 3-axis, stabilised
PROPULSION
Max flight time: 35 min
Max. speed: 17 m/s (61 km/h)
Max. wind speed: 10 m/s
Max. ceiling: 3500 m asl
Hand/vehicle take-off: Yes, at speeds up to 20km/h
COMMUNICATIONS
Primary radio: Atlas ATR-200, max power 1W
AtlasMESH operation: Yes
Frequency range: Civil: 2.4-2.4835 Ghz; Full: 2.2-2.7 Ghz
Frequency hopping: Yes
Radio range: 9,5 km
Certifications: MIC, FCC
MASTER BOARD
Flight controller: Atlas FCM
Object tracking: Yes
Codecs: H.264 / H.265
Storage: MicroSDXC up to 2TB
Storage security: AES256 encryption
SENSORS
GNSS: GPS, GLONASS, Galileo
Obstacle avoidance: Forward-facing ToF lidar
Navigation without GPS: Optical flow (daytime)
Altitude radar: Microwave altimeter
Barometer: High-precision, self-calibrating
Other: Compass, gyroscope, IMU, thermometer
BATTERY
Battery capacity: 3600 mAh
Battery management: Yes, Smart Battery

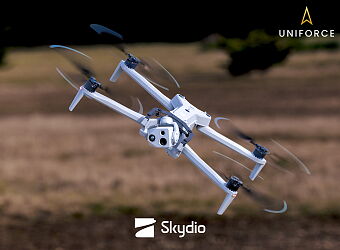

Skydio X10D ISR UAV
Skydio X10D ISR UAV
The Skydio X10D is a small drone with extremely precise optics and detailed thermal imaging, controlled by the most advanced artificial intelligence algorithms available on the market. The NVIDIA Jetson Orin NX processor analyses images from six navigation cameras with a resolution of 32 MP each in real time. This provides automatic obstacle avoidance so that the drone can be flown in any environment without concerns about crashing it, and visual navigation for GNSS-denied areas. The use of additional Nightsense modules - with infrared or visible light illuminators - allows it to autonomously avoid encountered objects and navigate even at night or in dark rooms. The Skydio X10D has two main cameras (standard lens and telephoto lens) and a radiometric thermal imaging camera with a FLIR Boson+ sensor with a resolution of 640 x 512 px.
AIRCRAFT
Max Flight Time: 40 minutes
Max Takeoff Weight: 2.49 kg
Max Horizontal Speed (at sea level): 20 m/s
Max radio range: 10 km
Operational Temperature Range: -20C to 45C
Operating Frequencies:
Connect MH: 1790-1850 MHz, 2040-2110 MHz, 2200-2300 MHz, 2300-2390 MHz, 2400-2500 MHz
Environment Coverage: True 360°
Ingress Protection Rating: IP55
SENSOR PACKAGES
1. VT300-Z
Narrow Camera: 46 mm equivalent, 64MP, f/1.8, Diagonal Field of View: 50°
Telephoto: 190mm equivalent, 48MP, f/2.2, Diagonal Field of View: 13°
Radiometric Thermal Camera: 60mm equivalent, 640x512 px, Diagonal Field of View: 41°, Thermal Sensitivity: <30mK NEDT
2. VT300-L
Narrow Camera: 46 mm equivalent, 64MP, f/1.8, Diagonal Field of View: 50°
1” Wide Camera: 20mm equivalent, 50MP, f/1.95, Diagonal Field of View: 93°
Radiometric Thermal Camera: 60mm equivalent, 640x512 px, Diagonal Field of View: 41°, Thermal Sensitivity: <30mK NEDT
Illumination: 1000 lumens
SYSTEM SECURITY
Wireless encryption: AES- 256
NDAA Compliance: NDAA Compliant
Root of Trust: HSM protected keys
Internal Disk Storage: Encrypted
SD Cards: Encrypted
Max Flight Time: 40 minutes
Max Takeoff Weight: 2.49 kg
Max Horizontal Speed (at sea level): 20 m/s
Max radio range: 10 km
Operational Temperature Range: -20C to 45C
Operating Frequencies:
Connect MH: 1790-1850 MHz, 2040-2110 MHz, 2200-2300 MHz, 2300-2390 MHz, 2400-2500 MHz
Environment Coverage: True 360°
Ingress Protection Rating: IP55
SENSOR PACKAGES
1. VT300-Z
Narrow Camera: 46 mm equivalent, 64MP, f/1.8, Diagonal Field of View: 50°
Telephoto: 190mm equivalent, 48MP, f/2.2, Diagonal Field of View: 13°
Radiometric Thermal Camera: 60mm equivalent, 640x512 px, Diagonal Field of View: 41°, Thermal Sensitivity: <30mK NEDT
2. VT300-L
Narrow Camera: 46 mm equivalent, 64MP, f/1.8, Diagonal Field of View: 50°
1” Wide Camera: 20mm equivalent, 50MP, f/1.95, Diagonal Field of View: 93°
Radiometric Thermal Camera: 60mm equivalent, 640x512 px, Diagonal Field of View: 41°, Thermal Sensitivity: <30mK NEDT
Illumination: 1000 lumens
SYSTEM SECURITY
Wireless encryption: AES- 256
NDAA Compliance: NDAA Compliant
Root of Trust: HSM protected keys
Internal Disk Storage: Encrypted
SD Cards: Encrypted
Business sector
Subassemblies, equipment and systems of people and property protection
Other
Radio- and opto-electronical equipment
Communication and IT
Brands
Fotokite
Skydio
Atlas Aerospace
Reveal
Farsight
Orqa
Gremsy
Height Technologies
Martlet
