TEKSAM COMPANY NV
- Woudstraat 21, 3600 Genk, Belgium
- +32/89.38.44.72
- info@teksamco.com
- www.teksamco.com
Description
INNOVATION IN MOBILITY, STABILITY AND DEPLOYABILITY FOR MODERN DEFENCE OPERATIONS
TEKSAM COMPANY designs, develops and manufactures since 1974 high-performance telescopic mast systems for defence, security, civil and commercial applications. With more than 50 years of expertise and all production based in Genk, Belgium, we deliver reliable, fast-deployable solutions that meet the highest standards of quality and performance.
Our portfolio includes four specialized brands:
TekMast – Lightweight and heavy-duty pneumatic and sectional telescopic masts, MIL-STD-810 certified.
Clark Masts – Fast-erecting telescopic and sectional mast systems, trusted by civilian and military users for more than 66 years.
TekAir – Air supply systems for pneumatic masts, including vehicle battery-powered and AC-powered (110–230 V) compressors.
TEKLITE – Mobile telescopic lighting systems, trusted worldwide by leading fire vehicle manufacturers.
Manufactured from anodized aircraft-grade aluminium, every mast is produced in-house in Belgium, ensuring precision, quality and short lead times. From engineering and production to testing and logistics, every step is managed under one roof.
Our robust mast systems support communications, surveillance, sensor integration and lighting in demanding operational environments. Designed for rapid deployment, reliability and long service life, they help military and security forces maintain operational superiority in the field.
TEKSAM COMPANY is ISO 9001 certified.
TekMast by TEKSAM COMPANY – Unwavering Support in Every Mission.
TEKSAM COMPANY designs, develops and manufactures since 1974 high-performance telescopic mast systems for defence, security, civil and commercial applications. With more than 50 years of expertise and all production based in Genk, Belgium, we deliver reliable, fast-deployable solutions that meet the highest standards of quality and performance.
Our portfolio includes four specialized brands:
TekMast – Lightweight and heavy-duty pneumatic and sectional telescopic masts, MIL-STD-810 certified.
Clark Masts – Fast-erecting telescopic and sectional mast systems, trusted by civilian and military users for more than 66 years.
TekAir – Air supply systems for pneumatic masts, including vehicle battery-powered and AC-powered (110–230 V) compressors.
TEKLITE – Mobile telescopic lighting systems, trusted worldwide by leading fire vehicle manufacturers.
Manufactured from anodized aircraft-grade aluminium, every mast is produced in-house in Belgium, ensuring precision, quality and short lead times. From engineering and production to testing and logistics, every step is managed under one roof.
Our robust mast systems support communications, surveillance, sensor integration and lighting in demanding operational environments. Designed for rapid deployment, reliability and long service life, they help military and security forces maintain operational superiority in the field.
TEKSAM COMPANY is ISO 9001 certified.
TekMast by TEKSAM COMPANY – Unwavering Support in Every Mission.
Download
-
PP-2465-E-TC-QT-M-Series-leaflet.pdffile size: 1.49 MB
-
PP-2446-E-TC-Type-PU-RCH-PU-RCP-PUX-RCP-Masts-leaflet.pdffile size: 675.82 KB
-
PP-1825-E-TC-Telescopic-masts-for-security-surveillance-applications.pdffile size: 1.15 MB
-
PP-9015-E-TC-RFM-Series-leaflet-2026.pdffile size: 417.11 KB
-
PP-9011-E-TC-RRFM-GME-Motion-leaflet-2026.pdffile size: 903.23 KB
-
PP-2221-E-TC-TekMast-VMS-M-leaflet-2026.pdffile size: 1.25 MB
Products
CLARK MASTS – PU(X)-RCH/P MAST
CLARK MASTS – PU(X)-RCH/P MAST
The PU(X)-RCH/P mast is a modern evolution of the PU-series featuring super locking collars. Available as manual PU-RCH or pneumatic PU(X)-RCP with a separate hand pump. The pneumatic versions accommodate heavier payloads.
Features :
• Retracted height : 1,40 – 2.10 m
• Extended height : 6 – 12 m
• Max. headload : 8 - 40 kg
• Ø base tube : 76,2 mm (3 1/2”)
• Retracted height : 1,40 – 2.10 m
• Extended height : 6 – 12 m
• Max. headload : 8 - 40 kg
• Ø base tube : 76,2 mm (3 1/2”)
CLARK MASTS – FT-RM MAST
CLARK MASTS – FT-RM MAST
The FT-RM mast is based on the QT -range. This variant features an integrated tripod, making it a typical field mast. Manually extended or operated with hand pump.
Features :
• Retracted height : 1,45 – 2.35 m
• Extended height : 3,05 – 11,60 m
• Max. headload : 2,5 – 20 kg
• Ø base tube : 76,2 mm (3”)
• Retracted height : 1,45 – 2.35 m
• Extended height : 3,05 – 11,60 m
• Max. headload : 2,5 – 20 kg
• Ø base tube : 76,2 mm (3”)
CLARK MASTS – PU MAST
CLARK MASTS – PU MAST
The PU mast is a well-proven, robust, manual telescopic mast that uses guy ropes instead of a tripod for field installation. It can also be installed on a vehicle/shelter. Cross-pins are used for mechanical locking.
Features :
• Retracted height : 1,05 – 1.86 m
• Extended height : 3,15 – 11,40 m
• Max. headload : 10 kg
• Retracted height : 1,05 – 1.86 m
• Extended height : 3,15 – 11,40 m
• Max. headload : 10 kg

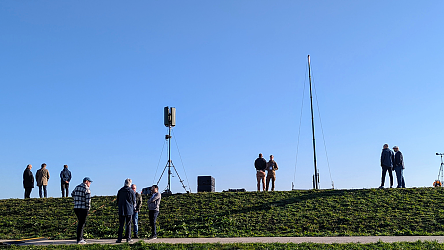

CLARK MASTS – QT-M MAST
CLARK MASTS – QT-M MAST
The QT-M mast is a versatile light-weight mast with 101 applications. Silent, smooth and easy operation.
Features :
• Retracted height : 1 – 27 m
• Extended height : 3 – 12.20 m
• Max. headload : 4,50 – 22,5 kg
• Ø base tube : 50,8 mm (2”) – 88,9 mm (3 ½”)
• Operating wind speeds : 130 km/h
• Retracted height : 1 – 27 m
• Extended height : 3 – 12.20 m
• Max. headload : 4,50 – 22,5 kg
• Ø base tube : 50,8 mm (2”) – 88,9 mm (3 ½”)
• Operating wind speeds : 130 km/h
TekMast VMS-M – VERTICAL MECHANICAL SECTIONAL MAST (Light-weight Version)
TekMast VMS-M – VERTICAL MECHANICAL SECTIONAL MAST (Light-weight Version)
The TekMast VMS-M is an innovative, lightweight tactical field mast engineered for fast and efficient deployment in demanding operational environments. Designed to be erected by just two or three operators, the system can be fully deployed in less than 20 minutes.
For maximum efficiency and safety, the guy ropes and antennas are connected to the mast while it is still at ground level. This unique design enables the antenna and the tubular aluminium mast sections to be raised simultaneously in a single, seamless operation. The lifting process is performed using a removable mechanical or electric winch, providing rapid setup, reduced manpower requirements and exceptional operational flexibility.
Features
• Lightweight and highly portable design
• Up to 24 m operational height
• Max. headload : 50 kg (110 lb)
• Light aluminium alloy sections Ø 60 mm (2 3/8”)
• Deployable by 2-3 operators in less than 20 minutes
• Simultaneous lifting of mast and antenna
• Removable mechanical with guy controllers or electric winch options
• Fast, safe, and reliable field installation
• Operating wind speeds : 130 km/h
• Lightweight and highly portable design
• Up to 24 m operational height
• Max. headload : 50 kg (110 lb)
• Light aluminium alloy sections Ø 60 mm (2 3/8”)
• Deployable by 2-3 operators in less than 20 minutes
• Simultaneous lifting of mast and antenna
• Removable mechanical with guy controllers or electric winch options
• Fast, safe, and reliable field installation
• Operating wind speeds : 130 km/h

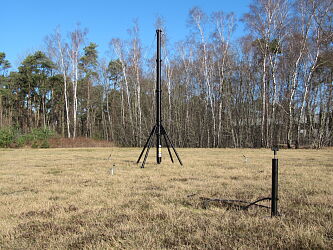

TekMast VPT - VERTICAL PNEUMATIC TELESCOPIC MAST
TekMast VPT - VERTICAL PNEUMATIC TELESCOPIC MAST
The VPT is designed for missions where speed, precision, and stability are critical. It combines rapid pneumatic deployment with exceptional torsional rigidity, setting a new standard in mobile mast performance.
Its full-length keyway design prevents rotation under high wind loads, ensuring precise alignment for antennas and sensors. Clamp collars mechanically lock each section after deployment, maintaining stability without continuous air pressure and improving payload accuracy.
Designed for military special forces and mobile command posts, the VPT deploys within minutes by a single operator. With optional field leg supports, it enables rapid-deployment communications, long-term observation setups, and independent operation on almost any terrain. As a true plug-and-play tactical solution, it supports both short-term missions and extended field deployments.
Features
• Up to 15 m operational height
• Max. headload : 160 kg
• Rapid pneumatic deployment for fast operational readiness
• Deployable by a single operator in minutes
• High torsional rigidity for stable payload performance
• Full-length keyway design prevents mast rotation under wind loads
• Mechanical clamp collars lock sections without continuous air pressure
• High stability in strong wind conditions
• Accurate alignment for antennas and sensor systems
• Vehicle-independent setup with optional field leg supports
• Suitable for both short-term missions and long-term deployments
• Plug-and-play tactical system for mobile command and special forces operations
• Up to 15 m operational height
• Max. headload : 160 kg
• Rapid pneumatic deployment for fast operational readiness
• Deployable by a single operator in minutes
• High torsional rigidity for stable payload performance
• Full-length keyway design prevents mast rotation under wind loads
• Mechanical clamp collars lock sections without continuous air pressure
• High stability in strong wind conditions
• Accurate alignment for antennas and sensor systems
• Vehicle-independent setup with optional field leg supports
• Suitable for both short-term missions and long-term deployments
• Plug-and-play tactical system for mobile command and special forces operations
TEKLITE – RRTM
TEKLITE – RRTM
RRTM : ROOF ROBOT TELESCOPIC MASTS
Roof Robot telescopic mast lighting systems for cars, SUV’S, vans & fire fighting vehicles. Robot head with a tilt- & turning speed of 7,5 seconds over 180°.
Features :
• Compact construction
• Easy to install
• Simple to use
• Powered by the 12/24 volt vehicle battery
• Single or double remote control with an RF remote control as an option
• Automatic stowage by a simple push of a button or by releasing the handbrake
• Built-in compressor or the vehicle air pressure system can be used
• A broad variety of lamp units
• Deadman function available if required
RRTM-EL – LIGHT-WEIGHT VERSION
• Retracted height : 1290 – 1470 mm
• Extended height : 2080 – 3010 mm
• Max. headload : 14 – 22 kg
RRTM-ES - HEAVY-DUTY VERSION
• Retracted height : 1280 – 1890 mm
• Extended height : 2000 – 4460 mm
• Max. headload : 27 – 42 kg
• Retracted height : 1290 – 1470 mm
• Extended height : 2080 – 3010 mm
• Max. headload : 14 – 22 kg
RRTM-ES - HEAVY-DUTY VERSION
• Retracted height : 1280 – 1890 mm
• Extended height : 2000 – 4460 mm
• Max. headload : 27 – 42 kg

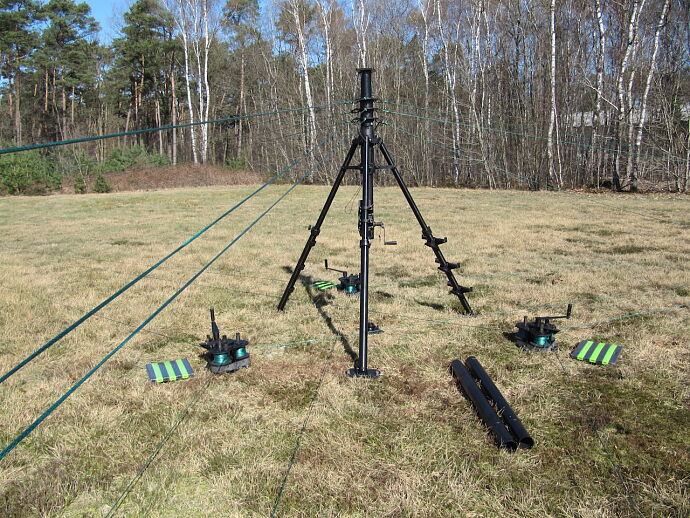

TekMast VMS-X – VERTICAL MECHANICAL SECTIONAL MAST (Extreme-Duty Version)
TekMast VMS-X – VERTICAL MECHANICAL SECTIONAL MAST (Extreme-Duty Version)
MOBILITY - STABILITY - DEPLOYABILITY
In modern defence operations, reliable real-time communication is critical. The TekMast VMS-X from Teksam Company is a next-generation mechanical sectional mast designed for extreme heights, extreme environments and heavy payloads without the need for lifting equipment.
The system features a silent, synchronized guy system with Dyneema lines and mast sections, ensuring fast and efficient deployment. The one-piece foldable tripod design further reduces setup complexity and time, with a winch system for enhanced deployment control.
With an operational height of up to 30 m, the VMS-X offers a strategic advantage in mountainous terrain or dense forests. It can be deployed by four operators in less than 40 minutes. It supports heavy sensor and radar payloads and remains stable in winds up to 130 km/h.
Features
• Extreme-duty version
• Up to 30 m operational height
• Max. headload : 130 kg (… lb)
• Light aluminium alloy sections Ø 90 mm (3 ½”)
• Deployable by 4 operators in less than 40 minutes
• No lifting equipment required
• Supports heavy communication, sensor, and radar payloads
• Silent synchronized guy system with Dyneema lines
• One-piece foldable tripod for rapid setup
• Controlled winch deployment system
• Operating wind speeds : 130 km/h.
• Designed for extreme environments and demanding terrain
• Provides extended communication range and enhanced situational awareness
• Extreme-duty version
• Up to 30 m operational height
• Max. headload : 130 kg (… lb)
• Light aluminium alloy sections Ø 90 mm (3 ½”)
• Deployable by 4 operators in less than 40 minutes
• No lifting equipment required
• Supports heavy communication, sensor, and radar payloads
• Silent synchronized guy system with Dyneema lines
• One-piece foldable tripod for rapid setup
• Controlled winch deployment system
• Operating wind speeds : 130 km/h.
• Designed for extreme environments and demanding terrain
• Provides extended communication range and enhanced situational awareness
