SZCZĘŚNIAK Pojazdy Specjalne Sp. z o.o.
- ul. Bestwińska 105A, 43-346 Bielsko-Biała, Poland
- +48 33 827 34 00
- biuro@psszczesniak.pl
- www.psszczesniak.pl
Description
Over 300 vehicles are manufactured yearly, where 70 % represents vehicles for fire services and remaining 30% - military or special vehicles. They are being operated in 30 countries.
SZCZĘŚNIAK company as one of the first companies within the special vehicles branch in Poland, implemented Integrated Quality Management System which effectiveness is constantly developed according to ISO 9001:2015 and in the environmental scope ISO 14001:2015.
Since 2006, the company has been in possession of concession No. B-046/2006 of the Ministry of the Interior and Administration to conduct business activities in the field of manufacturing and trading: explosives, weapons, ammunition, products and technology for military or police purposes. It has implemented the management system compliant with AQAP 2110: 2016 and the Internal Control System according to the Act of November 29, 2000 on Foreign Trade in Goods, Technologies and Services of Strategic Significance for State Security and for Maintaining International Peace and Security, (Dz.U. 2000 nr 119 pos. 1250, with later changes) enabling to provide deliveries for armed forces. Moreover, the company received the NATO Code of National Economy Entity (NCAGE) 1798H, issued under the NATO Codification System to entities whose business activity is related to the range of defense products covered by the classification of defense products or the provision of defense services.
Our long-term contribution to ensuring the country's infrastructure and security, as well as readiness for the production and supply of military equipment, was noticed and verified by the Ministry of National Defense, as a result of which our company was included in the group of enterprises of special economic and defense importance in 2019. After the Act of March 11, 2022 on the defense of the Fatherland and related regulations entered into force, the company was invited to the process of assigning tasks to the needs reported by the Department of Armament Policy in the Plan to meet the needs of the Polish Armed Forces.
The company's offer includes armored evacuation and rescue vehicles (military), pyrotechnic vehicles, video monitoring, pyrotechnic ambulances and riot control vehicles (the police).
We can be proud of such awards and distinctions as: State Security Leader in the Innovative Product and Innovative Company, Diament Forbes 2020 and the Golden laurel for Innovations, five DEFENDER statuettes granted by the Program Council of the International Defence Industry Exhibition in Kielce, thirteen prizes awarded at the International Exhibition of Rescue and Firefighting Technology EDURA
We design, test, measure and manufacture.
Products

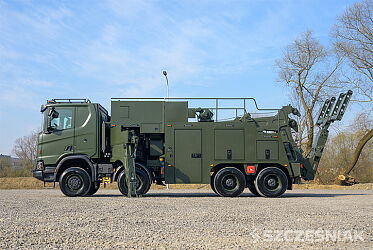

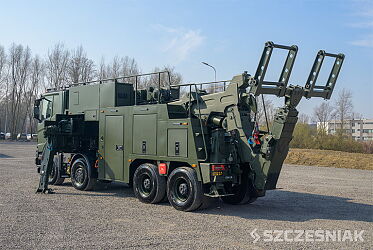

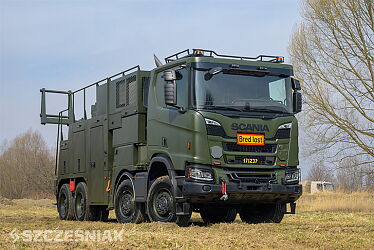

Chassis (type) Scania R520B8X8Hz
Drive system (twin wheels) (8x8)
Weight (GVW) 52 000 kg
Cab (number of seats, layout) Triple (1+1+1)
Engine (max. power) 382 kW (520 hp)
Subframe Welded
Superstructure (material) Stainless steel, aluminum
Number of compartments 8 (3+3) + (2 superstructure roof)
Towing arm (load capacity) 20 000 kg
Hydraulic winch (main) (pulling force) 24,000 kg (rope length 100 m)
Hydraulic winch (auxiliary) (pulling force) 15,000 kg (rope length 60 m)
Hydraulic winch (auxiliary) (pulling force) (2 pcs.) 2 x 10,000 kg (rope length 52 m)
Hydraulic winch (auxiliary for self-evacuation) (pulling force) 11,700 kg (rope length 60 m)

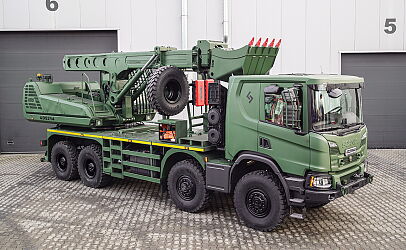

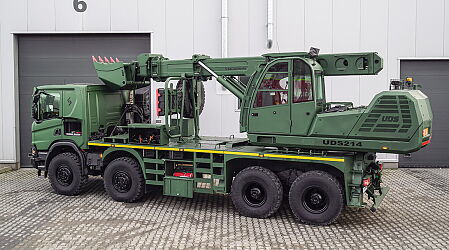

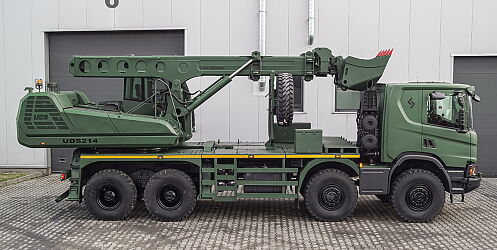

Chassis (type) Scania P460B8X8HZ
Drive system (single wheels) (8x8)
Operator's cabin (number of seats, layout) One-person (1)
Cab (number of seats, layout) Two-person (1+1)
Engine (max. power) 338 kW (460 HP)
Superstructure UDS 214.3 (CSM Industry s.r.o.)
Speed (max.) 90 km/h
Hydraulic supports (amount) Four
Extendable telescopic arm (reach) 10 060 mm
Arm working range 14 600 mm (level)
Telescopic arm (load capacity) 7 000 kg (folded)
2 600 kg (unfolded)
Bucket rotation 360°
Equipment (variants) Bucket for breaking up the surface
Levelling and profiling bucket
Cutting knife
Tongs for rocks or logs of wood
Asphalt cutter
Payload Approx. 19,500 kg
Engine (maximum output) MAN D2676 LF08, EURO 5, 397 kW (540 hp), 2,500 Nm
Transmission ZF 7 AP 2600 S, automatic 7+2-speed, integrated retarder
Driveline 8×8, differential locks
Approach / Departure Angle 40° / 30°

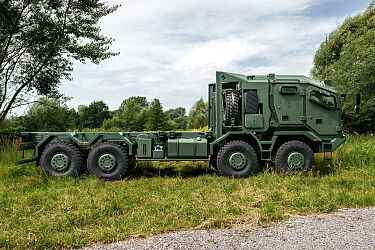

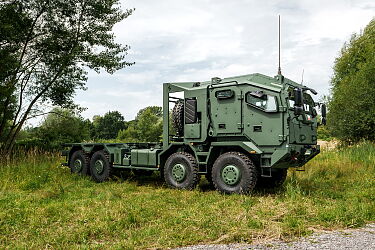

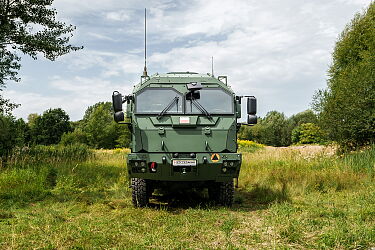

Chassis (type) RMMV HX2 44M
Cab 4–6 persons, 4-door, armoured – STANAG 4569 Level 2
Tyres / CTIS 14.00 R20, single tyres; Central Tyre Inflation System (CTIS)
Container Subframe For 15-ft and 20-ft containers; welded, galvanised construction
Hydraulic Winch (side-mounted) – Pulling Force 100 kN (67 m rope length)
Operating Range Min. 650 km on paved roads / min. 250 km cross-country

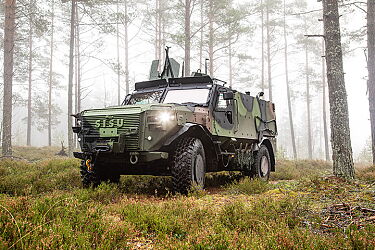

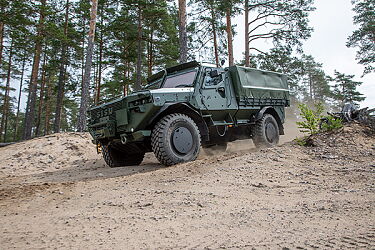

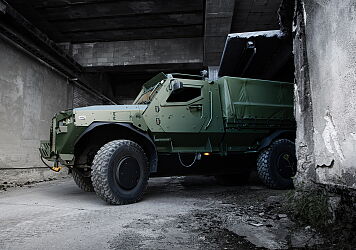

Payload 3000 kg
Engine (maximum power) Mercedes-Benz OM926, 6-cylinder, 4-stroke diesel engine
Transmission 6-speed automatic
Drivetrain 4×4
Approach angle / Departure angle 40° / 40°
Gradeability 60%
Fording depth 1200 mm
CPK Optional – central tire inflation system
Mine protection / Ballistic protection Level 2
Maximum speed ≥ 100 km/h
Range over 600 km
Winch with 50 kN pulling force
