Description
SOC-E is a world-leading technology provider specialising in advanced networking solutions for critical sectors such as Aerospace, Space, Defence and Energy.
With strong technological and sector-specific expertise, SOC-E develops high-performance, highly reliable communication systems that address the major connectivity challenges faced by these sectors. SOC-E is a global leader in TSN — Time-Sensitive Networking — technology, with a solution offering multi-profile and multi-sector coverage and providing a comprehensive proposition for deterministic, reliable and accurate real-time Ethernet communications, even in the most demanding environments, including mission- and safety-critical applications.
To achieve this, SOC-E relies on FPGA technology, enabling it to provide flexible, scalable solutions that can be adapted over time thanks to the reprogrammability of its products.
With hundreds of projects delivered worldwide, SOC-E combines extensive experience in these sectors with long-term support, which is key for applications with extended life cycles and highly demanding requirements in terms of reliability, availability and performance.
With strong technological and sector-specific expertise, SOC-E develops high-performance, highly reliable communication systems that address the major connectivity challenges faced by these sectors. SOC-E is a global leader in TSN — Time-Sensitive Networking — technology, with a solution offering multi-profile and multi-sector coverage and providing a comprehensive proposition for deterministic, reliable and accurate real-time Ethernet communications, even in the most demanding environments, including mission- and safety-critical applications.
To achieve this, SOC-E relies on FPGA technology, enabling it to provide flexible, scalable solutions that can be adapted over time thanks to the reprogrammability of its products.
With hundreds of projects delivered worldwide, SOC-E combines extensive experience in these sectors with long-term support, which is key for applications with extended life cycles and highly demanding requirements in terms of reliability, availability and performance.
Products
ETSN
ETSN
ETSN provides Time-Sensitive Networking (TSN) capabilities to devices that operate as end systems in the network. End systems typically behaving as the source (talker) and/or sink (listener) of the data that is exchanged within the network.
With a rich set of layer-2 configurable features, both at synthesis time & during runtime, ETSN allows building advanced end systems with TSN capabilities. ETSN switch has been designed to address the maximum throughput using optimized resources.
The internal micro-architecture includes disruptive enhancements in order to ensure a reliable operation of the endpoint even in critical use-cases.
All these characteristics enable a wide number of applications/sectors where the use of ETSN IP Core is key. Automotive, Marine, Aerospace, Defence or Electric are examples of markets where our customers are already applying this technology.
MTSN
MTSN
MTSN is a multi-port, multi-rate managed Ethernet switch with Time-Sensitive Networking (TSN) capabilities to achieve deterministic Ethernet solutions in which streams are delivered with guaranteed bandwidth and deterministic latency.
With a rich set of layer-2 configurable features, both at synthesis time & during runtime, MTSN allows building advanced Ethernet switch systems with TSN capabilities. MTSN switch has been designed to address the maximum throughput using optimized resources.
All these characteristics enable a wide number of applications/sectors where the use of MTSN IP Core is key. Automotive, Marine, Aerospace, Defence or Electric are examples of markets where our customers are already applying this technology.
TGES
TGES
TGES is a multi-port, multi-rate managed Ethernet switch with Time-Sensitive Networking (TSN) capabilities.
TGES has a rich set of configurable parameters, both at synthesis time & during runtime, in order to optimize the logic resources footprint attending to the specific user needs. These generics can be configured graphically through the Vivado GUI as well.
The internal micro-architecture includes disruptive enhancements in order to ensure a reliable operation of the switch even in critical use-cases.
All these characteristics enable a wide number of applications/sectors where the use of TGES IP Core is key. Automotive, Marine, Aerospace, Defence or Electric are examples of markets where our customers are already applying this technology.

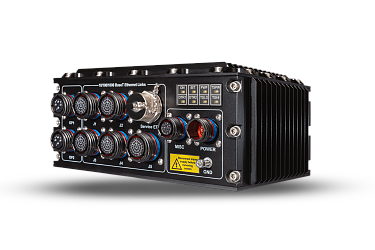

MIL-GM/MIL-10GM
MIL-GM/MIL-10GM
The MIL-GM and MIL-10GM series are military-certified time servers that leverage SOC-E’s advanced synchronisation technology to provide reliable, continuous and accurate timing for mission-critical applications.
The switching electronics are implemented in a high-performance FPGA, enabling full customisation to customer requirements. Based on a field-proven COTS solution, this MOTS approach reduces project risk while delivering an interoperable, low-SWaP platform that combines time server and bridging functions with switching, routing, firewall and edge computing capabilities in a single device.
With configurable network connectivity and a lightweight, compact MIL-STD-810G certified chassis, the MIL-GM/MIL-10GM series adapts to demanding operational environments and meets Digital Backbone (DBB) requirements for military programmes.
- Grand Master and Clock bridging (NTP <-> PTP <-> GNSS) capabilities with accurate time distribution via IEEE 1588 (PTP)
- Optional support for IRIG-B and IEEE 802.1AS
- Up to 26 configurable Ethernet 10/100/1000Base-T and 1GbE/10GbE Fibre Optic ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply
- Optional support for IRIG-B and IEEE 802.1AS
- Up to 26 configurable Ethernet 10/100/1000Base-T and 1GbE/10GbE Fibre Optic ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply

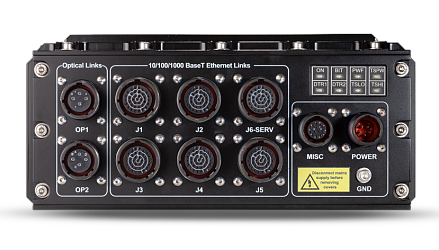

MIL-SR/MIL-10SR
MIL-SR/MIL-10SR
The MIL-SR and MIL-10SR series are military-certified switch routers that take full advantage of SOC-E’s advanced and well-known networking technology to ensure the best performance and availability for mission-critical applications. The switching electronics are implemented in a high-performance FPGA, allowing the devices to be fully customized to each customer’s specific requirements.
This MOTS approach, based on a field-proven COTS solution to minimize project risk, results in a SWaP interoperable all-in-one device, that combines switching, routing, time server, firewall and edge computing capabilities in single hardware platform.
With fully customisable external network connectivity and a lightweight and compact MIL-STD-810G certified chassis, the MIL-SR/MIL-10SR series can adapt to almost any situation and meet the requirements of a Digital Backbone (DBB) in the most demanding mil
- Up to 26 configurable Ethernet 10/100/1000-BaseT and 1GbE/10GbE Fibre Optic ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 1588 (PTP)
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply.
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 1588 (PTP)
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply.

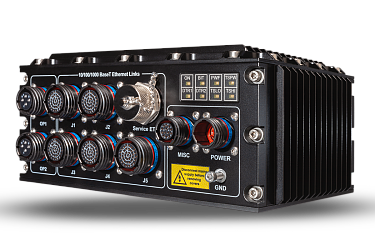

MIL-SSR/MIL-10SSR
MIL-SSR/MIL-10SSR
The MIL-SSR and MIL-10SSR series are military-certified secure routers that leverage SOC-E’s advanced networking technology to deliver secure, reliable and highly available communications for demanding land, air and sea defence applications.
The switching electronics are implemented in a high-performance FPGA, enabling full customisation to customer requirements. Based on a field-proven COTS solution, this MOTS approach reduces project risk while providing an interoperable, low-SWaP platform that integrates routing, firewall, VPN, time server and edge computing capabilities in a single device.
With configurable network connectivity and a lightweight, compact MIL-STD-810G certified chassis, the MIL-SSR/MIL-10SSR series adapts to a wide range of operational scenarios and meets the needs of the most demanding military programmes.
- Up to 26 configurable Ethernet 10/100/1000-BaseT and 1GbE/10GbE Fibre Optic ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 1588 (PTP)
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 1588 (PTP)
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply

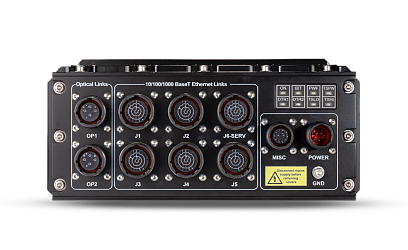

MIL-TSN/MIL-10TSN
MIL-TSN/MIL-10TSN
The MIL-TSN and MIL-10TSN series are military-certified switches that take full advantage of TSN technology to deliver both performance and availability improvements over traditional networks, being the difference between them that the former only supports 1G ports while the latter also supports 10G ports.
TSN allows to merge hard real-time and best effort traffic on the same network, and to deliver messages on-time without any loss or disturbance in the traffic. This leads to reduce equipment costs and to simplify maintenance, making it the first choice for future Ethernet networks.
With fully customisable external network connectivity and a lightweight and compact MIL-STD-810G certified enclosure, the MIL-TSN/MIL-10TSN series adapt to almost any situation and meet the requirements of the most demanding military programmes. The switching electronics is implemented in a high-performanc
- Up to 26 configurable Time-Sensitive Networking (TSN) 10/100/1000-BaseT and 1GbE/10GbE Fibre Optic ports
- Reconfigurable MPSoC platform with edge computing capabilities to be fully compliant with IEEE 802.1DP and other TSN profiles
- “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
- All-in-one equipment with optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 802.1AS
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port. Compliant with Qcc for centralised configuration through YANG model configuration files
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply
- Supported TSN features:
- IEEE 802.1AS-2020
- IEEE 802.1Qbv
- IEEE 802.1Qbv
- IEEE 802.1CB
- IEEE 802.1Qci
- IEEE 802.1Qcc
- Reconfigurable MPSoC platform with edge computing capabilities to be fully compliant with IEEE 802.1DP and other TSN profiles
- “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
- All-in-one equipment with optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 802.1AS
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port. Compliant with Qcc for centralised configuration through YANG model configuration files
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply
- Supported TSN features:
- IEEE 802.1AS-2020
- IEEE 802.1Qbv
- IEEE 802.1Qbv
- IEEE 802.1CB
- IEEE 802.1Qci
- IEEE 802.1Qcc
MILS0800-SR
MILS0800-SR
As modern military vehicles become increasingly digitised, Ethernet has become a critical backbone for enabling high-speed, reliable, and interoperable communications between onboard systems. From sensor integration to real-time data sharing, Ethernet ensures seamless connectivity across mission-critical platforms.
The MILS0800-SR switch is the entry level model of the new MILS platform series. This compact unit provides high-performance Ethernet switching and connectivity in space-constrained military environments.
Compact in size. Powerful in performance. Designed for duty.
- Entry level 8x 10/100/1000BASE-T Copper Ethernet ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities.
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities.
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply

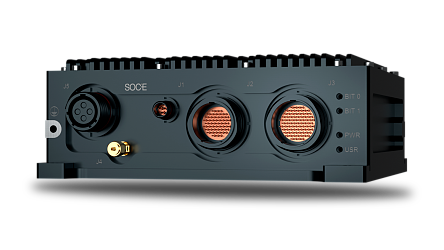

MILS0802-10GM
MILS0802-10GM
In modern defence operations, precise time synchronization is a mission-critical asset. Time is the invisible backbone of coordinated action. Without accurate synchronization, communication, targeting, and situational awareness can be compromised quicky.
The compact MILS0802-10GM military switch is designed to deliver secure, accurate, and resilient timing at the tactical edge. Its small form factor allows for seamless deployment in mobile platforms, UAVs, tactical vehicles, and field command posts, where space and power are at a premium.
Offering speeds up to 10Gbps, SOC-E’s advanced cybersecurity features are combined with time serving functionalities in this space-efficient switch.
- Grand Master and Clock bridging (NTP <-> PTP <-> GNSS) capabilities with accurate time distribution via IEEE 1588 (PTP)
- 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 10GbE-SR/LR Fiber Optic Ethernet ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply
- 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 10GbE-SR/LR Fiber Optic Ethernet ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply

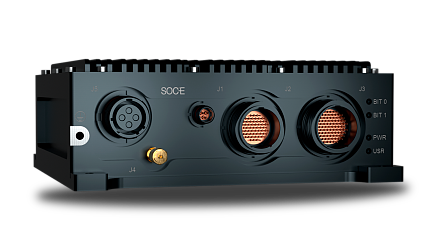

MILS0802-10TSN
MILS0802-10TSN
In modern defence systems, real-time data transport is critical. Timing and bandwidth define mission success.
The MILS0802-10TSN is a rugged, compact military switch with integrated TSN capabilities designed to deliver deterministic Ethernet performance and high-speed connectivity up to 10 Gbps, enabling time-critical data flows across tactical systems.
Built for the most demanding operational environments, its small form factor allows seamless integration into space-constrained platforms such as ground vehicles, and mobile command nodes. Time-Sensitive Networking (TSN) ensures bounded latency, low jitter, and synchronized traffic, making it ideal for real-time applications.
With full support for TSN standards and military-grade hardening, MILS0802-10TSN switch provides both performance and resilience in the harshest conditions.
- 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 10GbE-SR/LR Fibre Optic Ethernet ports
- Reconfigurable MPSoC platform with edge computing capabilities to be fully compliant with IEEE 802.1DP and other TSN profiles
- “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
- All-in one equipment with Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 802.1AS
- Advanced security means including IEEE 802.1X and MACsec
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port, compliant with IEEE 802.1Qcc for centralised configuration through YANG model configuration files
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply
- Reconfigurable MPSoC platform with edge computing capabilities to be fully compliant with IEEE 802.1DP and other TSN profiles
- “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
- All-in one equipment with Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 802.1AS
- Advanced security means including IEEE 802.1X and MACsec
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port, compliant with IEEE 802.1Qcc for centralised configuration through YANG model configuration files
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply

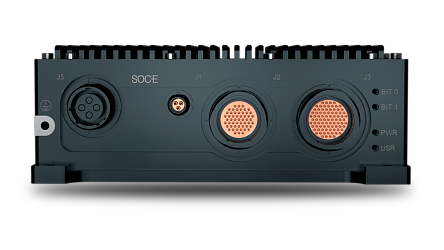

MILS0802-SR
MILS0802-SR
As modern military vehicles become increasingly digitised, Ethernet has become a critical backbone for enabling high-speed, reliable, and interoperable communications between onboard systems. From sensor integration to real-time data sharing, Ethernet ensures seamless connectivity across mission-critical platforms.
The MILS0802-SR switch is a compact unit that combines high-performance Ethernet switching with edge computing capabilities, enabling real-time data processing and connectivity in space-constrained military environments.
Compact in size. Powerful in performance. Designed for duty.
- 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 1000BASE-SX/LX Fiber Optic Ethernet ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities.
- Advanced security means including IEEE 802.1X and MACsec
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities.
- Advanced security means including IEEE 802.1X and MACsec
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-1275E power supply

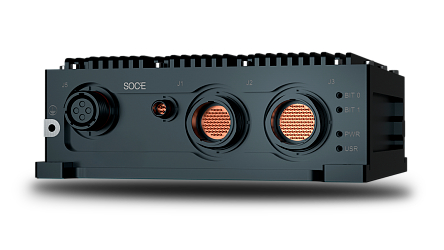

MILS0802-SSR
MILS0802-SSR
The MILS0802-SSR is a compact military-grade switch engineered to deliver secure, high-reliability communications in space-constrained, high-risk operational environments. Designed with tactical flexibility in mind, its minimal size allows for seamless integration into space-constrained platforms, tactical vehicles, and forward-deployed systems, without compromising on performance.
With embedded encryption and advanced cybersecurity features, it ensures data confidentiality, integrity, and availability even in contested or electronically hostile zones.
Small in form. Secure in function. Built for the mission.
- 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 1000BASE-SX/LX Fiber Optic Ethernet ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Clock bridging capabilities with accurate time distribution via IEEE 1588 (PTP)
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Clock bridging capabilities with accurate time distribution via IEEE 1588 (PTP)
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply
PTB
PTB
Novelty product
PreciseTimeBasic is a PTP Ordinary (master / time transmitter & slave / time receiver) capable clock for System-on-Programable Chip (SoPC). As a time receiver it provides nanosecond level clock synchronized to network PTP time transmitter. As a time transmitter it generates all the required PTP frames.
This solution is composed by three main components: An IP Core for FPGA that implements the timestamping unit (TSU); a PTP stack for Linux operating system (running on the in-built SoPC processor) and a driver (provided as a patch for Linux kernel).
PreciseTimeBasic IP Core is specifically designed for AMD/Xilinx SoPC platforms, specifically Zynq®-7000 & Zynq®UltraScale+ MPSoC families.
This product provides higher accuracy and flexibility compared to SOC-E 1588Tiny IP Core by making use of a software PTP stack.
This solution is composed by three main components: An IP Core for FPGA that implements the timestamping unit (TSU); a PTP stack for Linux operating system (running on the in-built SoPC processor) and a driver (provided as a patch for Linux kernel).
PreciseTimeBasic IP Core is specifically designed for AMD/Xilinx SoPC platforms, specifically Zynq®-7000 & Zynq®UltraScale+ MPSoC families.
This product provides higher accuracy and flexibility compared to SOC-E 1588Tiny IP Core by making use of a software PTP stack.
SPWN
SPWN
Novelty product
The SpaceWire IP Core implements a complete, reliable and fast SpaceWire encoder-decoder which has been designed according to ECSS-E-ST-50-12C.
SpaceWire protocol is a standard for high-speed links and networks for use in on-board spacecraft, easing the interconnection of sensors, mass-memories, processing units and downlink telemetry sub-systems. It is a full-duplex, bidirectional, serial, point-to-point data link. It encodes data using two differential pairs in each direction. That is a total of eight signal wires, four in each direction.
The SpaceWire RDDP (reliable data delivery protocol) is applicable to many aerospace microelectronics devices like spacecraft systems, nano satellites (i.e. CubeSat), space cameras, OBC (On Board Computer) and embedded microcontrollers.
This IP core can operate up to the packet level in point-to-point links, without requiring any destination address.
SpaceWire IP Core has been designed all-in RTL (VHDL), without the requiring an external microprocessor or software for encoding / decoding in order to reduce the required gate & memory.
SpaceWire protocol is a standard for high-speed links and networks for use in on-board spacecraft, easing the interconnection of sensors, mass-memories, processing units and downlink telemetry sub-systems. It is a full-duplex, bidirectional, serial, point-to-point data link. It encodes data using two differential pairs in each direction. That is a total of eight signal wires, four in each direction.
The SpaceWire RDDP (reliable data delivery protocol) is applicable to many aerospace microelectronics devices like spacecraft systems, nano satellites (i.e. CubeSat), space cameras, OBC (On Board Computer) and embedded microcontrollers.
This IP core can operate up to the packet level in point-to-point links, without requiring any destination address.
SpaceWire IP Core has been designed all-in RTL (VHDL), without the requiring an external microprocessor or software for encoding / decoding in order to reduce the required gate & memory.
XMC-SR/XMC-10SR
XMC-SR/XMC-10SR
The XMC-SR and XMC-10SR series are military-certified switch routers that take full advantage of SOC-E’s advanced and well-known networking technology to ensure the best performance and availability for mission-critical applications. The switching electronics are implemented in a high-performance FPGA, allowing the devices to be fully customized to each customer’s specific requirements.
This MOTS approach, based on a field-proven COTS solution to minimize project risk, results in an all-in-one device, that combines switching, routing, firewall and edge computing capabilities in single hardware platform.
Fully compliant with VITA 42/61 standards and SOSA aligned, the XMC-SR/XMC-10SR series can adapt to almost any situation and meet the requirements of a Digital Backbone (DBB) in the most demanding military programmes.
- Up to 17 configurable Ethernet 10/100/1000BASE-T and 1GbE/10GbE ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Compliant with VITA 42.0, VITA 61.0, VITA 42.3 and SOSA aligned
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Compliant with VITA 42.0, VITA 61.0, VITA 42.3 and SOSA aligned
XMC-SSR/XMC-10SSR
XMC-SSR/XMC-10SSR
The XMC-SSR and XMC-10SSR series are military-certified secure switch routers that take full advantage of SOC-E’s advanced and well-known networking technology to ensure secure, reliable and high-available communications in the most demanding battlefield environments for land, air and sea platforms.
The switching electronics are implemented in a high-performance FPGA, allowing the devices to be fully customized to each customer’s specific requirements. This MOTS approach, based on a field-proven COTS solution to minimize project risk, results in an all-in-one device, that combines switching, routing, firewall and edge computing capabilities in single hardware platform.
Fully compliant with VITA 42/61 standards and SOSA aligned, the XMC-SSR/XMC-10SSR series can adapt to almost any situation and meet the requirements of the harshest military programmes.
- Up to 17 configurable Ethernet 10/100/1000BASE-T and 1GbE/10GbE ports
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Compliant with VITA 42.0, VITA 61.0, VITA 42.3 and SOSA aligned
- Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
- Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
- Optional “Zero-Packet Loss” redundancy based on HSR/PRP protocols for high-availability communications
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
- Compliant with VITA 42.0, VITA 61.0, VITA 42.3 and SOSA aligned
XMC-TSN/XMC-10TSN
XMC-TSN/XMC-10TSN
The XMC-TSN and XMC-10TSN series are military-certified switch routers that leverage SOC-E’s TSN technology to improve network performance, determinism and availability.
TSN enables hard real-time and best-effort traffic to coexist on the same Ethernet network, ensuring timely data delivery without packet loss or traffic interference. This reduces equipment costs, simplifies maintenance and makes TSN a key technology for next-generation defence networks.
Fully compliant with VITA 42/61 standards and SOSA aligned, the XMC-TSN/XMC-10TSN series meets Digital Backbone (DBB) requirements for demanding military programmes. Its high-performance FPGA-based switching electronics allows adaptation to the latest TSN profiles, ensuring long-term flexibility and technology readiness.
- Up to 17 configurable Ethernet 10/100/1000BASE-T and 1GbE/10GbE ports
- Reconfigurable MPSoC platform with edge computing capabilities to be fully compliant with IEEE 802.1DP and other TSN profiles
- “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
- All-in-one equipment with optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 802.1AS
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port. Compliant with Qcc for centralized configuration through YANG model configuration files
- Compliant with VITA 42.0, VITA 61.0, VITA 42.3 and SOSA aligned
- Supported TSN features:
- IEEE 802.1AS-2020
- IEEE 802.1Qbv
- IEEE 802.1Qbv
- IEEE 802.1CB
- IEEE 802.1Qci
- IEEE 802.1Qcc
- Reconfigurable MPSoC platform with edge computing capabilities to be fully compliant with IEEE 802.1DP and other TSN profiles
- “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
- All-in-one equipment with optional Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 802.1AS
- Advanced security means including IEEE 802.1X and MACsec, and optional firewall and VPN capabilities
- Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port. Compliant with Qcc for centralized configuration through YANG model configuration files
- Compliant with VITA 42.0, VITA 61.0, VITA 42.3 and SOSA aligned
- Supported TSN features:
- IEEE 802.1AS-2020
- IEEE 802.1Qbv
- IEEE 802.1Qbv
- IEEE 802.1CB
- IEEE 802.1Qci
- IEEE 802.1Qcc
Aero-TSN EP
Aero-TSN EP
Novelty product
Critical applications cannot rely only on conventional best-effort Ethernet behaviour. They require bounded latency, controlled jitter, high reliability, precise time synchronization and predictable network performance.
This is where TSN becomes especially relevant. TSN extends standard Ethernet with mechanisms for deterministic communication, traffic scheduling, redundancy and time-aware operation. In aerospace, these capabilities are being consolidated through the IEEE 802.1DP profile, which defines how selected TSN and IEEE 802.1 security mechanisms can be applied to onboard Ethernet networks, providing a common framework for deterministic and interoperable communication.
AeroTSN-EP has been developed with this evolution in mind. The IP Core is designed as a TSN-capable end point for FPGA-based platforms, enabling deterministic Ethernet interfaces closer to the application logic while simplifying the development of systems requiring precise timing, controlled traffic and redundancy.
AeroTSN-EP also targets DAL A compliance under DO-254, supporting safety-critical aerospace and defence applications that demand robust design, verification and traceability.
This is where TSN becomes especially relevant. TSN extends standard Ethernet with mechanisms for deterministic communication, traffic scheduling, redundancy and time-aware operation. In aerospace, these capabilities are being consolidated through the IEEE 802.1DP profile, which defines how selected TSN and IEEE 802.1 security mechanisms can be applied to onboard Ethernet networks, providing a common framework for deterministic and interoperable communication.
AeroTSN-EP has been developed with this evolution in mind. The IP Core is designed as a TSN-capable end point for FPGA-based platforms, enabling deterministic Ethernet interfaces closer to the application logic while simplifying the development of systems requiring precise timing, controlled traffic and redundancy.
AeroTSN-EP also targets DAL A compliance under DO-254, supporting safety-critical aerospace and defence applications that demand robust design, verification and traceability.
Brands
SocTek - RelyUm
