Description
Pagacz i Synowie Company deals with the supply of specialized equipment for the army, police and other uniformed services, implemented on the basis of the Public Procurement Law.
The company provide the top class equipment, offering delivery, installation, service and training support for our clients so that they can take full advantage of the equipment and services provided.
The company provides services in the field of repair and overhaul of analogue communication equipment and optical equipment. Pagacz company is the owner of Polskie Zakłady Optyczne (Polish Optics Plants) - PZO offering optical devices for military equipment and artillery.
The company provide the top class equipment, offering delivery, installation, service and training support for our clients so that they can take full advantage of the equipment and services provided.
The company provides services in the field of repair and overhaul of analogue communication equipment and optical equipment. Pagacz company is the owner of Polskie Zakłady Optyczne (Polish Optics Plants) - PZO offering optical devices for military equipment and artillery.
Products
PG-1 M-64 Panoramic Telescope
PG-1 M-64 Panoramic Telescope
It is an optical device of the sight and is used to aim the launcher horizontally during indirect fire (from covered firing positions) and horizontally as well as vertically during direct fire (straight ahead).
Panoramic periscope sight is an angled telescope, consisting of a stationary lower part with an eyepiece scope and a rotating head. On the stationary part there is a hook for attaching the telescope, and the sighting box is attached to the movable part.
Magnification: 4 x
Field of view: 10°
Range of viewing angles: horizontally 360° (64-00)
vertically ±18° (±3-00)
Exit pupil diameter: 4 mm
Eye relief: ±20 mm
Field of view: 10°
Range of viewing angles: horizontally 360° (64-00)
vertically ±18° (±3-00)
Exit pupil diameter: 4 mm
Eye relief: ±20 mm

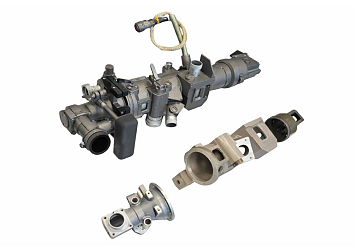

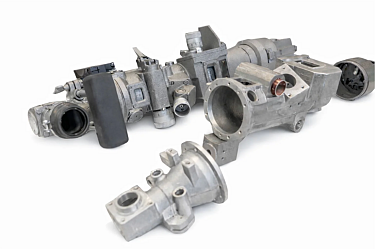

Panoramic Telescope PP-81 M-64
Panoramic Telescope PP-81 M-64
The PP-81 M-64 periscopic observation device is designed for battlefield observation and aiming. The device was designed to enable precise indirect fire, both during the day and at night. The use of the M-64 standard ensures full compatibility with NATO procedures and instruments used for measuring horizontal angles, which is crucial during combined operations and international exercises.
For PG-2 Sight Assembly.
Prismatic binoculars 7x45Z
Prismatic binoculars 7x45Z
The 7x45Z type prismatic binoculars were designed for the military and special services. They feature high quality optics and a durable construction, that have stood up to difficult combat conditions whether on land, sea or in the air.
Magnification: 7x
Field of view angle: 7°
Exit pupil diameter: 6,5 mm
Exit pupil distance: 23 mm
Resolution: 8"
Scope of rangefinder scale for a target height of 2,5m: 800 - 2800 m
Scale range for horizontal angle measurements: ± 0 – 50 thousandths
Scale range for vertical angle measurements: ± 0 – 50 thousandths
Eyepiece adjustment range: ± 5 diopters
Temperature resistance: ± 45° C
Field of view angle: 7°
Exit pupil diameter: 6,5 mm
Exit pupil distance: 23 mm
Resolution: 8"
Scope of rangefinder scale for a target height of 2,5m: 800 - 2800 m
Scale range for horizontal angle measurements: ± 0 – 50 thousandths
Scale range for vertical angle measurements: ± 0 – 50 thousandths
Eyepiece adjustment range: ± 5 diopters
Temperature resistance: ± 45° C
Optical Sight T-3
Optical Sight T-3
Optical Sight T-3 is used for towed cannon missile set ZUR-23-25.
Magnification: 3,5x
Field of view: 4°30”
Resolution: 17”
Exit eye-pupil diameter: 6 mm
Exit eye-pupil distance: 72 mm
Diopter setting of eyepiece: -0,5 ÷ -1,25
Scale of sight angles enabling aiming for the distance: 500 ÷ 2000 m
Field of view: 4°30”
Resolution: 17”
Exit eye-pupil diameter: 6 mm
Exit eye-pupil distance: 72 mm
Diopter setting of eyepiece: -0,5 ÷ -1,25
Scale of sight angles enabling aiming for the distance: 500 ÷ 2000 m

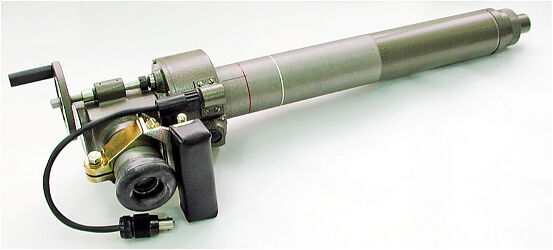

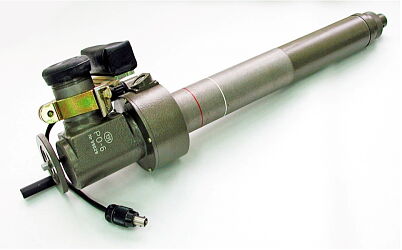

Periscope PO-6
Periscope PO-6
The periscope PO-6 is used for the observation of terrain and objects located
thereon, and enables this to be carried out without the necessity of getting out of
the vehicle. The periscope PO-6 enables a circuitous observation (360°) without the necessity of repositioning of either the vehicle or the operator.
Magnification: min. 1.3x - 1.7x
Viewing area: min. 26°
Definition: 40"
Initial eye-pupil diameter: 5 mm
Initial eye-pupil distance: 20 mm
Viewing area: min. 26°
Definition: 40"
Initial eye-pupil diameter: 5 mm
Initial eye-pupil distance: 20 mm
RunFlat Tyre Inserts
RunFlat Tyre Inserts
RunFlat International is a leading manufacturer of RunFlat systems for the security and defense sectors, known for its exceptional performance, quality, and customer service. RunFlat International Polska is able to supply RunFlat systems designed for various types of vehicles:
• Military vehicles,
• Emergency vehicles,
• Vehicles for transporting high-value cargo (armored cash transport vehicles),
• VIP vehicles,
• Vehicles for humanitarian organizations,
• Buses,
• Tractors,
• Humanitarian organization vehicles,
• Buses,
• Tractors,
• Trailers.
In the event of a flat tyre, the inserts allow the driver to maintain control of the vehicle and continue driving safely (with one or more damaged tyres).
