PD-2 Unmanned Aerial System

PD-2 is a high-performance modular unmanned aerial system designed for long-range reconnaissance, surveillance, and multipurpose missions. With up to 10 hours of endurance, a flight route of up to 1,300 km, and an 11 kg payload capacity, it supports a wide range of mission profiles, including ISR, precision targeting, cargo delivery, communications relay, and SAR operations. The system supports multiple EO/IR camera configurations with laser designators, enabling accurate target detection, tracking, and designation for precision-guided weapons. PD-2 is available in both VTOL and fixed-wing configurations, providing operational flexibility for deployment from virtually any location or conventional runways.

Flight Endurance - Up to 8 h (VTOL), up to 10 h (Fixed-Wing)
Communication - Radio up to 180 km / Starlink
Flight Route - Up to 800 km (VTOL), up to 1,300 km (Fixed-Wing)
MTOW - 55 kg (VTOL), 45 kg (Fixed-Wing)
Maximum Payload - 11 kg
Wingspan - 5 m (VTOL), 4 m (Fixed-Wing)
Cruise Speed - 100 km/h
Max. Ceiling - 4,500 m (VTOL), 6,200 m (Fixed-Wing)
Deployment Time - Up to 60 min*
Relaunch Time - Up to 20 min
Takeoff / Landing - Vertical, from any location (VTOL) / Runway (Fixed-Wing)

SHARK-M Unmanned Aerial System

SHARK-M is an upgraded electric ISR unmanned aerial system designed for long-range reconnaissance, surveillance, and target tracking. With up to 7 hours of endurance and a communication range of up to 180 km, it enables deep ISR missions while allowing crews to operate at a safer distance from the frontline. SHARK is one of the most widely used reconnaissance UAV systems in Ukraine, operated across all services of the Ukrainian Armed Forces. SHARK-M features advanced gyro-stabilized EO/IR/LRF optics for effective day-and-night missions, is resistant to electronic warfare, and performs reliably in challenging weather conditions. The system is catapult-launched and recovered by parachute.

Flight Time - Up to 7.5 h
Communication - Radio up to 180 km / Starlink
Flight Route - Up to 420 km
Max. Ceiling - 7,000 m
Wingspan - 3.4 m
MTOW ≈ 14.5 kg
Engine Type - Electric
Takeoff / Landing - Catapult / Parachute

MEANS OF PERSONAL PROTECTION UKRTAC

UKRTAC, is a licensed Ukrainian manufacturer of personal protective equipment and has a referral for the production of protective suits (aprons) for humanitarian demining. It is the first and, to date, the only one that has passed tests, production inspections and received a certificate of conformity from DNDI VS OVT, Cherkasy (the most powerful military research base in Ukraine).

UKRAC has 3 full-fledged own productions:
- production of bulletproof vests, armor sets and related ammunition
- production of ballistic Kevlar helmets
- production of soft ballistic protection elements
Collecting feedback from the military, our specialists are engaged in constant improvement of the range, using the highest quality and latest technologies.

A1-CM FURIA UAS ATHLON AVIA

The UAS A1-CM “Furia” has been developed and manufactured by LLC SPC Athlon Avia since 2014. During this time, more than 100 systems of various modifications have been produced for the needs of the Armed Forces of Ukraine, the National Guard of Ukraine, and the Security Service of Ukraine. In 20192020, the UAS passed a full spectrum of state tests and was adopted by the Armed Forces of Ukraine. Since 2014 the system is widely used during the Joint Forces Operation in eastern Ukraine to conduct aerial reconnaissance and artillery fire adjustment. The long flight endurance and the long-range of the command line make it possible to carry out tasks at a tactical depth up to 50 kilometers. The system consists of the three unmanned aerial vehicles, three daytime payloads, and two nighttime payloads equipped with thermal imagers.

Type: Flying wing
Materials: Fiberglass, carbon fiber, Kevlar
Wingspan: 2000 mm
Length: 900 mm
Power plant: Electric motor
Power supply: Li-ion batteries 42000 mAh
Range: 70 km
Flight time: Up to 4 hours
Cruising speed: 65 km/h
Route length: Up to 200 km
Wind speed during mission: Up to 15 m/s
Take-off weight: 5.5 kg
Landing types: Parachute, airplane-style
Launch method: Elastic or mechanical catapult
Flight modes: Semi-automatic, autonomous, controlled

A2-C FURIA 2 UAS ATHLON AVIA

The Unmanned Aerial System A2-S “Furia 2” is an upgraded version of the battle-tested UAS “Furia,” signifi cantly surpassing its predecessor in all parameters. The “Furia 2” offers even greater effi ciency in performing reconnaissance and combat missions. The A2-S “Furia 2” is designed with years of experience in the development and use of unmanned aerial systems, ensuring high performance and reliability even in the most challenging conditions. The A2-S “Furia 2” is a modern solution for accomplishing the most critical tasks with maximum effi ciency and minimal risk.

Wingspan: 3.6 meters
Fuselage length: 0.9 meters
Overall length: 1.2 meters
Weight: 15-19 kg
Batteries: 90Ah, 7.8 kg
Flight time: 4+ hours
Flight range: 300+ km
Flight speed: 80 km/h
Flight radius: 50+ km
Launch type: Catapult
Payload: Interchangeable optical modules (weight 0-4
kg)

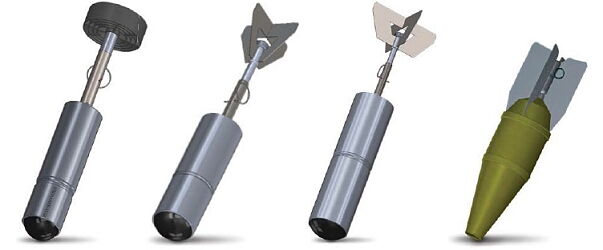

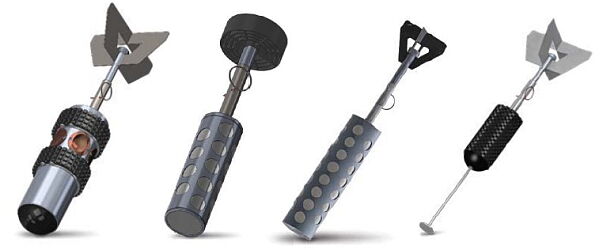

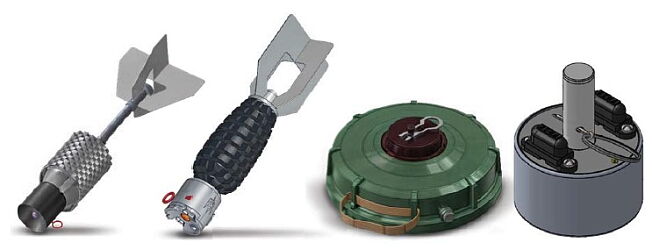

AMMUNITION FOR UAV`s UKRAINIAN BOMB MANUFACTURE UBM

The production of high-explosive fragmentation shaped charge devices is a crucial aspect of modern warfare. These devices are designed to be used against armoured and lightly armoured enemy vehicles to damage and destroy them on the battlefield. The production of these products requires careful coordination and precision. Special materials are used to produce explosive charges that, when detonated, release a high-speed jet of molten metal that can penetrate even the strongest armoured vehicles. Fragments from the explosion then fly apart, causing further damage to the target and those in the vicinity.

UAV-K-500
HEAT (MUNROE EFFECT):
Designed to defeat and destroy armored and lightly armored enemy vehicles. It is used with unmanned aerial vehicles or multi-purpose unmanned complexes with a payload capacity of up to 600 grams.
UAV-K-1100
HEAT (MUNROE EFFECT):
Intended for damage and destruction of armored and lightly armored enemy vehicles, as well as damage to concrete or wood-earth defense structures. It is used with unmanned aerial vehicles or multi-purpose unmanned complexes with a load capacity of 1500 grams or more.
UAV-K-2500
HEAT (MUNROE EFFECT):
Intended for damage and destruction of armored and lightly armored enemy vehicles, as well as damage to concrete
or wood-earth defense structures. It is used with unmanned
aerial vehicles or multipurpose unmanned complexes with a load capacity of up to 2500 grams.
UAV-K-3000
HEAT (MUNROE EFFECT):
Intended for the destruction of fortifications of increased security, concrete or wood-earth fire structures, destruction of
armored and non-armored vehickles of the enemy of all types, damage to personel.

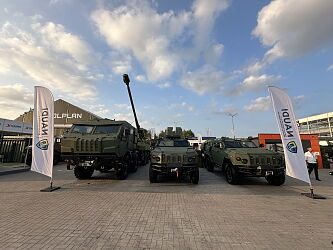

BOHDANA 155 MM ARTILLERY SYSTEM UKRAINIAN ARMOR

Artillery complex based on the 155-mm Howitzer «Bohdana» includes: a self-propelled or towed howitzer, command-and-control vehicle, UAV support vehicle, electronic warfare unit, and a logistics support vehicle. All components are mounted on APC “Novator 2” chassis. EQUIPMENT: • automated gun-laying line (automated sighting system, integrated with FCS) • command-and-control computer (FCS with integrated ballistic solver) • navigation system (GPS/INS, digital positioning integrated into the FCS) DIMENSIONS: • length: 12,570 mm • width: 2,750 mm • height: 3,870 mm

FIRE SYSTEM:
• Main armament: 155 mm howitzer L/52 caliber barrel
• fire control system: fully computerized, integrated with a ballistic system, enabling rapid deployment and automated target designation
• chamber: compatible with standard 155 mm NATO rounds
• rate of fire: 5 rounds per minute
• elevation rangе: −5° to +65°
• traverse range: −30° to +30°
AMMUNITION:
• storage for 20 shells + automatic charging up to 6 rounds
ТІМЕ:
• redeployment 1.5 min
• deployment 1.5 min
CHASSIS:
• KrAZ
• DAEWOO
• MERCEDES-BENZ Zetros
• TATRA

BULAVA UAS DEVIRO

Product description: Bulava is an unmanned strike-and-reconnaissance system designed to carry out a wide range of missions. Bulava combines years of combat-proven experience from the Leleka reconnaissance drone with the cutting-edge Bulava strike drone, developed directly during the current war. The Bulava system enables fully autonomous crew operations — from reconnaissance and target detection to target engagement and objective assessment of results. The mid-strike drone Bulava is a loitering munition designed to engage both moving and fixed ground targets at the tactical and operational levels of the frontline.

Endurance: 100+ minutes
Combat radius: 130 km
Warhead weight: up to 5 kg
Cruise speed: 80 kmh
TARGET HITING
On the operator's command with subsequent capture and automatic targeting using computer vision technology.
TELEMETRY AND VIDEO TRANSMISSION CHANNEL
Line-of-sight range of up to 100 km. Two-way digital channel with encryption AES 128 (256). MESH technology with the ability to control and transmit video simultaneously by several UAVs or relay a signal from one to another UAV (for example, reconnaissance and strike UAVs).
FLIGHT CONTROL AND PROGRAMING
Autopilot with the full auto and navigation mode. Visual mode on downloaded satellite maps with the ability to change or adjust the flight task in real time mode.
ANTI-ELECTRONIC WARFARE SYSTEM
Special anti-EW system that automatically detects means of GPS/GLONASS blocking, as well as navigation field spoofing, with automatic switching to the inertial navigation system. GNSS receiver with CRPA technology (interference-resistant GNSS receiver with EW countermeasure function).

DEFIANT H20 FALSA KTD GROUP

Defiant H20 Falsa is a high-speed jet-powered target UAV designed to act as a realistic decoy for hostile air defense systems. Equipped with a radar signature enhancement device, it accurately simulates the flight profile and radar signature of tactical cruise missiles and attack UAVs. The system is intended for air defense saturation, operator training, and operational deception while providing a cost-effective and reliable solution.

Length: 1,900 mm
Wingspan: 1,600 mm
Fuel tank: 10 L
Flight duration: 50 min
Climb rate: 5 m/s
Max wind resistance: 30 m/s
Max altitude: 8,000 m
Max speed: 400 km/h
Cruise speed: 300 km/h
Maximum range: 250 km
Weight: 20 kg
Payload: 0–1 kg
Jet engine thrust: 8 kg
CEP: <10 m

HANDHELD SYSTEM NET LAUNCHER PTASHKA PTASHKA DRONES

Handheld system “Net Launcher Ptashka”, developed and manufactured by Ptashka Drones LLC (Ukraine), is a compact, fully mechanical close-range counter-measure system, designed for physical interception and neutralization of enemy FPV drones, kamikaze drones, reconnaissance quadcopters etc. This device serves as an autonomous 'last-resort system' for military personnel operating in areas with a direct threat of engagement by enemy UAVs.

Handheld system “Net Launcher Ptashka” operates on the principle of kinetic launching of a high-strength mesh web utilizing the energy of propellant gases from blank cartridges.
Structurally, the system consists of the following primary components:
• Barrel assembly and trigger mechanism: An ergonomic pistol-like grip featuring a trigger mechanism, a manual safety lever, an integrated Picatinny rail on top, and an cartridge extracting tool – ramrod, hidden inside of the pistol grip, which is used for maintenance and cartridge case extraction.
• Disposable net cartridge: A disposable container with a textile net (3.7 × 3.7 meters) packed in a certain way, launching weights (sinkers) around the perimeter, and a propellant powder charge.
• Quick-release attachment element: A bayonet coupling designed for the instantaneous securing of the cartridge onto the barrel assembly, neutralizing the need for time-consuming screwing.
• Gas distribution system: The engineering principle of the gas distribution system is based on the laws of applied gas dynamics and the conversion of the chemical energy of gunpowder into the kinetic energy of directional body movement.

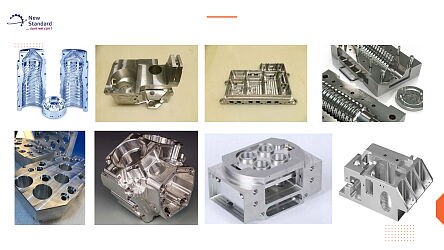

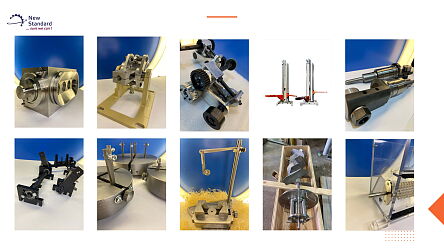

High-Precision Components for Unmanned Aerial Vehicles and Defence Systems

New Standart manufactures high-precision metal and polymer components for unmanned aerial vehicles, defence systems and specialised equipment. We produce custom parts according to customer drawings, 3D models or physical samples using modern CNC turning and milling technologies. Our product range includes housings, mounts, adapters, bushings, shafts, axles, flanges, drive components and other precision mechanical parts. We support prototype development, small-batch production and serial manufacturing with consistent dimensional and surface quality control.

CNC turning and milling, precision grinding, welding, heat treatment, hard chrome plating and surface restoration. We process carbon, alloy and stainless steels, aluminium alloys, bronze, brass, copper and engineering polymers, including polyamide, POM and PTFE.
Components are manufactured from customer drawings, 3D models, technical specifications or physical samples. Quality control includes verification of dimensions, tolerances, fits, concentricity, runout, surface roughness, hardness and coating parameters.
Products include precision housings, structural and mounting components, brackets, adapters, bushings, shafts, axles, flanges, gears, rollers and other custom parts for UAVs, unmanned ground platforms, communication equipment, optical systems and specialised defence applications.
Prototype, small-batch and serial production are available, covering the full cycle from technical review and process planning to manufacturing, inspection and delivery.

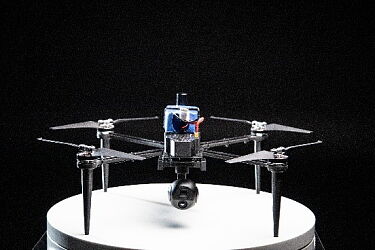

KAZHAN E620 STRIKE UAS REACTIVE DRONE

The Kazhan-E620 Unmanned Aerial System (UAS) is a medium-class, multi-purpose system designed to deliver payloads weighing up to 12 kg and conduct precision strikes against enemy positions, personnel, and mobile targets during both daytime and nighttime operations. The Kazhan-E620 UAS is equipped with a jam-resistant, encrypted, dual-band digital communication system with a 10-inch ground control station, a bispectral electro-optical payload, a jam-resistant navigation system, and an optical stabilization system, ensuring effective operation in challenging electronic warfare (EW) environments.

UAV Type: Multirotor, Quadcopter
Camera Type: Bispectral payload: Full HD daylight camera and 640 × 512 thermal imaging camera with 9× digital zoom
Propulsion Type: Electric
Number of Motors: 4
Maximum Tactical Range: 25 km
Maximum Flight Endurance (without payload): 65 min
UAV Speed Range (Cruise – Maximum): 108 km/h
Operational Altitude (Day): 150–400 m
Operational Altitude (Night): 75–150 m
Service Ceiling (without payload): 1000 m
Maximum Wind Speed: 12 m/s
Operating Temperature Range: −5°C to +35°C
Maximum Payload Capacity: Up to 15 kg
Recommended Payload Capacity: 12 kg
Control Signal Frequency 2.1–2.8 GHz / 4.9–6.0 GHz, jam-resistant frequency-hopping.

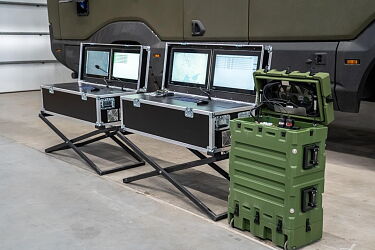

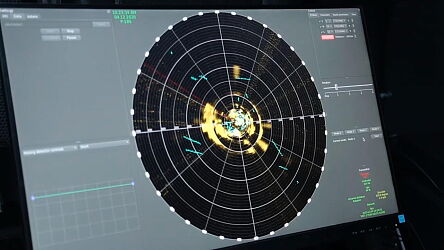

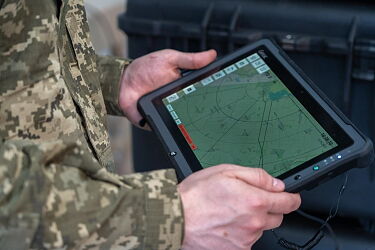

KRECHET Air Defense Tactical Group Command Post SYSTEM ELECTRONIC EXPORT

C2 “Krechet” platform mobile system is designed for operational control of air defense assets protecting military units and critical infrastructure from aerial attacks. C2“Krechet” platforms serves as an integration platform for various air defense systems. C2 “Krechet” provides automated processing of radar information, command and control of integrated air defence assets, target allocation, fire control, and guidance of non-automated weapon systems.

Integration of up to 5 different radar systems.
- Integration of up to 15 air defence weapon systems (interceptor drones, SAMs, MANPADS, etc.).
- Automatic processing of up to 250 simultaneous air targets.
- Versions: mobile, stationary, transportable.

KVERTUS LTEJ MIRAGE ELECTRONIC WARFARE SYSTEM

UAV SUPPRESSION An electronic warfare system representing the most effective class of Smart EW solutions. Features a modular architecture allowing for custom configurations: 14 frequency band combination options are available. Advantages: -Suppression range: omnidirectional ("dome") antennas—up to 10 km; directional antennas—up to 30 km. -Interference bandwidth: up to 80 MHz. -Simultaneous operation: omnidirectional and directional antennas can operate at the same time, ensuring protection against flanking FPV drone attacks. -Control: interference parameters are programmed via the Horizon system software interface or using a tablet, computer, or smartphone.

DEVICE INTERFERENCE BANDS
1. 300–500 MHz
2. 500–700 MHz
3. 700–1 000 MHz
5. 1 500–3 500 MHz
4. 1 000–1 500 MHz
6. 3 000–6 000 MHz

KVERTUS MS AZIMUTH SIGNALS INTELLIGENCE SYSTEM

TARGET DETECTION AND SIGNAL ANALYSIS The first Ukrainian operational and strategic level direction finding system. Advantages -Detection of any signal within the 30–6000 MHz range. -Detection range: multicopters—up to 30 km; fixed-wing UAVs—up to 150 km. -Provides comprehensive data on the target's radio signal: frequency; bearing; signal type (control, relay, telemetry, video); protocol type; spread factor, etc. -Video interception capability. -Triangulation with a minimal number of units.

Operating frequency range: 30–6000 MHz
Instantaneous bandwidth: 200 MHz
Frequency scanning speed: 540 GHz/s
Frequency resolution: 30 kHz
Single–signal dynamic range: ≥80 dB
Maximum detection range: up to 150 km
Minimum bearing time: 0.04 ms
Bearing accuracy: ≤5° (RMS)
Vertical coverage: 60°
Horizontal coverage: 360°
Signal processing: digital
Simultaneously tracked targets: ≤100
Target detection: automatic
Power consumption: 100 W (220 V, 50 Hz)
Operating temperature: –20 °С to +40 °С
Weight (without the antenna feeder system): up to 25 kg

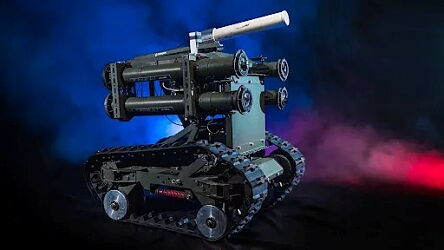

LEGIT L1 Modular UGV TAF Industries

LEGIT L1 is a modular tracked unmanned ground vehicle designed to perform logistics, combat, reconnaissance, and engineering missions. The platform can deploy Yahoza engineering obstacles and can be equipped with mission-specific combat modules, including the Pulsar remote weapon station (PKT, AK, or RPK) and a grenade launcher firing module. Its modular architecture enables rapid reconfiguration to meet different operational requirements on the battlefield.

Type: Modular tracked unmanned ground vehicle (UGV)
Powertrain: Electric
Maximum speed: up to 25 km/h
Payload capacity: up to 150 kg
Vehicle weight: 110 kg
Ground clearance: 160 mm
Communication: ELRS, LTE, Starlink
Mission capabilities: Logistics, combat, reconnaissance, engineering
Optional modules: Pulsar remote weapon station (PKT, AK, RPK), grenade launcher firing module, engineering module for Yahoza obstacle deployment

LELEKA 100M2R UAV DEVIRO

Product description: Leleka is the most widely deployed modern reconnaissance system, performing a broad spectrum of combat missions and officially accepted into service with the Armed Forces of Ukraine since 2019. Our 12 years of operational experience in real combat conditions are combined with the latest technologies developed directly during the current war. The Leleka reconnaissance system is equipped with two jamming-resistant communication channels and is capable of operating in adverse weather conditions. It features a daytime camera with 100× zoom and a state-of-the-art thermal imager for night operations. The system is fully autonomous and supports the crew throughout the mission — from reconnaissance and target detection to fire correction and objective assessment of results.

Endurance: up to 5 hours
Combat radius: 100+ km
Maximum route: 340 km
Cruise speed: 70 kmh
TELEMETRY AND VIDEO TRANSMISSION CHANNEL
Line-of-sight range of up to 100 km. Two-way digital channel with encryption AES 128 (256). MESH technology with the ability to control and transmit video simultaneously by several UAVs or relay a signal from one to another UAV (for example, reconnaissance and strike UAVs).
FLIGHT CONTROL AND PROGRAMING
Autopilot with the full auto and navigation mode. Visual mode on downloaded satellite maps with the ability to change or adjust the flight task in real time mode.
ANTI-ELECTRONIC WARFARE SYSTEM
Special anti-EW system that automatically detects means of GPS/GLONASS blocking, as well as navigation field spoofing, with automatic switching to the inertial navigation system. GNSS receiver with CRPA technology (interference-resistant GNSS receiver with EW countermeasure function).
SNITCH
Anti-interception maneuvering system.

LONG-RANGE AUTONOMOUS STRIKE PLATFORM CHORNA TRYPILLIAN

A fully autonomous long-range platform for high-precision delivery, designed to operate in environments with intense countermeasures, GNSS degradation, or complete GNSS denial. The platform bridges the gap between tactical UAVs and strategic strike systems, enabling the cost-effective execution of long-range operations without the need for continuous operator control.

CHORNA is an autonomous fixed-wing unpowered strike glider designed for long-range precision delivery with a strategic delivery range of up to 10,000 km (pre-positioning capability). Air-launched from altitudes of up to 20 km, it performs a fully autonomous glide followed by a steep terminal dive. The platform features a 2.0 m wingspan, a 2.5 m length, a 13.2 kg all-up weight, and a 7.5 kg payload. With a 13:1 glide ratio, a terminal speed of approximately 110 m/s, and a CEP of around 10 m, CHORNA delivers high-precision strike capability. The navigation system combines INS (IMU) with CRPA-protected GNSS, ensuring reliable operation in GNSS-degraded and GNSS-denied environments. The platform requires no communication link during mission execution, provides up to 16 hours of avionics autonomy, withstands crosswinds of up to 60 m/s, operates at temperatures down to −55°C, and features an aerospace-grade automatic release mechanism.

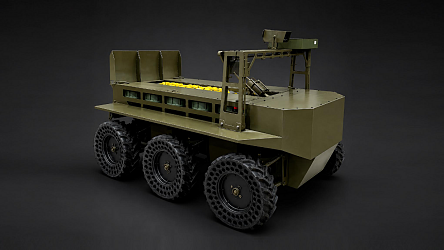

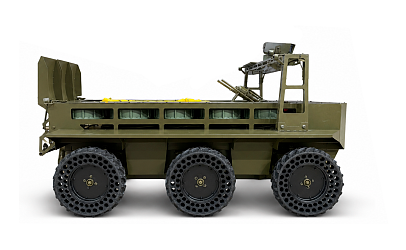

M.A.R.C. 2 UKRAINIAN BOMB MANUFACTURE UBM

M.A.R.C. 2 is a versatile unmanned ground robotic system featuring a modular architecture. Its base configuration is designed for the remote deployment of anti-tank mines using a dedicated mine-laying module. The platform’s modular design enables rapid payload replacement, allowing the system to be quickly reconfigured for logistics support, expeditionary missions, and a wide range of specialized engineering tasks. Upon customer request, the M.A.R.C. 2 can be equipped with mission-specific payloads, including an extended-range demining charge deployment system, counter-UAV capabilities, casualty evacuation equipment, and other specialized modules. The system uses Starlink satellite communications as the primary control link and supports secure radio operation. Upon customer request, the system can be additionally equipped with a fiber-optic control system.

CHASSIS AND DIMENSIONS
Chassis: 6×6 wheeled
Propulsion: 4 electric motors
Battery: LiFePO
Length × Width: 2300 × 1450 mm
Ground clearance: 300 mm
Curb weight: 1200 kg
Payload capacity: up to 500 kg

P E R F O R M A N C E
Speed (on-road): up to 20 km/h
Speed (off-road): up to 10 km/h
Range (on-road): up to 40 km
Range (off-road): up to 30 km
Autonomous standby: 72+ hours
Ascent angle ≥30°
Side tilt: ≥20°
Protection rating: IP55+

MINING MODULE
Ammunition load: up to 15 mines
Mining module: 3 × 5 mines
Mine type: MPTG-7 or equivalent
Mine deployment interval: Adjustable
Lane clearance in minefields: Up to 40 m × 0.6–0.7 m

COMMUNICATIONS
Primary channel: Starlink
Backup: Secure radio, 4 km, fiber-optic, LTE

MC-30 MAX SL UAS UADEFENSE

The MC-30 MAX SL strike unmanned aerial system is a reusable unmanned aircraft designed to perform military missions involving the engagement of enemy targets and the delivery of logistical support. It can also be used as an FPV carrier drone and a communications relay. The system is equipped with Starlink connectivity, enabling long-range operations and reliable communication beyond the range of conventional radio links. Key Advantages • Long operational range • EW and interference resistance • Battle-proven performance • Universal bombing mounts capable to use drone ammo or conventional mortar ammo • Can be launched from UGV • Distant launch

Frame material Carbon + Aluminium
Diagonal length 1950 mm
Operating dimensions 1950 mm x 1950 mm x 750 mm
Transporting dimensions 1100 mm x 1100 mm x 750 mm
Props size 36 inch
Maximum take-off weight with batteries 65 kg
Maximum payload 15 kg
Maximum vertical speed 5 m/s
Maximum descent speed 4 m/s
Max horizontal speed 17.2 m/s
Cruising speed 13.6 m/s
Endurance with payload 25 min
Endurance without payload 55 min
Hover endurance at a fixed point, without payload 52 min
Hover endurance at a fixed point, with payload 22 min
Max wind speed 11 m/s
Operational radius up to 20 km
Total range up to 40 km
Flight altitude (operational) 150 m
Flight altitude (maximum operating) 800 m
Maximum achievable flight altitude 2000 m
Operational temperatures from -15℃ to +45 ℃

MEANS OF PERSONAL PROTECTION UKRTAC

UKRTAC, is a licensed Ukrainian manufacturer of personal protective equipment and has a referral for the production of protective suits (aprons) for humanitarian demining. It is the first and, to date, the only one that has passed tests, production inspections and received a certificate of conformity from DNDI VS OVT, Cherkasy (the most powerful military research base in Ukraine).

UKRAC has 3 full-fledged own productions:
- production of bulletproof vests, armor sets and related ammunition
- production of ballistic Kevlar helmets
- production of soft ballistic protection elements
Collecting feedback from the military, our specialists are engaged in constant improvement of the range, using the highest quality and latest technologies.

MIDDLE STRIKE UB120W UAS

UB120W – a mid strike class UAV designed to engage enemy targets at tactical depth behind the front line. The system is intended for precision strikes against high-value targets such as UAV pilot positions, command posts, ammunition depots, lightly armored vehicles, logistics hubs and supply routes. In addition to strike capabilities, the UAV can perform reconnaissance and target acquisition, providing real-time intelligence to support artillery and other fire assets. A key feature of the platform is its ability to overload and disrupt the enemy’s air defense systems by employing a “false target” concept.In this mode, the UAV can act as a decoy, simulate multiple threats and force the enemy to expend interceptor missiles and reveal air defense positions. The UAV is optimized for operations in contested environments and can be deployed individually or as part of coordinated swarm missions

MAIN SPECIFICATIONS:
Warhead 120 mm mortar round, weight 14 kg with detonator
Range up to 250 km
Max weight 45 kg
Wingspan 2.6 m
Length 2.7 m
Cruise speed 110 km/h
Max speed 180 km/h
Engine UA 2.120.0 gasoline internal combustion engine 12 hp
Start pneumatic catapult
Possibility of installing an automatic targeting system
Redundant control system
NonGPS location tracking
The warhead is structurally based on a 120 mm mortar round, equipped with a fuze and an initiation
board, adapted for use in a strike UAV.
The warhead assembly consists of a mortar round, a safety-and-arming device (S&A) and an electric
detonator.

MORTAR AMMUNITION UKRAINIAN ARMOR

We produce not only complete mortar and artillery rounds, but also their key components - including shell bodies, tail fins, and stabilizers. Our production covers calibers from 60mm to 155 mm, ensuring a wide portfolio for defense needs. All products undergo strict quality control and precision machining. In addition to shell bodies, we also manufacture and supply: * Tail fins and stabilizers for mortar shells. * Various packaging options, including wooden crates and temporary containers. * Components for artillery shells of 105 mm, 122 mm, 152 mm and 155mm calibers.

60 MM MORTAR ROUND UB-60
Caliber: 60 mm
Max range(full variable charge): ≥ 2,500 m
Min range: 90 m
Round length: 287 mm
Round weight: 1.380 kg
Mine weight: 1.163 kg
Muzzle velocity:
* minimum 81 m/s
* maximum 215 m/s

82 MM MORTAR ROUND UB-82
Caliber: 82 mm
Max range (full variable charge): ≥ 4,100 m
Minimum range: 90 m
Round length: 330 mm
Round weight: 3.6 kg
Mine weight: 3.1 kg
Explosive weight: 0.454 kg
Muzzle velocity: 211 m/s

120 MM MORTAR ROUND UB-120
Max range (full variable charge): ≥ 5,820 m
Max range (extended-range charge): 7,100 m
Minimum range: 480 m
Round length: 677 mm
Round weight: 16.5 kg
Mine weight: 16.0 kg
Explosive weight: 1.6/ kg
Muzzle velocity (with 6th charge): 274 m/s

NOVATOR 2 APC

COMMAND-AND-CONTROL FOR ARTILLERY SYSTEM «BOHDANA» APC «NOVATOR 2» is not just a specialized armored vehicle — it is a versatile platform designed to be adapted to the specifi c needs of the end user. This platform offers multiple confi guration options and a wide range of equipment, including missionspecifi c modules tailored to various operational scenarios. “Bohdana” is mounted on a high-quality, time-tested TATRA chassis, ensuring superior off-road performance, reliability, and ease of maintenance.

ENGINE:
Diesel Ford v8 Super
Engine power 330 hp
Displacement 6,7 L
SUSPENSION:
4x4 Ford F-550
MINE PROTECTION:
STANAG 4569 Level 2a/2b
FIRE SUPPRESSION:
Automatic fi re extinguishing
system in the cabin and
engine compartment
MAXIMUM SPEED:
up to 140 km/h
GROUND CLEARANCE:
Not less than 300 mm
WINCH:
Pulling force: ≥ 8000 kg
Cable length: 25 m
DIMENSIONS & WEIGHT
Gross weight: ≤12000 kg
Curb weight: 9200 kg
Length: 6470 mm
Width: 2450 mm
Height: 2370 mm

NOVATOR APC

Armored Personnel Carrier «NOVATOR» created for patrolling in rough terrain; control and elimination of mass riots and violations of public order; for special operations; search for and detention of criminals who pose a high level of public insecurity, for the transportation of the wounded or detainees. The vehicle maximum speed is 140 km/h. It has armour protection of the crew compartment, as well as the main components and units; has high dynamic qualities, the increased passability and smoothness of the course, is capable to overcome big distances with high and average speed, provides protection when fi ring from the SVD rifl e even from 10 metres.

Max speed: Up to 140 km/h on road
Drive range: Up to 500 km
Accelerating to: 100 km/h 10,6 sec.
Braking distance: 8 m at a speed of 40 km/h
Fuel Tank Capacity: 160 L
Turning radius minimum: 8 m
Gradient: 30°
Side slope: 20°
Fording: 0,75 m

POSTMAN UAS UADEFENSE

POSTMAN – FAST AND RELIABLE BATTLEFIELD LOGISTICS The POSTMAN is a multipurpose heavy-lift cargo drone designed for autonomous mission execution. It features flexible, redundant communication systems and supports Starlink connectivity for reliable long-range operations. Key Advantages EW and interference resistance Automated mission capability Battle-proven performance Payload capacity up to 75 kg Tactical range up to 20 km with full load Universal use with different accessories including the mothership, cargo lift, and special operation option

Diagonal length:
2630 mm (open status excluding props)
3900 mm (open status including props)
Transportation size:
1330 mm x 1330 mm x 945 mm (including props)
Props size: 63 inch
Standard take-off weight: 75 kg (including batteries)
Maximum payload: up to 75 kg
Maximum take-off weight: 150 kg
Maximum climb speed: 5 m/s
Maximum descent speed: 4 m/s
Maximum horizontal speed: up to 14 m/s
Maximum height: up to 2000 m
Operating temperature: from -10℃ to +40℃

PROTECTOR UGV

UGV “Protector” is an advanced, remotely controlled ground vehicle developed based on the combat experience of Ukrainian soldiers during the war in Ukraine. This versatile robot is designed to undertake the most dangerous tasks, ensuring the safety and effectiveness of military operations.

Transport and Launch of Drones: Primarily designed to transport small ground drones for mine-laying and
aerial drones, with the ability to launch them from hazardous zones safely.
• Ammunition Delivery: Ensures continuous supply of ammunition to the front lines.
Casualty Evacuation: Provides rapid and safe transportation of wounded soldiers to medical facilities.
• Integration with Weapon Stations: The platform supports the installation of various weapon stations for combat missions.
Payload capacity: 770 kg
Maximum speed:
• on paved roads: 60 km/h
• cross-country: 40 km/h
Сan tow a trailer with a load of up to 4 t
Dimensions:
a. length: 5070 mm
b. width: 1900 mm
c. height: 1564 mm


PTASHKA 17-0-50 km UAV PTASHKA DRONES

Unmanned Aerial Vehicle "Ptashka 17-O-50 km", developed and manufactured by Ptashka Drones LLC (Ukraine), is a strike unmanned aerial vehicle (UAV), whose key feature is the use of fiber-optic communication technology, enabling uninterrupted control even in environments with intensive enemy electronic warfare (EW) jamming. The UAV is equipped with a 50-kilometer fiber-optic spool, allowing it to conduct precision strikes deep behind enemy lines. UAV “Ptashka 17-O-50 km” has been successfully deployed in combat operations, demonstrating reliable performance and high mission effectiveness on the battlefield.

UAV «Ptashka 17-O-50 km» is a strike UAV designed for precision engagement of personnel, armored vehicles, fortified positions, and EW systems in heavily jammed environments. Its fiber-optic communication link provides an operational range of up to 50 km, ensuring complete immunity to radio-frequency jamming and signal interception. In March 2026, the UAV was codified by the Ministry of Defence of Ukraine and received a NATO Stock Number (NSN).
The UAV features a reinforced 17-inch X-frame made of T700/T800 carbon fiber and STEF-1 fiberglass laminate, with IP54 protection against dust and water. It is powered by four 5220 500KV brushless motors, a 4-in-1 80–100A ESC, and a 50,000 mAh (2×8S5P) Li-Ion/Li-Po battery.
The fiber-optic system uses a 50 km single-mode cable with WDM technology, providing bidirectional data transmission over a single fiber at speeds exceeding 1 Gbps and delivering stable, zero-latency 1080p/60 FPS video.
The UAV carries payloads up to 3.5 kg (recommended 1.0–1.5 kg for maximum range). Navigation relies on an inertial system and optical flow sensors, eliminating dependence on GPS and ensuring resistance to spoofing and jamming.

SAIGAK APC WITH THE ACTIVE PROTECTION SYSTEM

The “SAIGAK” is a specialized high-mobility armoured vehicle designed to meet the demands of the most challenging operational environments. It provides a modern solution for missions requiring exceptional mobility, survivability, and crew protection. Designed to maximize operational effectiveness, the “SAIGAK” combines superior cross-country performance with advanced protection for personnel operating in high-threat environments. INTENDED MISSIONS: ▪ Combat operations and special missions ▪ Patrol and reconnaissance operations ▪ Personnel transport ▪ Emergency response and disaster relief operations ▪ Training exercises and peace support operations KEY ADVANTAGES: ▪ Reliable ballistic and mine protection ▪ Outstanding all-terrain mobility ▪ Enhanced crew comfort under extreme operating conditions ▪ High mobility and manoeuvrability ▪ Designed for all-season operation

MAIN SPECIFICATIONS
Chassis . . . . . . . . . . . . . . . . . . . . . . . High-mobility 4×4
Engine:
Type . . . . . . . . . . . . . . . . . . . . . Diesel
Power output . . . . . . . . . . . . . 240 hp
Displacement . . . . . . . . . . . . . 2.4 L
Maximum torque . . . . . . . . . . 470 Nm
Transmission . . . . . . . . . . . . . . . 6-speed manual

WEIGHTS & DIMENSIONS
Gross Vehicle Weight (GVW) . . . . . 5,000 kg
Kerb weight . . . . . . . . . . . . . . . . . 3,500 kg
Length . . . . . . . . . . . . . . . . . . . . . . 5,400 mm
Height (to roof) . . . . . . . . . . . . . 1,850 mm
PERFORMANCE
Maximum speed . . . . . . . . . . . . . 140 km/h
Fuel tank capacity . . . . . . . . . . . 80 L
Operational range . . . . . . . . . . . 600 km
Fuel consumption . . . . . . . . . . . 10–16 L/100 km

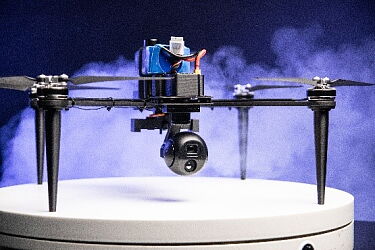

SHMAVIC UAS REACTIVE DRONE

The Shmavik Unmanned Aerial System (hereinafter referred to as the UAS) is a micro-class, operational-tactical unmanned aerial system designed for aerial reconnaissance, target adjustment, and surveillance during both daytime and nighttime operations. The Shmavik UAS is equipped with a jam-resistant, encrypted, dual-band digital communication system with a 10-inch remote contron, high-performance electro-optical sensors, a GNSS-based satellite navigation system, and an optical image stabilization system, ensuring reliable operation in demanding electronic warfare (EW) environments.

UAV Type - Multirotor, Quadcopter
Camera Type - Day Camera (D), Day/Thermal Camera (D/T),
Propulsion Type - Electric
Tactical Range, km – 20 km
Maximum Flight Endurance, min – 55min
Maximum Speed, m/s – 25 m/s
Operational Altitude, m – 150 - 250m
Service Ceiling, m – up to 500m
Maximum Allowable Wind Speed, m/s – up to 15 m/s
Operating Temperature Range - −10°C to +40°C
Control Signal Transmission Frequency - 2.1–2.8 / 4.9–6.0 GHz, jam-resistant, Frequency-Hopping Spread Spectrum.
Video Transmission Frequency - 2.1–2.8 / 4.9–6.0 GHz, jam-resistant, Frequency-Hopping Spread Spectrum.

SICH-tourniquet

SICH-Tourniquet is a next-generation Ukrainian emergency haemorrhage control device designed for rapid treatment of life-threatening extremity bleeding in combat and civilian emergencies. Developed from over 10 years of manufacturing experience and extensive lessons learned from modern armed conflicts, it provides reliable performance under the most demanding conditions. The tourniquet is suitable for military personnel, law enforcement, emergency responders and civilian first-aid applications. More than 1 million SICH-Tourniquets were supplied to Ukrainian Defence Forces during 2023–2024, including official IFAK kits and direct operational deliveries. Today, SICH-Tourniquet is one of the most widely used tourniquets in Ukraine, combat-proven in the defence of Ukraine and trusted by military units, emergency responders and law enforcement agencies.

SICH-Tourniquet is engineered to deliver effective arterial occlusion under extreme environmental and operational conditions. Its patented flexible stabilization platform enables reliable application on limbs with circumferences from 5 to 40 cm, including military working dogs (K9). The reinforced windlass system, high-strength metal hardware and secure hook-and-loop fastening ensure dependable performance even when exposed to water, snow, mud, dust, heat or freezing temperatures. The tourniquet is designed for rapid one-handed self-application and maintains secure fixation during intensive movement and heavy loads. It is manufactured in Ukraine under a certified quality management system and complies with applicable European medical device requirements. Designed for combat medicine, emergency medical services and disaster response, SICH-Tourniquet combines proven battlefield experience with robust engineering for maximum reliability.

ST-35 UAS ATHLON AVIA

The Unmanned Aerial System ST-35 “Silent Thunder” is a high-precision weapon designed for striking targets in concealed positions with various types of warheads. It ensures maximum effectiveness of fi re missions with minimal collateral damage, including the protection of civilians and infrastructure. The ST-35 “Silent Thunder” is created using modern technologies for high operational effi ciency and low radar, visual, and acoustic visibility. The system leverages years of experience in the development and production of military unmanned systems.

Range: 30 km
Warhead weight: 3.5 kg
Target guidance: Automatic via TV/IR channel
Circular error probable: Up to 3 m
Flight duration: 60 min
Probability of target hit: 95%
Operational altitude: 800-1200 m
Cruising speed: 120-140 km/h
Types of warheads: Fragmentation-explosive, cumulative,
thermobaric
Take-off weight: 9.5 kg
Launch method: Vertical take-off using a multicopter

TACK Universal Fragmentation Ammunition Defenses Solution

TACK Universal Fragmentation Ammunition The TACK ammunition is designed to engage enemy personnel in open terrain, open trenches, revetments, and field fortifications. Highly dense fragmentation maximizes target effect, ensuring reliable neutralization within the lethal radius.

Performances
Caliber- 68 mm
Weight
Free-falling variant - 0,58 kg
FPV variant - 1,02-1,46 kg
Diameter - 68 mm
Length
Free-falling variant - 270 mm
FPV variant - 233-317mm
Weight of explosive 100g - 120 g
Striking elements 600 pieces

TESLIA UGV TAF Industries

TESLIA is a six-wheel unmanned ground vehicle designed for logistics and casualty evacuation missions. Featuring 6×6 all-wheel drive and independent suspension, the platform ensures high mobility across challenging terrain. TESLIA can transport supplies, ammunition, and equipment, as well as evacuate wounded personnel from the battlefield. The quick-swappable battery system, robust chassis, and reliable communication options make it an effective solution for sustained frontline operations.

Type: Six-wheel unmanned ground vehicle (UGV)
Powertrain: Electric
Drive system: 6×6 all-wheel drive with an individual electric motor for each wheel
Maximum speed: up to 10 km/h
Operational range: up to 40 km on a single battery
Payload capacity: up to 180 kg
Vehicle weight: up to 220 kg (depending on configuration)
Ground clearance: 300 mm
Battery: Quick-swappable battery
Communication: ELRS or Starlink
Mission capabilities: Logistics, casualty evacuation

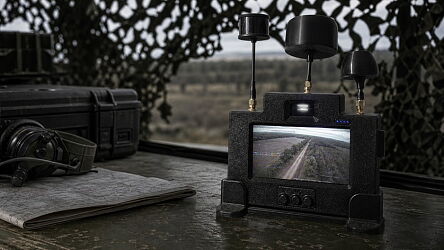

UAV DETECTOR PTASHKA DRONES

PTASHKA is a professional portable analog video signal detector designed to give operators clear, actionable awareness of RF activity in the field. Instead of simply indicating that a signal is present, PTASHKA provides the context needed to understand and verify it — including frequency information, signal parameters, and visual confirmation. The device continuously monitors three key video bands and helps operators move quickly from detection to identification. With automatic scanning, intuitive controls, an integrated display, audio alerts, and built-in diagnostics, PTASHKA turns complex RF activity into practical information for faster decision-making. Its rugged, field-oriented design makes it suitable for demanding operational environments where speed, clarity, and reliability matter.

PTASHKA is a portable analog video signal detection and monitoring system featuring three dedicated RF bands: 1.2 GHz, 3.3 GHz, and 5.8 GHz. The device performs automatic spectrum scanning and parameter-based signal analysis, with support for custom scan limits and fixed-frequency operation. A dedicated microcontroller handles scanning tasks to reduce the load on the main processor. Detected frequencies are displayed in a clear list, with active signals highlighted for rapid identification. The workflow includes scanning, parameter analysis, frequency display, audio alerting, and automatic or manual video activation. PTASHKA can provide visual confirmation of detected analog video signals directly on its integrated display. The system also incorporates hardware self-checks, receiver and display diagnostics, physical controls, rapid settings access, and firmware updates via Wi-Fi. Automatic restart and firmware recovery features support reliable field operation.

UB60D UAS

The UB60D Unmanned Aerial System is a modern high-precision air-launched weapon system designed to engage enemy personnel and light armored vehicles. The drone integrates the warhead and control system into a single structure, allowing for rapid deployment without additional setup. It is intended for operations in highly dynamic environments where accuracy, speed, and readiness to strike are crucial. Key Advantages of the UB60D UAS: • Fully autonomous and compact system; • Warhead is pre-equipped with a 60 mm mortar shell; • Operational range up to 20 km; • Fast combat readiness (up to 5 minutes); • Guidance: equipped with the TFL-1 autonomous terminal guidance system, which increases strike effectiveness by 2-4 times; • Dual safety systems: self-destruct mechanism, contact detonator, and protection against uncontrolled detonation; • Configuration - daylight camera, night vision camera.

TECHNICAL SPECIFICATIONS OF THE UNMANNED AERIAL SYSTEM “UB60D”
Maximum flight range . . .20 km
60 mm mortar shell, payload up to 1.5 kg
Flight duration . . . . . . . . up to 20 min
Operating altitude . . . . . .50 m
Maximum altitude . . . . . .1000 m
Cruise speed . . . . . . . . . . .70 km/h
Maximum speed . . . . . . . .130 km/h
Warhead . . . . . . . . . . . . . . 60 mm mortar shell, payload up to 1.5 kg
Circular Error Probable (CEP).15 сm
Time to launch readiness . . . 5 min
Arming time . .the UB60D combines a 60 mm mortar warhead and control system into a single integrated body, enabling immediate use without additional setup
Optical target recognition range . .up to 250 m, equipped with the TFL-1 autonomous terminal guidance system
UAS dimensions (mm): 460*460*325 mm

UB80D10-EFP UAS

The UB80D10-EFP Unmanned Aerial Complex is a modern high-precision air-launched weapon system designed to engage enemy personnel and lightly armored vehicles protected by armor up to 50 mm.The drone integrates the warhead and control system into a single structure, allowing for rapid deployment without additional setup.It is intended for operations in highly dynamic environments where accuracy, speed and readiness to strike are crucial. Key Advantages of the UB80D10-EFP: • Fully autonomous and compact system; • Explosively formed penetrator (EFP) with fragmentation-blast effect; • Operational range up to 30 km; • Fast combat readiness (up to 5 minutes); • Guidance: integration of an automatic target acquisition/tracking module; • Dual safety systems: self-destruct mechanism, contact detonator and protection against uncontrolled detonation; • Configuration - daylight camera, night vision

TECHNICAL SPECIFICATIONS OF THE UNMANNED AERIAL SYSTEM UB80D10-EFP
Maximum flight range 30 km
Flight duration up to 25 min
Operating altitude 50 m
Maximum altitude 1000 m
Cruise speed 70 km/h
Maximum speed 130 km/h
Warhead explosively formed penetrator (EFP) with fragmentation-blast effect weighing up to 3 kg
Video camera, infrared camera daylight camera, night vision camera
Optical target recognition range up to 250 m, integration of an automatic target guidance module

UB82D UAS

The UB82D UAV is a modern high-precision system designed to engage enemy personnel, unarmoured and lightly armoured vehicles, as well as fire assets from the air. Structurally, the drone integrates a warhead (82 mm mortar round) and a control system into a single unit, enabling rapid deployment without additional equipment. The system is intended for operations in highly dynamic environments, where accuracy, speed and immediate target engagement capability are critical. Key Advantages of the UB82D UAS: • Fully autonomous and compact system; • Warhead is pre-equipped with a 82 mm mortar shell; • Operational range up to 25 km; • Fast combat readiness (up to 5 minutes); • Guidance: capability to integrate an automatic target acquisition/tracking module; • Configuration - daylight camera, thermal imaging camera.

SPECIFICATIONS OF THE UNMANNED AERIAL SYSTEM “UB82D”
Maximum flight range 25 km
Flight duration up to 20 min
Operating altitude 50 m
Maximum altitude 1100 m
Cruise speed 70 km/h
Maximum speed 140 km/h
Warhead 82 mm mortar round, payload up to 3 kg
Video camera daylight, thermal imaging
Guidance integration an automatic target acquisition/tracking module
Time to launch readiness 5 min
Circular Error Probable (CEP) 15 cm
TECHNICAL SPECIFICATIONS:
Maximum take-off weight (MTOW) 5.2 kg
Maximum payload 3 kg
UAV dimensions 450×450×370 mm

UB82FO FIBER-OPTIC GUIDED UAVs

The fiber-optic guided Unmanned Aerial System (UAS) consists of a single-use Unmanned Aerial Vehicle (UAV) with a first-person view (FPV) guidance system, an integrated munition and a Ground Control Station (GCS). The system is designed to engage enemy personnel, unarmored and lightly armored vehicles with armor protection of up to 50 mm, as well as enemy fire support assets. MAIN SPECIFICATIONS: Warhead: • UB82FO equipped with an 82 mm mortar round weighing up to 3 kg, fitted with a fuze • UB80D15-EFP equipped with a 1.5 kg combined fragmentation/EFP warhead

MAIN SPECIFICATIONS:
Range up to 25 km
Flight time up to 25 mins
Operational altitude 30 m
Max altitude 200 m
Cruising speed 60 km/h
Maximum speed 80 km/h
Launch readiness time 7 min
Guidance automatic target acquisition and tracking
Camera daylight, night vision camera
Battery 2 battery packs
Drone dimensions 857×775×430 mm
Optical target detection range 250 m

VARTA 2 APC

“Varta 2” armored combat vehicle is a modern solution designed to perform the most challenging tasks in combat environments. “Varta 2” is the ideal choice for armed forces and security agencies, built on a reliable and robust Base chassis with high protection levels and powerful armaments.

Chassis: Base 4x4
Engine: Cummins ISB 6.7, 400 HP
Transmission: Allison 3200SP, automatic
GVW: 14 tons
Max Speed: 110 km/h
Ground Clearance: 400 mm

VARTA 3 APC WITH TAVRIA COMBAT MODULE

VARTA 3 APC is a cutting-edge solution for modern military operations, combining high mobility, reliable protection and powerful combat capabilities. Is the ideal choice for carrying out a wide range of tasks on the battlefield. INTENDED USE: for the safe transport of law enforcement personnel during: ▪ combat operations, ▪ special operations, ▪ training exercises, ▪ patrols, ▪ and disaster relief efforts following natural or technological disasters. ANTI-MINE AND BALLISTIC PROTECTION: STANAG 4569 LEVEL 3A / 3B protection against 7.62 х 54 R B32 API armor-piercing rounds; armored glass does not shatter into fragments and withstands an 8 kg TNT explosion under wheel (3a) and under floor (3b); anti-blast seats absorb the impact and reduce risk of spinal injuries during explosions; V-shaped floor effectively dissipates blast energy. TAVRIA-12.7/7.62 COMBAT MODULE remote-controlled turret

SPECIFICATIONS:
Dimensions and Weight:
Gross weight: ≤15,500 kg
Curb weight: 13,136 kg
L х W х H: 6,690 х 2,630 х 2,650 mm
Powertrain and Chassis:
Chassis: 4 х 4
- Engine: Cummins ISB6.7
- Power: 400 h.p.
- Displacement: 6.7 L
- Torque: 1,100 N·m
Fuel and Range:
• Fuel tank capacity: 200 L
• Highway range: 625 km
• Fuel consumption
(highway): 32 L/100 km
Off-road capabilities:
• Ground clearance: 400 mm
• Front approach angle: 33°
• Rear approach angle: 34°
• Maximum gradeability: 60%
• Maximum side slope: 20°
• Turning radius: 8.22 m
PERFORMANCE SPECIFICATIONS:
• Maximum speed: 125 km/h
• Maximum reverse speed: 18 km/h
• Acceleration from 0 to 100 km/h: 40 s
• Braking distance during emergency braking: 8.53 m
ARMAMENT: 12.7-mm Browning M2 machine gun with a 7.62-mm PKT machine gun, equipped with a digital fire control system.

MSPO

NAUDI National Association of Ukrainian Defense Industries

Description

Products

Business sector
