Echodyne -> EchoGuard : SHORT RANGE RADAR
Echodyne -> EchoGuard : SHORT RANGE RADAR
EchoGuard is a compact short-range radar designed for military, border security, and law enforcement applications where mobility and rapid deployment are essential. Lightweight enough to fit into a single 20-liter backpack, it operates for up to six hours on a standard battery, providing reliable air and surface surveillance wherever needed. EchoGuard delivers precise real-time tracking with accurate target position, range, and trajectory, helping operators respond quickly to evolving situations. AI-based classification distinguishes drones, vehicles, people, and other objects, enhancing situational awareness from the earliest stage of detection. Its low-SWaP design enables rapid deployment in remote locations without additional infrastructure, making EchoGuard ideal for protecting critical infrastructure, public events, military operations, and temporary security missions.
Frequency : K-band 24.05 – 24.25 GHz (INTL),
Field of View : 120° Azimuth x 80° Elevation,
Track Accuracy : < 1° Azimuth x < 1.5° Elevation,
Track Update Rate : 10 Hz,
Max Tracks : Up to 20 Simultaneous Tracks,
Range : up to 6 km,
UAV : > 1 km (Phantom 4),
> 1.4 km (Matrice 600),
Vehicle : > 3.5 km,
Human : > 2.2 km,
Size : 16.3 cm x 20.3 cm x 5.7 cm,
Weight : 1.25 kg,
Power (INTL) : + 15 to + 24 VDC,
50 W (Operating),
< 7 W (Hot Standby),
Operating Temp : - 40° C to + 75° C,
Weather Protection : IP67.
Field of View : 120° Azimuth x 80° Elevation,
Track Accuracy : < 1° Azimuth x < 1.5° Elevation,
Track Update Rate : 10 Hz,
Max Tracks : Up to 20 Simultaneous Tracks,
Range : up to 6 km,
UAV : > 1 km (Phantom 4),
> 1.4 km (Matrice 600),
Vehicle : > 3.5 km,
Human : > 2.2 km,
Size : 16.3 cm x 20.3 cm x 5.7 cm,
Weight : 1.25 kg,
Power (INTL) : + 15 to + 24 VDC,
50 W (Operating),
< 7 W (Hot Standby),
Operating Temp : - 40° C to + 75° C,
Weather Protection : IP67.

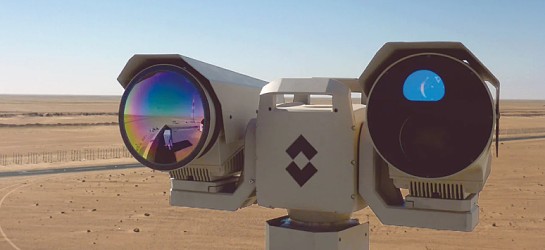

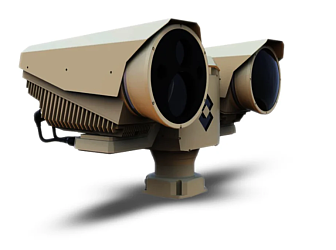

FLIR -> RANGER HDC-MS : MULTI SENSOR CAMERA
FLIR -> RANGER HDC-MS : MULTI SENSOR CAMERA
Ranger HDC MS is a long-range multisensor surveillance system designed for applications where reliable detection and clear target identification are critical. Combining a high-definition mid-wave thermal camera with advanced daylight optics on a fast, accurate pan-tilt platform, it delivers detailed imagery at long distances, day and night. Optional integration of a laser range finder, GPS, digital compass, and automatic video tracking enhances situational awareness and target assessment. Built-in fog and heat turbulence filters maintain image quality in challenging weather, while an embedded GPU supports AI-based image processing and future software upgrades. Ideal for border security, critical infrastructure, coastal surveillance, and force protection, Ranger HDC MS provides dependable long-range observation in demanding operational environments.
Thermal Imaging :
Detector type : Indium Antimonide (InSb): 1280x720 pixels,
Spectral Range : 3 – 5μm,
Field-of-view : 0.89° (H) to 19.6° (H), (+/-7%), 16:9 format,
Continuous zoom : Optical zoom 22x, Digital zoom 16x,
Image processing :
Sensor format : 1/2” Color CMOS, 1920 x 1080 pixels,
Focal length : 16.7 – 1000 mm (33.4 – 2000 mm with 2x extender),
Narrow field-of-view : (H) 0.38°, (0.19° with 2x extender),
Wide field-of-view : (H) 22.4°,
Optical zoom : 60x, (120x with 2x extender),
Min sensitivity : 1 lux, 0.17 lux @10Hz,
Fog filter : yes,
Pan-tilt :
Az Range; Az velocity : n x 360°; 0.03° – 100° / sec continuous,
El Range; El velocity : ± 90°; 0.03° – 100° / sec,
Accuracy : ± 0.5 mrad,
Resolution : 0.2 mrad,
Power:
Input voltage : +31 VDC (operates between 18-32VDC),
Environmental :
Operating temperature range : –32°C to +60°C (–25.6°F to +140°F),
Storage temperature range : –46°C to +71°C (–50.8°F to +160°F),
Standards : MIL-STD 810G,
IP rating : IP66.
Detector type : Indium Antimonide (InSb): 1280x720 pixels,
Spectral Range : 3 – 5μm,
Field-of-view : 0.89° (H) to 19.6° (H), (+/-7%), 16:9 format,
Continuous zoom : Optical zoom 22x, Digital zoom 16x,
Image processing :
Sensor format : 1/2” Color CMOS, 1920 x 1080 pixels,
Focal length : 16.7 – 1000 mm (33.4 – 2000 mm with 2x extender),
Narrow field-of-view : (H) 0.38°, (0.19° with 2x extender),
Wide field-of-view : (H) 22.4°,
Optical zoom : 60x, (120x with 2x extender),
Min sensitivity : 1 lux, 0.17 lux @10Hz,
Fog filter : yes,
Pan-tilt :
Az Range; Az velocity : n x 360°; 0.03° – 100° / sec continuous,
El Range; El velocity : ± 90°; 0.03° – 100° / sec,
Accuracy : ± 0.5 mrad,
Resolution : 0.2 mrad,
Power:
Input voltage : +31 VDC (operates between 18-32VDC),
Environmental :
Operating temperature range : –32°C to +60°C (–25.6°F to +140°F),
Storage temperature range : –46°C to +71°C (–50.8°F to +160°F),
Standards : MIL-STD 810G,
IP rating : IP66.
FLIR -> SCOUT PRO : THERMAL MONOCULAR
FLIR -> SCOUT PRO : THERMAL MONOCULAR
FLIR Scout Pro is a compact thermal monocular designed for law enforcement, public safety, and security professionals who require reliable situational awareness in demanding environments. Featuring high-resolution thermal imaging and a wide 32° field of view, it enables rapid area scanning and detects people from distances of up to 500 metres, even in complete darkness. Its intuitive interface and one-handed operation allow users to stay focused during time-critical missions. Built for harsh conditions, the IP67-rated housing, rugged construction, and long battery life ensure dependable performance in the field. Live image sharing improves team coordination, while advanced image processing enhances human detection in low-visibility conditions. FLIR Scout Pro is an effective solution for search and rescue, border security, surveillance, and tactical operations.
Product name Scout Pro Scout Pro II Scout Pro III
Part No. 15001-0101 15002-0101 15003-0101
Field of view 32° 18° 12°
Focal length 19 mm 35 mm 50 mm
F-number f/1.0 f/1.0 f/1.1
Focus Fixed focus Manual focus Manual focus
Human detection 500 m 1000 m 1500 m
Minimum distance 4 m 2 m 3 m
Frame rate 30 Hz
Display framerate 60 Hz
Spectral range 7.5 – 13.5 μm
Pixel pitch 17 μm
Thermal sensitivity, NETD <38 mK @ 30°C
Resolution 640 × 480 Vox Microbolometer
User interface
Zoom 2x, 4x 6x, 8x
Color palettes White Hot, Black Hot, Sepia, Heat
Image presentation
Built-in display XGA 1024 × 768
Video XGA 1024 × 768
Power
Batttery life Up to 6 h
Battery type Internal Li-ion cell
Charging time 2 h 80% capacity
Physical
Color (housing) Black
Drop rating 2 m
IP rating IP67, 1/2 hour submersible under 1 m
Operating temperature −15°C to 45°C (5°F to 113°F)
Size (L × W × H) 19.2 × 6.4 × 6.4 cm / 21.2 × 6.4 × 6.4 cm / 23.2 × 6.4 × 6.4 cm
Weight (incl.battery) 498 g 660 g 745 g
Tripod mounting UNC ¼"-20 UNC ¼"-20 UNC ¼"-21
Part No. 15001-0101 15002-0101 15003-0101
Field of view 32° 18° 12°
Focal length 19 mm 35 mm 50 mm
F-number f/1.0 f/1.0 f/1.1
Focus Fixed focus Manual focus Manual focus
Human detection 500 m 1000 m 1500 m
Minimum distance 4 m 2 m 3 m
Frame rate 30 Hz
Display framerate 60 Hz
Spectral range 7.5 – 13.5 μm
Pixel pitch 17 μm
Thermal sensitivity, NETD <38 mK @ 30°C
Resolution 640 × 480 Vox Microbolometer
User interface
Zoom 2x, 4x 6x, 8x
Color palettes White Hot, Black Hot, Sepia, Heat
Image presentation
Built-in display XGA 1024 × 768
Video XGA 1024 × 768
Power
Batttery life Up to 6 h
Battery type Internal Li-ion cell
Charging time 2 h 80% capacity
Physical
Color (housing) Black
Drop rating 2 m
IP rating IP67, 1/2 hour submersible under 1 m
Operating temperature −15°C to 45°C (5°F to 113°F)
Size (L × W × H) 19.2 × 6.4 × 6.4 cm / 21.2 × 6.4 × 6.4 cm / 23.2 × 6.4 × 6.4 cm
Weight (incl.battery) 498 g 660 g 745 g
Tripod mounting UNC ¼"-20 UNC ¼"-20 UNC ¼"-21
Echodyne-> EchoShield : MEDIUM RANGE RADAR
Echodyne-> EchoShield : MEDIUM RANGE RADAR
EchoShield is a medium-range radar designed for defense & security applications where accuracy, mobility, and reliability are essential. With a 10 Hz update rate, it delivers precise real-time tracking of multiple airborne & ground targets, providing operators with enhanced situational awareness. Advanced AI-based classification identifies drones, vehicles, aircraft, and personnel, enabling faster threat assessment and improved sensor fusion. Featuring the lowest SWaP in its class, EchoShield integrates easily with vehicles, autonomous platforms, and mobile systems while maintaining full On-The-Move capability. Built on a cognitive radar architecture, it adapts to changing environments and mission requirements. Through EchoWare, multiple radars can be networked to extend coverage, maintain continuous tracks, and provide a scalable surveillance solution for complex operational scenarios.
Frequency : Ku-band 15.4 – 16.6 GHz (INTL),
Field of View : 130° Azimuth x 90° Elevation,
Track Accuracy : < 0.5° Azimuth x < 0.5° Elevation,
Track Update Rate : 10 Hz,
Max Tracks : Up to 1000 Simultaneous Tracks,
Range : up to 30 km,
UAV: : > 4.8 km (Group 1)
> 6.4 km (Group 2),
> 11.4 km (Group 3),
Vehicle: : > 11 km,
Human: : > 8 km,
Size : 42.5 cm x 33 cm x 18 cm,
Weight : 17.8 kg,
Power (INTL) : + 21.5 to + 33 VDC,
< 250 W (Operating),
< 100 W (Hot Standby),
Operating Temp : - 40° C to +49° C,
Weather Protection : IP67,
Environmental : MIL-STD-810 H.
Field of View : 130° Azimuth x 90° Elevation,
Track Accuracy : < 0.5° Azimuth x < 0.5° Elevation,
Track Update Rate : 10 Hz,
Max Tracks : Up to 1000 Simultaneous Tracks,
Range : up to 30 km,
UAV: : > 4.8 km (Group 1)
> 6.4 km (Group 2),
> 11.4 km (Group 3),
Vehicle: : > 11 km,
Human: : > 8 km,
Size : 42.5 cm x 33 cm x 18 cm,
Weight : 17.8 kg,
Power (INTL) : + 21.5 to + 33 VDC,
< 250 W (Operating),
< 100 W (Hot Standby),
Operating Temp : - 40° C to +49° C,
Weather Protection : IP67,
Environmental : MIL-STD-810 H.
