"LEDATEL" SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ I WSPÓLNICY SPÓŁKA KOMANDYTOWA
- ul. Terespolska 144, 05-074 Nowy Konik, Poland
- www.ledatel.pl
Description
Ledatel is a Polish company with 19 years of experience. We offer secure, high-performance solutions for visualization, data processing, storage, communication, power supply, as well as motion control and stabilization, applicable to all types of modern defense platforms. Comprehensive, rugged, mission-critical solutions based on cutting-edge technologies and open standards enable clients to reduce program risk and deliver projects on time. These products include cybersecurity solutions designed to protect critical data during every mission.
We manufacture our own devices and systems, providing our clients with comprehensive, custom-tailored technologies along with ongoing maintenance support. We collaborate with industry-leading manufacturers from Europe, Canada, the USA, and Australia to ensure our clients receive the best and most readily available solutions.
We hold certified management systems for quality (ISO 9001:2015 and ISO 22163:2023), environmental management (ISO 14001:2015), and information security (ISO 27001:2023), as well as a defense/security license issued by the Polish Ministry of the Interior and Administration (MSWiA).
We manufacture our own devices and systems, providing our clients with comprehensive, custom-tailored technologies along with ongoing maintenance support. We collaborate with industry-leading manufacturers from Europe, Canada, the USA, and Australia to ensure our clients receive the best and most readily available solutions.
We hold certified management systems for quality (ISO 9001:2015 and ISO 22163:2023), environmental management (ISO 14001:2015), and information security (ISO 27001:2023), as well as a defense/security license issued by the Polish Ministry of the Interior and Administration (MSWiA).
Products
EICM
EICM
EICM (Integrated Communication Module by LEDATEL) is an industrial device designed for railway applications, providing internet access (5G/4G/3G/2G, Wi-Fi 5/7) and local Intranet distribution for passengers. It can also function as a UTM central unit.
Connectivity: Up to 8 LTE modems / 5 5G modems, 16 micro SIM slots with dynamic assignment, Wi-Fi module, and GNSS.
Interfaces: 6x Ethernet M12 X-code ports (2x 2.5 GbE, 4x 1 GbE), DIO/CAN/RS485 connector, and USB-C.
Reliability: IP65 enclosure, 16.8–30 V DC power supply, and full compliance with railway standards (including EN 50155, EN 61373, EN 45545-2).
Interfaces: 6x Ethernet M12 X-code ports (2x 2.5 GbE, 4x 1 GbE), DIO/CAN/RS485 connector, and USB-C.
Reliability: IP65 enclosure, 16.8–30 V DC power supply, and full compliance with railway standards (including EN 50155, EN 61373, EN 45545-2).

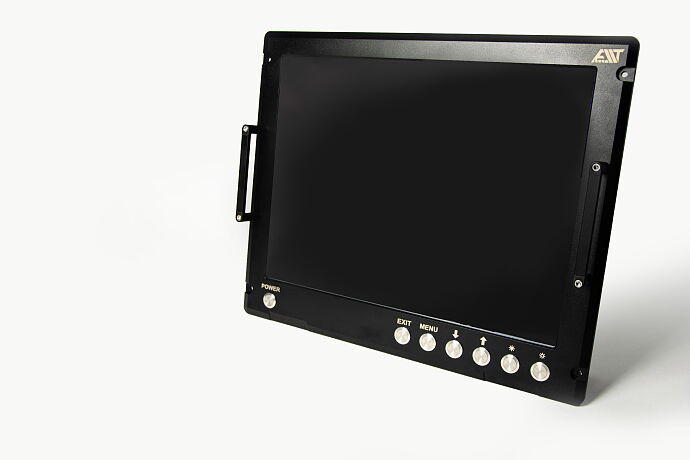

TLCD201
TLCD201
TLCD201 LCD Display by ELLT is a specialized, 20-inch RGB color display manufactured in Poland. The device features a resolution of 1600×1200 px (4:3), brightness up to 900 cd/m², and an 800:1 contrast ratio. It comes equipped with adaptive brightness adjustment, online diagnostics, and an open communication protocol. Designed to operate in harsh environments (operating temperature -25°C to +55°C, IP64 front / IP40 rear protection rating, P4A protective glass), it complies with MIL-STD 810G/F and MIL-STD 461F/NO-06-A200 standards.
DISPLAY
Resolution | 1600 x 1200 px
Viewing area | 408 mm x 306 mm
Contrast | 800:1
Luminance (cd/m2) | Max. 900 cd/m2
Screen diagonal | 20” (4:3)
Pixel pitch | 0.255 (S) x 0.255 (W)
POWER SUPPLY
Input voltage | 9 - 36 V DC
Rated Voltage | 24 V DC
Power consumption | 30 W
MECHANICAL
Dimensions (W x H x D) mm | 480 x 400 x 80
Weight | 10 kg
Computer | AD BOARD
Output ports | 1 x DVI, 1 x VGA
Operating temperature | -25 °C do + 55 °C
Level of secutiry | IP64 (przód), IP40 (tył)
Screen protection | Szyba P4A
Resolution | 1600 x 1200 px
Viewing area | 408 mm x 306 mm
Contrast | 800:1
Luminance (cd/m2) | Max. 900 cd/m2
Screen diagonal | 20” (4:3)
Pixel pitch | 0.255 (S) x 0.255 (W)
POWER SUPPLY
Input voltage | 9 - 36 V DC
Rated Voltage | 24 V DC
Power consumption | 30 W
MECHANICAL
Dimensions (W x H x D) mm | 480 x 400 x 80
Weight | 10 kg
Computer | AD BOARD
Output ports | 1 x DVI, 1 x VGA
Operating temperature | -25 °C do + 55 °C
Level of secutiry | IP64 (przód), IP40 (tył)
Screen protection | Szyba P4A
Business sector
Aviation, air defence armament and equipment
Naval armament and equipment
Radio- and opto-electronical equipment
Communication and IT
Defence infrastructure equipment
Engineering equipment
Brands
ELLT
