Iris Dynamics Ltd.
- 3948 Quadra Street Unit 2, V8X 1J6 Victoria, British Columbia, Canada
- irisdynamics.com
Description
Iris Dynamics Ltd. is an ISO 9001:2015 Canadian OEM of force-controlled smart linear motors for defence, autonomous systems, advanced manufacturing, and test and measurement. ORCA™ motors are used in UxVs, RCWS, C-UAS, stabilization, and precision positioning systems. Our motors are compact, solid-state, near-silent, mechanically compliant, and engineered for shock, vibration, dust, salt, and maritime environments.
Download
-
ORCA-Motors-Datasheet-2026.07.27.pdffile size: 2.10 MB
Products

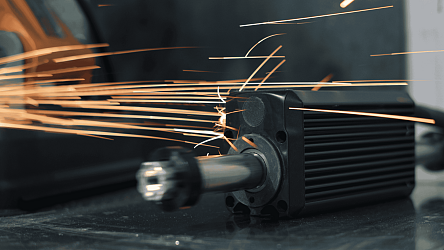

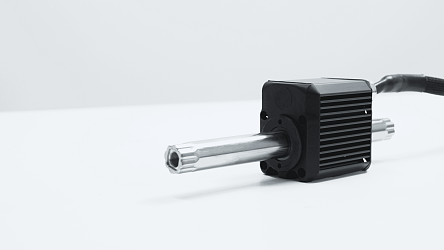

ORCA™ Series Smart Linear Motors
ORCA™ Series Smart Linear Motors
ORCA™ motors combine actuation, sensing, drive electronics, and control in a compact, IP68-rated sealed package, delivering precise force and position control while reducing system complexity and potential points of failure. Backdrivable, mechanically compliant, and silent, they are ideal for uncrewed ground, air, sea, subsea, maritime systems, vehicle automation, sensor and payload stabilization, and defence test equipment. They are also used across many industrial manufacturing and robotics applications, ranging from pneumatic replacement to robotic assembly lines.
- Supply Voltage: 12-60 VDC
- Peak Force: Up to 1,000 N
- Maximum Speed: Up to 8.1 m/s
- Fully Integrated: drivers, controllers & sensors (Position & Force)
- Force Control: Fully backdrivable with zero force ripple (Mechanically Compliant)
- Position Accuracy: ±250 μm
- Force Resolution: ±0.5 N
- Environmental Protection: Fully Encapsulated (solid-state), IP68+

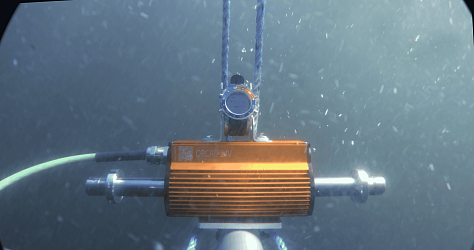

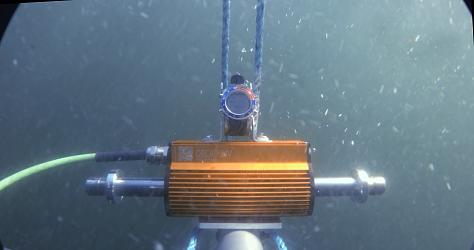

- Subsea Capable: >1000M
- Acoustic Profile: Near undetectable depending on configuration
- Operating Temperature: -20°C to + 70°C
- Communications: EtherNet/IP, Serial (RS-422, RS-485), USB, PWM, and Digital/Analog GPIO.
- APIs/SDKs available for: MATLAB, LabVIEW, ROS/ROS2, Gazebo, ArduPilot, Unity, Python, C, etc.
- Peak Force: Up to 1,000 N
- Maximum Speed: Up to 8.1 m/s
- Fully Integrated: drivers, controllers & sensors (Position & Force)
- Force Control: Fully backdrivable with zero force ripple (Mechanically Compliant)
- Position Accuracy: ±250 μm
- Force Resolution: ±0.5 N
- Environmental Protection: Fully Encapsulated (solid-state), IP68+
- Subsea Capable: >1000M
- Acoustic Profile: Near undetectable depending on configuration
- Operating Temperature: -20°C to + 70°C
- Communications: EtherNet/IP, Serial (RS-422, RS-485), USB, PWM, and Digital/Analog GPIO.
- APIs/SDKs available for: MATLAB, LabVIEW, ROS/ROS2, Gazebo, ArduPilot, Unity, Python, C, etc.

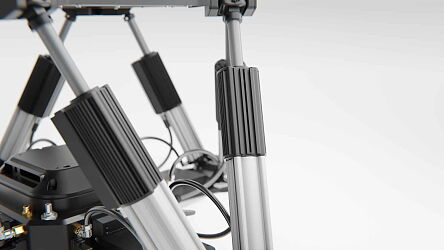

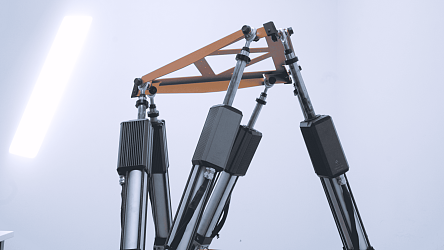

RAVEN-6DoF Stabilization System
RAVEN-6DoF Stabilization System

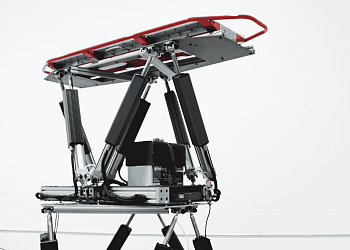

The RAVEN is a customizable direct drive magnetic six-degrees-of-freedom (6DoF) motion platform/stabilization system. The family is based on Iris's integrated ORCATM motors which includes high-speed force-controlled motion, and configurable kinematics to support a wide range of custom platform geometries and end user applications. RAVEN's are used in vehicle-mounted systems stabilized platforms including: EO/IR payloads, C-UAS, remote weapon stations, and ambulatory patient shock/vibration mitigation. They are also used across several design testing labs (to replicate given shock, vibration, sea state, etc.)
- Supply Voltage: 12-60 VDC
- Degrees of Freedom: up to 6
- Platform Geometry: Customizable Stewart platform configurations
- Payload Capacity: Customizable up to 350 kg
- Latency: < 2ms
- Acceleration (Roll, Pitch, Yaw): up to 1000 deg/s²
- Accuracy: up to ±250 μm on surge, sway, and heave motions
- Environmental Protection: Fully Encapsulated (solid-state), IP68+
- Subsea Capable: Optional
- Degrees of Freedom: up to 6
- Platform Geometry: Customizable Stewart platform configurations
- Payload Capacity: Customizable up to 350 kg
- Latency: < 2ms
- Acceleration (Roll, Pitch, Yaw): up to 1000 deg/s²
- Accuracy: up to ±250 μm on surge, sway, and heave motions
- Environmental Protection: Fully Encapsulated (solid-state), IP68+
- Subsea Capable: Optional
Business sector
Subassemblies, equipment and systems of people and property protection
Aviation, air defence armament and equipment
Naval armament and equipment
Transport equipment (wheeled, tracked and amphibian), also for special use
Radio- and opto-electronical equipment
Metrology equipment
Engineering equipment
