Description
Founded in 1974, Heilind Electronics, Inc. is one of the world's leading distributors of interconnectors, relays, sensors, switches, thermal management and circuit protection products, terminal blocks, wire and cable, wiring accessories, fasteners, and insulation and identification products. As part of its value-added services, Heilind Europe assembles key connector lines using components certified to European Standards (EN), Verteidigungsgerätenorm (VG-Norm), and U.S. DLA QPL standards, ensuring compliance with stringent industry and defense requirements. Heilind has locations throughout the US, Canada, Mexico, Brazil, Germany, Poland, Singapore, Hong Kong, and China. Check: www.heilind.eu
Products
369 Small Form Factor Connectors
369 Small Form Factor Connectors
369 series connectors are particularly suited for harsh environments that include aircraft, space, industrial and automotive systems. It is designed for applications where fewer contacts are needed within a small size package. In addition, 369 small form factor connectors are suitable for blind mating or low visibility conditions with the mechanical scoop-proof interface help prevent damage to contacts. The connectors are fully sealed for use in areas with high levels of moisture. Installation and maintenance of cabling is quick and easy and field serviceable. Integrated cable tie slot allows for simple, quick, secure and versatile mounting.
• Based on EN4165/ARINC 809 single module connector
• Available with 3, 6, and 9 aerospace standard AS39029/EN3155 size 22 contacts
• Scoop-proof interface helping prevent damage to contacts
• Fully sealed connector
• High performance composite materials
• Range of individually color-coded keying options
• Standard cable tie
• Panel mount options
• PCB mount options
• Operating Temperature: -55°C to +175°C
• Fluid Resistance: EN2591-315
• IP Rating: IP67
• Altitude/Humidity: RTCA DO-160
• Vibration: EN2591-403, Method B, Level E, 8 hr/axis
• Shock: EN2591-402, Method A, severity 100
• Smoke and Toxicity: FAR 25.853, Appendix F; ABD0031
• Flammability: FAR 25.853 Appendix F; EN2591-317
• Durability: 500 mating cycles
• Available with 3, 6, and 9 aerospace standard AS39029/EN3155 size 22 contacts
• Scoop-proof interface helping prevent damage to contacts
• Fully sealed connector
• High performance composite materials
• Range of individually color-coded keying options
• Standard cable tie
• Panel mount options
• PCB mount options
• Operating Temperature: -55°C to +175°C
• Fluid Resistance: EN2591-315
• IP Rating: IP67
• Altitude/Humidity: RTCA DO-160
• Vibration: EN2591-403, Method B, Level E, 8 hr/axis
• Shock: EN2591-402, Method A, severity 100
• Smoke and Toxicity: FAR 25.853, Appendix F; ABD0031
• Flammability: FAR 25.853 Appendix F; EN2591-317
• Durability: 500 mating cycles

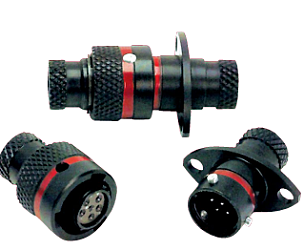

Wildcat Connectors for Unmanned Autonomous Vehicles (UAV)
Wildcat Connectors for Unmanned Autonomous Vehicles (UAV)
TE Connectivity with its Wildcat UAV connection systems offers expertise in the design and manufacture of interconnection solutions for harsh environments. With over 40-years of international experience, Wildcat UAV connectors are designed for applications within the aerospace, defense, and transportation markets. With a new black zinc nickel plating, these connectors are suitable for UAV systems. TE Connectivity (TE) with its Wildcat UAV connectors continues to push the boundaries of technology and innovation, consistently driving the market forwards with new products that match the ever increasing demands of lower weight, smaller size and better performance.
Vibration & Shock
• Per MIL-DTL-38999
• MIL-STD-810
• Up to 70,000 ft
Altitude & Immersion
• ~>70,000 ft
• Splashproof
• Fuel immersible options available
Salt Spray & Fog
• Up to 500 hrs
• -65 to +175˚C
Shell sizes & contacts:
• Size 1 to 24
• 2-128 contacts
Customisations Options:
• Flange – clinch nuts, inline, half & full flange
• PCB tails
• Hermetic
• EMI filtering
• Per MIL-DTL-38999
• MIL-STD-810
• Up to 70,000 ft
Altitude & Immersion
• ~>70,000 ft
• Splashproof
• Fuel immersible options available
Salt Spray & Fog
• Up to 500 hrs
• -65 to +175˚C
Shell sizes & contacts:
• Size 1 to 24
• 2-128 contacts
Customisations Options:
• Flange – clinch nuts, inline, half & full flange
• PCB tails
• Hermetic
• EMI filtering
Wildcat Connectors for Unmanned Autonomous Vehicles (UAV)
Wildcat Connectors for Unmanned Autonomous Vehicles (UAV)
TE Connectivity with its Wildcat UAV connection systems offers expertise in the design and manufacture of interconnection solutions for harsh environments. With over 40-years of international experience, Wildcat UAV connectors are designed for applications within the aerospace, defense, and transportation markets. With a new black zinc nickel plating, these connectors are suitable for UAV systems. TE Connectivity (TE) with its Wildcat UAV connectors continues to push the boundaries of technology and innovation, consistently driving the market forwards with new products that match the ever increasing demands of lower weight, smaller size and better performance.
Vibration & Shock
• Per MIL-DTL-38999
• MIL-STD-810
• Up to 70,000 ft
Altitude & Immersion
• ~>70,000 ft
• Splashproof
• Fuel immersible options available
Salt Spray & Fog
• Up to 500 hrs
• -65 to +175˚C
Shell sizes & contacts:
• Size 1 to 24
• 2-128 contacts
Customisations Options:
• Flange – clinch nuts, inline, half & full flange
• PCB tails
• Hermetic
• EMI filtering
• Per MIL-DTL-38999
• MIL-STD-810
• Up to 70,000 ft
Altitude & Immersion
• ~>70,000 ft
• Splashproof
• Fuel immersible options available
Salt Spray & Fog
• Up to 500 hrs
• -65 to +175˚C
Shell sizes & contacts:
• Size 1 to 24
• 2-128 contacts
Customisations Options:
• Flange – clinch nuts, inline, half & full flange
• PCB tails
• Hermetic
• EMI filtering
