Products
Black Wasp C-UAS Interceptor
Black Wasp C-UAS Interceptor
The BLACK WASP is an advanced aerial autonomous C-UAS drone designed for vertical take-off (VTOL) operations.
BLACK WASP is currently one of the most effective interceptor against Shahed-type drones. It integrates electric propulsion technology and AI/ML -based flight control for enhanced maneuverability. BLACK WASP seamlessly integrates with radar systems, providing the operator with target position information in 3D and significantly increasing the success rate.
Dimensions (including prop arc): 600x450x450mm
Flight range: 40km / 20km with return
Flight endurance: 6min (max speed); up to 15min (cruise)
Launch method: VTOL
Operational altitude: up to 7000m MSL
Climb rate: 30m/s
Cruise / Max Speed: 160km/h / 320km/h
Max takeoff weight: 4kg
Payload (warhead) wight: 300-500g
Radar integration: Yes, radar information is provided to the operator
Data Link: Jamming resilient operating in S-band/ C-band
Electro-optical seekers: Multiple sensors including daylight and thermal cameras as an option
Autonomy level: AI/ML -powered control system for automated flight, target tracking and terminal guidance
Flight range: 40km / 20km with return
Flight endurance: 6min (max speed); up to 15min (cruise)
Launch method: VTOL
Operational altitude: up to 7000m MSL
Climb rate: 30m/s
Cruise / Max Speed: 160km/h / 320km/h
Max takeoff weight: 4kg
Payload (warhead) wight: 300-500g
Radar integration: Yes, radar information is provided to the operator
Data Link: Jamming resilient operating in S-band/ C-band
Electro-optical seekers: Multiple sensors including daylight and thermal cameras as an option
Autonomy level: AI/ML -powered control system for automated flight, target tracking and terminal guidance

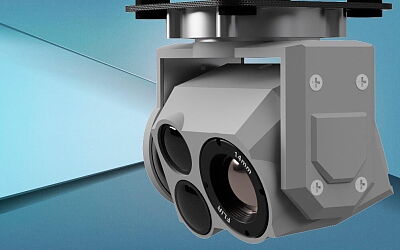

Micro Gimbals GS-214X & GS-218X
Micro Gimbals GS-214X & GS-218X
GS-214X / GS-218X micro gimbals – lightweight, high-performance solutions optimized for demanding environments and advanced ISTAR tasks.
The GS-214X and GS-218X gimbals set new standards for size, weight and performance to meet the most demanding expectations of 2-axis stabilized gimbals with dual-EO and best in class thermal imagers. Our gimbal comes with advanced image processing. The built-in dual-EO camera ensures up to 40x zoom (x20 optical and x2 digital), along with onboard recording and transmission to a ground control station. In addition to the EO camera, the gimbal offers a high-performance Flir Boson+ thermal camera with 640x512 resolution. All this comes in a light compact size module with low power consumption.
Dimensions: 71x71x71mm
Weight: 180g
OPTICS:
EO camera: x2 16MP sensor
Horizontal field of view: 60° - 3° (optical) 1.5° (digital)
Resolution: 1280 × 960 (960p)
Thermal LWIR camera: FLIR Boson+ 640
Horizontal field of view: 14mm lens HFOV 32° (GX-214S), 18mm lens HFOV 24° (GX-218S)
Resolution: 640x512 px
Sensitivity: Up to <=20mK (selectable)
Weight: 180g
OPTICS:
EO camera: x2 16MP sensor
Horizontal field of view: 60° - 3° (optical) 1.5° (digital)
Resolution: 1280 × 960 (960p)
Thermal LWIR camera: FLIR Boson+ 640
Horizontal field of view: 14mm lens HFOV 32° (GX-214S), 18mm lens HFOV 24° (GX-218S)
Resolution: 640x512 px
Sensitivity: Up to <=20mK (selectable)

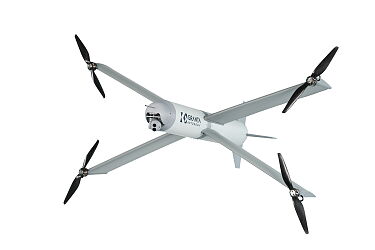

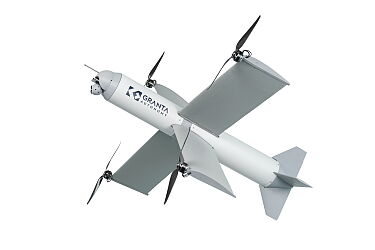

X-Wing Loitering Munition aircraft
X-Wing Loitering Munition aircraft
X-WING – a hybrid VTOL loitering munition with a range of up to 50 km. It functions as a "shooter" alongside the Hornet XR's "sensor", utilizing AI-enabled autonomy even without GNSS/GPS availability.
The X-Wing is an advanced aerial autonomous loitering munition drone designed for vertical take-off (VTOL) operations. It integrates electric propulsion technology and AI/ML-based flight control for enhanced maneuverability. Designed to be equipped with multi-purpose anti-armor and fragmentation warheads. Pending integration with long range surveillance wing Hornet XR for target acquisition and communication relay.
Dimensions (including prop arc): 130 x 120 x 60 cm
Flight range: + 50km
Flight endurance: > 40min
Launch method: VTOL
Operational altitude: + 300m above ground
Max altitude: 5000m
Targeted maximum attack-phase speed: up to 170 km/h
Cruise speed: 90km/h
Payload (warhead) weight: 4kg
Compatible warheads types: • anti-armor • fragmentation • multi-purpose
Data link: Jamming resilient operating in S-band/ C-band
Electro-optical seekers: Multiple sensors including daylight and thermal cameras as an option
Autonomy level: AI/ML-powered control system for automated
flight, target tracking and terminal guidance.
.
Dimensions (including prop arc): 130 x 120 x 60 cm
Flight range: + 50km
Flight endurance: > 40min
Launch method: VTOL
Operational altitude: + 300m above ground
Max altitude: 5000m
Targeted maximum attack-phase speed: up to 170 km/h
Cruise speed: 90km/h
Payload (warhead) weight: 4kg
Compatible warheads types: • anti-armor • fragmentation • multi-purpose
Data link: Jamming resilient operating in S-band/ C-band
Electro-optical seekers: Multiple sensors including daylight and thermal cameras as an option
Autonomy level: AI/ML-powered control system for automated
flight, target tracking and terminal guidance.
.
