Description
Machine Tools and Production Systems from EMAG – Our Specialty
As a manufacturer of CNC machine tools the EMAG Group masters all the processes involved in the soft and hard machining of metals. EMAG draws on an enormous range of technologies to achieve this – from turning, drilling, milling, gear cutting and grinding to laser welding and heat shrink assembly all the way to electro-chemical machining.
As a manufacturer of CNC machine tools the EMAG Group masters all the processes involved in the soft and hard machining of metals. EMAG draws on an enormous range of technologies to achieve this – from turning, drilling, milling, gear cutting and grinding to laser welding and heat shrink assembly all the way to electro-chemical machining.
Products

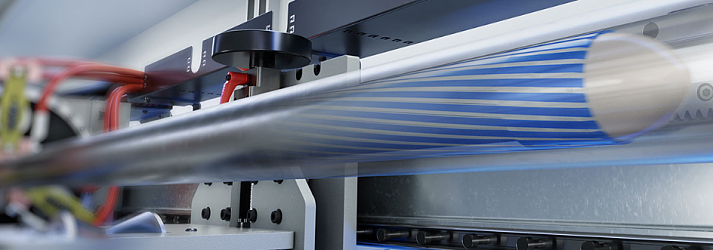

PO 3000 IP
PO 3000 IP
High-precision internal machining with electrochemical processing
Gun barrel production with ECM rifling
The production of gun barrels with tension-field profiles, also known as rifling, demands the highest levels of precision, repeatability and process reliability. The PO 3000 IP from EMAG ECM offers a solution for the electrochemical internal machining of rifled tubes: delivering stress-free machining, minimal tool wear and maximum reproducibility.
Engineered specifically for the requirements of defense technology, the PO 3000 IP machines tubes with internal diameters of up to 63 mm and lengths of up to 9,000 mm. This makes it ideally suited for manufacturing small- and medium-caliber barrels, such as those used in air defense systems, infantry weapons, helicopters and aircraft.
Długość obrabianego elementu: 1000–3000 mm
Średnica wewnętrzna: 20–30 mm
Średnica zewnętrzna: do ok. 121 mm
Prędkość posuwu: do 100 mm/min
Czas cyklu (przykładowo dla rury o długości 3000 mm: ok. 35 minut
Załadunek: od góry, np. za pomocą dźwigu
Średnica wewnętrzna: 20–30 mm
Średnica zewnętrzna: do ok. 121 mm
Prędkość posuwu: do 100 mm/min
Czas cyklu (przykładowo dla rury o długości 3000 mm: ok. 35 minut
Załadunek: od góry, np. za pomocą dźwigu

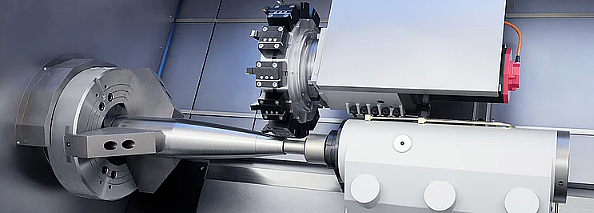

USC 850
USC 850
Precision turning of 155 mm artillery shells with the EMAG USC 850
In the defense industry, maximum precision, reliability and efficiency are crucial. The USC 850 from EMAG fulfills these requirements exactly and enables the high-quality turning of 155 mm artillery shells.
Leading solutions for the defense industry: Maximum precision and performance
The USC 850 turning machine impresses with its generous machining area with a maximum turning diameter of 600 mm, specially optimized for 155 mm calibre artillery shells. A positioning accuracy of an impressive 0.009/0.018 mm and a roundness accuracy of ≤ 0.004 mm guarantee first-class ballistic properties of the machined ammunition. This technical accuracy is essential to meet the highest standards of safety and functionality.
Średnica obrotu: 850 mm
Średnica toczenia: 600 mm
Maks. długość toczenia: 1850 mm
Maks. masa obrabianego przedmiotu: 3000 kg
Maks. średnica pręta: 51 mm
Średnica toczenia: 600 mm
Maks. długość toczenia: 1850 mm
Maks. masa obrabianego przedmiotu: 3000 kg
Maks. średnica pręta: 51 mm
