Commtact Ltd
- Nahal Snir 10, 8122447 Yavne, Israel
- +97289433602
- info@commtact.co.il
- commtact-systems.com
Description
Commtact is a global provider of mission-critical, battle-proven digital wireless communication solutions for defense applications. Specializing in aerial, ground, and naval operations, Commtact delivers innovative and resilient systems featuring advanced MESH networking and robust anti-jamming capabilities, ensuring reliable performance in the most challenging environments.
Commtact provides state-of-the-art wireless communication solutions designed to meet the challenges of today’s most demanding scenarios.
With over 20 years of expertise, our systems ensure secure, robust, and reliable connectivity for mission-critical applications.
-Our Core Offerings:
-Comprehensive Communication Solutions:
*Versatile Topologies: Line of Sight (LOS), Beyond Line of Sight (BLOS), Relay, Point-to-Point (PtP), and multi-platform Smart MESH networks.
*BLOS Solution with PAA Satellite Antenna: Extended-range communication via phased array satellite antennas, ensuring seamless connectivity in remote and contested environments.
*End-to-End Integration: Seamlessly connecting air, land, and sea platforms with secure, high-bandwidth communication links.
-Combat-Proven Technology:
*Resilient and secure communication systems designed for harsh and contested environments.
*Proven success across applications in land, aviation, maritime, and precision munition operations.
-Advanced SMART MESH Networking:
*Enables secure communication between drone swarms and mobile platforms.
*Combines relay and Point-to-Multipoint (PtMP) functionalities to support a robust multi-platform architecture.
-Innovative Features:
*Secure Communication: Integrated frequency hopping, AES-256 encryption, and spread spectrum technologies ensure data protection.
*High-Performance RF Systems: Supports UHF, L, C, and S bands with in-house design expertise.
*Video Solutions: High-definition, real-time video transmission with SDK capabilities.
*Flexible Software-Defined Radios (SDRs): Easily customizable for diverse mission needs.
*Advanced Networking Capabilities: Relay, PtMP, and MESH configurations for enhanced operational flexibility.
*Ruggedized Design: MIL-STD and IP-67 compliance for durability in extreme environments.
-Our dedicated R&D team specializes in:
*RF Design: Developing advanced wireless communication solutions.
*Algorithm Development: Creating secure modulation and encryption technologies.
*Mechanical Engineering: Building ruggedized systems and precision tracking mechanisms.
*Digital and Software Innovation: Expertise in DSP, FPGA, and advanced board design.
Why Choose Commtact?
*One-Stop Shop: Comprehensive solutions from design to deployment.
*Customer-Centric: Tailored systems for seamless integration with existing C4I platforms.
*Field-Tested Reliability: Trusted by leading military organizations worldwide.
*Anti-Jamming and GPS-Compromised Capabilities: Ensuring resilience in contested and challenging environments.
Let's Connect : https://commtact-systems.com/
Commtact provides state-of-the-art wireless communication solutions designed to meet the challenges of today’s most demanding scenarios.
With over 20 years of expertise, our systems ensure secure, robust, and reliable connectivity for mission-critical applications.
-Our Core Offerings:
-Comprehensive Communication Solutions:
*Versatile Topologies: Line of Sight (LOS), Beyond Line of Sight (BLOS), Relay, Point-to-Point (PtP), and multi-platform Smart MESH networks.
*BLOS Solution with PAA Satellite Antenna: Extended-range communication via phased array satellite antennas, ensuring seamless connectivity in remote and contested environments.
*End-to-End Integration: Seamlessly connecting air, land, and sea platforms with secure, high-bandwidth communication links.
-Combat-Proven Technology:
*Resilient and secure communication systems designed for harsh and contested environments.
*Proven success across applications in land, aviation, maritime, and precision munition operations.
-Advanced SMART MESH Networking:
*Enables secure communication between drone swarms and mobile platforms.
*Combines relay and Point-to-Multipoint (PtMP) functionalities to support a robust multi-platform architecture.
-Innovative Features:
*Secure Communication: Integrated frequency hopping, AES-256 encryption, and spread spectrum technologies ensure data protection.
*High-Performance RF Systems: Supports UHF, L, C, and S bands with in-house design expertise.
*Video Solutions: High-definition, real-time video transmission with SDK capabilities.
*Flexible Software-Defined Radios (SDRs): Easily customizable for diverse mission needs.
*Advanced Networking Capabilities: Relay, PtMP, and MESH configurations for enhanced operational flexibility.
*Ruggedized Design: MIL-STD and IP-67 compliance for durability in extreme environments.
-Our dedicated R&D team specializes in:
*RF Design: Developing advanced wireless communication solutions.
*Algorithm Development: Creating secure modulation and encryption technologies.
*Mechanical Engineering: Building ruggedized systems and precision tracking mechanisms.
*Digital and Software Innovation: Expertise in DSP, FPGA, and advanced board design.
Why Choose Commtact?
*One-Stop Shop: Comprehensive solutions from design to deployment.
*Customer-Centric: Tailored systems for seamless integration with existing C4I platforms.
*Field-Tested Reliability: Trusted by leading military organizations worldwide.
*Anti-Jamming and GPS-Compromised Capabilities: Ensuring resilience in contested and challenging environments.
Let's Connect : https://commtact-systems.com/
Download
-
MDLS-brochure-Digital-11-05-26.pdffile size: 297.54 KB
-
Phoenix-Digital-4-5.5GHz.pdffile size: 614.82 KB
-
Micro-Phoenix-July-2025.pdffile size: 259.71 KB
-
Commtact-One-pager-08-2026.pdffile size: 1.26 MB
-
Phoenix-E28093-Maxi-brochure-Digital-08-2026-1.pdffile size: 689.57 KB
Products

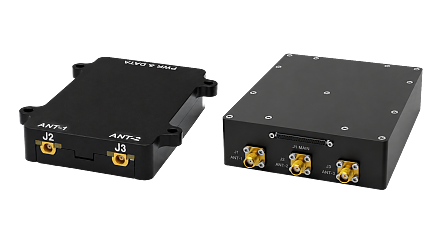

Maxi Phoenix
Maxi Phoenix
Where Mobility Meets Connectivity
The Maxi Phoenix comprises several platforms, catering to a wide range of sizes from small to large,and offering connectivity over long distances of more than 200km. This versatile range ensures that Maxi Phoenix can meet the needs of diverse aerial, ground, and naval platforms.
Additionally, Maxi Phoenix provides a resilient communication by integrating full-duplex wideband digital links with advanced algorithms, ensuring reliability, high performance, and data security in any environment.
Engineered with SWaP constraints in mind, Maxi Phoenix seamlessly integrates into any platform.
Features and Benefits:
Modulation: Supports GMSK and OFDM modulations for flexible communication
Topology: Supports P2P, P2MP, Relay, FNET and MESH*.
Secure Encryption: Offers AES256 and CAT TSV encryption options, ensuring robust data security.
Operational Mode with GPS Deprivation: Capable of functioning without GPS,enhancing operational flexibility.
Compact & Lightweight: Small size and weight for easy integration.
versatile Range: Facilitates short, medium, and long-distance communication up to 200 km.
Field-Proven Reliability: With thousands of flight hours, Phoenix boasts a military-proven track record for dependable performance.
* Subject to export license
Parameter & Value:
-Transmission Power: Up to10W
-Modulation: GMSK/OFDM
-Frequency: S band
-Data Rate Up to 8Mbps
-COMSEC AES256 encryption
- TRANSEC: Frequency Hopping 300 Hops/sec ,Sense & Avoid
-Interference Avoidance : V
- Topology: PTP,PTMP,RELAY *MESH (Subject to Export License)
- Interfaces: ETH , RS232
- Heatsink: Optional
- Weight :~450 gr - w.o heatsink
- Dimensions: ~ 96x140x27mm - w.o heatsink
- Distance: 200km +
Modulation: Supports GMSK and OFDM modulations for flexible communication
Topology: Supports P2P, P2MP, Relay, FNET and MESH*.
Secure Encryption: Offers AES256 and CAT TSV encryption options, ensuring robust data security.
Operational Mode with GPS Deprivation: Capable of functioning without GPS,enhancing operational flexibility.
Compact & Lightweight: Small size and weight for easy integration.
versatile Range: Facilitates short, medium, and long-distance communication up to 200 km.
Field-Proven Reliability: With thousands of flight hours, Phoenix boasts a military-proven track record for dependable performance.
* Subject to export license
Parameter & Value:
-Transmission Power: Up to10W
-Modulation: GMSK/OFDM
-Frequency: S band
-Data Rate Up to 8Mbps
-COMSEC AES256 encryption
- TRANSEC: Frequency Hopping 300 Hops/sec ,Sense & Avoid
-Interference Avoidance : V
- Topology: PTP,PTMP,RELAY *MESH (Subject to Export License)
- Interfaces: ETH , RS232
- Heatsink: Optional
- Weight :~450 gr - w.o heatsink
- Dimensions: ~ 96x140x27mm - w.o heatsink
- Distance: 200km +

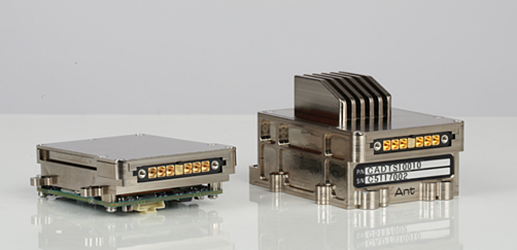

MDLS – Micro Data Link System
MDLS – Micro Data Link System
The MDLS system introduces advanced data connectivity solutions for small-sized platforms. Integrating full-duplex wideband digital links with advanced algorithms, MDLS ensures reliability, high performance, and data security in any environment. Engineered with SWaP constraints in mind, MDLS offers compact solutions without compromising efficiency, making it the ideal choice for mission-critical operations.
Features and Benefits:
-Comprehensive Solution: Covers Aerial and Ground units for seamless connectivity.
-Wide Frequency Range: Supports L and S bands for versatile communication.
-Secure Encryption: AES256 and frequency hopping ensure data security.
-Compact & Lightweight: Small size and weight for easy integration.
-Versatile Range: Facilitates Short, Medium, and Long-distance communication up to 150km.
-Field – Proven Reliability: With thousands of flight hours, MDLS boasts a military-proven track record for dependable performance.
-Transmission Power – 30dBm ;1W
-Modulation – GMSK
-Data Rate – Up to 8Mbps
-Topology: PTP,PTMP
-Video Encoder – H.264
-Input Power – 9V-18V, 12Vdc Nominal
-Comprehensive Solution: Covers Aerial and Ground units for seamless connectivity.
-Wide Frequency Range: Supports L and S bands for versatile communication.
-Secure Encryption: AES256 and frequency hopping ensure data security.
-Compact & Lightweight: Small size and weight for easy integration.
-Versatile Range: Facilitates Short, Medium, and Long-distance communication up to 150km.
-Field – Proven Reliability: With thousands of flight hours, MDLS boasts a military-proven track record for dependable performance.
-Transmission Power – 30dBm ;1W
-Modulation – GMSK
-Data Rate – Up to 8Mbps
-Topology: PTP,PTMP
-Video Encoder – H.264
-Input Power – 9V-18V, 12Vdc Nominal

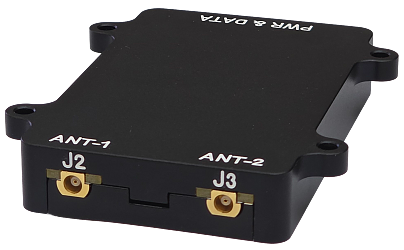

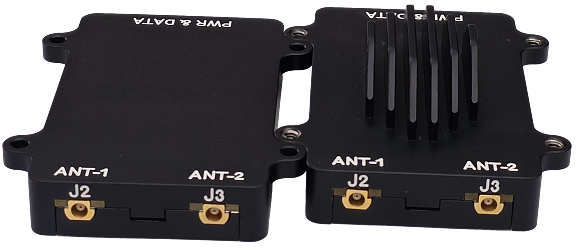

Micro Phoenix
Micro Phoenix
The Micro Phoenix comprises several platforms, catering to a wide range of sizes from small to large, and offering connectivity over long distances of up to 150 km. This versatile range ensures that Micro Phoenix can meet the needs of diverse aerial, ground, and naval platforms. Additionally, Micro Phoenix provides a resilient communication by integrating full-duplex wideband digital links with advanced algorithms, ensuring reliability, high performance, and data security in any environment. Engineered with SWaP constraints in mind, Micro Phoenix seamlessly integrates into any platform
Features and Benefits:
-Secure, Reliable and Resilient Data Links
-Comprehensive Solution: Covers aerial and ground units for seamless connectivity.
-Wide Frequency Range: Supports L, S and C Band for versatile communication.
-Modulation: Supports GMSK/OFDM modulations for flexible communication.
-Topology: Supports P2P, P2MP, Relay, andMulti-Platform Smart MESH
-Data Rate: Allows up to 8Mbps
-Secure Encryption: Offers AES256 encryption and an option for CAT & TSV security, to ensuring robust data security.
-Anti-Jamming and GPS-Compromised Capabilities: Ensuring resilience in contested and challenging environments.
-Operational Mode with GPS Deprivation: Capable of functioning without GPS, enhancing operational flexibility.
-Compact & Lightweight: Small size and weight for easy integration.
-Versatile Range: Facilitates short, medium, and long-distance communication up to 150 km.
-Field-Proven Reliability: With thousands of flight hours, Phoenix boasts a military-proven track record for dependable performance.
-Transmission Power - L band: Up to 30dBm;1W, S band: Up to 30dBm;1W, C band: Up to 27dBm;0.5W
-Frequency L band: 1.4GHz-2.1GHz, S band: 2.1GHz-2.7GHzC band: 4.4GHz – 5.1GH
-Secure, Reliable and Resilient Data Links
-Comprehensive Solution: Covers aerial and ground units for seamless connectivity.
-Wide Frequency Range: Supports L, S and C Band for versatile communication.
-Modulation: Supports GMSK/OFDM modulations for flexible communication.
-Topology: Supports P2P, P2MP, Relay, andMulti-Platform Smart MESH
-Data Rate: Allows up to 8Mbps
-Secure Encryption: Offers AES256 encryption and an option for CAT & TSV security, to ensuring robust data security.
-Anti-Jamming and GPS-Compromised Capabilities: Ensuring resilience in contested and challenging environments.
-Operational Mode with GPS Deprivation: Capable of functioning without GPS, enhancing operational flexibility.
-Compact & Lightweight: Small size and weight for easy integration.
-Versatile Range: Facilitates short, medium, and long-distance communication up to 150 km.
-Field-Proven Reliability: With thousands of flight hours, Phoenix boasts a military-proven track record for dependable performance.
-Transmission Power - L band: Up to 30dBm;1W, S band: Up to 30dBm;1W, C band: Up to 27dBm;0.5W
-Frequency L band: 1.4GHz-2.1GHz, S band: 2.1GHz-2.7GHzC band: 4.4GHz – 5.1GH
Phoenix
Phoenix
The Phoenix comprises several platforms, offering connectivity over long distances of up to 150 km. This versatile range ensures that Phoenix can meet the needs of diverse aerial, ground, and naval platforms. Additionally, Phoenix provides resilient communication by integrating full-duplex wideband digital links with advanced algorithms, ensuring reliability, high performance, and data security in any environment. Engineered with SWaP constraints in mind, Phoenix seamlessly integrates into any platform.
Features and Benefits:
-Comprehensive Solution: Covers aerial and ground units for seamless connectivity.
-Wide Frequency Range: Support wide C band frequency.
-Modulation: Supports GMSK and OFDM modulations for flexible communication.
-Topology: Supports P2P, P2MP, Relay, and Multi-Domain Topology.
-Secure Encryption: Offers AES256 and CAT TSV encryption options, ensuring robust data security.
-Operational Mode with GPS Deprivation: Capable of functioning without GPS, enhancing operational flexibility.
-Compact & Lightweight: Small size and weight for easy integration.
-Versatile Range: Facilitates short, medium, and long-distance communication up to 150 km.
-Field-Proven Reliability: With thousands of flight hours, Phoenix boasts a military-proven track record for dependable performance.
-Comprehensive Solution: Covers aerial and ground units for seamless connectivity.
-Wide Frequency Range: Support wide C band frequency.
-Modulation: Supports GMSK and OFDM modulations for flexible communication.
-Topology: Supports P2P, P2MP, Relay, and Multi-Domain Topology.
-Secure Encryption: Offers AES256 and CAT TSV encryption options, ensuring robust data security.
-Operational Mode with GPS Deprivation: Capable of functioning without GPS, enhancing operational flexibility.
-Compact & Lightweight: Small size and weight for easy integration.
-Versatile Range: Facilitates short, medium, and long-distance communication up to 150 km.
-Field-Proven Reliability: With thousands of flight hours, Phoenix boasts a military-proven track record for dependable performance.
