Description
Athlon Avia Scientific – Production Enterprise produces the best UAS since 2013 and is a leader in the field of unmanned systems in Ukraine. Our solutions have clear terms of reference and designed to perform tactical military missions, including intelligence, surveillance, target acquisition, reconnaissance, and artillery fire adjustment.
For several years, the Unmanned Aviation System of artillery fire adjustment Furia© has been successfully operated by the Armed Forces, National Guard, and Security Service of Ukraine. Today, our company has executed more than 20 contracts, most of which are under the State Defense Order.
In 2020 UAS A1-CM “Furia” was adopted by the Armed Forces of Ukraine, which was the recognition of success. For “Creation and use of unmanned aerial vehicles of a mini-class and implementation of innovative technologies of their production” Athlon Avia was honored by the Prize of the Cabinet of Ministers of Ukraine.
For several years, the Unmanned Aviation System of artillery fire adjustment Furia© has been successfully operated by the Armed Forces, National Guard, and Security Service of Ukraine. Today, our company has executed more than 20 contracts, most of which are under the State Defense Order.
In 2020 UAS A1-CM “Furia” was adopted by the Armed Forces of Ukraine, which was the recognition of success. For “Creation and use of unmanned aerial vehicles of a mini-class and implementation of innovative technologies of their production” Athlon Avia was honored by the Prize of the Cabinet of Ministers of Ukraine.
Products
A1-CM FURIA UAS ATHLON AVIA
A1-CM FURIA UAS ATHLON AVIA

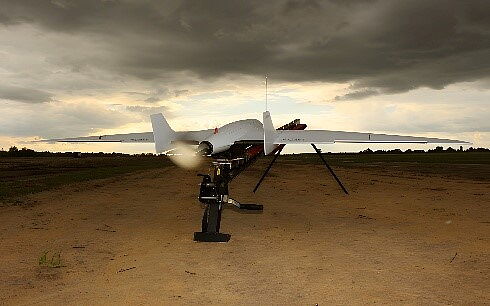

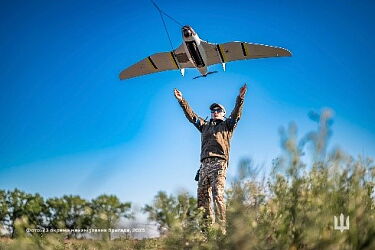

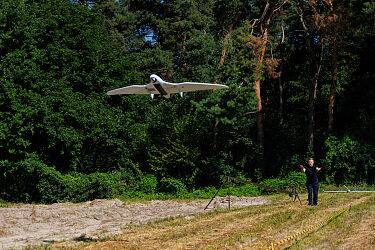

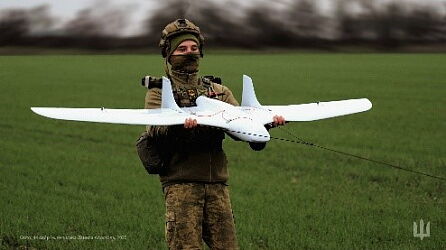

The UAS A1-CM “Furia” has been developed and manufactured by LLC SPC Athlon Avia since 2014. During this time, more than 100 systems of various modifications have been produced for the needs of the Armed Forces of Ukraine, the National Guard of Ukraine, and the Security Service of Ukraine. In 20192020, the UAS passed a full spectrum of state tests and was adopted by the Armed Forces of Ukraine.
Since 2014 the system is widely used during the Joint Forces Operation in eastern Ukraine to conduct aerial reconnaissance and artillery fire adjustment.
The long flight endurance and the long-range of the command line make it possible to carry out tasks at a tactical depth up to 50 kilometers.
The system consists of the three unmanned aerial vehicles, three daytime payloads, and two nighttime payloads equipped with thermal imagers.
Type: Flying wing
Materials: Fiberglass, carbon fiber, Kevlar
Wingspan: 2000 mm
Length: 900 mm
Power plant: Electric motor
Power supply: Li-ion batteries 42000 mAh
Range: 70 km
Flight time: Up to 4 hours
Cruising speed: 65 km/h
Route length: Up to 200 km
Wind speed during mission: Up to 15 m/s
Take-off weight: 5.5 kg

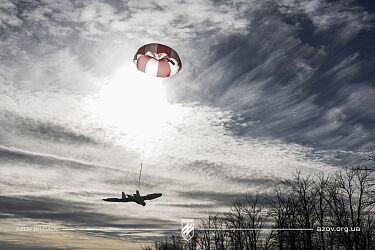

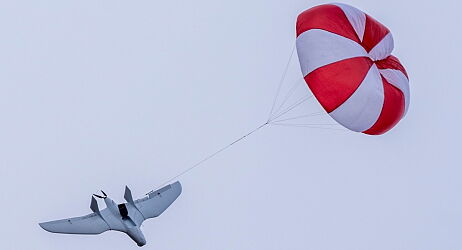

Landing types: Parachute, airplane-style
Launch method: Elastic or mechanical catapult
Flight modes: Semi-automatic, autonomous, controlled
Materials: Fiberglass, carbon fiber, Kevlar
Wingspan: 2000 mm
Length: 900 mm
Power plant: Electric motor
Power supply: Li-ion batteries 42000 mAh
Range: 70 km
Flight time: Up to 4 hours
Cruising speed: 65 km/h
Route length: Up to 200 km
Wind speed during mission: Up to 15 m/s
Take-off weight: 5.5 kg
Landing types: Parachute, airplane-style
Launch method: Elastic or mechanical catapult
Flight modes: Semi-automatic, autonomous, controlled
A2-C FURIA 2 UAS ATHLON AVIA
A2-C FURIA 2 UAS ATHLON AVIA

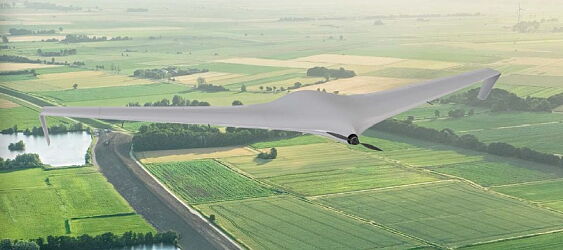

The Unmanned Aerial System A2-S “Furia 2” is an upgraded version of the battle-tested UAS “Furia,” signifi cantly
surpassing its predecessor in all parameters. The “Furia 2” offers even greater effi ciency in performing reconnaissance
and combat missions.
The A2-S “Furia 2” is designed with years of experience in the development and use of unmanned aerial systems,
ensuring high performance and reliability even in the most challenging conditions. The A2-S “Furia 2” is a modern
solution for accomplishing the most critical tasks with maximum effi ciency and minimal risk.
Wingspan: 3.6 meters
Fuselage length: 0.9 meters
Overall length: 1.2 meters
Weight: 15-19 kg
Batteries: 90Ah, 7.8 kg
Flight time: 4+ hours
Flight range: 300+ km
Flight speed: 80 km/h
Flight radius: 50+ km
Launch type: Catapult
Payload: Interchangeable optical modules (weight 0-4
kg)
Fuselage length: 0.9 meters
Overall length: 1.2 meters
Weight: 15-19 kg
Batteries: 90Ah, 7.8 kg
Flight time: 4+ hours
Flight range: 300+ km
Flight speed: 80 km/h
Flight radius: 50+ km
Launch type: Catapult
Payload: Interchangeable optical modules (weight 0-4
kg)
ST-35 UAS ATHLON AVIA
ST-35 UAS ATHLON AVIA

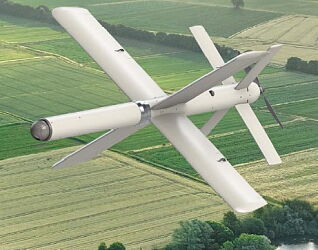

The Unmanned Aerial System ST-35 “Silent Thunder” is a high-precision weapon designed for striking targets in
concealed positions with various types of warheads. It ensures maximum effectiveness of fi re missions with minimal
collateral damage, including the protection of civilians and infrastructure.
The ST-35 “Silent Thunder” is created using modern technologies for high operational effi ciency and low radar,
visual, and acoustic visibility. The system leverages years of experience in the development and production of military
unmanned systems.
Range: 30 km
Warhead weight: 3.5 kg
Target guidance: Automatic via TV/IR channel
Circular error probable: Up to 3 m
Flight duration: 60 min
Probability of target hit: 95%
Operational altitude: 800-1200 m
Cruising speed: 120-140 km/h
Types of warheads: Fragmentation-explosive, cumulative,
thermobaric
Take-off weight: 9.5 kg
Launch method: Vertical take-off using a multicopter
Warhead weight: 3.5 kg
Target guidance: Automatic via TV/IR channel
Circular error probable: Up to 3 m
Flight duration: 60 min
Probability of target hit: 95%
Operational altitude: 800-1200 m
Cruising speed: 120-140 km/h
Types of warheads: Fragmentation-explosive, cumulative,
thermobaric
Take-off weight: 9.5 kg
Launch method: Vertical take-off using a multicopter
Business sector
Aviation, air defence armament and equipment
Radio- and opto-electronical equipment
