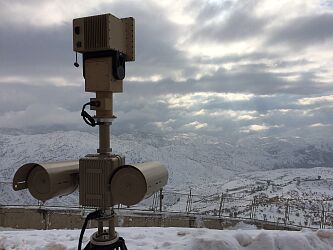

KAPAN Counter Drone System

KAPAN offers a superior drone detection, tracking and neutralization performance for border security with its high technology drone detection radar, electro-optic and jammer sub-systems. KAPAN offers precise drone detection and tracking performance with Radar and Electro-Optic system combinations and its artificial intelligence integrated algorithms. Besides its detection and tracking capability, it allows the neutralization of drones with RF Jammer. The target drone, which is detected and started to track, is identified with the thermal / day cameras and afterward, more precise positioning and tracking are performed. In this case, by the command and control software, the targets can be fused and viewed as a single track on a common operational picture. The direction and position information of the target drone provided by sensors can be assigned to the RF jammer for neutralizati

KAPAN is a system that enables drone detection and tracking using the Retinar FAR-AD radar system and thermal/daytime cameras, while allowing the neutralization of drones with an RF jammer. It features a fast-deployable, scalable, and modular structure.

System Components:

Dedicated radar customized for drone detection and tracking

Electro-optic systems with specialized tracking algorithms

Signal jammer covering all commercial and military drone frequencies

C2 software managing the KAPAN subsystems

Technical Features:

Drone detection up to 9 km

360° continuous coverage

Target classification and identification in low visibility conditions

Flexible stationary or on-vehicle use with single-axis integration

Digital maps and innovative 3D map display

Integration options with other sensors and systems

KAPAN Counter Drone System

KAPAN offers a superior drone detection, tracking and neutralization performance for border security with its high technology drone detection radar, electro-optic and jammer sub-systems. KAPAN offers precise drone detection and tracking performance with Radar and Electro-Optic system combinations and its artificial intelligence integrated algorithms. Besides its detection and tracking capability, it allows the neutralization of drones with RF Jammer. The target drone, which is detected and started to track, is identified with the thermal / day cameras and afterward, more precise positioning and tracking are performed. In this case, by the command and control software, the targets can be fused and viewed as a single track on a common operational picture. The direction and position information of the target drone provided by sensors can be assigned to the RF jammer for neutralizati

KAPAN is a system that enables drone detection and tracking using the Retinar FAR-AD radar system and thermal/daytime cameras, while allowing the neutralization of drones with an RF jammer. It features a fast-deployable, scalable, and modular structure.

System Components:

Dedicated radar customized for drone detection and tracking

Electro-optic systems with specialized tracking algorithms

Signal jammer covering all commercial and military drone frequencies

C2 software managing the KAPAN subsystems

Technical Features:

Drone detection up to 9 km

360° continuous coverage

Target classification and identification in low visibility conditions

Flexible stationary or on-vehicle use with single-axis integration

Digital maps and innovative 3D map display

Integration options with other sensors and systems

MERT Portable Electronic Attack System

MERT Portable Electronic Attack System is a modern EW system used for jamming target communication from long distances via new-generation electronic attack in V/UHF bands. Intelligent Reactive Jamming & Cooperated EW MERT meets diverse operational needs. Covering the entire V/UHF band, it protects fixed facilities, moving vehicles, and convoys from RCIEDs, and safeguards friendly forces via tactical RF jamming. With a new-generation channelized wideband RF receiver, MERT detects emissions simultaneously across the entire band. It allows concurrent reactive and barrage jamming against different targets. Controlled via PCs/tablets, MERT supports Ethernet-based channels (M/W RL, tactical radio, F/O) for remote operations. It powers up via internal batteries, AC input, or generators.

Technical Specifications

Frequency Range: V/UHF Band

Electronic Attack Capability: Electronic Jamming and Electronic Deception

Jamming Modes: Reactive, Barrage, Spot, Sequential, Multiple

Jamming Types: Look-through, Continuous

Omnidirectional, Directional Antenna Usage Options

High ERP Values with High Gain Electronic Attack Antennas

Simultaneous Electronic Attack Capability

System/Unit Design to Comply with MIL-STD-810F and MIL-STD 461/464 Military Standards

MERTER Man-Pack Electronic Attack System

MERTER Man-Pack Portable Electronic Attack System is a modern EW system used for jamming target communication from long distances via new-generation electronic attack in VHF bands. Intelligent Reactive Jamming & Cooperated EW MERTER meets diverse operational needs. It protects patrols against RCIED threats and creates an extended protection area using a portable mast and directional antennas. Multiple systems also enable cooperated EW operations. With a new-generation channelized wideband RF receiver, MERTER detects emissions simultaneously across the entire band. It supports concurrent reactive and barrage jamming against different targets. Controlled via PCs/tablets, MERTER monitors health status and spectrum data while adjusting jamming parameters via tablet. It runs on internal batteries or AC input.

Technical Specifications

Frequency Range: VHF Band

Electronic Attack Capability: Jamming and Deception

Jamming Modes: Reactive, Barrage, Hybrid, Spot, Sequential, Multiple

Jamming Types: Look-through, Continuous

Antennas: Omnidirectional and Directional options

High ERP via high gain electronic attack antennas

Simultaneous electronic attack capability

Standards: Designed to comply with MIL-STD-810F and MIL-STD 461/464

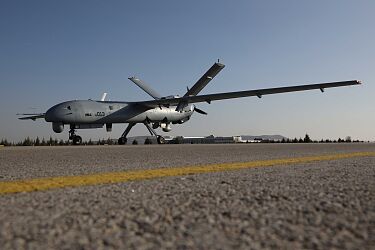

MILSAR SAR/MTI Radar

MILSAR is designed to be used on airborne platforms for intelligence, surveillance, reconnaissance, deterrence, and attack operations. It has versatile Moving Target Indication (MTI) for detection and tracking of potential targets and Synthetic Aperture Radar (SAR) modes for high resolution and all weather radar imagery, target classification and ground mapping. MILSAR detects and tracks potential targets either low speed small size or fast moving objects even in adverse weather and low visibility conditions including cloud and fog. SAR features comes with Stripmap and Spotlight submodes which enable high resolution, long range imaging in low visibility, over-the-cloud surveillance operations in day and night.

Operating Frequency: Ku Band

Maximum Range (MTI/SAR): 15 NM / 15 NM

Minimum Range (MTI/SAR): 2 NM / 2 NM

Azimuth Coverage: 360°

Elevation Coverage: -10° to +55°

Detection Capacity (MTI): 1000

Tracking Capacity (MTI): 200

SAR Resolution (Stripmap): 3 m and 1 m

SAR Resolution (Spotlight): 60 cm and 30 cm

Operating Voltage: 20-30 VDC

Average Power Consumption: 600 W

Weight: 28 kg

Dimensions (Diameter x Height): 370 mm x 445 mm

Retinar FAR-AD Drone Detection Radar

EFFECTIVE PROTECTION AGAINST MINI/MICRO UAV’S Retinar FAR-AD Drone Detection Radar, developed by Meteksan Defence, is a radar system to enable security against mini/micro unmanned aerial vehicles. Retinar FAR-AD can automatically scan large areas and low altitude air space as the primary sensor of the security forces against drones. Retinar FAR-AD provides effective protection against low altitude drones, with it is 40-degree elevation angle. The targets followed by Retinar FAR-AD user interface software provide the location, distance, speed, and direction information to the operator. Target Analysis Mode, enables the classification of targets.

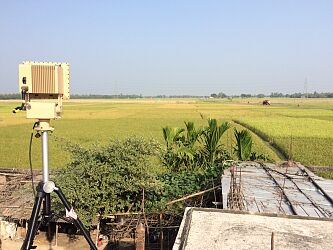

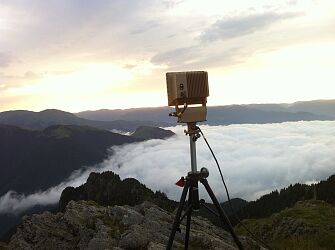

Retinar PTR Perimeter Surveillance Radar

Retinar PTR is a high technology ground surveillance radar, designed for border security. Retinar PTR has advance technological features such as human/vehicle detection and target classification, low size, low weight, low power consumption, mobility and rapid deployment. The system is designed to be carried by two personnel and easily operated by single personnel thanks to its user-friendly interface. Retinar PTR automatically scans large areas, eliminating the need for security personnel to constantly scan with cameras or binoculars, can be integrated with camera systems and various other sensors, and creates “Safe Zones” in the area. Retinar PTR can detect humans up to 4 km, vehicles up to 8-10 km depending on the size of the targets to enable border security. Because of its high-frequency emission rates, it can detect very low-speed moving objects such as crawling or creeping humans.

Technical Specifications

Beamwidth: 2° (Azimuth) x 10° (Elevation)

Low Power Consumption: < 140 W

Low Power Output: < 4 W

Integration: Easily integrated with camera systems

Deployment: Easy and rapid deployment

Zone Management: Ability to create Friendly / Alarm zones

LPI Capability: Low Probability of Intercept

Mapping: 2D/3D map support via built-in GPS and magnetic compass

Reliability: MTBF > 5000 hours

Environmental Standards: MIL-STD-810G compatibility

Target Classification: Automatic classification as human, light vehicle, or heavy vehicle

Analysis Display: Micro-Doppler spectrogram analysis screen (for classifying targets as animal, human, vehicle, or heavy vehicle)

Coverage: 360° continuous coverage

Radar Tilt Angle: ± 25°

Tracking Modes: Sector tracking and sector blanking

Terrain Adaptation: Up-down steering for full coverage of geographical structures

Blind Zone: Zero blind zone (simultaneously scans the zone from 100 m to 12 km)

System Health: Built-in continuous test (BIT) to monitor radar health status

Operating Frequency: Ka-Band

System Architecture: Pulse-Doppler system architecture

SEYMEN Navigation EW System

SEYMEN Navigation EW System is a modern system that performs Electronic Attack and Deception against Global Navigation Satellite Systems (GNSS) used on land, air, and sea platforms. Integrated System Architecture SEYMEN features a unique System-of-Systems architecture; Radar, Electro-optics, RF Electronic Support, and RF Electronic Attack elements are interoperable in a single shelter. SEYMEN executes electronic attack and deceives navigation messages of targets in different directions across multiple GNSS. Featuring a new-generation AJ-GNSS Receiver, it prevents multiple target attack/deception signals simultaneously while estimating their direction of arrival. Networked systems allow location estimation, wideband recording, and signal analysis. SEYMEN systems work synchronously for coordinated, smart jamming tasks.

Technical Specifications

Frequency Range: L Band

Target Transmissions: Civilian and Military GNSS Systems

Electronic Attack: Electronic Jamming

Electronic Support: Direction-of-Arrival Estimation for Target EW Systems

Antennas: Omnidirectional and Directional usage options

High ERP via high gain electronic attack antennas

Standards: Complies with MIL-STD-810F and MIL-STD 461/464

External Interface: Instant target data from other systems via Ethernet

Geolocation: RF-based geolocation by working with other Navigation EW systems

YAKAMOS 2020 Hull Mounted Sonar System

WE MOVED THE FLAG FORWARD YAKAMOS 2020 Hull Mounted Sonar System, with its improved technology, is a new generation medium frequency, surface ship Anti-Submarine Warfare (ASW) and obstacle avoidance sonar, which is designed for the surveillance of the underwater environment to automatically detect and track underwater targets such as submarines, submersibles, torpedoes and mine like objects. Compared with YAKAMOS Hull Mounted Sonar System, YAKAMOS 2020 is easily adaptable to developing technology and changing acoustic environmental conditions with a more compact, more capable, modular, scalable innovative hardware and configurable software architecture. YAKAMOS 2020 stands out with its ability to outperform its competitors in the world market. The system, which is able to work with high performance for longer periods by increased efficiency of its improved power modules and system arch

-Medium frequency Hull Mounted Sonar System for Corvettes and Frigates
-Sea proven performanceall over the World with MILGEM
-Ruggedized design
-Mil-Spec compatibility
-Backward compatibility with YAKAMOS
-Open architecturedesign
-Ready to Integrated Sonar Suite (ISS) structure
-Software Defined Sonar (software configurable)
-Scalable& Configurable & Reliable & Maintainable
-User friendly operator interface
-Stand-alone system with multiple interfaces to detect, track and classify
-Automatic target tracking
-360 degrees of surveillance for torpedo
-Simultaneous active and passive 360 degrees of operation
-Built-in-test capability
-Integrated on-board simulator with raw data recording and playback capabilities
-Integrated on-board training mode
-Interfacewith XBT (Expendable Bathythermograph) and Performance
-Prediction Function for Sonar Optimization
-Interfaces with UWT, CMS, TCMS and SDDS
-Safe operation for marine mammals with adjustable source level
-Omnidirectional, sectorial, rotational, mine like object and obstacle avoidance transmission modes
-Interoperabilitywith towed arrays and sonobuoys
