Products

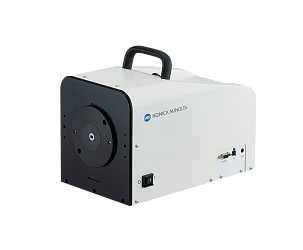

Non-Contact Spectrophotometer CF-300
Non-Contact Spectrophotometer CF-300
The CF-300 offers a solution to manufacturers who need high precision spot measurements that would otherwise be difficult or impossible to position manually. A traditional spectrophotometer, even with a sample viewer, can be difficult to align on smaller sample areas. The high speed non-contact measurement capability is a significant benefit to:
• high speed lines of products which could be scratched by contact with an instrument,
• part manufactured goods that must maintain consistent position during processing,
• products that are powdery or tacky during the phase when the measurement is required,
• products with extreme volumes such as clothing buttons.
• Measurement of 8mm (MAV) or 1mm x 0.75mm (XUSAV)
• Non-contact measurement area either 8mm or 1 x 0.75mm
• Compatible with camera connection for precision or automated alignment, ideal for system integration and accuracy on super fine 1mm details
• Measure upto 5 times a second
• Colour data that correlates with other sphere based spectrophotometers
• Non-contact measurement area either 8mm or 1 x 0.75mm
• Compatible with camera connection for precision or automated alignment, ideal for system integration and accuracy on super fine 1mm details
• Measure upto 5 times a second
• Colour data that correlates with other sphere based spectrophotometers
Portable spectrophotometer CM-17d
Portable spectrophotometer CM-17d
A new-generation vertical portable spectrophotometer with advanced functionality and enhanced usability, featuring a charging station and a built-in camera with a viewfinder—ideal for measuring small samples and curved surfaces. Model available with dual or single aperture, featuring a modern user interface and additional mounting points for cobot/system integration. The CM-17d is significantly superior to its predecessor, offering faster measurement speeds, improved repeatability—especially for dark and glossy materials—and enhanced cross-device compatibility.
• Simple setup and ease of use
• Higher accuracy and shorter measurement time
• Various measurement examples using optional accessories
• Charging and zero calibration stand
• Wavelength analysis and adjustment
• Compatibility with SpectraMagic NX2 software or the CM-CT1 configuration tool to streamline reporting, operation, and management of multiple instruments.
• Higher accuracy and shorter measurement time
• Various measurement examples using optional accessories
• Charging and zero calibration stand
• Wavelength analysis and adjustment
• Compatibility with SpectraMagic NX2 software or the CM-CT1 configuration tool to streamline reporting, operation, and management of multiple instruments.
CM-26 Series of Spectrophotometers
CM-26 Series of Spectrophotometers
Portable sphere spectrophotometers with horizontal alignment, designed for maximum performance when measuring the colour of flat or large samples. These close tolerance devices perform measurement both including (specular component included - SCI) and excluding (specular component excluded - SCE) surface conditions in one measurement sequence, significantly faster than the previous generation. Two measurement apertures - choice of either medium aperture measurement (8mm) or small aperture measurement (3mm) to adapt to small or patterned samples.
Integrated ISO compliant 60° gloss sensor (CM-26dG): gloss measurement data is captured and stored with colour data, greatly reducing the measurement and analysis time where both appearance characteristics are reported
Sample observation port: illuminated sample positioning window allows the operator to accurately and repeatably position the measurement aperture
Large colour display: simple user interface minimises the risk of operator errors and measurement data is displayed both numerically and graphically
Rechargeable battery: lithium-ion battery is charged via USB bus power and additional batteries can be charged with external charger (optional)
Configuration Software: compatible with the CM-CT1 software that allows an administrator to quickly configure multiple instruments, lock device settings and perform remote troubleshooting and training over screensharing software
Close tolerance by default: maximise the accuracy and certainty of digital colour data throughout the supply chain, confident that all measurement data is traceable
Sample observation port: illuminated sample positioning window allows the operator to accurately and repeatably position the measurement aperture
Large colour display: simple user interface minimises the risk of operator errors and measurement data is displayed both numerically and graphically
Rechargeable battery: lithium-ion battery is charged via USB bus power and additional batteries can be charged with external charger (optional)
Configuration Software: compatible with the CM-CT1 software that allows an administrator to quickly configure multiple instruments, lock device settings and perform remote troubleshooting and training over screensharing software
Close tolerance by default: maximise the accuracy and certainty of digital colour data throughout the supply chain, confident that all measurement data is traceable

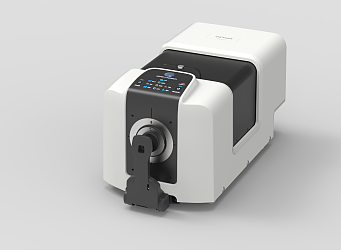

Spectrophotometer CM-36dG
Spectrophotometer CM-36dG
The CM-36dG spectrophotometer is a highly accurate and reliable benchtop instrument capable of measuring colour either in reflectance or transmittance for a wide range of applications such as plastics, paints, ceramics, chemicals, etc.
For the first time ever, Konica Minolta Sensing has integrated an ISO 2813-compliant 60° gloss sensor into a bench-top spectrophotometer to simultaneously measure colour and gloss values at the same point. As both sets of values are reported together, not only are errors made in manual measurement reduced, but valuable working time and costs for additional equipment can be saved.
Konica Minolta's patented technologies ensure the highest accuracy and repeatability, unprecedented in this price class.
Measuring area to match the sample
The CM-36dG spectrophotometer is equipped with four measuring apertures with diameters of 4.0, 8.0, 16.0 and 25.4 mm, allowing the measuring area to be adapted to each sample.
Reflectance and transmission mode measurements in a horizontal or top-ported arrangement
The model CM-36dG spectrophotometer is capable of measuring solid and liquid samples in reflectance or transmission mode, in either a horizontal or top-front orientation. This makes it possible to measure a wide variety of samples, from opaque to translucent and transparent. The large, extendable transmission measurement chamber allows for easy measurement of translucent or transparent samples of different sizes.
Preview camera for precise sample positioning
The integrated viewing camera provides a clear image of the sample, enabling precise positioning and control of the measurement area. The spectrophotometer software can record images of the measured area, thus providing detailed and uniform measurement reports.
The CM-36dG spectrophotometer is equipped with four measuring apertures with diameters of 4.0, 8.0, 16.0 and 25.4 mm, allowing the measuring area to be adapted to each sample.
Reflectance and transmission mode measurements in a horizontal or top-ported arrangement
The model CM-36dG spectrophotometer is capable of measuring solid and liquid samples in reflectance or transmission mode, in either a horizontal or top-front orientation. This makes it possible to measure a wide variety of samples, from opaque to translucent and transparent. The large, extendable transmission measurement chamber allows for easy measurement of translucent or transparent samples of different sizes.
Preview camera for precise sample positioning
The integrated viewing camera provides a clear image of the sample, enabling precise positioning and control of the measurement area. The spectrophotometer software can record images of the measured area, thus providing detailed and uniform measurement reports.
