Description
Anton Paar GmbH Founded in 1922, Anton Paar develops, produces, and distributes high-precision laboratory instruments, process measuring systems, and customized automation and robotics solutions. Today, Anton Paar is a global technology and market leader, delivering advanced solutions for material characterization and polymer processing. We support the polymer industry with a strong focus on material understanding, formulation development, process optimization and quality control, equipping our partners with the tools and expertise to unluck the full potential or their materials across the entire polymer value chain. A strong combination of analytical excellence and application know-how enables informed decision-making, reliable process control, and sustainable material performance. Anton Paar GmbH is part of the Anton Paar Group, which operates 40 sales subsidiaries and seven production sites worldwide. Owned by the charitable Santner Foundation, the Group stands for long-term stability and independence. With more than 4,400 employees working in research and development, production, sales, and service, Anton Paar invests up to 14.5 % of its annual turnover in research and development, a clear commitment to continuous innovation. Brabender - a brand of Anton Paar Brabender instruments are now produced and supported by Anton Paar, combining more than 100 years of expertise in polymer and rubber process technology with Anton Paar’s long-standing strength in highly accurate laboratory and process instrumentation. The result is a complementary portfolio that further expands capabilities in material characterization and processing applications for the polymer industry worldwide.
Products

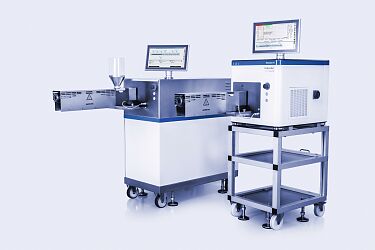

Brabender MetaStation
Brabender MetaStation
The market-leading Brabender MetaStation is a versatile, modular drive unit and torque rheometer for determining the processability and material characteristics of different plastics and plastifiable substances, compliant with key ASTM standard methods. Tailor it to your specific PVC, rubber, or thermoset testing needs, using our portfolio for varied blade geometries, mixer sizes, and temperature control. In addition to batch-wise compounding and mixing, continuous processes are also possible via the use of single- and double-screw extrusion attachments of different scales. MetaStation: Today's configuration flexibility, tomorrow's infinite possibilities.
MetaStation 4 / 8 / 16 – Specifications
Drive output: 4.2 kW (MS4), 8 kW (MS8), 16 kW (MS16)
Torque and speed:
MS4: 200 Nm, 0.2–185 min⁻¹
MS8: 400 Nm, 0.2–200 min⁻¹
MS16: 400 Nm, 0.2–400 min⁻¹ / 500 Nm, 0.2–275 min⁻¹
Speed deviation: 0.2% (digital feedback)
Temperature control:
MS4: 6 zones (integrated in drive unit)
MS8: 8 zones (in drive unit – 8E or in docking stations)
MS16: 8 zones (in docking stations)
Connectivity: MetaBridge Connect, WebAPI, Labfolder (LIMS)
Safety: emergency motor stop, non-contact magnetic safety switch on the cover
Power supply:
MS4: 3×400 V 50/60 Hz + N + PE, 32 A (optional 3×220 V without transformer)
MS8/MS16: 3×400 V 50/60 Hz + N + PE, 63 A (optional ~3×220–230 V)
Dimensions (W × H × D):
MS4: 700 × 870 × 950 mm
MS8/MS16: 600 × 1500 × 1370 mm
Weight: 154 kg (MS4), 311 kg (MS8/MS16)
Drive output: 4.2 kW (MS4), 8 kW (MS8), 16 kW (MS16)
Torque and speed:
MS4: 200 Nm, 0.2–185 min⁻¹
MS8: 400 Nm, 0.2–200 min⁻¹
MS16: 400 Nm, 0.2–400 min⁻¹ / 500 Nm, 0.2–275 min⁻¹
Speed deviation: 0.2% (digital feedback)
Temperature control:
MS4: 6 zones (integrated in drive unit)
MS8: 8 zones (in drive unit – 8E or in docking stations)
MS16: 8 zones (in docking stations)
Connectivity: MetaBridge Connect, WebAPI, Labfolder (LIMS)
Safety: emergency motor stop, non-contact magnetic safety switch on the cover
Power supply:
MS4: 3×400 V 50/60 Hz + N + PE, 32 A (optional 3×220 V without transformer)
MS8/MS16: 3×400 V 50/60 Hz + N + PE, 63 A (optional ~3×220–230 V)
Dimensions (W × H × D):
MS4: 700 × 870 × 950 mm
MS8/MS16: 600 × 1500 × 1370 mm
Weight: 154 kg (MS4), 311 kg (MS8/MS16)

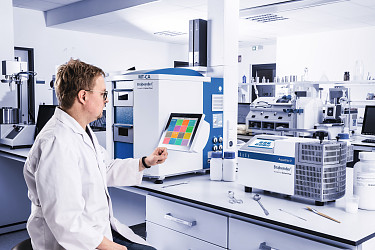

Brabender Aquatrac-V
Brabender Aquatrac-V
The Aquatrac-V moisture analyzer is the only instrument on the market that determines the water-selective, residual moisture in plastics in compliance with DIN EN ISO 15512:2019. With an accuracy of 0.0001 % (H2O resolution), Aquatrac-V is ready for both QC in the lab and process control. Since it uses the globally recognized calcium hydride method, it offers reliable measurements that you can access from any device. It can also prepare dried polymer samples for Melt Flow Rate (MFR) determination, meaning no specialized labs or hazardous chemicals are needed. An extensive method database, which can be expanded with customer methods, covers various polymer types.
Measurement principle: Chemical reaction with calcium hydride according to DIN EN ISO 15512:2019
Sample size: From 0.1 g up to max. 130 cm³
Resolution: 0.01 mg / 1 ppm / 0.0001% H₂O
Precision: Better than ±1.4% of full-scale value
Measurement range:
0.0001% to 60% H₂O (relative)
0.01% to 60 mg H₂O (absolute)
Measurement temperature: 60 °C to 200 °C (1 °C increments)
Measurement time: approx. 10–60 min, depending on sample
Display units: %, ppm, mg
Sample size: From 0.1 g up to max. 130 cm³
Resolution: 0.01 mg / 1 ppm / 0.0001% H₂O
Precision: Better than ±1.4% of full-scale value
Measurement range:
0.0001% to 60% H₂O (relative)
0.01% to 60 mg H₂O (absolute)
Measurement temperature: 60 °C to 200 °C (1 °C increments)
Measurement time: approx. 10–60 min, depending on sample
Display units: %, ppm, mg
Julia DSC 300
Julia DSC 300
Julia DSC: Speed Meets Precision. Anton Paar’s powerful new differential scanning calorimeter speeds everything up, to give you a competitive advantage where time and accuracy matter the most.
Learn to use it fast: Julia Suite eliminates the learning curve with intuitive navigation, step-by-step wizards, and easy-to-prepare methods – no training required.
Cool it down fast: Unmatched cooling rates take you down to subzero temperatures with a built-in air-cooling module.
Get your results fast: From experiment setup to final analysis, automation and smart presets ensure you get precise, trusted results in record time.
ACM / RCM / NCM – Specifications
Minimum temperature: −35 °C (ACM), −90 °C (RCM), −170 °C (NCM)
Maximum temperature: 700 °C (ACM), 600 °C (RCM/NCM)
Heating rate: up to 300 K/min
Cooling rate: up to 150 K/min (ACM), 200 K/min (RCM/NCM)
Cooling performance:
10 K/min to: 5 °C (ACM), −55 °C (RCM), −150 °C (NCM)
5 K/min to: −15 °C (ACM), −70 °C (RCM), −160 °C (NCM)
Temperature accuracy (In): <0.1 K
Enthalpy accuracy (In): <1%
Measurement range: ±2500 mW
Compatibility:
Julia DSC 300: ACM
Julia DSC 500: ACM, RCM, NCM
Minimum temperature: −35 °C (ACM), −90 °C (RCM), −170 °C (NCM)
Maximum temperature: 700 °C (ACM), 600 °C (RCM/NCM)
Heating rate: up to 300 K/min
Cooling rate: up to 150 K/min (ACM), 200 K/min (RCM/NCM)
Cooling performance:
10 K/min to: 5 °C (ACM), −55 °C (RCM), −150 °C (NCM)
5 K/min to: −15 °C (ACM), −70 °C (RCM), −160 °C (NCM)
Temperature accuracy (In): <0.1 K
Enthalpy accuracy (In): <1%
Measurement range: ±2500 mW
Compatibility:
Julia DSC 300: ACM
Julia DSC 500: ACM, RCM, NCM
Lyza 7000
Lyza 7000
The Lyza series FTIR spectrometers transform industry standards: Guided workflows combining measurement, processing and spectral analysis in an automated method, allow users with minimal experience to perform QC measurements in just three steps, for a quick pass/fail result.
Measure hundreds of sample types – from solid to liquid or gaseous – and switch effortlessly between measurement cells, thanks to the versatile modular cell concept.
LYZA 3000 / LYZA 7000 – Specifications
FTIR spectrometers with DLaTGS detector and hermetically sealed optics (gold-coated mirrors, KBr). Spectral range 350–7,500 cm⁻¹, S/N 55,000:1, accuracy <0.05 cm⁻¹, repeatability <0.0005 cm⁻¹. Measurement time <30 s. IR source: SiC, VCSEL laser (Class 1), cube corner interferometer.
Resolution:
LYZA 3000: 1.4–16 cm⁻¹
LYZA 7000: 1.0–16 cm⁻¹
Operating temperature: 10–30 °C. Cell compartment: 152 mm.
Dimensions: 365 × 315 × 204 mm (3000) / 382 mm height (7000).
Weight: 11.7 kg / 12.8 kg.
Power: 100–240 V. Consumption: 24 W (3000), 30 W / 15 W eco (7000).
Interfaces: USB, CAN, Ethernet.
Wi-Fi and .png export only in LYZA 7000.
Operation:
3000: AP Spectroscopy Suite
7000: 10.1” touchscreen, 32 GB storage
Data: .csv, .pdf, .spc (7000 also .png), AP Connect.
Libraries: factory and user-defined.
Compliance: 21 CFR Part 11.
FTIR spectrometers with DLaTGS detector and hermetically sealed optics (gold-coated mirrors, KBr). Spectral range 350–7,500 cm⁻¹, S/N 55,000:1, accuracy <0.05 cm⁻¹, repeatability <0.0005 cm⁻¹. Measurement time <30 s. IR source: SiC, VCSEL laser (Class 1), cube corner interferometer.
Resolution:
LYZA 3000: 1.4–16 cm⁻¹
LYZA 7000: 1.0–16 cm⁻¹
Operating temperature: 10–30 °C. Cell compartment: 152 mm.
Dimensions: 365 × 315 × 204 mm (3000) / 382 mm height (7000).
Weight: 11.7 kg / 12.8 kg.
Power: 100–240 V. Consumption: 24 W (3000), 30 W / 15 W eco (7000).
Interfaces: USB, CAN, Ethernet.
Wi-Fi and .png export only in LYZA 7000.
Operation:
3000: AP Spectroscopy Suite
7000: 10.1” touchscreen, 32 GB storage
Data: .csv, .pdf, .spc (7000 also .png), AP Connect.
Libraries: factory and user-defined.
Compliance: 21 CFR Part 11.

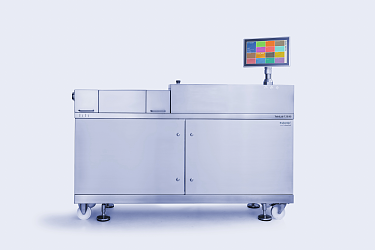

Lab- and Pilot-Scale Twin Screw Extruders: TwinLab
Lab- and Pilot-Scale Twin Screw Extruders: TwinLab
Experience the future of lab extrusion with the Brabender Twin Screw Extruders – the TwinLab series – which provides various configurations to process everything from liquids to pellets. Streamline your material testing for lab and pilot-scale setups, and optimize your extrusion production process. MetaBridge operating software ensures intuitive device control, paired with comprehensive features and data analytics. It lets you access data from any device at any time. TwinLab’s smart clam shell design makes the liner easy to access and clean. The modular TwinLab series is powered by the MetaStation drive unit and offers twin- and single-screw extrusion as well as batch-wise mixing.
Key features
B-TSE-A / B-TSE-S – Specifications
Screw diameter:
12 mm (A 12/36), 20 mm (A 20/40, S 20/40), 30 mm (S 30/40)
L/D: 36 (A 12/36), 40 (others)
Max. speed:
A 12/36: 1200 rpm
A 20/40: up to 200 rpm (MetaStation 8/8E, up to 800 rpm with gearbox); up to 400 rpm (MetaStation 16, up to 1200 rpm with gearbox)
S 20/40, S 30/40: 1200 rpm
Max. screw torque:
2 × 15 Nm (A 12/36), 2 × 40 Nm (A 20/40, S 20/40), 2 × 150 Nm (S 30/40)
Max. power:
n/a (A), 9.5 kW (S 20/40), 39 kW (S 30/40)
Connectivity:
A 12/36: compatible with all MetaStation drive units
A 20/40: compatible with MetaStation 8/8E and 16
S: standalone units
Power supply:
A: via drive unit
S 20/40: 3×400 V (63 A) / 3×230 V (76 A)
S 30/40: 3×400 V (118 A)
Dimensions (W × H × D):
A 12/36: 1240 × 600 × 1300 mm (with stand) / 450 mm depth without stand
A 20/40: 2000 × 500 × 1565 mm
S 20/40: 2013 × 450 × 1566 mm
S 30/40: 2310 × 500 × 1590 mm
Weight:
175 kg (A 12/36), 420 kg (A 20/40), 480 kg (S 20/40), 850 kg (S 30/40)
Screw diameter:
12 mm (A 12/36), 20 mm (A 20/40, S 20/40), 30 mm (S 30/40)
L/D: 36 (A 12/36), 40 (others)
Max. speed:
A 12/36: 1200 rpm
A 20/40: up to 200 rpm (MetaStation 8/8E, up to 800 rpm with gearbox); up to 400 rpm (MetaStation 16, up to 1200 rpm with gearbox)
S 20/40, S 30/40: 1200 rpm
Max. screw torque:
2 × 15 Nm (A 12/36), 2 × 40 Nm (A 20/40, S 20/40), 2 × 150 Nm (S 30/40)
Max. power:
n/a (A), 9.5 kW (S 20/40), 39 kW (S 30/40)
Connectivity:
A 12/36: compatible with all MetaStation drive units
A 20/40: compatible with MetaStation 8/8E and 16
S: standalone units
Power supply:
A: via drive unit
S 20/40: 3×400 V (63 A) / 3×230 V (76 A)
S 30/40: 3×400 V (118 A)
Dimensions (W × H × D):
A 12/36: 1240 × 600 × 1300 mm (with stand) / 450 mm depth without stand
A 20/40: 2000 × 500 × 1565 mm
S 20/40: 2013 × 450 × 1566 mm
S 30/40: 2310 × 500 × 1590 mm
Weight:
175 kg (A 12/36), 420 kg (A 20/40), 480 kg (S 20/40), 850 kg (S 30/40)
