Light shuttering form set for linear trenches – for the first time at the fairs

13 may 2011
The novelties of BIPROMASZ company showcased at the AUTOSTRADA-POLSKA exhibition

The novelties of BIPROMASZ company showcased at the AUTOSTRADA-POLSKA exhibition

Among the profusion of novelties presented in Kielce at the festival of road engineering there also the innovative solution provided by BIPROMASZ from Bydgoszcz.

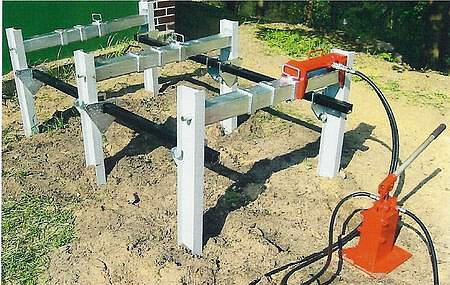

Light shuttering form set dedicated for linear trenches boarding is used in cooperation with an excavator and a light vertical boring rig. Double T-bars are inserted into the holes in the ground which have been prepared beforehand and then sprigged with the use of hydraulic stretcher bars.

Depending on the width of the trench, extensions can be used in order to expand the range of the stretcher bars.
As the trench gets deeper, the set of self-locking suspensions are mounted and then a retaining beam is pushed into them. The beam becomes then the leading element for the wall which is pushed further down the trench.
The technical data:

TypeSSR-80
Length of the moving stretcher bar800-1200 mm
Single interval for the stretcher80 mm
Extensions1; 1,5; 2 m
Hydraulic stretcher bar
- interval185 nn
- work pressure25 MPa
- spreading strength49 kN
- driveHand pump

The full offer of BIPROMASZ is presented at the exhibition stand ZB 1.
