Description
Sensor Technology Ltd. (SensorTech) is a Canadian designer and manufacturer of advanced underwater acoustic solutions, specializing in piezoelectric ceramics, hydrophones, transducers, thin-line towed arrays (TLTA), and fully customized acoustic systems. Since 1983, we have supported defence, oceanographic, hydrographic, scientific, aquaculture, and energy applications with innovative, high-performance sensing technologies.
Our products are engineered for demanding underwater environments, delivering reliable acoustic performance for naval operations, marine research, environmental monitoring, offshore energy, and autonomous marine platforms. From precision piezoelectric components to fully integrated acoustic systems, we work closely with customers to develop solutions tailored to their mission requirements.
When Every Sound Matters, So Does Every Sensor.
Our products are engineered for demanding underwater environments, delivering reliable acoustic performance for naval operations, marine research, environmental monitoring, offshore energy, and autonomous marine platforms. From precision piezoelectric components to fully integrated acoustic systems, we work closely with customers to develop solutions tailored to their mission requirements.
When Every Sound Matters, So Does Every Sensor.
Download
-
Company-Brochure-ST-V4-2026-03-Final.pdffile size: 2.20 MB
-
COMPASS-Plus-Data-Sheet-ST-V4-2026-06.pdffile size: 1.90 MB
-
COMPASS-Data-Sheet-ST-V1-2026-01-Final.pdffile size: 1.35 MB
-
End-Capped-Hydrophones-Brochure-ST-V1-2026-01-Final.pdffile size: 475.55 KB
-
Defense-Brochure-ST-V1-2026-02-Final.pdffile size: 4.10 MB
-
PiezoCeramic-Brochure-ST-V5-2025-06-Final.pdffile size: 761.98 KB
Products
COMPASS Thin Line Towed Array
COMPASS Thin Line Towed Array
SensorTech’s COMPASS Thin Line Towed Array (TLTA) is a compact, low-drag acoustic sensing system for crewed and uncrewed maritime platforms, including USVs and ASVs. Its 22 mm thin-line profile, small bend radius, and low SWaP make it easy to handle and deploy. Designed for high-fidelity passive acoustic sensing, COMPASS supports naval, scientific, and industrial applications, with Ethernet connectivity, GUI and API control, customizable configurations, PAMGuard integration, and optional non-acoustic sensors.
Array diameter: 22 mm
Sampling rate: Up to 64 kSps
Linear frequency range: 20 Hz–15 kHz
Bit depth: 32 bit
Sensitivity: –204 dB re 1 V/µPa
Self-noise: ≤SS0 below 4 kHz; ≤SS0 –10 dB from 200–500 Hz
Hydrophone count: 16
Maximum array length: 30 m
Connectivity: Standard Ethernet
Control: GUI and API
Sensor options: Pressure, temperature, IMU, magnetometer
Other features: Selectable sampling rate, customizable array length and hydrophone spacing, PAMGuard integration.
Sampling rate: Up to 64 kSps
Linear frequency range: 20 Hz–15 kHz
Bit depth: 32 bit
Sensitivity: –204 dB re 1 V/µPa
Self-noise: ≤SS0 below 4 kHz; ≤SS0 –10 dB from 200–500 Hz
Hydrophone count: 16
Maximum array length: 30 m
Connectivity: Standard Ethernet
Control: GUI and API
Sensor options: Pressure, temperature, IMU, magnetometer
Other features: Selectable sampling rate, customizable array length and hydrophone spacing, PAMGuard integration.

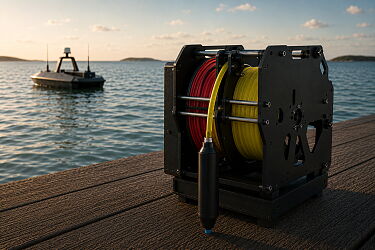

COMPASS+ Thin Line Towed Array
COMPASS+ Thin Line Towed Array
SensorTech’s COMPASS+ is a complete winchable thin-line towed array system engineered for rapid deployment and retrieval from crewed and uncrewed maritime platforms. Combining a compact, low-drag 22 mm acoustic array with an integrated lightweight winch system, COMPASS+ enables efficient handling and automated operation through a web app or API. Designed for high-fidelity passive acoustic sensing across naval, scientific, and industrial applications.
Sampling rate: Up to 64 kSps
Bandwidth: 10 Hz–15 kHz
Sensitivity: –204 dB re 1 V/µPa
Bit depth: 32-bit data output
Hydrophones: 16
Maximum array length: 30 m
Maximum depth: 100 m
Protocol: 1000 BASE-T
Power supply: 12–24 V
Maximum length: Up to 100 m (array + towline)
Winch envelope: 750 × 400 × 560 mm
Winch weight: 37 kg typ.
Maximum retrieval speed: 0.3 m/s
Ingress protection: IP67
Control: Automated through web app or API
Bandwidth: 10 Hz–15 kHz
Sensitivity: –204 dB re 1 V/µPa
Bit depth: 32-bit data output
Hydrophones: 16
Maximum array length: 30 m
Maximum depth: 100 m
Protocol: 1000 BASE-T
Power supply: 12–24 V
Maximum length: Up to 100 m (array + towline)
Winch envelope: 750 × 400 × 560 mm
Winch weight: 37 kg typ.
Maximum retrieval speed: 0.3 m/s
Ingress protection: IP67
Control: Automated through web app or API

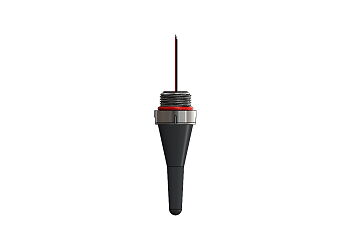

Hydrophones
Hydrophones
SensorTech designs and manufactures high-performance hydrophones for underwater acoustic sensing across defence, scientific and industrial applications. Our End-Capped and Spherical Hydrophones provide reliable, high-fidelity acoustic performance in demanding underwater environments. Available in multiple configurations, frequency ranges and depth ratings, they support applications requiring precise passive acoustic monitoring, from shallow-water operations to deep-sea deployments.
End-Capped Hydrophones:
Frequency range: 1 Hz–100 kHz, depending on model
Depth rating: Up to 3500 m
Sensitivity: –204.5 to –188.5 dB re 1 V/µPa
Models: SQ05, SQ17, SQ21, SQ26, SQ34, SQ94, SQ113, SQ127
Spherical Hydrophones:
Frequency: 63–320 kHz, depending on model
Depth rating: Up to 3500 m
Sensitivity: –215 to –192.5 dB re 1 V/µPa
Models: SQ91, SQ48, SQ112, SQ42
Designed for omnidirectional underwater acoustic sensing.
Frequency range: 1 Hz–100 kHz, depending on model
Depth rating: Up to 3500 m
Sensitivity: –204.5 to –188.5 dB re 1 V/µPa
Models: SQ05, SQ17, SQ21, SQ26, SQ34, SQ94, SQ113, SQ127
Spherical Hydrophones:
Frequency: 63–320 kHz, depending on model
Depth rating: Up to 3500 m
Sensitivity: –215 to –192.5 dB re 1 V/µPa
Models: SQ91, SQ48, SQ112, SQ42
Designed for omnidirectional underwater acoustic sensing.

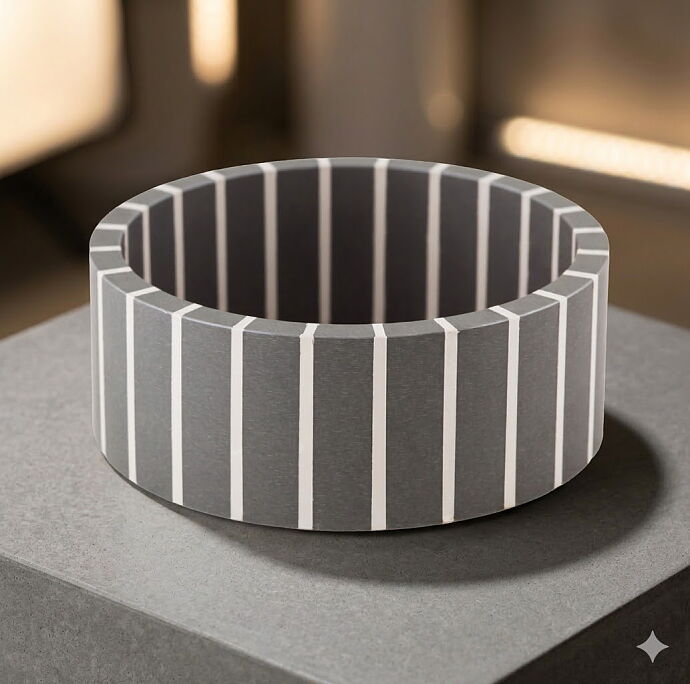

Piezoelectric Ceramics (PZT)
Piezoelectric Ceramics (PZT)
SensorTech custom manufactures high-quality piezoelectric ceramics (PZT) for demanding acoustic and sensing applications. Available in a wide range of sizes, materials and geometries, our ceramics are produced under tightly controlled processes to deliver consistent performance and full traceability. Capabilities include discs, rings, tubes, bars, plates, hemispheres, spheres and custom geometries, with tight tolerances and a variety of electrode configurations.
hapes: Discs, rings, bars, plates, tubes, hemispheres, spheres and custom geometries
Tube OD: 2–110 mm
Plate length: Up to 178 mm
Disc OD: Up to 152 mm
Hemisphere OD: Up to 102 mm
Electrode material: Silver
Electrode options: Vertical and horizontal segmentation, wrap-around and edge relief
Poling: Standard and shear-mode capabilities
Custom manufacturing: Tight tolerances for dimensions, flatness, concentricity, parallelism, resonance, anti-resonance and capacitance
Production capability: Prototype quantities through high-volume production
Technical Data – Polish
Tube OD: 2–110 mm
Plate length: Up to 178 mm
Disc OD: Up to 152 mm
Hemisphere OD: Up to 102 mm
Electrode material: Silver
Electrode options: Vertical and horizontal segmentation, wrap-around and edge relief
Poling: Standard and shear-mode capabilities
Custom manufacturing: Tight tolerances for dimensions, flatness, concentricity, parallelism, resonance, anti-resonance and capacitance
Production capability: Prototype quantities through high-volume production
Technical Data – Polish
Underwater Acoustic Transducers
Underwater Acoustic Transducers
SensorTech designs and manufactures high-performance underwater acoustic transducers for defence, scientific and industrial applications. Our Spherical Transducers provide reliable omnidirectional acoustic transmission, while Free-Flooded Ring (FFR) Projectors offer robust performance, wide usable bandwidths, and virtually unchanged operation at depth. Available in multiple frequencies and configurations, these transducers can be used individually or configured as arrays for demanding subsea applications.

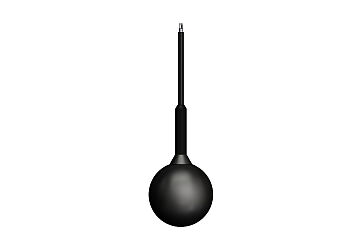

Spherical Transducers
Models: SX153, SX149, SX147, SX157
Frequency: 11.5–79 kHz, depending on model
Depth rating: 1250 m
Receive sensitivity: –202 to –188 dB re 1 V/µPa
Transmit sensitivity: 146–149 dB re µPa/V @1m

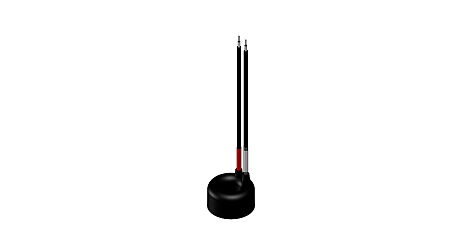

Free-Flooded Ring (FFR) Projectors
Models: SX60, SX30, SX148
Resonance frequency: 8–60 kHz, depending on model
Depth rating: Unlimited
Receive sensitivity: –202.5 to –183 dB re 1 V/µPa
Transmit sensitivity: 131–134 dB re µPa/V @1m
Suitable for individual operation or array configurations.
Models: SX153, SX149, SX147, SX157
Frequency: 11.5–79 kHz, depending on model
Depth rating: 1250 m
Receive sensitivity: –202 to –188 dB re 1 V/µPa
Transmit sensitivity: 146–149 dB re µPa/V @1m
Free-Flooded Ring (FFR) Projectors
Models: SX60, SX30, SX148
Resonance frequency: 8–60 kHz, depending on model
Depth rating: Unlimited
Receive sensitivity: –202.5 to –183 dB re 1 V/µPa
Transmit sensitivity: 131–134 dB re µPa/V @1m
Suitable for individual operation or array configurations.
