KVERTUS LLC
- Obolonskyi district, Levka Lukyanenka street, 04212 Kyiv, Ukraine
- 0991889846
- marketing@kvertus.ua
- kvertus.ua
Description
Kvertus is a Ukrainian defense technology company specializing in integrated electronic warfare solutions for countering unmanned aerial systems (UAS).
Its solutions combine:
-Electronic Intelligence (ELINT)
-Electronic Warfare (EW)
-Command-and-control software
Beyond hardware, Kvertus provides a full-cycle capability for defense forces and critical infrastructure operators, including proprietary software, operator training, technical support, and equipment maintenance and repair.
Its solutions combine:
-Electronic Intelligence (ELINT)
-Electronic Warfare (EW)
-Command-and-control software
Beyond hardware, Kvertus provides a full-cycle capability for defense forces and critical infrastructure operators, including proprietary software, operator training, technical support, and equipment maintenance and repair.
Products

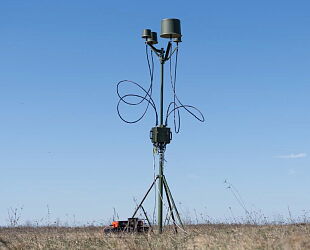

KVERTUS LTEJ MIRAGE ELECTRONIC WARFARE SYSTEM
KVERTUS LTEJ MIRAGE ELECTRONIC WARFARE SYSTEM
UAV SUPPRESSION
An electronic warfare system representing the most effective class of Smart EW solutions. Features a modular architecture allowing for custom configurations: 14 frequency band combination options are available.
Advantages:
-Suppression range: omnidirectional ("dome") antennas—up to 10 km; directional antennas—up to 30 km.
-Interference bandwidth: up to 80 MHz.
-Simultaneous operation: omnidirectional and directional antennas can operate at the same time, ensuring protection against flanking FPV drone attacks.
-Control: interference parameters are programmed via the Horizon system software interface or using a tablet, computer, or smartphone.
DEVICE INTERFERENCE BANDS
1. 300–500 MHz
2. 500–700 MHz
3. 700–1 000 MHz
5. 1 500–3 500 MHz
4. 1 000–1 500 MHz
6. 3 000–6 000 MHz
1. 300–500 MHz
2. 500–700 MHz
3. 700–1 000 MHz
5. 1 500–3 500 MHz
4. 1 000–1 500 MHz
6. 3 000–6 000 MHz

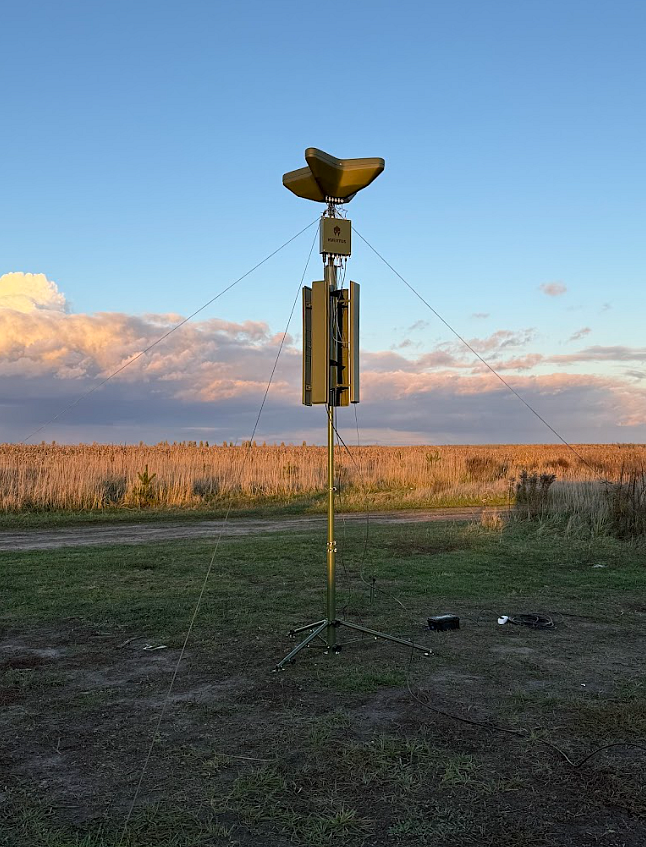

KVERTUS MS AZIMUTH SIGNALS INTELLIGENCE SYSTEM
KVERTUS MS AZIMUTH SIGNALS INTELLIGENCE SYSTEM
TARGET DETECTION AND SIGNAL ANALYSIS
The first Ukrainian operational and strategic level direction finding system.
Advantages
-Detection of any signal within the 30–6000 MHz range.
-Detection range: multicopters—up to 30 km; fixed-wing UAVs—up to 150 km.
-Provides comprehensive data on the target's radio signal:
frequency;
bearing;
signal type (control, relay, telemetry, video);
protocol type;
spread factor, etc.
-Video interception capability.
-Triangulation with a minimal number of units.
Operating frequency range: 30–6000 MHz
Instantaneous bandwidth: 200 MHz
Frequency scanning speed: 540 GHz/s
Frequency resolution: 30 kHz
Single–signal dynamic range: ≥80 dB
Maximum detection range: up to 150 km
Minimum bearing time: 0.04 ms
Bearing accuracy: ≤5° (RMS)
Vertical coverage: 60°
Horizontal coverage: 360°
Signal processing: digital
Simultaneously tracked targets: ≤100
Target detection: automatic
Power consumption: 100 W (220 V, 50 Hz)
Operating temperature: –20 °С to +40 °С
Weight (without the antenna feeder system): up to 25 kg
Instantaneous bandwidth: 200 MHz
Frequency scanning speed: 540 GHz/s
Frequency resolution: 30 kHz
Single–signal dynamic range: ≥80 dB
Maximum detection range: up to 150 km
Minimum bearing time: 0.04 ms
Bearing accuracy: ≤5° (RMS)
Vertical coverage: 60°
Horizontal coverage: 360°
Signal processing: digital
Simultaneously tracked targets: ≤100
Target detection: automatic
Power consumption: 100 W (220 V, 50 Hz)
Operating temperature: –20 °С to +40 °С
Weight (without the antenna feeder system): up to 25 kg
Business sector
Radio- and opto-electronical equipment
Defence infrastructure equipment
