Description
Hybrid Power Solutions Inc. is a Canadian manufacturer of battery based, energy storage systems for defense, emergency response, and critical infrastructure industries. Our clean, reliable power solutions reduce dependence on standard fuel based generators, all while providing resilient off grid power in the world's most demanding environments.
Built for military operations, Hybrid Power Solutions' systems deliver silent, low-maintenance, and low-signature power for a wide array of mission-critical applications. These systems support multiple charging sources, including grid power, generators, vehicle alternators, and renewable energy, ensuring operational flexibility wherever power is required.
By reducing fuel consumption, resupply requirements, and acoustic and thermal signatures, Hybrid Power Solutions helps improve operational security while lowering the logistical burden on deployed forces. Our modular, scalable architecture enables rapid deployment and easy expansion as mission requirements evolve.
Hybrid Power Solutions is committed to delivering dependable, mission-ready energy solutions that enhance operational resilience, increase energy independence, and support the modernization of defense forces worldwide.
Built for military operations, Hybrid Power Solutions' systems deliver silent, low-maintenance, and low-signature power for a wide array of mission-critical applications. These systems support multiple charging sources, including grid power, generators, vehicle alternators, and renewable energy, ensuring operational flexibility wherever power is required.
By reducing fuel consumption, resupply requirements, and acoustic and thermal signatures, Hybrid Power Solutions helps improve operational security while lowering the logistical burden on deployed forces. Our modular, scalable architecture enables rapid deployment and easy expansion as mission requirements evolve.
Hybrid Power Solutions is committed to delivering dependable, mission-ready energy solutions that enhance operational resilience, increase energy independence, and support the modernization of defense forces worldwide.
Download
-
HPS-Portable-Power-Sell-Sheet-Digital-Only-Apr.-2025-3.pdffile size: 524.88 KB
Products

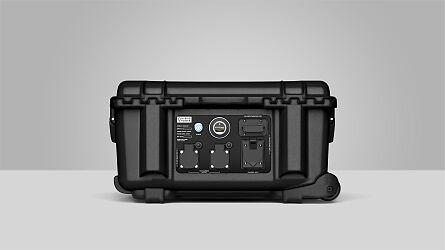

Batt Pack Energy
Batt Pack Energy
Batt Pack Energy (BPE) is a rugged, portable lithium iron phosphate (LiFePO₄) battery energy storage system engineered to deliver reliable off grid power in demanding environments. Designed for industrial, defense, emergency response, telecommunications, construction, and remote operations, the BPE provides silent, zero emission power while reducing reliance on traditional fuel powered generators. Featuring pure sine wave output, multiple charging options including AC, solar, and vehicle alternator, and advanced battery management, the system ensures dependable performance in the field. Built to withstand extreme temperatures and harsh operating conditions, the Batt Pack Energy combines rapid deployment, long cycle life, and scalable energy storage into a compact, maintenance-free solution for mission critical applications.
Power 3,000W
Surge Power 4,500W (500ms), 6,000W (10ms)
Loaded Motor Capacity +2HP
Energy 2.5kWh
Chemistry LiFePO4
Cycles +3,500 Cycles
Voltage 120V AC or 240V AC[EU]
Frequency 60 Hz or 50 Hz[EU]
Solar Input Power 1,600W
Solar Input Voltage 30-80V DC
Max Solar Amperage 40A
Grid Charging Power 1,200W
Bypass Power 1,200W
Sine Wave Pure Sine Wave
Output voltage threshold 5%
Size 60.5cm x 39.4cm x 33.6cm [23.8in x 15.5in x 13.2in]
Weight 34.3 kg [75.6 lbs]
Storage Temperature -30°C to 50°C [-22°F to 122°F]
Operating temperature (with Polarshield) -30°C to 50°C [-22°F to 122°F]
Recharge Time:
Grid = 2.5 Hours
Solar= 2 Hour*
Alternator = 7 Hours
Idle Power Consumption 40W
Humidity Range 5% - 95%
Vibration Resistance IEC 60068-2-64
Shock Resistance IEC 60068-2-31
Output Efficiency Greater than 90%
Certification/Inspections CE, UL9540A, UL1642,
ESA SPE-1000, UL1741
Surge Power 4,500W (500ms), 6,000W (10ms)
Loaded Motor Capacity +2HP
Energy 2.5kWh
Chemistry LiFePO4
Cycles +3,500 Cycles
Voltage 120V AC or 240V AC[EU]
Frequency 60 Hz or 50 Hz[EU]
Solar Input Power 1,600W
Solar Input Voltage 30-80V DC
Max Solar Amperage 40A
Grid Charging Power 1,200W
Bypass Power 1,200W
Sine Wave Pure Sine Wave
Output voltage threshold 5%
Size 60.5cm x 39.4cm x 33.6cm [23.8in x 15.5in x 13.2in]
Weight 34.3 kg [75.6 lbs]
Storage Temperature -30°C to 50°C [-22°F to 122°F]
Operating temperature (with Polarshield) -30°C to 50°C [-22°F to 122°F]
Recharge Time:
Grid = 2.5 Hours
Solar= 2 Hour*
Alternator = 7 Hours
Idle Power Consumption 40W
Humidity Range 5% - 95%
Vibration Resistance IEC 60068-2-64
Shock Resistance IEC 60068-2-31
Output Efficiency Greater than 90%
Certification/Inspections CE, UL9540A, UL1642,
ESA SPE-1000, UL1741
Batt Pack Jupiter
Batt Pack Jupiter
Batt Pack Jupiter is a rugged, high-capacity lithium iron phosphate (LiFePO₄) battery energy storage system designed to deliver dependable off-grid power for industrial, defence, emergency response, telecommunications, and remote operations. Engineered for high-power applications, Jupiter provides clean, silent AC power while reducing reliance on traditional fuel-powered generators. Its robust design supports reliable operation in harsh environments and extreme temperatures, making it ideal for mission-critical deployments. With pure sine wave output, long cycle life, maintenance-free operation, and a durable, field-ready enclosure, Batt Pack Jupiter delivers scalable, resilient power wherever reliable energy is essential.
Power 7,000W
Surge Power 12,000W (1sec)
Loaded Motor Capacity +5HP
Energy 7.2kWh
Chemistry LiFePO4
Cycles +3,000 Cycles
Voltage 120V AC and 240V AC
Frequency 50 Hz / 60 Hz
Solar Input Power 800W
VOC Input Voltage 29-75V DC
Solar Input Voltage 60V DC
Max Solar Amperage 30A
Grid Charging Power 1,110W
Sine Wave Pure Sine Wave
Output voltage threshold 5%
Size 91.4cm x 68.5cm x 58.4cm [36in x 27in x 23in]
Weight 127 kg [280 lbs]
Storage Temperature -20°C to 45°C [-4°F to 113°F]
Operating temperature -20°C to 45°C [-4°F to 113°F]
Certification CSA SP-1000, UL-458
Surge Power 12,000W (1sec)
Loaded Motor Capacity +5HP
Energy 7.2kWh
Chemistry LiFePO4
Cycles +3,000 Cycles
Voltage 120V AC and 240V AC
Frequency 50 Hz / 60 Hz
Solar Input Power 800W
VOC Input Voltage 29-75V DC
Solar Input Voltage 60V DC
Max Solar Amperage 30A
Grid Charging Power 1,110W
Sine Wave Pure Sine Wave
Output voltage threshold 5%
Size 91.4cm x 68.5cm x 58.4cm [36in x 27in x 23in]
Weight 127 kg [280 lbs]
Storage Temperature -20°C to 45°C [-4°F to 113°F]
Operating temperature -20°C to 45°C [-4°F to 113°F]
Certification CSA SP-1000, UL-458

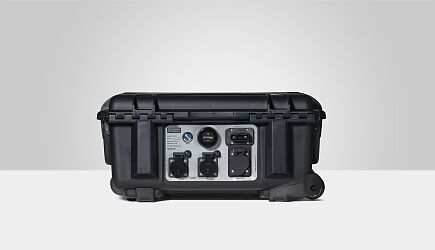

Batt Pack Pro
Batt Pack Pro
Batt Pack Pro (BPP) is a rugged, portable lithium iron phosphate (LiFePO₄) battery energy storage system engineered to provide dependable off-grid power for industrial, defence, emergency response, telecommunications, and remote operations. Delivering high-power, pure sine wave AC output, the BPP serves as a clean, silent alternative to traditional fuel-powered generators. It supports multiple charging sources, including AC grid, solar, and vehicle alternator, enabling continuous operation in virtually any environment. Built to withstand extreme temperatures and harsh field conditions, the Batt Pack Pro combines long cycle life, rapid deployment, and maintenance-free operation in a compact, scalable platform, providing reliable power for mission-critical applications wherever it is needed.
Power 5,000W
Surge Power 7,000W (500ms), 10,000W (10ms)
Loaded Motor Capacity +3HP
Energy 5.1kWh
Chemistry LiFePO4
Cycles +3,500 Cycles
Voltage 120V AC or 240V AC[EU]
Frequency 60 Hz or 50 Hz[EU]
Solar Input Power 5,500W
Solar Input Voltage 140-320V DC
Max Solar Amperage 40A
Grid Charging Power 1,400W
Bypass Power 1,200W
Sine Wave Pure Sine Wave
Output voltage threshold 5%
Size 65cm x 50.8cm x 30cm [25.6in x 20in x 11.8in]
Weight 59.8 kg [132 lbs]
Storage Temperature -30°C to 50°C [-22°F to 122°F]
Operating temperature (with Polarshield) -30°C to 50°C [-22°F to 122°F]
Recharge Time
Grid = 4.5 Hours
Solar= 1 Hour*
Alternator = 7 Hours
Idle Power Consumption 70W
Humidity Range 5% - 95%
Vibration Resistance IEC 60068-2-64
Shock Resistance IEC 60068-2-31
Output Efficiency Greater than 90%
Certification/Inspections CE, UL9540A, UL1642, ESA SPE-1000, UL1741
Surge Power 7,000W (500ms), 10,000W (10ms)
Loaded Motor Capacity +3HP
Energy 5.1kWh
Chemistry LiFePO4
Cycles +3,500 Cycles
Voltage 120V AC or 240V AC[EU]
Frequency 60 Hz or 50 Hz[EU]
Solar Input Power 5,500W
Solar Input Voltage 140-320V DC
Max Solar Amperage 40A
Grid Charging Power 1,400W
Bypass Power 1,200W
Sine Wave Pure Sine Wave
Output voltage threshold 5%
Size 65cm x 50.8cm x 30cm [25.6in x 20in x 11.8in]
Weight 59.8 kg [132 lbs]
Storage Temperature -30°C to 50°C [-22°F to 122°F]
Operating temperature (with Polarshield) -30°C to 50°C [-22°F to 122°F]
Recharge Time
Grid = 4.5 Hours
Solar= 1 Hour*
Alternator = 7 Hours
Idle Power Consumption 70W
Humidity Range 5% - 95%
Vibration Resistance IEC 60068-2-64
Shock Resistance IEC 60068-2-31
Output Efficiency Greater than 90%
Certification/Inspections CE, UL9540A, UL1642, ESA SPE-1000, UL1741

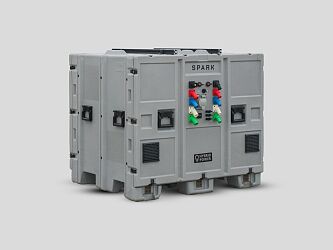

Spark Cube
Spark Cube
Spark Cube is a rugged, modular battery energy storage system (BESS) engineered to provide dependable off-grid power for defence, industrial, construction, telecommunications, emergency response, and remote operations. Available in multiple power and energy configurations, it delivers clean, silent power while reducing reliance on diesel generators and lowering operating costs. The Spark Cube supports AC, renewable energy integration, and intelligent energy management, making it ideal for microgrids, temporary power, EV charging, and critical infrastructure. Built with LiFePO₄ battery technology, long cycle life, and a durable all-weather enclosure, it provides scalable, low-maintenance energy storage for the world's most demanding environments.
Output Power 12 / 24 kW
Surge Power 24 / 48 kW
Storage 20 / 30 / 60 kWh
Voltage 120 / 208 / 240
Chemistry LiFePO4
Cycles +6,000 Cycles
Frequency 60 Hz
Solar Input Power 18,000 W
Solar Input Voltage 140-500 V DC
Sine Wave Pure Sine Wave
Size 131.1 cm × 105.7 cm × 117.9 cm [51.6 in × 41.6 in × 46.4 in]
Storage & Start-Up Temperature -20 °C to 45 °C [-4 °F to 113 °F]
Operating temperature -20 °C to 50 °C [-4 °F to 122 °F]
Certification/ Inspections UL9540, UL9540A, UL1973, UL1741
Surge Power 24 / 48 kW
Storage 20 / 30 / 60 kWh
Voltage 120 / 208 / 240
Chemistry LiFePO4
Cycles +6,000 Cycles
Frequency 60 Hz
Solar Input Power 18,000 W
Solar Input Voltage 140-500 V DC
Sine Wave Pure Sine Wave
Size 131.1 cm × 105.7 cm × 117.9 cm [51.6 in × 41.6 in × 46.4 in]
Storage & Start-Up Temperature -20 °C to 45 °C [-4 °F to 113 °F]
Operating temperature -20 °C to 50 °C [-4 °F to 122 °F]
Certification/ Inspections UL9540, UL9540A, UL1973, UL1741
Terra
Terra
Terra is a rugged, high-capacity battery energy storage system (BESS) designed to deliver reliable, utility-scale power for defence, critical infrastructure, industrial sites, microgrids, and remote operations. Engineered for demanding environments, Terra provides clean, silent energy while reducing reliance on diesel generators and lowering operating costs. Its modular architecture enables scalable deployment and seamless integration with renewable energy sources, utility grids, and backup generators. Equipped with advanced energy management, integrated fire suppression, and a weather-resistant enclosure, Terra delivers safe, dependable, and low-maintenance energy storage for mission-critical applications requiring resilient, continuous power.
Rated Power
166 kVA
Max. Rated / Apparent Power
270 kVA
Rated Voltage
480 V* (±15%)
Rated Current
375 A
Solar Input Voltage
180 to 850 V DC
PV Power
78 kW × 3
Grid Frequency
60 Hz
AC Connection
3 W + N
THDI
≤ 3%
Power Factor
-1 ~ +1
Input Current
36 A × 24
Battery Chemistry
LiFePO₄
Nominal Charging Current
100 A
Nominal Energy
180 kWh
Nominal Discharging Current
200 A
Working Voltage Range
600 V ~ 876 V
Max. Discharging Current
300 A
Depth of Discharge (DOD)
90%
Compatible Diesel Generator Rated Power
+10 kVA
Compatible Diesel Generator Rated Frequency
60 Hz
Compatible Diesel Generator Rated Voltage
480 V*
Parallel Capable
Yes (up to 3)
EMS
SEMS3000
12-inch LCD Touch Panel
Included
Ingress Rating
IP54 / NEMA 3R
Fire Suppression System
Included
Topology
Transformer
Working Temperature
-30°C to 55°C
[-22°F to 131°F]
Storage Temperature
-40°C to 65°C
[-40°F to 149°F]
Relative Humidity 5 ~ 95% (Non-condensing)
System Noise <65 dB
Cooling
Intelligent temperature control
Altitude 5,000 m (>3,000 m derating)
Certifications
UL1973 / UL1741 / UL9540A /
FCC Part 15 Class B /
CUEN / UN38.3
Dimensions
8 ft(W)×10 ft(L)×9.5 ft H)
Weight 10,361.72 lb (4,700 kg)
166 kVA
Max. Rated / Apparent Power
270 kVA
Rated Voltage
480 V* (±15%)
Rated Current
375 A
Solar Input Voltage
180 to 850 V DC
PV Power
78 kW × 3
Grid Frequency
60 Hz
AC Connection
3 W + N
THDI
≤ 3%
Power Factor
-1 ~ +1
Input Current
36 A × 24
Battery Chemistry
LiFePO₄
Nominal Charging Current
100 A
Nominal Energy
180 kWh
Nominal Discharging Current
200 A
Working Voltage Range
600 V ~ 876 V
Max. Discharging Current
300 A
Depth of Discharge (DOD)
90%
Compatible Diesel Generator Rated Power
+10 kVA
Compatible Diesel Generator Rated Frequency
60 Hz
Compatible Diesel Generator Rated Voltage
480 V*
Parallel Capable
Yes (up to 3)
EMS
SEMS3000
12-inch LCD Touch Panel
Included
Ingress Rating
IP54 / NEMA 3R
Fire Suppression System
Included
Topology
Transformer
Working Temperature
-30°C to 55°C
[-22°F to 131°F]
Storage Temperature
-40°C to 65°C
[-40°F to 149°F]
Relative Humidity 5 ~ 95% (Non-condensing)
System Noise <65 dB
Cooling
Intelligent temperature control
Altitude 5,000 m (>3,000 m derating)
Certifications
UL1973 / UL1741 / UL9540A /
FCC Part 15 Class B /
CUEN / UN38.3
Dimensions
8 ft(W)×10 ft(L)×9.5 ft H)
Weight 10,361.72 lb (4,700 kg)
