MSPO (2-5.09.2025)
33rd International Defence Industry Exhibition MSPO
"Uniforce" sp. z o.o. sp.k.
- ul. Bodawska 11, 61-309 Poznań, Poland
- +48 61 875 04 76
- kontakt@uniforce.pl
- www.uniforce.pl
Description
Since 2007, we have earned the trust of many customers - the military, uniformed services, state-owned companies, private companies and security system integrators.
One of our areas of specialisation is drone-based solutions. We offer professional unmanned aerial systems, fielded by the uniformed services of many countries, including fire brigades and rescue units, using advanced optical and thermal imaging cameras. We offer both drones performing LOS and BVLOS flights, as well as non-piloted tethered systems.
Products
- Assembled: 417 x 323.5 x 115.5 mm
- Unfolded: 445 x 557.5 x 185.5 mm
Weight (excluding batteries and payload): 1050 g
Weight (with battery, without payload): 1585 g
Maximum take-off weight: 1900 g
Maximum payload: 315 g
Operating temperature range (optional): -20°C to +55°C (-30°C +50°C)
Ingress protection: IP54
Operating frequency: 2.4 - 2.4835 GHz; 2.2 - 2.7 GHz
RF output power: 30 dBm
Antenna gain: 3 dBi
GNSS: GPS + GLONASS + Galileo
Hovering accuracy (GPS mode): 0.5 m - 2.5 m
Downward-facing rangefinder: ToF LIDAR
- Field of view: +/- 1.7 degrees of cone beam
- Obstacle detection range: 20 m
Noise level: 56 dBa at 15 m
Maximum tilt angle: 45 degrees
Max. climb rate: 5 m/s
Max. descent speed: Variable, 1.5 - 3.5 m/s
Maximum control speed: 56 km/h
Maximum speed (with payload):
- Standard propellers: 56 km/h
- Silent propellers: 46 km/h
Max wind resistance: 15.5 m/s (56 km/h)
Max flight time (with payload): 40 min
Max flight distance: 16 km
Max ceiling: 3000 m above sea level
Propeller dimensions:
- Standard propellers: Length: 30.5 cm. Weight: 12.2 g
- Silent propellers: Length: 33.2 cm. Weight: 15.8 g

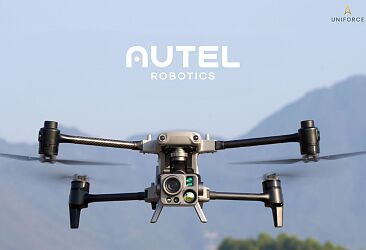

Weight (with battery, gimbal and propellers): 6340 g
Dimensions: 1205x980x278mm (unfolded, with propellers), 780x568x278mm (unfolded, without propellers), 455x263x248mm (folded, without propellers)
Flight time: up to 40 min.
Max. horizontal flight speed: 25m/s
Wind resistance: 12m/s
Operating frequency: 2.4 GHz / 5.2 GHz / 5.8 GHz / 900 MHz
Protection class: IP55
Max. transmission range: 15 km
GNSS: GPS / GLONASS / BDS / Galileo

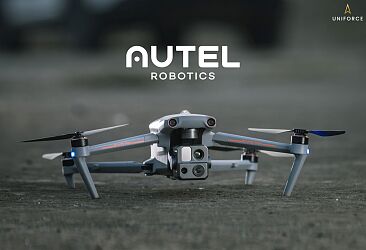

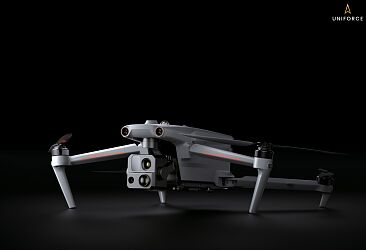

ZOOM CAMERA
Matrix: 8MP
Optical zoom: 35x
Hybrid zoom: 560x
ISO up to 160,000
WIDE-ANGLE CAMERA
Matrix: 48MP
Aperture: f/2.8
35 mm focal length equivalent: 24mm
DUAL THERMAL IMAGING CAMERA
Resolution: 640x512
Hybrid zoom: 56x
Wide angle lens: 13mm
Standard lens: 45 mm

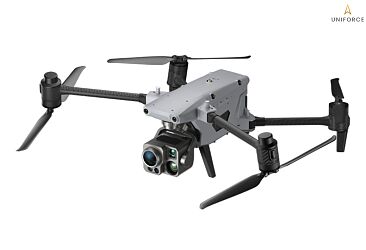

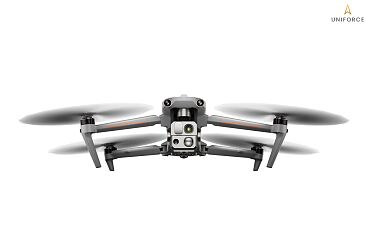

Weight: 1620g, battery and gimbal included
Max. Takeoff Weight: 1999g
Dimensions: 318*400*147 mm (unfolded, excl. propellers) 257*145*131 mm (folded, excl. propellers)
Max Speed: 23m/s
Max Flight Time: 42 mins
Max Hovering Time: 38 mins
Max Wind Resistance: 12 m/s
IP Rating: IP43
Operating Temperature: -20°C to 50°C
Internal Storage: 64GB of available space
Operating Frequency: 2.4GHz/5.8GHz, 5.2GHz
GNSS: GPS+Galileo+BeiDou+GLONASS
Range: 8 km
TELEPHOTO
Sensor: 1/2" CMOS, Effective pixels: 48M
Lens: 35mm equivalent: 64-234mm, f/2.8-f/4.8
Max Photo Size: 8000x6000
Max Video Resolution: 4000x3000
WIDE CAMERA
Sensor: 1/1.28 CMOS, Effective pixels: 50M
Lens: 35mm equivalent: 23 mm, f/1.9
Max. Video Resolution: 4000x3000
Photo Size: 4096x3072
THERMAL CAMERA
Thermal Imager: Uncooled VOx Microbolometer
Lens: FOV: 42°, 13mm, f/1.2
Infrared Temperature Measurement Accuracy: ±3°C or reading ±3% (using the larger value)
Video Resolution: 640x512@30FPS
Photo Size: 640x512
Temperature Measurement Range: -20°C to 150°C, 0 to 550°C
Max Flight Time: 40 minutes
Max Takeoff Weight: 2.49 kg
Max Horizontal Speed (at sea level): 20 m/s
Max radio range: 10 km
Operational Temperature Range: -20C to 45C
Operating Frequencies:
Connect MH: 1790-1850 MHz, 2040-2110 MHz, 2200-2300 MHz, 2300-2390 MHz, 2400-2500 MHz
Environment Coverage: True 360°
Ingress Protection Rating: IP55

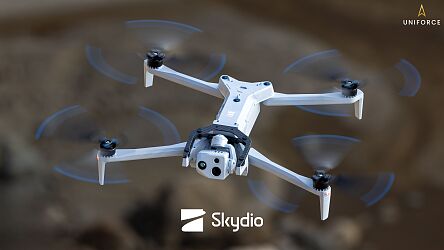

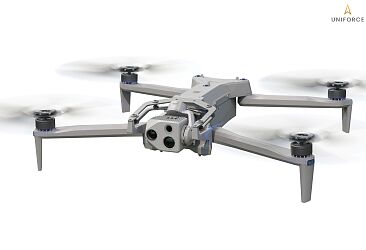

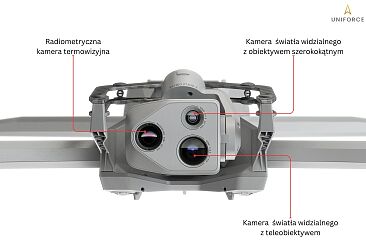

SENSOR PACKAGES
1. VT300-Z
Narrow Camera: 46 mm equivalent, 64MP, f/1.8, Diagonal Field of View: 50°
Telephoto: 190mm equivalent, 48MP, f/2.2, Diagonal Field of View: 13°
Radiometric Thermal Camera: 60mm equivalent, 640x512 px, Diagonal Field of View: 41°, Thermal Sensitivity: <30mK NEDT
2. VT300-L
Narrow Camera: 46 mm equivalent, 64MP, f/1.8, Diagonal Field of View: 50°
1” Wide Camera: 20mm equivalent, 50MP, f/1.95, Diagonal Field of View: 93°
Radiometric Thermal Camera: 60mm equivalent, 640x512 px, Diagonal Field of View: 41°, Thermal Sensitivity: <30mK NEDT
Illumination: 1000 lumens
SYSTEM SECURITY
Wireless encryption: AES- 256
NDAA Compliance: NDAA Compliant
Root of Trust: HSM protected keys
Internal Disk Storage: Encrypted
SD Cards: Encrypted

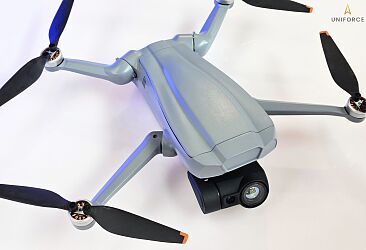

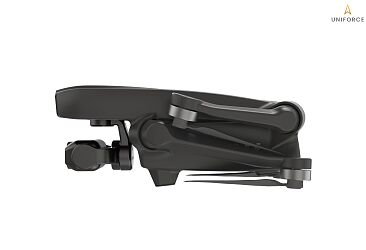

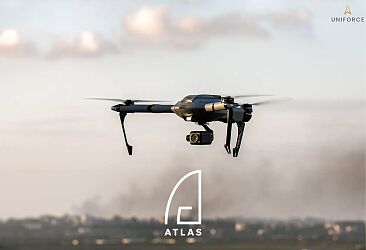

Weight: 249g
Enclosure: PC-ABS, UL94V-0
Ingress protection: IP44
OPERATION ENVIRONMENT
Operating temperature: -20°C to +55°C
Relative humidity: 5-95%, non-condensing
PAYLOAD
RGB camera: 4K (3840 x 2160) @ 30fps
Thermal imaging: 320 x 240 @ 24fps
Gimbal: 3-axis stabilised
PROPULSION
Max flight time: 34 min
Max. speed: 17 m/s (61 km/h)
Max. wind speed: 10 m/s
Max. ceiling: 3500 m a.s.l.
Hand/vehicle take-off: Yes, at speeds up to 20km/h
COMMUNICATIONS
Primary radio: Atlas ATR-200, power up to 1W
AtlasMESH operation: Yes
Frequency range: Civil: 2.4-2.4835 Ghz; Full: 2.2-2.7 Ghz
Frequency hopping: Yes, with smart scan
Radio range: >8.5 km
Certifications: CE, FCC
MASTER BOARD
Flight controller: Atlas FCM
Object tracking: Yes, AI image coprocessor
Codecs: H.264 / H.265
Storage: MicroSDXC up to 2TB
Storage security: AES256 encryption
SENSORS
GNSS: U-blox 10 (GPS + GLONASS + Galileo)
Obstacle avoidance: Forward-facing ToF lidar
Navigation without GPS: Optical flow (daytime)
Altitude radar: Microwave altimeter
Barometer: High-precision, self-calibrating
Other sensors: Compass, gyroscope, IMU, thermometer
BATTERY
Battery capacity: 3600 mAh

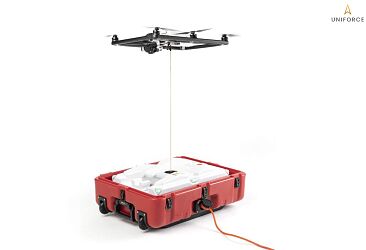

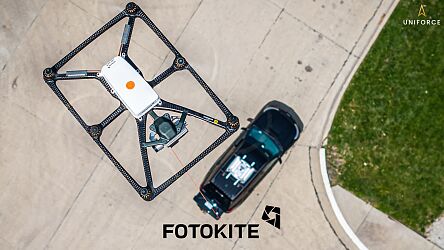

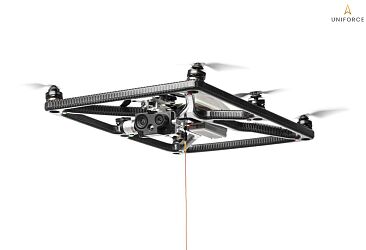

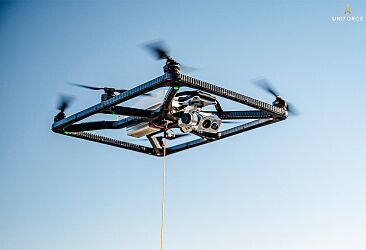

Take-off weight 1.3 kg
Construction: carbon fibre and advanced composites
Ceiling: 45m from the station
Flight time: 24h / 7
Case dimensions: 635 x 483 x 343 mm
Weight: 19.5 kg
Operating temperatures: -10°C to 40°C
Ingress protection: IP55
Tether: reinforced, ultra-thin cable
THERMAL IMAGING CAMERA
Stream resolution 320 x 240 @27fps
Temperature measurement: -40°C to 400°C, accuracy ± 5%
RGB CAMERA
Stream resolution: 1920 x 1080 @30 fps
Sensor: 12 MP
Zoom: 0.5x-16x
CONTROL AND TRANSMISSION
Piloting not required, fully autonomous: take-off, flight and landing
LTE modem and video streaming: Ethernet + WiFi access point with WPA2 encryption and integrated LTE modem for video streaming
Digital security: Secure streaming and tethered control
Flight control: Fotokite Autopilot, independent of GNSS/GPS availability
OTHER
System reliability: 1-motor fail-safe, controlled descent, backup power for 120 seconds of flight, backup ground station power for power outages, backup flight control, tether break detection, automatic service alerts
Warranty: 2 years, no flight hours limit
Flight time: Unlimited; recommended maintenance after 1500h of operation

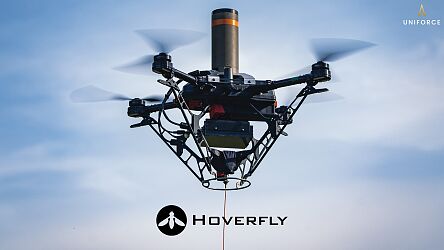

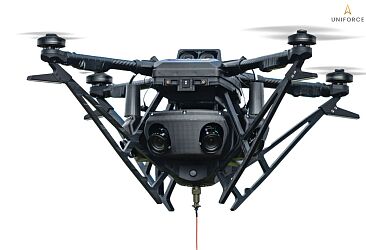

Maximum ceiling: 60 metres
Weather resistance: MIL-STD 810 compliant
Wind resistance: steady up to 40 km/h, gusts up to 48 km/h
Weight: Drone 4.0 kg | base station 32 kg
Drone control: Rugged tablet, PC, ATAK, RaptorX, SDK
Power: Continuous less than 2 kW, 2.4 kW peak
Transport: 2 boxes; total 79 kg
Deployment time: Less than 10 minutes from case to flight
Maintenance: Field repair with spare parts kit

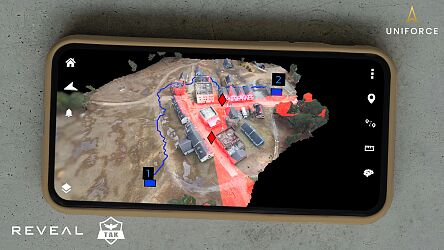

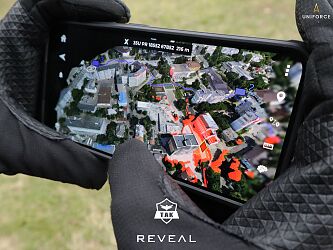

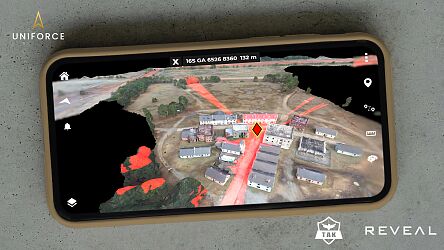

BSP compatibility: compatible with most consumer and professional drones, from nano and micro class BSPs to larger designs such as the FlyEye or Bayraktar TB2
Image and video support from visible light cameras: yes
Image and video support from thermal imaging cameras: yes
Option to export models to external systems: yes
Integration with ATAK: yes

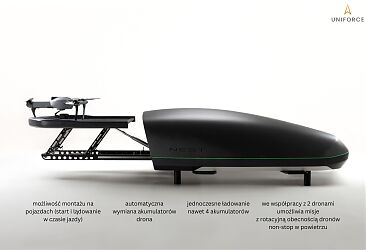

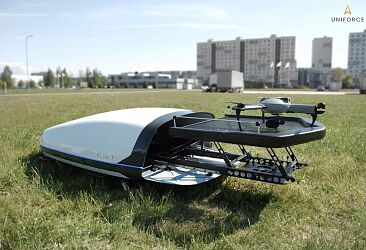

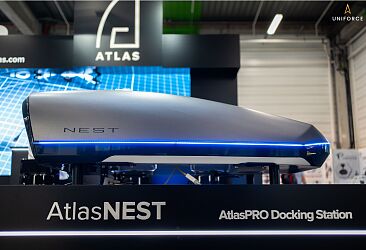

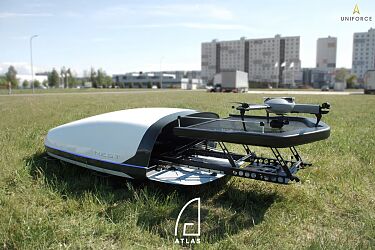

System Dimensions: 160 x 96 x 42 cm
Deployed Dimensions: 250 x 110 x 52 cm
Weight: <90 kg (Two-Man Carry)
PERFORMANCE
Takeoff: Automated, typ. response 70 sec
Landing: Automated
Drone Interaction: Battery replacement & Launch typ. 180 sec
Launch Type: Vertical takeoff & Landing
Battery Charge Time: 100% in 1HRN
Number of Batteries: 4
COMMUNICATIONS
AtlasPRO C2 Methods: 2.2 - 2.7 GHz
AtlasPRO C2 Range: up to 8 km LOS
AtlasNEST C2 Methods: Local WIFI, Ethernet 100 Mbit min., LTE Module
Transmitted: 128/256BIT AES Encryption of all transmitted data
Onboard: WPA3 SAE (CCMP)
Systems Equipped: 2.2 - 2.7 GHz
Mesh Options: Available
ENVIRONMENTAL
Temp. Range: -20˚C to +30˚C
With External Thermal Management System: -40˚C to +55˚C
IP Rating: IP53 designed
Internal Systems: Internal climate control system with humidity/temperature monitoring & regulation
