NICOMATIC

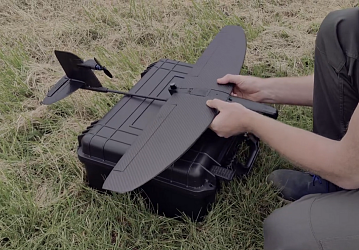

CKS IRIS

Cloudskeyes, a Nicomatic brand, is a multi-vector drone solutions builder for military and civil applications. Expert in nano-drones, Cloudskeyes offers customizable UAV technology, supported by secured and encrypted mission management system within a single HMI. Our drones: CKS- Sauron CKS-Iris (on the picture) + CKS Remote Groundstation and antenna Swarm flights: Up to 10 vectors for 1 groundstation Surveillance Mapping operations without loss of coverage Synchronized loitering munition Limited operator workload Mission sharing Tactical decoys Doubt resolution

Optical DMM

DMM with MT Ferrule — Hybrid Copper/Fiber Connectivity in a Compact Format Part of our DMM product line, this innovative module with MT ferrule enables hybrid connections by combining optical contacts with copper modules (LF, HF, HP). Built to MIL-AERO standards, it delivers strong optical performance, including support for 100GBASE-SR10 protocol. Highlights: MT ferrule: high-density, high-speed optical transmission Captive screw: fast and secure mounting, even under shock conditions Compact and versatile: compatible with round or flat cables, ideal for tight spaces Shielded protection with panel mount and EMI O-ring Reliable, modular, and robust — this DMM solution is ideal for aerospace, military, and advanced system applications.

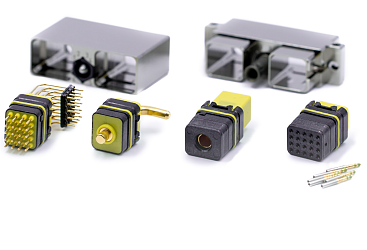

OPTIMUS

Modular, sealed, and meeting the EMI requirements of this standard, Nicomatic now includes in its catalogue a rectangular connector based on the specifications of EN4165. Lighter and more compact than its circular equivalent "D38999", the EN4165 type of connectors is the solution of choice to get out of the box and connect your equipment in the most severe environments. Adopt EN building blocks and be the first to benefit from this agile solution: stackable suitable for panels or backplanes ultra modular almost unlimited range of contacts. intermateable and interchangeable with existing solutions for increased simplicity in all your designs. Developed for and therefore recognized in the civil aeronautics sector, the relevance of EN4165 goes beyond this single market.

https://configurator.nicomatic.com/sites/default/files/library/2022-03/SelfDeclaration_Optimus_001_March2022.pdf

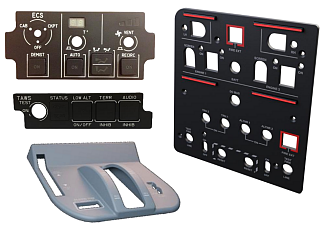

OXY BACKLIGHTED PANELS

Built-to-Print / Built-to Spec panels and integrated backlit front faces with Use of microswitches for button presses: - Monostable button technology - Bistable button technology with triplex capability (New) - Communication via ARINC protocol (New) - Segregation of all electronics for device safety

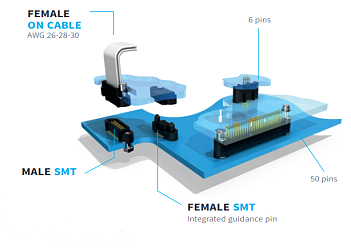

AMM SERIES

AMM connector with 1mm pitch connector is the solution for the most demanding space constraint issues. This high-reliability connector offers 5 standard layouts including 06, 10, 20, 34, and 50 contacts distributed over two rows. It has a minimal footprint, is easy to configure with 5 termination types: male and female straight through PCB, male and female SMT on PCB, female on cables. AMM eases procurement with available stock for quick protoyping, simplifies design phase and supply chain. The connectors are available in cut tape-and-reel for PCB versions and pre-wired for cable versions, ready to use. It is a simple, efficent interconnect solution that will provide you peace of mind thanks to its tested reliability for demanding environments.

Full Qualification report available online: https://configurator.nicomatic.com/sites/default/files/library/2019-09/AMM-Self-Declaration-of-Conformity.pdf

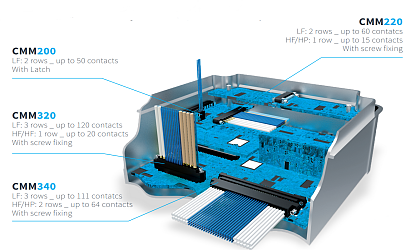

CMM SERIES

CMM connectors are designed to meet or exceed electrical & mechanical performances of MIL-DTL-55302F and BS-9525-F0033 standards. This modular connector allows more than 20 million arrangements. Main features: Extreme modularity (Signal, power and coaxial contacts, from 1 to 3 rows, up to 120 pins) 2mm pitch Board-to-board, board-to-wire, wire-to-wire configurations Space-saving up to 60%, weight saving up to 50% compared to other existing rectangular micro-connectors with the same functionalities Robustness with PPS material: no humidity absorption, oxygen-free, radiation resistance and solvent resistance Temperature cycling between -60°C and + 260°C Highly resistant to vibrations and shocks Various and numerous fixing hardware Lead time from 1 week, no MOQ Online services iOS/Android for designers (automatic part numbering system, automatic 2D and 3D drawings)

https://configurator.nicomatic.com/labreports

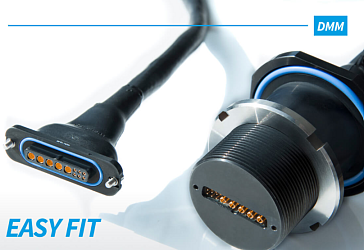

DMM SERIES

DMM rugged connectors comply with MIL-DTL-83513G performances and enable a wide choice of arrangements compared to other mil-spec connectors like Micro-d or Sub-d. They allow space-saving, electromagnetic & mechanical protection. Moreover, you can use one-piece or two-piece backshells for 360° shielding and protection of your cable interconnection. You can use DMM with Flange for better shielding continuity when mounting on a panel or without Flange as a low-profile solution. Features : 4 weeks lead time, MOQ = 1 part High modularity: contacts Signal ( LF), Power (HP), and Coax (HF) up to 10M arrangements Board to board, board to wire, wire to wire, panel mount (1 to 4 rows of contacts) Miniaturisation: 2mm pitch, low profile Ruggedized with aluminium alloy 6061 Easy maintenance thanks to dismountable contacts

https://configurator.nicomatic.com/labreports

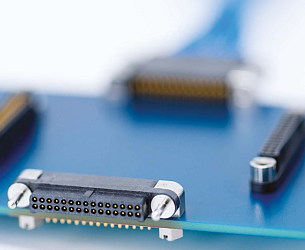

EMM Series

With its 1.27mm pitch, it achieves more than 40% space reduction compared to its parent CMM or 20% compared to standard Micro-D. Designed to meet the performance requirements of MIL 83513, it integrates key features such as reversed contacts, integrated 90° back protection and interchangeable hardware. Suited to both board-to-board (thanks to its secure wiping length) and board-to-wire (from gauge 24 to gauge 30) configurations, EMM will provide extreme modularity with any pin selection available from 04 to 60 signal contacts. Cable versions can be cabled at Nicomatic, or you can crimp them by yourself: it is up to you!

https://configurator.nicomatic.com/sites/default/files/library/2021-01/EMM_selfdeclaration-conformity_0.pdf

MATR'YX SERIES

Matr’YX is Nicomatic’s ultra-compact mezzanine connector solution, built to meet the harshest requirements of defense and aerospace electronics. With outstanding signal integrity, rugged design, and space-saving features, Matr’YX ensures reliable performance in environments where failure is not an option. Compact & High-Density Architecture: BGA termination (Ball Grid Array) with 1 mm pitch High contact density: >70 contacts/cm² Space-efficient design allows more signal routing in less board space Flexible Integration Contact range: From 49 to 301 contacts Adjustable stack height: from 5.5 mm to 14.5 mm Ideal for tailored and space-constrained board-to-board configurations High-Speed Signal Performance: Supports data rates up to: 25 Gbps (PAM-4), 12.5 Gbps (NRZ) Ensures fast, clean signal transmission for high-speed systems

Fiber Optic Assemblies

Fiber Optic Assemblies — Integration Without Compromise Nicomatic specializes in co-developing optical sub-assemblies tailored to your technical requirements. Whether it’s mechanical integration, hybrid Harness fiber/copper harnesses, or miniaturized cabling, our experts support you from concept to validation. We offer: Hybrid assemblies (electrical/optical) Multi-channel optical harnesses (singlemode or multimode) Standardised VITA 66.1 & 66.4 optical connectors with or without expanded beam Customized optical connectors with reinforced terminations Integration into housings, racks, PCBs, or mechatronic modules

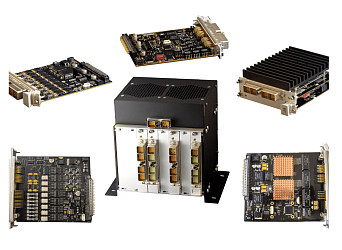

iCan System®

iCan System® is a powerful and modular architecture, associated with a line of customizable equipment for In-Flight Entertainment and Cabin Management Systems for aircrafts and helicopters. iCan System® has been developed using our own funds, and is now deployed by manufacturers and OEMs on various aerospace programs all around the World. iCan System® allows you to build your own IFE and CMS system. This modular architecture, qualified on helicopters, is composed of a central chassis and a set of dedicated boards like Satcom communication, Multimedia, I/O Control, Ethernet switch. The system is connected to the aircraft onboard communication network, and also to standard equipment like displays, touch screens, headsets, handsets, and Satcom.
