Description
Products

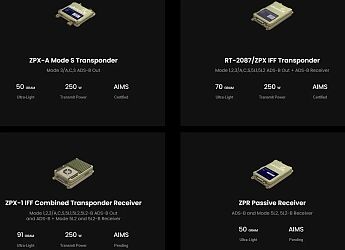

Designed for the unique needs of Tactical UAVs, our Combined Transponder-Receiver takes miniaturised IFF to a new level by equipping aircraft as small as 6kg with compliant mode 1,2,3/A,C,S, and 5 capability at a full 54dBm/250W transmit power in an ultra-lightweight package.
Product Parameters
Frequency: 1.4GHz
Bandwidth: 10MHz
Power: 30dBm
Modulation: OFDM
Constellation: BPSK; QPSK; 16QAM
FEC: LDPC (1/2, 2/3, 3/4, 5/6)
Duplex: TDD
Downlink throughput: 2Mbps ~ 10Mbps
Uplink throughput: 600kbps
Voltage: 9V ~ 26V
Working temperature: -40°C ~60°C
Dimension: Φ49X14mm
Weight: 25g
Video Interface: Ethernet
Other Interface: TTL; S.BUS
56 bits (AES256 optional)
Screen to screen latency: <300ms (related to cameras)
Product Parameters
Frequency: 1.4GHz
Bandwidth: 10MHz
Power: 33dBm
Modulation: OFDM
Constellation: BPSK、QPSK、16QAM
FEC: LDPC (1/2、2/3、3/4、5/6)
Duplex: TDD
Throughput: 2Mbps~10Mbps(downlink); 600kbps(uplink)
Encryption: 56 bits (AES256 optional)
Weight: 198g
Dimensions: 92.5mmX70.3mmX25mm
Power consumption: 18W (air unit); 10W (ground unit)
Working temperature: -40~60℃
Antenna Interface: SMA×2
Latency: <300ms (camera dependent)
Interface: Ethernet, USB, TTL, RS232, RS422, PPM/S.BUS
Rated voltage/current: DC24V/1.2A (or 6S lithium battery)
EO : FHD 1920x1080p up to x660 zoom (up to x55 optical)
IR : LWIR (NATO detection up to 8km) or MWIR (NATO detection up to 20km)
Options : LRF, Laser pointer, Laser designator, Onboard Intelligence
