MSPO (2-5.09.2025)
33rd International Defence Industry Exhibition MSPO
Description
"ECRIN Systems is a recognized expert in the design and development of high-performance industrial servers, rugged mission computers, Ethernet switches, and embedded systems built to operate in the most demanding environments.
Markets We Serve
We support major contractors and system integrators in the following sectors:
•Defense & Security
•Aerospace
•Rail & Embedded Transportation
•Energy & Critical Infrastructure
•Industrial Automation
Our Product Lines
Our solutions are designed to meet the highest industrial and military standards:
•Opale: Industrial PCs and servers available in rugged versions, DO-160 qualified, built for constrained environments and critical applications.
•Onyx: Compact mission computers designed to meet the demands of military and aerospace environments, offering resistance to shocks, vibrations, extreme temperatures, and COTS hardening.
•Quartz: Embedded Ethernet switches and routers with advanced network security features and Time-Sensitive Networking (TSN) support.
•Cristal: Customizable operator consoles and interface solutions, tailored to meet specific functional, ergonomic, and environmental requirements.
Our Core Expertise
•Requirement-driven system design
•Hardware and software customization
•Integration of complex subsystems
•Long-term support and industrial lifecycle management
Our Added Value
ECRIN Systems is renowned for its expertise in the qualification, certification, and industrialization of rugged and mission-critical systems, in compliance with international standards (MIL-STD-810, DO-160, etc.).
We act as a trusted industrial partner to leading European system integrators and OEMs."
Markets We Serve
We support major contractors and system integrators in the following sectors:
•Defense & Security
•Aerospace
•Rail & Embedded Transportation
•Energy & Critical Infrastructure
•Industrial Automation
Our Product Lines
Our solutions are designed to meet the highest industrial and military standards:
•Opale: Industrial PCs and servers available in rugged versions, DO-160 qualified, built for constrained environments and critical applications.
•Onyx: Compact mission computers designed to meet the demands of military and aerospace environments, offering resistance to shocks, vibrations, extreme temperatures, and COTS hardening.
•Quartz: Embedded Ethernet switches and routers with advanced network security features and Time-Sensitive Networking (TSN) support.
•Cristal: Customizable operator consoles and interface solutions, tailored to meet specific functional, ergonomic, and environmental requirements.
Our Core Expertise
•Requirement-driven system design
•Hardware and software customization
•Integration of complex subsystems
•Long-term support and industrial lifecycle management
Our Added Value
ECRIN Systems is renowned for its expertise in the qualification, certification, and industrialization of rugged and mission-critical systems, in compliance with international standards (MIL-STD-810, DO-160, etc.).
We act as a trusted industrial partner to leading European system integrators and OEMs."
Download
-
ECRIN-RUGGED-EMBEDEDDED-SYS-V3.pdffile size: 3.02 MB
Products
OPALE Rugged
OPALE Rugged
"2U Rugged Server Compact
The OPALE-Rugged Rugged Server is a high-performance military-grade computing platform designed for mission-critical applications in harsh environments. Tailored for defense, aerospace, industrial automation, and edge computing, it delivers exceptional reliability and processing power where conventional servers cannot operate. Built around Intel® Xeon® Scalable processors, the OPALE-Rugged ensures consistent performance in the face of shock, vibration, dust, humidity, and extreme temperatures. This rugged server is ideal for deployment in tactical operations, airborne systems and naval platforms, where ruggedization, environmental compliance, and secure remote management are essential. With the OPALE-Rugged, Ecrin also offers a full range of value-added services with the OPALE-Rugged: customization, dedicated technical and long-term lifecycle support."
"• 5th/4th Gen Intel® Xeon® Scalable
• Rugged 2U aluminum chassis – 18.9” (480 mm) depth
• 3U rack option for Full Height PCIe slot plus additional storage
• Shock and vibration-resistant, MIL-grade
• IP65-rated enclosure – dust-tight and protected against water jets
• Optimized ventilation system with reduced acoustic noise
• IPMI support for monitoring, remote control & system management
• Power supply: 28V DC input, DO-160G qualified with 20ms hold-up time
• I/O connectivity: MIL-GRADE connectors (customizable upon request)"
• Rugged 2U aluminum chassis – 18.9” (480 mm) depth
• 3U rack option for Full Height PCIe slot plus additional storage
• Shock and vibration-resistant, MIL-grade
• IP65-rated enclosure – dust-tight and protected against water jets
• Optimized ventilation system with reduced acoustic noise
• IPMI support for monitoring, remote control & system management
• Power supply: 28V DC input, DO-160G qualified with 20ms hold-up time
• I/O connectivity: MIL-GRADE connectors (customizable upon request)"

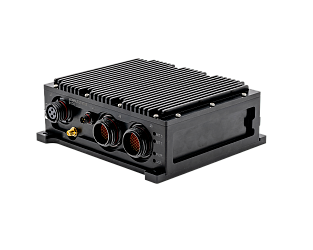

QUARTZ
QUARTZ
"Rugged 10 ports Ethernet Switch
High-End Ethernet Switch in a Small Form Factor.
The Quartz is a cutting-edge rugged switch designed for performance and reliability in challenging environments. This robust solution features Gigabit and 10 Gigabit Ethernet ports, with configurations supporting up to 8 copper and 2 optical ports. Supporting both Layer 2 and Layer 3 functions, this switch offers advanced network management capabilities and provides advanced security features to safeguard the infrastructures. It also includes a PTP Grandmaster Clock function for precise time synchronization and according to the need, comes with a configuration that supports Time-Sensitive Networking (TSN), ensuring real-time data transmission for critical applications. The Quartz is perfectly suited for applications demanding strict timing accuracy and reliability."
"Rugged COTS Ethernet switch – 10 ports
• 8 ports 10/100/1000Base-T
• 2 fiber ports 1000Base-SX or LX on QuartzSR / SSR
• 2 fiber ports 10GBase-SR or LR on QuartzSSR-GM / TSN
• Fully managed L2/L3 (L3 not included in TSN version)
• MIL-DTL-38999 connectors
• Qualified according DO-160G, MIL-STD-461G, MIL-STD-810G, MIL-STD-1275E norms
• TSN support on specific version
• Option – PTP 1588v2 support with grandmaster clock
• ITAR free
• RoHS, REACH compliant
• Size : 185mm (L) x 160 mm (W) x 68 mm (H) including connectors
• Weight : 2Kg"
• 8 ports 10/100/1000Base-T
• 2 fiber ports 1000Base-SX or LX on QuartzSR / SSR
• 2 fiber ports 10GBase-SR or LR on QuartzSSR-GM / TSN
• Fully managed L2/L3 (L3 not included in TSN version)
• MIL-DTL-38999 connectors
• Qualified according DO-160G, MIL-STD-461G, MIL-STD-810G, MIL-STD-1275E norms
• TSN support on specific version
• Option – PTP 1588v2 support with grandmaster clock
• ITAR free
• RoHS, REACH compliant
• Size : 185mm (L) x 160 mm (W) x 68 mm (H) including connectors
• Weight : 2Kg"
nanoONYX
nanoONYX
"Ultra Small, Low Power & Modular Rugged Computer
Based on the latest generation of Intel processors and qualified according
to the military equipment environmental standards (DO-160, MIL-STD-810
& MIL-STD-461), the nanoONYX is a low-power, rugged, and scalable computing
solution for air, land and sea systems.
The nanoONYX is ideal for any demanding application requiring both high
performance in a dense passively cooled system and the support of
functions such as AI, graphics, and cybersecurity.
With its modular and robust design, the nanoONYX offers the embedded
market a completely mil-qualified and customizable solution benefitting
from a long-term support.
The nanoONYX:
- supports a wide range of processor as the Intel® Atom™ E3950,
the Intel® Core™ i7-8665UE, or the Intel® Core™ i7-1185GRE
- features expansion slots and offering a large array of additional I/O as Ethernet,
ARINC429,
"• Intel® Atom™ E3950 @ 1.6GHz, 12W,
Quad-Core, 8GB DDR3L
• Intel Core™ i7-1185GRE @ 1.8GHz, 15W,
Quad Core, 16GBytes LPDDR4X
• Intel® Core™ i7-8665UE @ 1.7GHz, 15W,
Quad-Core, 8GB DDR3L
• 1x DVI-D single link graphic output
• 2x GbE
• 2x RS-232, 2x RS-422 and 4x USB 2.0
• 4x AcroPack / mini PCIe expansion slots
for Avionics and Industrial I/O
• TPM 2.0
• 1x internal M.2 SSD slot
• Cableless, fanless, MIL-DTL-38999 connectors
• Qualified according DO-160, MIL-STD-461,
MIL-STD-810
• Operating temperature:
-40°C to +55°C without external air flow
+71°C depending on processor version and
cTDP
• Long Life Management with revision control
• ITAR free
• High flexibility to Modified COTS services
• Optional Holdup module, 200ms
• Optinal removable drive
• Size : 205mm (L) x 140 mm (W) x 67.5 mm (H) including connectors
• Weight : 1,9Kg"
Quad-Core, 8GB DDR3L
• Intel Core™ i7-1185GRE @ 1.8GHz, 15W,
Quad Core, 16GBytes LPDDR4X
• Intel® Core™ i7-8665UE @ 1.7GHz, 15W,
Quad-Core, 8GB DDR3L
• 1x DVI-D single link graphic output
• 2x GbE
• 2x RS-232, 2x RS-422 and 4x USB 2.0
• 4x AcroPack / mini PCIe expansion slots
for Avionics and Industrial I/O
• TPM 2.0
• 1x internal M.2 SSD slot
• Cableless, fanless, MIL-DTL-38999 connectors
• Qualified according DO-160, MIL-STD-461,
MIL-STD-810
• Operating temperature:
-40°C to +55°C without external air flow
+71°C depending on processor version and
cTDP
• Long Life Management with revision control
• ITAR free
• High flexibility to Modified COTS services
• Optional Holdup module, 200ms
• Optinal removable drive
• Size : 205mm (L) x 140 mm (W) x 67.5 mm (H) including connectors
• Weight : 1,9Kg"
