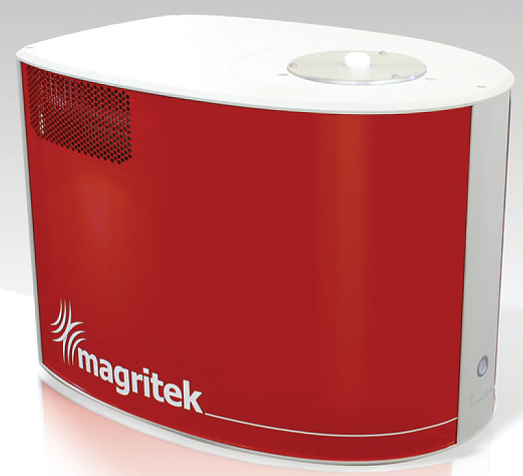

The patented design of NMR spectrometer delivers high performance, the appliance is compact and reliable, it will fit a typical laboratory table. With the use of a permanent magnet, the system does not require expensive cryogenics.

SpinsolveCarbon NMR spectrometer's  frequency specification - 42.5   MHz for Proton  ¹  H, it is also available in the following versions; 40.1   MHz for Fluorine  ¹⁹  F, 10.8   MHz for Carbon   ¹³  C and advanced versions of 2D NMR experiments such as HMQC, HETCOR, COSY and JRE.

NMR instrument's strong point is its excellent resolution and the ability to separate  peaks for different chemical groups in the spectrum. A better distribution provides for a better characterization of composite particles. The Spinsolve ™ NMR system resolution - 0.55% line-width of <40 Hz makes it the best NMR systems available on the market.

Outstanding performance:

No specialized knowledge is in the field of NMR required in order to obtain great results. The 2D   COSY system enables the small coupling peaks to become apparent, even though they are hidden in the 1D proton spectrum (Figure below). This shows how the power of 2D  COSY NMR is particularly important for bench-top NMR spectrometers.  Spinsolve can easily measure normal and concentrated samples in 10 seconds.  For dilute samples a good spectrum can often be acquired in less than 10 minutes.

Convenient and Easy to use:

Spinsolve can be deployed in the lab where you work as well as in  a training lab.  Its the software is easy to use and the appliance is completely safe to operate. No expert  operator required and students can use it themselves.

Low purchase and operating cost:

Spinsolve NMR System costs a fraction of traditional high field superconductive magnet systems as it requires no expensive ongoing cryogenic refills.  This solution significantly reduces the cost of purchase and future use.

Safety:

The stray magnetic field is kept entirely inside the enclosure making Spinsolve NMR safe to deploy in a regular chemistry lab next to other analytical instruments and   this way to avoid problems associated with work health and safety.

Software:

NMR Spinsolve™ spectrometer is controlled with easy-to-use software that has been designed to allow users to operate the system once they have been given the introductory training. The spectra collected in the examination can be viewed directly on a computer screen or easily emailed or or made available through the network to another computer for further analysis.
