UNI-KAT
- ul. Słoneczna 3, Grabowiec, 87-162 LUBICZ, Poland
- +48 56 687 13 25
- www.uni-kat.pl
Description
The Uni-kat company is a leader in the field of production CNC machines and automation solutions. In the offer of this Polish manufacturer you can find machines such as: laser cutters (fiber and CO2), plasma-oxy cutting machines, waterjets or complete robotic stations. Thanks to many years of experience in the production and servicing of CNC machines, a team of creative engineers and an extensive machine park, Uni-kat undertakes to create complete production lines and new, innovative solutions tailored to the unique needs of customers.
Products

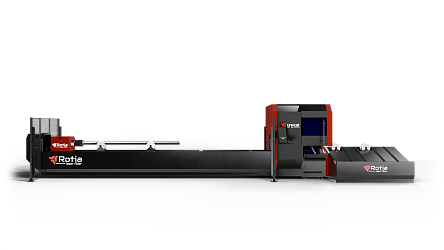

Laser cutting machine for pipes and profiles Rotia
Laser cutting machine for pipes and profiles Rotia
ROTIA is the first laser cutting machine for processing pipes and profiles produced in Poland. It is a high-performance cutter designed for thermal cutting of steel using a fiber laser.
The series of these machines is characterized by industrial design and high accuracy. Thanks to the welded, stress relieved and milled frame of the machine, it is possible to work for many years with the precise drive system.
Infeed length up to 12,000 mm
Output length up to 6,000 mm
Pipe diameters up to 380 mm
Profile (square) up to 260 mm
Laser power up to 4kW
Max speed 120 m/min
Max rpm 120 r/min
Resolution 0.001mm
Accuracy 0.01mm
1′ RPM Accuracy
Output length up to 6,000 mm
Pipe diameters up to 380 mm
Profile (square) up to 260 mm
Laser power up to 4kW
Max speed 120 m/min
Max rpm 120 r/min
Resolution 0.001mm
Accuracy 0.01mm
1′ RPM Accuracy
Fobia fiber laser cutter
Fobia fiber laser cutter
Fobia is a high-performance burner designed for thermal cutting of steel using a fiber laser. The series of these machines is characterized by industrial design and high accuracy. The welded, annealed and milled construction of the machine is crowned with an extremely light and at the same time rigid composite beam, which allows the machine to fully use the laser cutting technology.
Width 1500 - 2000mm
Length 3000 - 6000 mm
Traveling speed up to 120 m/min
Laser power up to 6 kW
Resolution 0.01mm
Accuracy 0.05mm
Length 3000 - 6000 mm
Traveling speed up to 120 m/min
Laser power up to 6 kW
Resolution 0.01mm
Accuracy 0.05mm

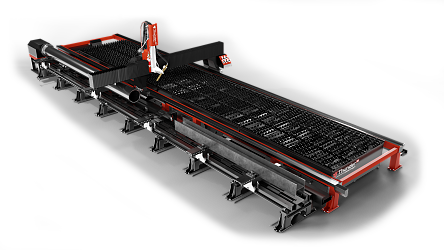

Thunder plasma-oxy cutting machine
Thunder plasma-oxy cutting machine
Thunder3D is the answer to the market demand in the segment of high-performance, high-end plasma-oxygen cutters for 2D and 3D cutting. Thunder3D is considered the most dynamic cutter of Polish production and achieves acceleration comparable to sports cars.
Width 1500 - 4000mm
Length 3000 - 12000mm
Traveling speed 50 m/min
Accuracy +/- 0.1mm
V, X, Y, K phase type
Length 3000 - 12000mm
Traveling speed 50 m/min
Accuracy +/- 0.1mm
V, X, Y, K phase type
