Description
We are a Polish manufacturer of painting robots, automated coating systems, and drying units. We design and produce coating equipment as well as complete finishing lines, including conveyors and dryers.
We always take an individual approach to our customers, which is why we also deliver non-standard solutions tailored to specific production needs.
Our customers receive full support from us — starting with tests in our laboratory, through technology selection and process consulting, all the way to training and service.
Our equipment is the result of passion, advanced technology, and manufacturing precision. For our customers, this means higher efficiency, greater production control, and peace of mind supported by the repeatability of coating processes.
We always take an individual approach to our customers, which is why we also deliver non-standard solutions tailored to specific production needs.
Our customers receive full support from us — starting with tests in our laboratory, through technology selection and process consulting, all the way to training and service.
Our equipment is the result of passion, advanced technology, and manufacturing precision. For our customers, this means higher efficiency, greater production control, and peace of mind supported by the repeatability of coating processes.
Download
-
Katalog-produktow-i-rozwiazan-UNISON.pdffile size: 3.64 MB
-
UNISON-katalog-o-firmie.pdffile size: 4.54 MB
-
Zrobotyzowana-cela-lakiernicza-UNI-CLEVER-ON.pdffile size: 4.40 MB
Products
Painting robot evoFlex
Painting robot evoFlex
evoFlex is a painting robot that combines the evolution of solutions with flexibility in coating.
The robot is dedicated to small parts placed on trays.
Thanks to active trays — regardless of the shape of the components — the parts can move during painting, ensuring an even coating.
It is equipped with full 5-axis control managed by a CNC system.
evoFlex is the only solution of its kind on the market, offering repeatability, precision, and versatility.
The robot has been designed to minimize the need for human labor — it requires operation by only one operator.
Working area dimensions:
Width: 1,000 mm / Length: 1,000 mm
Head movement range:
X/Y/Z – 1,400 / 1,500 / 420 mm
A/C – 90° / 360°
Pre-drying zone:
Capacity from 1 to 10 trolleys
Painting robot dimensions:
Length: 4,460 mm (without additional options)
Width: 2,455 mm
Height: 2,925 mm
Maximum dimensions of parts for coating:
Length: 1,000 mm / Width: 1,000 mm / Height: 400 mm
Trolley tray loading system:
Lifts for automatic loading and unloading of trolleys with a capacity of up to 18 trays
Drying oven:
Capacity from 3 to 14 trolleys
Automatic loading from the pre-drying zone
Water heater and thermal enclosure
Width: 1,000 mm / Length: 1,000 mm
Head movement range:
X/Y/Z – 1,400 / 1,500 / 420 mm
A/C – 90° / 360°
Pre-drying zone:
Capacity from 1 to 10 trolleys
Painting robot dimensions:
Length: 4,460 mm (without additional options)
Width: 2,455 mm
Height: 2,925 mm
Maximum dimensions of parts for coating:
Length: 1,000 mm / Width: 1,000 mm / Height: 400 mm
Trolley tray loading system:
Lifts for automatic loading and unloading of trolleys with a capacity of up to 18 trays
Drying oven:
Capacity from 3 to 14 trolleys
Automatic loading from the pre-drying zone
Water heater and thermal enclosure

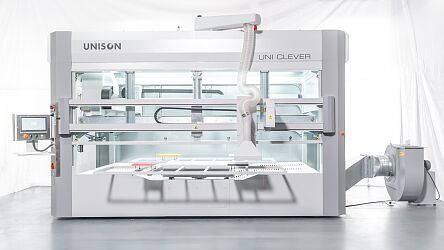

Robotic spray coating cell UNI-CLEVER O/N
Robotic spray coating cell UNI-CLEVER O/N
UNI-CLEVER O/N is a solution that replaces an entire manual spray booth.
Designed to maintain process cleanliness and ensure stable, repeatable results.
For coating: wood and wood-based materials, plastics, metals, glass, and many others.
For companies that coat: furniture fronts and components, panels and countertops, plastic parts, metal parts, stair components, interior furnishing elements, glass panes, mirrors, and much more.
Dimensions of elements to be coated*:
length – up to 2,800 mm
width – up to 1,000 mm
height – up to 280 mm
*dimensions depend on the selected coating technology
Machine dimensions:
length – 5,025 mm
width – 3,556 mm
height – 3,080 mm
For companies that coat: furniture fronts and components, panels and countertops, plastic parts, metal parts, stair components, interior furnishing elements, glass panes, mirrors, and much more.
Dimensions of elements to be coated*:
length – up to 2,800 mm
width – up to 1,000 mm
height – up to 280 mm
*dimensions depend on the selected coating technology
Machine dimensions:
length – 5,025 mm
width – 3,556 mm
height – 3,080 mm
Business sector
Coating technologies and devices
Lacquering systems, enamelling systems, plastic coating systems
Equipment for thermal spraying
Brands
UNISON
