Description
SEWMET is a Polish company specializing in fastening technologies for the metalworking industry. We provide comprehensive solutions including the supply of fasteners, technical consulting, and the delivery of machinery and tools for their installation.
Our core expertise includes press-in fastening, riveting, and clinching technologies, widely used in sheet metal manufacturing across many industrial sectors. We support our customers at every stage of implementation - from technology selection and testing to production start-up.
We cooperate with manufacturers of components and machinery, enabling us to deliver solutions tailored to specific production applications.
SEWMET’s offer includes:
-press-in fasteners
-rivets and riveting systems
-presses and equipment for fastener installation
-tools for clinching technology
-technical consulting and application testing
Our goal is to increase our customers’ production efficiency by implementing proven fastening technologies and providing high-level technical support.
Our core expertise includes press-in fastening, riveting, and clinching technologies, widely used in sheet metal manufacturing across many industrial sectors. We support our customers at every stage of implementation - from technology selection and testing to production start-up.
We cooperate with manufacturers of components and machinery, enabling us to deliver solutions tailored to specific production applications.
SEWMET’s offer includes:
-press-in fasteners
-rivets and riveting systems
-presses and equipment for fastener installation
-tools for clinching technology
-technical consulting and application testing
Our goal is to increase our customers’ production efficiency by implementing proven fastening technologies and providing high-level technical support.
Download
-
RIVIT-NARZEDZIA.pdffile size: 240.23 KB
-
RIVIT-NARZEDZIA-2.pdffile size: 296.59 KB
-
RIVIT-NARZEDZIA-3.pdffile size: 219.76 KB
-
sewmet2.pdffile size: 4.44 MB
-
auto-q-leaflet.pdffile size: 1.38 MB
Products

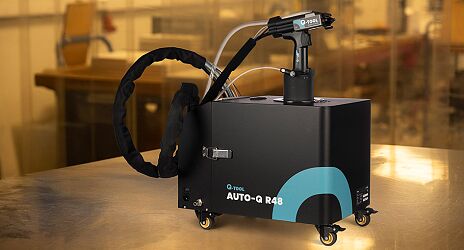

Automatic Rivet Feeding AUTO-Q
Automatic Rivet Feeding AUTO-Q
Efficient. Reliable. Future-oriented.

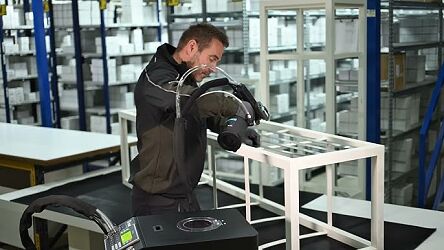

Boost productivity efficiency with our new and advanced Automatic Rivet Feeding System, specifically designed to automate and optimize the riveting process across various industrial applications. The system is particularly useful in production environments where speed, precision, and ergonomics are essential. With a fully automated process, the feeding of blind rivets is streamlined, minimizing manual handling and significantly improving workflow. This results in less downtime, greater control, and increased output.
Technical Specifications
Models: R32 / R40 / R48
Blind Rivet Diameter: 3.2 mm / 4.0 mm / 4.8 mm
Loading Capacity: 2400 / 1500 / 1000 pcs
Force:
R32: 5–7 kN
R40: 8–12 kN
R48: 11–15 kN
Stroke: 18 mm (R32, R40) / 20 mm (R48)
Feeding Speed: up to 60 pcs/min
Feeding Tube Length: 2.3 m
Air Pressure: 5.0 – 7.0 bar
Power Supply: 100–240 V AC, 50/60 Hz
Machine Dimensions: 503 × 385 × 395 mm
Weight: 45 kg
Models: R32 / R40 / R48
Blind Rivet Diameter: 3.2 mm / 4.0 mm / 4.8 mm
Loading Capacity: 2400 / 1500 / 1000 pcs
Force:
R32: 5–7 kN
R40: 8–12 kN
R48: 11–15 kN
Stroke: 18 mm (R32, R40) / 20 mm (R48)
Feeding Speed: up to 60 pcs/min
Feeding Tube Length: 2.3 m
Air Pressure: 5.0 – 7.0 bar
Power Supply: 100–240 V AC, 50/60 Hz
Machine Dimensions: 503 × 385 × 395 mm
Weight: 45 kg
Force Controller PFM15
Force Controller PFM15
Force Controller PFM15 is an advanced device designed for measuring force in rivet nut installation processes. It enables precise measurement and control of the clamping force, ensuring process repeatability and the highest quality of assembled joints.
The device is equipped with a digital LCD display that allows real-time reading of results and continuous monitoring of operating parameters. An intuitive control panel with buttons ensures simple and user-friendly operation, even in demanding production environments.
The robust housing, made of durable metal with green accents, highlights the modern design of the device and provides high resistance to damage. Thanks to its compact construction, the PFM15 is perfectly suited for both workshop use and production lines.
Model: PFM15
Pulling Force Range: 0–40 kN
Positioning Repeatability Accuracy: -3% ~ +3%
Force Measurement Accuracy: ±5% (typically negative tolerance)
Dimensions (L × W × H): 210 × 75 × 56.5 mm
Riveter: Nosepiece adapted to the stud mandrel
Operating Voltage: DC 18–24 V
Overload Pressure: 80 bar
Burst Pressure (max): 200 bar
Medium Temperature Range: −25 to 80 °C
Display: 4-digit, 7-segment, red
Protection Class: IP67
Power Supply: 2 × 6LR61 / 9V (R90) batteries
Pulling Force Range: 0–40 kN
Positioning Repeatability Accuracy: -3% ~ +3%
Force Measurement Accuracy: ±5% (typically negative tolerance)
Dimensions (L × W × H): 210 × 75 × 56.5 mm
Riveter: Nosepiece adapted to the stud mandrel
Operating Voltage: DC 18–24 V
Overload Pressure: 80 bar
Burst Pressure (max): 200 bar
Medium Temperature Range: −25 to 80 °C
Display: 4-digit, 7-segment, red
Protection Class: IP67
Power Supply: 2 × 6LR61 / 9V (R90) batteries
