NUMALLIANCE
- Parc d'activités 6; B.P. 211, F-88470 SAINT-MICHEL, France
- www.numalliance.com
Description
New dimension in tube bending and end forming
Since over 40 years of its existence, Numalliance has installed more than 14,000 machines worldwide through its various brands: Eaton Leonard, Addison McKee, Silfax, EMS and MIB Hydro
These machines and presses dedicatedly bending and forming wire, tube and strip, are used in a wide range of sectors: automotive, aerospace, HVAC, e-mobility, construction, luxury goods, household appliances, etc.
In addition to the standard machine, the group NUMALLIANCE also offers a wide range of secondary operations to meet customer specifications.
These operations are developed in-house by Numalliance and are fully compatible with our machines, facilitating their integration and maintenance.
- In-line operations such as chamfering, press operations, welding, 3D control, handling...

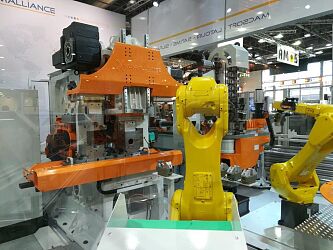

- Robotised and automatic production cells
- Software solutions for production data analysis, management and more
- Wide range of services (training, maintenance, after-sales service, installation, etc.)

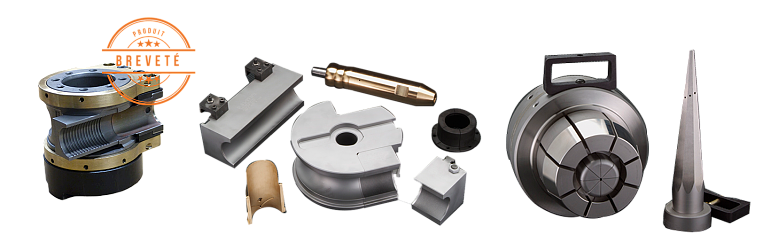

- Tool design and manufacturing including patented “Bend die with integrated wiper die”
Nothing is left to chance in the production chain, particularly when it comes to energy savings. A dedicated team is working on the subject to perfect existing solutions and bring old machines up to date through retrofits, for example. New machines are designed to require minimal energy, to avoid scrap and be versatile to adapt to produce many different parts.
Since over 40 years of its existence, Numalliance has installed more than 14,000 machines worldwide through its various brands: Eaton Leonard, Addison McKee, Silfax, EMS and MIB Hydro
These machines and presses dedicatedly bending and forming wire, tube and strip, are used in a wide range of sectors: automotive, aerospace, HVAC, e-mobility, construction, luxury goods, household appliances, etc.
In addition to the standard machine, the group NUMALLIANCE also offers a wide range of secondary operations to meet customer specifications.
These operations are developed in-house by Numalliance and are fully compatible with our machines, facilitating their integration and maintenance.
- In-line operations such as chamfering, press operations, welding, 3D control, handling...
- Robotised and automatic production cells
- Software solutions for production data analysis, management and more
- Wide range of services (training, maintenance, after-sales service, installation, etc.)
- Tool design and manufacturing including patented “Bend die with integrated wiper die”
Nothing is left to chance in the production chain, particularly when it comes to energy savings. A dedicated team is working on the subject to perfect existing solutions and bring old machines up to date through retrofits, for example. New machines are designed to require minimal energy, to avoid scrap and be versatile to adapt to produce many different parts.
Download
-
Corporate-flyer-tryp-000-GEN-3V-EN-202404-PRINT.pdffile size: 2.74 MB
-
Corporate-flyer-000-WIREBENDERS-EN-France-adress-202507.pdffile size: 3.03 MB
Products

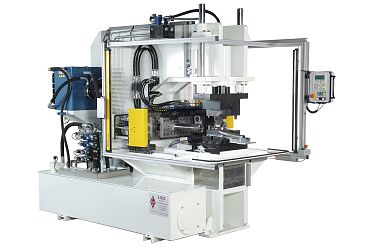

40CC
40CC
Punching force : from 20 to 70 metric tons
From Ø 2 to 10″ / 50 to 254 mm
Hydraulic or electric machine
Endforming before or after bending thanks to its accessibility from 3 sides
Tooling adaptation flexibility
Up to 7 toolings (more on request)
Easy integration in automated production cells
Possibility to combine endforming with other complementary operations
Industrial-Grade PC
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
CTR-e
CTR-e
From .98 to 6.7″ / 25 to 170 mm
Full electric machine
Rolling and cutting operations can be combined
Rolling and cutting befor or after bending
Rolling from inside to outside
(possibility to make beading and flaring)
Cutting from inside to outside
Cutting without internal burrs
Easy integration in automated production cells
Industrial-Grade PC
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Simulation tool to facilitate part set-up
Program execution in slow motion

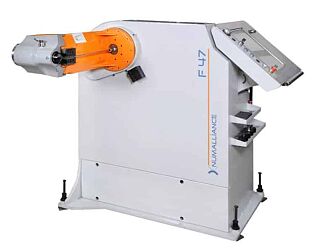

F47S
F47S
100% electric wire bender, ideal for manufacturing small or long parts at high speeds.
From .08 to .28″ / 2 to 7 mm
Wire
3D bending from coil
Fast production of parts from prototypes to large series
Compact machine, limited footprint
Fast and easy programming of parts
1 bending and cutting nose enabling to cut the wire with zero straight length
Safety enclosure for the machine and de-coiler
Tooling compatible with Robomac 2 heads
Tooling compatible with Zig Zag tools (Robomac)
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
FM80 ID/OD
FM80 ID/OD
2 IO/OD forming heads
2 numerical axis per forming head
Reduction, expansion, calibration
Hydra-green technology (optimized power consumption)
Compact and economic (stand-by mode after 180 seconds)
Integrated air-cooling system
Quick and easy setup
Customizable clamping and working pressure
Easy user interface
Programmable operation
Floor mounting or casters for easy relocation
Easy integration in automated production cells
Plug and play
Max. thickness: 2mm Stainless steel
A 12″ touch screen and integrated keyboard
Preloaded or customized sequence
Multi-language support
Easy switch between metric and imperial system
Security management system with status message display
Auto diagnostic (I/O and current with CNC axis display)
Ethernet ready (local network & internet connectivity)
Support & maintenance assistance via internet
Foot pedal for cycle activation
Preloaded or customized sequence
Multi-language support
Easy switch between metric and imperial system
Security management system with status message display
Auto diagnostic (I/O and current with CNC axis display)
Ethernet ready (local network & internet connectivity)
Support & maintenance assistance via internet
Foot pedal for cycle activation

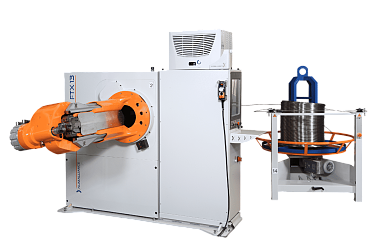

CNC bending machine FTX
CNC bending machine FTX
The most advanced bending technology.
From .12 to .625″ / 3 to 16 mm
Wire and tube
3D bending from coil
Double bend
The most advanced bending technology
Bending head moving freely around the material
1 bending head with multiple radii
Simple and easy to configure tooling
Single minute exchange tooling
Integrated safety gate system
7 digital axes
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion

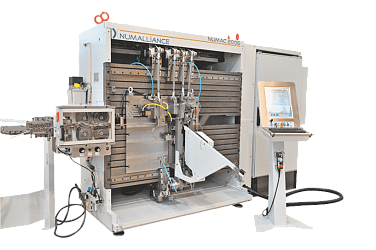

automatic wire bending machine Numac Numaflex
automatic wire bending machine Numac Numaflex
A single machine that combines the agility of a double head bender with the speed and precision of a CNC multi-slide machine.
From .08 to .39″ / 2 to 10 mm
Wire, Tube, Strip
2D or 3D bending from precut lengths or coil
Multiple feed possible
Top production speed thanks to full tooling or partial tooling solutions
Suitable for medium to large size production runs
Quick production changeover (no cams + tooling preset on plates)
Easy integration of secondary processes (large bed table)
Numac : a full tooling solution provides top speed, top precision and top bending possibilities (i.e. not having the limitations of sequential bending like bend-in-bend, compound bend …)
Numaflex : a single or double head bender is integrated in the Numac for reducing tool cost and adding flexibility. Possible configurations vary from full sequential bending to a mix tooling + sequential bending
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion

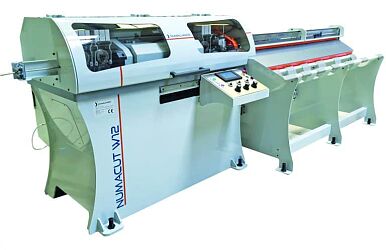

Numacut
Numacut
From .04 to .47″ / 1 to 12 mm
From coil
Revolving straightener
Machine with brushless motors
Easy and fast programming thanks to touchscreen interface
Spinning straightener
Chamfering unit available as an option
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Numaform 5-8-12E
Numaform 5-8-12E
Tube
Working force : 5 / 8 / 12
Full electric machine
Compact and easy integration into automatic cells
Forming before and after bending with easy access aroung the tooling
Work material : cooper, aluminium, steel, stainless steel, brass, titanium, inconel …
Large clamping tool opening
Userfriendly HMI
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection: remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection: remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Numaform70
Numaform70
Full electric, low power consumption
Compact, robust
4 position, fast end-forming tool changer
Suited for copper, aluminum, steel, stainless steel, brass, titanium..
User friendly HMI
Mounted on a 1300mm (51.2″) slide rail for easy positioning
Working force : 70 T
Clamping force : 100 T
Horizontal troke : 250mm
Software for Industrial PCs
Multilingual dialogue and 19″ touchscreen interface
Additional I/O
Internet connectivity: remote assistance
Multilingual dialogue and 19″ touchscreen interface
Additional I/O
Internet connectivity: remote assistance

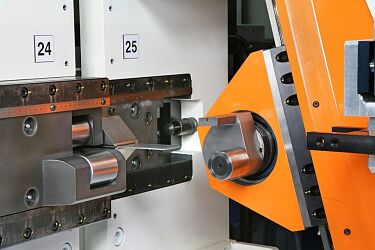

strip bending machine Numastrip
strip bending machine Numastrip
The solution for bending and forming metal strip and capable of integrating secondary operation either upstream or downstream.
Width up to 2″ / 50 mm
Thickness up to à .20″ / 5 mm
Strip
2D bending from coil
Double bend
Optional press operation
Optional transfer
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Robomac e motion
Robomac e motion
Sequential machines
From .08 to .375” / 2 to 10 mm
Wire and Strip
3D bending from coil
Full electric bending arm
Compact, modular, sturdy, cost-efficient
1 to 3 bending heads machine
Bending head revolves freely around the material
Simple and easy to configure tooling
Integrated safety gate system
Additional I/O
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Integrated library of tooling
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Integrated library of tooling
Simulation tool to facilitate part set-up
Program execution in slow motion
CNC pipe bender TE Medium
CNC pipe bender TE Medium
Tube bending machines
From .40″ to 2x.08″ / 10 to 50×2 mm
Applications : Automotive H.V.A.C., ERG Tube, structure parts, fuel, seats
Air et Space : hydraulic piping, circulation control wing, fuel, structure
Main features : all electric benders
Stackable multi-radii
Draw bending with and without mandrel and roll bending
Possibility to combine bending with complementary operations
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection: remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection: remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
tube bending machine TE Small
tube bending machine TE Small
Tube bending machines
From 0.12″ to 0.79×0.08″ / 3 to 20×2 mm
Applications : Automotive : hydraulic and fluid transfer lines, H.V.A.C.C., ERG tubes
Air et Space : hydraulic piping circulation control wing, fuel, structure
Electric bending machines
Stackable multi-radii
Draw bending with and without mandrel
Patent on left and right bending
Orbital bending head
Easy integration in automated production cells
Possibility to combine bending with complementary operations
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Tulip
Tulip
From .63″ to .75x.08″ / 15,8 to 19,05×2 mm
All electric tube bending machine
Bending of hybrid tubes with accessories attached
Automatic loading and unloading
Produces both short and long tubes
Patented design
Numerical clamping axis
Bending on two stacks
Both direction (clockwise and counter-clockwise)
Simple and compact machine
Paired with a integrated robot
Allow to bend the most complex part shapes
Secondary operations can be integrated
Quick tool change
Industrial PC based software Touch & Form
Multilingual dialog and programming interface on a touch screen
Auxiliary functions and availability of inputs/outputs for the control of external units
Internet connection : remote assistance and chat room
Multilingual dialog and programming interface on a touch screen
Auxiliary functions and availability of inputs/outputs for the control of external units
Internet connection : remote assistance and chat room
VB Large
VB Large
From Ø 1 to 6″ / 25,4 to 152 mm
Applications : Air and Space, Automotive, Truck and Bus, Structural Components, HVAC
Stackable multi-radii option
Touch and Form control
Industry standard compatible
Industry 4.0 compatible
Additional and specific options available on request
Industrial-Grade PC powered by user-friendly software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O available
Internet connection: remote assistance and diagnostics
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O available
Internet connection: remote assistance and diagnostics
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
