KOSMEK

Compact clamping cylinders

Compact clamping cylinders - WHC Swing Clamp - WCC Link Clamp - WFC Retracting Link Clamp They are perfect for automation, measurement applications and composite and plastic parts clamping. Coolant resistant, precise, reliable and fast. Prepared for auto switches installation

TQA Mid-Pressure Compact Clamp for Space-Saving Fixture Design

The new TQA mid-pressure compact clamp extends KOSMEK’s hydraulic link clamp range for fixtures where installation space and overall footprint are critical. The simple machining of the fixture plate is another key advantage, helping to avoid the additional manufacturing costs often associated with competitor solutions. Highlights: Slim 20 mm body for compact fixture layouts Mid-pressure operation from 2 to 21 MPa, double-acting design Optional unclamp confirmation via air sensor for higher process reliability Cartridge type design for easy integration into existing fixture plates Durable sealing and protective structure for long service life in machining environments

Operated with mid-pressure in the range from 2 to 21 MPa, it offers stable hydraulic clamping in a compact design.

A reliable and straightforward solution for stable support with a max. clamping force of 1.5 kN, TQA helps keep fixtures compact and accessible without sacrificing rigidity.

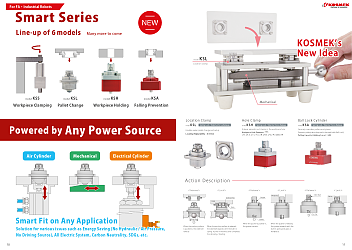

Smart Series line

With the Smart Series, KOSMEK has launched a completely new concept and unique products for automation. The KOSMEK Smart Series products offer solutions for various challenges such as energy saving (no hydraulic/air pressure, no drive source), all-electric systems, CO2 neutrality, SDGs, etc. KOSMEK Smart Series products can be powered by any energy source: pneumatic, electric, mechanical - automated or manual. They are space-saving and can be used in large quantities with minimal energy consumption (e.g. rotary indexing systems, semi-automatic or manually operated devices, etc.). Wide range of products: - Zero-point clamping system KSL - Hole clamp KSH - Ball clamping cylinder KSA - Swing clamp KSS - Lever clamp KSR - Centering vice KSC

Pallet clamping solutions

Zero Backlash technology allows for backlash-free connection and positioning of components with repeatability of 0.003 mm or better. This technology is available in many Kosmek products, including screw locators, mechanical, pneumatic and hydraulic pallet clamps and robot tool changers. The quick changeover system includes a whole range of plate couplers that allow for the safe transfer of media such as compressed air or oil between connected elements. It is also possible to hold the pressure inside the pallet after disconnecting it from the power supply.

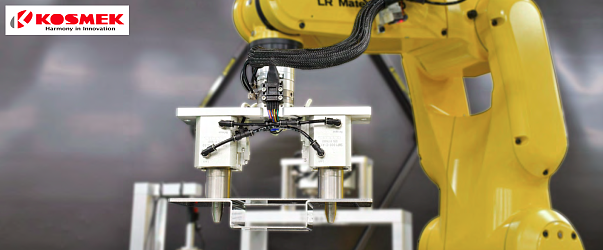

Components for Welding Fixtures

Components for pneumatic welding fixtures: - SWG Expansion Locating Pins - SWP Expansion Locating Clamps - WCG High Power Welding Link Clamp - WHG High Power Welding Swing Clamp - WVG High Power Automation Pallet Clamp Very small footprint yet powerful clamping forces High reliability thanks to the surface finish protecting against spatter and special scrapers Prepared for auto switches installation

Workholding

With Kosmek work holding technology, it is possible to achieve the same clamping forces in the low-pressure hydraulics as conventional systems in the high-pressure range. It is also possible to achieve forces typical for hydraulic solution using only pneumatic pressure! This is possible due to patented "mechanical locking" enabling up to 3x higher clamping forces and up to 7x holding forces in the same conditions. Higher clamping and holding forces despite lower pressure allow the use of smaller components thus a better utilization of the machine room respectively the use of smaller and more cost-effective machines. The increased performance of the components allows fewer elements to be used and additionally reduces operating costs due to lower energy consumption.

High Power pneumatic clamping cylinders

Transferring our patented High Power technology from successful hydraulic clamping cylinders line to a dynamically developing pneumatic line us to introduce the advantages of reliable clamping, but without the increased costs of the hydraulic system! Additionally, a unique feature of Kosmek cylinders is the occurrence of two forces acting on the clamped part: pressing force and a significantly higher holding force. This enables to design devices that guarantee a strong hold of the part but with no part deformation. This gives us higher machining accuracy, higher cutting parameters, multi-sided machining, including those generating forces pushing the part away from the fixture. All this allows for reduced number of operations and changeovers.

Clamping force - up to 4,6kN
Holding force - up to 8,8kN
Supply pressure - 5bar
Compact footprint
Low air consumption
Able to work with pressure supply disconnected"

Hole clamping cylinders

"Hole Clamps actuated by hydraulics or pneumatics - Full five face access to clamped part - Reduction of setups with 3-, 4- and 5 axis machining - Allows to use shorter tools and reduce cycle times - Reduces fixture size allowing for a smaller trunnion and machine - Range of clamped holes 6 - 16mm as standard, both cylindrical and tapered - Serrated and grinded gripper variants - Range of clamping forces: 1 - 8kN"

Work Supports

Work supports actuated by hydraulics or pneumatics. - Provide reliable support of unstable areas of the parts - Allows to create additional supporting and clamping areas without introducing internal stress to clamped parts - Prevents vibrations - Delicate contact force: as low as 1,5N - Strong supporting force: up to 65kN - Third generation with improved scrapper and internal mechanism combating adherence in difficult working conditions. - Many variants including long stroke and part contact air sensing.

High-Power Work Supports (TNE)

The new TNE Series is the next evolution of KOSMEK’s proven work support technology. Building on the trusted TNC design, TNE adds greater rigidity and significantly higher support force for demanding machining environments.

- Up to 2x the support force compared to TNC
- High rigidity with less displacement for stable machining
- Compact design ideal for high precision and high pressure applications
- Interchangeable with the existing TNC Series for easy upgrades
- Reliable spring release and hydraulic lock mechanism
- Improved internal structure for longer service life
- Supports stable workholding under fluctuating loads

Wireless Sensing Clamps (LHM, LKM, LLM)

A groundbreaking, battery-free sensing technology. The required power for signal transmission is generated directly by the clamp’s motion. Already available on all hydraulic clamps. From January 2026, the technology will also be available on pneumatic and High-Power clamps in the European Union.

• Minimized Number of Ports
• Lower Design
• Fixture Cost
• Zero Air Consumption

- Equivalent to IPX7
Waterproof Rating
Shows the protection level of
the sensor.
- Response
Time
0.1 sec.

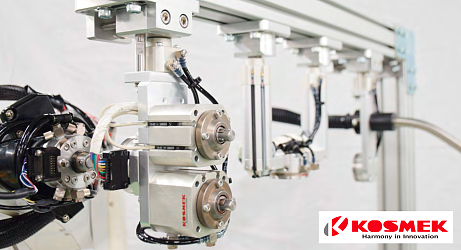

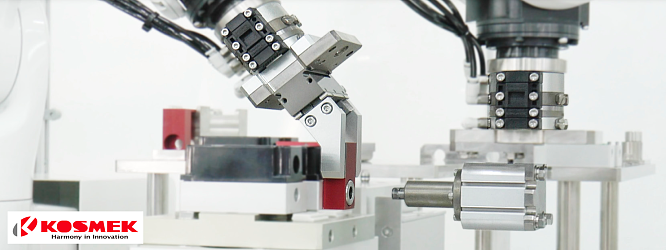

Robotic Hand Changer and Hole Grippers

The world's most precise robot tool changers with clamping repeatability better than 0.003mm, backlash-free connection in all axes and a service life counted in millions of changeover cycles! All this is possible thanks to KOSMEK's patented Zero Backlash technology. It works perfectly with any grippers (e.g. Hole Clamps) as well as spindles for deburring, drilling or screwing. These changers allow you to transfer some processes from the machine to the robot to optimize production cycles.

Sizes dedicated for robots with capacity of: 1kg to 360kg
Tool positioning repeatability: 0,003mm or better
Durability: over 2 million cycles
Zero backlash connection
