Welding fume extraction IQ Aero Clean mobile 2.0

The welding fume extractor IQ Aero Clean Mobile 2.0 is a mobile filtration and ventilation unit that, thanks to its compact design on wheels, can be easily moved between workstations. The extraction devices use two types of filters – a spark arrestor and a cartridge filter with a surface area of 20 m², ensuring a filtration efficiency of 99.5% for particles with a diameter of 0.3 μm. The device offers an air flow capacity of 6000 m³/h. The generated noise level is 60 dB when operating at 40% power, while at full load (100% power) it reaches 80 dB – measurements were taken in direct proximity to the housing. The drive motor of the device has a power of 1.5 kW and is designed for a supply voltage of 400 V.

Versions: Mobile - mobile (on wheels)
Connection: Can be integrated with the IQ Air Flow welding hood using a Ø315 mm ventilation pipe
Airflow capacity: 6000 m³/h
Filtration: Spark arrestor filter + 20 m² cartridge filter
Filtration efficiency: 99.5% for particles ≥0.3 µm
Motor: 2,2 kW
Power supply: 400 V
Noise level: 60 dB (40% power), 80 dB (100% power)
Additional systems: IQ Flow Control, pulse-jet (filter cleaning)
Housing: Powder-coated steel
Dedicated to servicing a single welding station

Welding fume extraction IQ Aero Clean mobile 2.0

The welding fume extractor IQ Aero Clean Mobile 2.0 is a mobile filtration and ventilation unit that, thanks to its compact design on wheels, can be easily moved between workstations. The extraction devices use two types of filters – a spark arrestor and a cartridge filter with a surface area of 20 m², ensuring a filtration efficiency of 99.5% for particles with a diameter of 0.3 μm. The device offers an air flow capacity of 6000 m³/h. The generated noise level is 60 dB when operating at 40% power, while at full load (100% power) it reaches 80 dB – measurements were taken in direct proximity to the housing. The drive motor of the device has a power of 1.5 kW and is designed for a supply voltage of 400 V.

Versions: Mobile - mobile (on wheels)
Equipment: Two flexible extraction arms (“elephants”) with precise positioning capability
Operation: Simultaneous work at two welding stations
Airflow capacity: 6000 m³/h
Filtration: Spark arrestor filter + 20 m² cartridge filter
Filtration efficiency: 99.5% for particles ≥0.3 µm
Motor: 2,2 kW
Power supply: 400 V
Noise level: 60 dB (40% power), 80 dB (100% power)
Additional systems: IQ Flow Control, pulse-jet, anti-dust system, vacuum gauge (filter contamination level control)
Housing: Powder-coated steel
Operation of two welding stations simultaneously

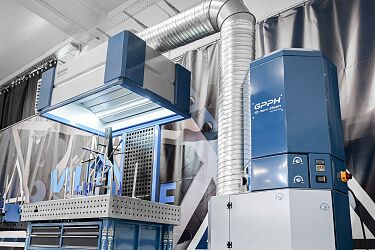

Welding fume extraction IQ Aero Clean wall 1.0

Odciąg spawalniczy IQ Aero Clean Wall 2.0 to urządzenie filtrowentylacyjne, przeznaczone do montażu naściennego. W odciągach spawalniczych zastosowaliśmy filtr przeciwiskrowy i filtr patronowy o powierzchni 20m², a poziom filtracji to 99,5% dla cząsteczek o wielkości 0,3 μm. Wydajność przepływu powietrza to 6000m3/h, natomiast poziom hałasu to 60 dB przy 40% mocy urządzenia, oraz 80 dB przy 100% mocy – poziom hałasu został zmierzony w bliskiej odległości od obudowy urządzenia. Moc silnika to 1,5 kW, a zasilanie – 400 V. 

Versions: Wall - stationary (wall-mounted)
Connection: Can be integrated with the IQ Air Flow welding hood using a Ø315 mm ventilation pipe
Airflow capacity: 6000 m³/h
Filtration: Spark arrestor filter + 20 m² cartridge filter
Filtration efficiency: 99.5% for particles ≥0.3 µm
Motor: 2,2 kW
Power supply: 400 V
Noise level: 60 dB (40% power), 80 dB (100% power)
Additional systems: IQ Flow Control, pulse-jet (filter cleaning)
Housing: Powder-coated steel
Dedicated to servicing a single welding station

Welding fume extraction IQ Aero Clean wall 2.0

The welding extraction unit IQ Aero Clean Wall 2.0 is a filtration and ventilation device designed for wall mounting. In the welding extraction units, we have used a spark arrestor filter and a cartridge filter with a surface area of 20 m², and the filtration level is 99.5% for particles with a size of 0.3 μm. The air flow capacity is 6000m³/h, while the noise level is 60 dB at 40% of the device’s power and 80 dB at 100% power – the noise level was measured in close proximity to the device housing. The motor power is 1.5 kW, and the supply voltage is 400 V.

Versions: Wall - stationary (wall-mounted)
Connection: Can be integrated with the IQ Air Flow welding hood using a Ø315 mm ventilation pipe
Airflow capacity: 6000 m³/h
Filtration: Spark arrestor filter + 20 m² cartridge filter
Filtration efficiency: 99.5% for particles ≥0.3 µm
Motor: 2,2 kW
Power supply: 400 V
Noise level: 60 dB (40% power), 80 dB (100% power)
Additional systems: IQ Flow Control, pulse-jet (filter cleaning)
Housing: Powder-coated steel
Dedicated to servicing a single welding station

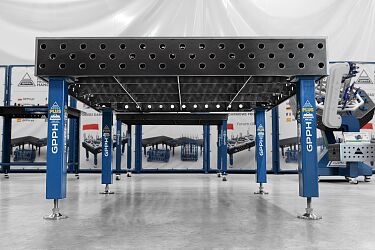

Welding Table PLUS 1200x1000 mm fi28 mm grid diagonal

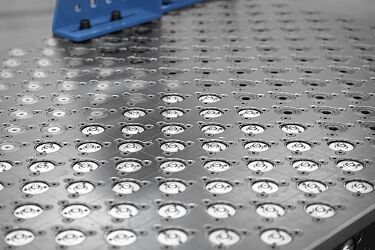

Welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 1200×1000 mm, has 2 longitudinal ribs and 2 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a diagonal grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

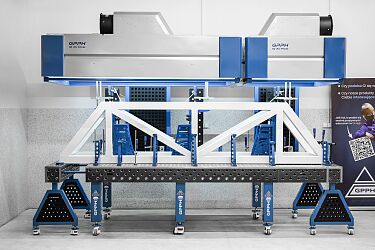

IQ Air Flow Welding draught hood with fan 1000x1000 mm

The innovative GPPH IQ Air Flow welding draught hood is a state-of-the-art solution that significantly improves health and safety standards in any welding workshop. Thanks to its unique design, the hood effectively extracts welding fumes from all sides of the table, including the corners, ensuring clean air at the workstation and protecting the welder's health. Advantages and Features: • Effective smoke extraction – The welding hood has been designed to effectively remove smoke generated during welding from the entire surface of the table. • Improving working conditions – Thanks to effective smoke extraction, welders do not have to breathe in harmful fumes, which significantly improves air quality and reduces the risk of health problems. • Versatility and flexibility – The hood is available with or without a fan, allowing the product to be tailored to individual customer.

Material: Aluminium, powder-coated for increased resistance to corrosion and workshop conditions
Construction: Ventilation channels designed to extract welding fumes from the entire table surface, including the corners
Airflow: 2700 m³/h
Static pressure: min. 130 Pa
Motor power: 170 W
Power supply: 230 V
Noise level: max. 85 dB
Hood dimensions [mm]: 1000x1000
Versatility: Versions with a fan (maximum efficiency)
Ease of installation: Can be installed on various types of welding tables, universal application in workshops

IQ Air Flow Welding draught hood with fan 1200x1200 mm

The innovative GPPH IQ Air Flow welding draught hood is a state-of-the-art solution that significantly improves health and safety standards in any welding workshop. Thanks to its unique design, the hood effectively extracts welding fumes from all sides of the table, including the corners, ensuring clean air at the workstation and protecting the welder's health. Advantages and Features: • Effective smoke extraction – The welding hood has been designed to effectively remove smoke generated during welding from the entire surface of the table. • Improving working conditions – Thanks to effective smoke extraction, welders do not have to breathe in harmful fumes, which significantly improves air quality and reduces the risk of health problems. • Versatility and flexibility – The hood is available with or without a fan, allowing the product to be tailored to individual customer.

Material: Aluminium, powder-coated for increased resistance to corrosion and workshop conditions
Construction: Ventilation channels designed to extract welding fumes from the entire table surface, including the corners
Airflow: 2700 m³/h
Static pressure: min. 130 Pa
Motor power: 170 W
Power supply: 230 V
Noise level: max. 85 dB
Hood dimensions [mm]: 1200x1200
Versatility: Versions with a fan (maximum efficiency)
Ease of installation: Can be installed on various types of welding tables, universal application in workshops

IQ Air Flow Welding draught hood with fan 1500x1000 mm

The innovative GPPH IQ Air Flow welding draught hood is a state-of-the-art solution that significantly improves health and safety standards in any welding workshop. Thanks to its unique design, the hood effectively extracts welding fumes from all sides of the table, including the corners, ensuring clean air at the workstation and protecting the welder's health. Advantages and Features: • Effective smoke extraction – The welding hood has been designed to effectively remove smoke generated during welding from the entire surface of the table. • Improving working conditions – Thanks to effective smoke extraction, welders do not have to breathe in harmful fumes, which significantly improves air quality and reduces the risk of health problems. • Versatility and flexibility – The hood is available with or without a fan, allowing the product to be tailored to individual customer.

Material: Aluminium, powder-coated for increased resistance to corrosion and workshop conditions
Construction: Ventilation channels designed to extract welding fumes from the entire table surface, including the corners
Airflow: 2700 m³/h
Static pressure: min. 130 Pa
Motor power: 170 W
Power supply: 230 V
Noise level: max. 85 dB
Hood dimensions [mm]: 1500x1000
Versatility: Versions with a fan (maximum efficiency)
Ease of installation: Can be installed on various types of welding tables, universal application in workshops

IQ Air Flow Welding draught hood with fan 1500x1480 mm

The innovative GPPH IQ Air Flow welding draught hood is a state-of-the-art solution that significantly improves health and safety standards in any welding workshop. Thanks to its unique design, the hood effectively extracts welding fumes from all sides of the table, including the corners, ensuring clean air at the workstation and protecting the welder's health. Advantages and Features: • Effective smoke extraction – The welding hood has been designed to effectively remove smoke generated during welding from the entire surface of the table. • Improving working conditions – Thanks to effective smoke extraction, welders do not have to breathe in harmful fumes, which significantly improves air quality and reduces the risk of health problems. • Versatility and flexibility – The hood is available with or without a fan, allowing the product to be tailored to individual customer.

Material: Aluminium, powder-coated for increased resistance to corrosion and workshop conditions
Construction: Ventilation channels designed to extract welding fumes from the entire table surface, including the corners
Airflow: 2700 m³/h
Static pressure: min. 130 Pa
Motor power: 170 W
Power supply: 230 V
Noise level: max. 85 dB
Hood dimensions [mm]: 1500x1480
Versatility: Versions with a fan (maximum efficiency)
Ease of installation: Can be installed on various types of welding tables, universal application in workshops

IQ Air Flow Welding draught hood with fan 2000x1000 mm

The innovative GPPH IQ Air Flow welding draught hood is a state-of-the-art solution that significantly improves health and safety standards in any welding workshop. Thanks to its unique design, the hood effectively extracts welding fumes from all sides of the table, including the corners, ensuring clean air at the workstation and protecting the welder's health. Advantages and Features: • Effective smoke extraction – The welding hood has been designed to effectively remove smoke generated during welding from the entire surface of the table. • Improving working conditions – Thanks to effective smoke extraction, welders do not have to breathe in harmful fumes, which significantly improves air quality and reduces the risk of health problems. • Versatility and flexibility – The hood is available with or without a fan, allowing the product to be tailored to individual customer.

Material: Aluminium, powder-coated for increased resistance to corrosion and workshop conditions
Construction: Ventilation channels designed to extract welding fumes from the entire table surface, including the corners
Airflow: 2700 m³/h
Static pressure: min. 130 Pa
Motor power: 170 W
Power supply: 230 V
Noise level: max. 85 dB
Hood dimensions [mm]: 2000x1000
Versatility: Versions with a fan (maximum efficiency)
Ease of installation: Can be installed on various types of welding tables, universal application in workshops

IQ Air Flow Welding draught hood with fan 2400x1200 mm

The innovative GPPH IQ Air Flow welding draught hood is a state-of-the-art solution that significantly improves health and safety standards in any welding workshop. Thanks to its unique design, the hood effectively extracts welding fumes from all sides of the table, including the corners, ensuring clean air at the workstation and protecting the welder's health. Advantages and Features: • Effective smoke extraction – The welding hood has been designed to effectively remove smoke generated during welding from the entire surface of the table. • Improving working conditions – Thanks to effective smoke extraction, welders do not have to breathe in harmful fumes, which significantly improves air quality and reduces the risk of health problems. • Versatility and flexibility – The hood is available with or without a fan, allowing the product to be tailored to individual customer.

Material: Aluminium, powder-coated for increased resistance to corrosion and workshop conditions
Construction: Ventilation channels designed to extract welding fumes from the entire table surface, including the corners
Airflow: 2700 m³/h
Static pressure: min. 130 Pa
Motor power: 170 W
Power supply: 230 V
Noise level: max. 85 dB
Hood dimensions [mm]: 2400x1200
Versatility: Versions with a fan (maximum efficiency)
Ease of installation: Can be installed on various types of welding tables, universal application in workshops

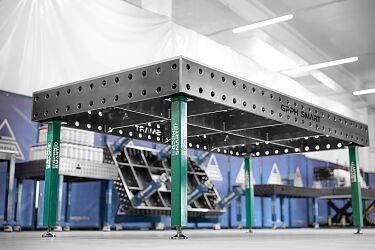

Welding Table GPPH SMART 12 mm 2000x1000 mm Ø16 mm diagonal grid

SMART 12 is the equivalent of the PLUS table. Both have a 12 mm tabletop, but the PLUS stands out with a higher load capacity of 500 kg per leg, greater precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides durability and working comfort but in a lighter and more affordable form.

Technical data:
tabletop material: steel S355J2+N
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a grid 100x100 mm
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 12 mm 2000x1000 mm fi28 mm grid 100x100 mm

SMART 12 is the equivalent of the PLUS table. Both have a 12 mm tabletop, but the PLUS stands out with a higher load capacity of 500 kg per leg, greater precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides durability and working comfort but in a lighter and more affordable form.

Technical data:
tabletop material: steel S355J2+N
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a grid 100x100 mm
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 12 mm 2000x1000 mm Ø28 mm diagonal grid

SMART 12 is the counterpart of the PLUS table. Both feature a 12 mm thick tabletop; however, PLUS stands out with a higher load capacity of 500 kg per leg, higher precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a total load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides strength and working comfort, but in a lighter and more cost-effective form.

Technical data:
tabletop material: S355J2+N steel
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0.35°
flatness tolerance: ≤ 0.5 mm over the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes from the underside

Welding Table GPPH SMART 12 mm 2400x1200 mm fi16 mm grid 100x100 mm

SMART 12 is the equivalent of the PLUS table. Both have a 12 mm tabletop, but the PLUS stands out with a higher load capacity of 500 kg per leg, greater precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides durability and working comfort but in a lighter and more affordable form.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a grid 100x100 mm
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 12 mm 2400x1200 mm Ø16 mm diagonal grid

SMART 12 is the equivalent of the PLUS table. Both have a 12 mm tabletop, but the PLUS stands out with a higher load capacity of 500 kg per leg, greater precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides durability and working comfort but in a lighter and more affordable form.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 12 mm 2000x1000 mm Ø16 mm diagonal grid

SMART 12 is the counterpart of the PLUS table. Both feature a 12 mm thick tabletop; however, PLUS stands out with a higher load capacity of 500 kg per leg, higher precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a total load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides strength and working comfort, but in a lighter and more cost-effective form.

tabletop material: S355J2+N steel
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0.35°
flatness tolerance: ≤ 0.5 mm over the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes from the underside

Welding Table GPPH SMART 12 mm on feet 2400x1200 mm fi28 mm grid 100x100 mm

SMART 12 is the equivalent of the PLUS table. Both have a 12 mm tabletop, but the PLUS stands out with a higher load capacity of 500 kg per leg, greater precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides durability and working comfort but in a lighter and more affordable form.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a grid 100x100 mm
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 12 mm on feet 2400x1200 mm Ø28 mm diagonal grid

SMART 12 is the equivalent of the PLUS table. Both have a 12 mm tabletop, but the PLUS stands out with a higher load capacity of 500 kg per leg, greater precision (flatness tolerance ≤0.3 mm), and dense ribbing for maximum stability. SMART 12, with a load capacity of 1200 kg, a flatness tolerance of ≤0.5 mm, and simplified ribbing, is a more economical solution. It still provides durability and working comfort but in a lighter and more affordable form.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1200 kg
hole system: Ø28 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2000x1000 mm fi16 mm grid 100x100 mm

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø16 in a 100x100 mm grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2000x1000 mm fi16 mm diagonal grid

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø16 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2000x1000 mm fi28 mm grid 100x100 mm

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø28 in a 100x100 mm grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2000x1000 mm fi28 mm diagonal grid

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø28 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2400x1200 mm fi16 mm grid 100x100 mm

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø16 in a grid 100x100 mm
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2400x1200 mm fi16 mm diagonal grid

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø16 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2400x1200 mm fi28 mm grid 100x100 mm

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø28 in a grid 100x100 mm
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table GPPH SMART 15 mm 2400x1200 mm fi28 mm diagonal grid

SMART 15 is an economical alternative to the PRO table. Both have a 15 mm tabletop, but the PRO offers higher precision (flatness tolerance ≤0.3 mm), stronger legs, and a load capacity of 700 kg per leg. Additionally, the PRO features dense ribbing approximately every 400 mm, which increases rigidity and stability. The SMART 15 maintains the same tabletop thickness and full functionality but with a simpler design, with a flatness tolerance of ≤0.5 mm, a load capacity of 1800 kg, and simplified ribbing. As a result, it is lighter and more cost-effective while remaining a solid solution.

tabletop material: steel S355J2+N
tabletop thickness: 15 mm
leg profile: 60x60x4 mm
maximum table load capacity: 1800 kg
hole system: Ø28 in a diagonal grid
side walls: 2 rows of holes, deviation tolerance ±0,35°
flatness tolerance: ≤ 0,5 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 1200x1000 mm fi16 mm grid 50x50 mm

Welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 1200×1000 mm, has 2 longitudinal ribs and 2 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø16 in a 50x50 mm grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 1200x1000 mm fi28 mm grid 100x100 mm

Welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 1200×1000 mm, has 2 longitudinal ribs and 2 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a grid 100x100 mm
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edgesmilled and chamfered holes
chamfered holes on the underside

Welding Table PLUS on feet 1500x1480 mm fi16 mm 50x50 mm grid

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 1500×1480 mm, has 3 longitudinal ribs and 3 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø16 in a 50x50 mm grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS on feet 1500x1480 mm fi28 mm grid 100x100 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 1500×1480 mm, has 3 longitudinal ribs and 3 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a grid 100x100 mm
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS on feet 1500x1480 mm fi28 mm diagonal grid

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 1500×1480 mm, has 3 longitudinal ribs and 3 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a diagonal grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 2000x1000 mm fi16 mm grid 50x50 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2000×1000 mm, has 2 longitudinal ribs and 4 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a 50x50 mm grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 2000x1000 mm fi28 mm grid 100x100 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2000×1000 mm, has 2 longitudinal ribs and 4 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a grid 100x100 mm
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 2000x1000 mm fi28 mm diagonal grid

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2000×1000 mm, has 2 longitudinal ribs and 4 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a diagonal grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 2400x1200 mm fi16mm grid 50x50 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2400×1200 mm, has 2 longitudinal ribs and 5 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø16 in a 50x50 mm grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 2400x1200 mm fi16mm grid 50x50 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2400×1200 mm, has 2 longitudinal ribs and 5 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø16 in a 50x50 mm grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 2400x1200 mm fi28 mm grid 100x100 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2400×1200 mm, has 2 longitudinal ribs and 5 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a grid 100x100 mm
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 2400x1200 mm fi28 mm diagonal grid

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2400×1200 mm, has 2 longitudinal ribs and 5 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a diagonal grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 3000x1480 mm fi16 mm grid 50x50 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2400×1200 mm, has 2 longitudinal ribs and 5 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*. The legs of PLUS Welding Tables, made of 80×80 mm profile, have a load capacity of 500 kg/leg. For the 3000×1480 mm size, which has 8 legs, you get a maximum load capacity of 4,000 kg.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø16 in a grid 50x50 mm
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 3000x1480 mm fi28 mm grid 100x100 mm

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2400×1200 mm, has 2 longitudinal ribs and 5 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*. The legs of PLUS Welding Tables, made of 80×80 mm profile, have a load capacity of 500 kg/leg. For the 3000×1480 mm size, which has 8 legs, you get a maximum load capacity of 4,000 kg.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a grid 100x100 mm
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Welding Table PLUS 3000x1480 mm fi28 mm diagonal grid

A welding table must be flat! PLUS table tops, 12 mm thick, have dense ribbing, which ensures a perfectly flat working surface. The table, measuring 2400×1200 mm, has 2 longitudinal ribs and 5 longitudinal ribs. The solid and rigid base of the table top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table across the entire top is ±0.3 mm*. The legs of PLUS Welding Tables, made of 80×80 mm profile, have a load capacity of 500 kg/leg. For the 3000×1480 mm size, which has 8 legs, you get a maximum load capacity of 4,000 kg.

tabletop material: steel S355J2+N
tabletop thickness: 12 mm
ribbing: spaced approximately every 400 mm
leg profile: 80x80x4 mm
load capacity: 500 kg/leg (max. 4000 kg with a table supported by eight legs)
side walls: height 200 mm, deviation tolerance ±0,3°
hole system: Ø28 in a diagonal grid
flatness tolerance: ≤ 0,3 mm across the entire tabletop surface
milled tabletop edges
milled and chamfered holes
chamfered holes on the underside

Login

Search

Login

Menu EN

INDUSTRIAL SPRING (24-27.03.2026)

STOM-TOOL - BLECH & CUTTING - LASER - ROBOTICS - FIX, Welding, Expo-Surface, Fluid Power, Control-Stom, 3D Printing Days

GPPH Stoły spawalnicze i systemy filtrowentylacyjne

Description

Products

Business sector

Brands
