EROWA Technology Sp. z o.o.
- ul. Spółdzielcza 37-39, 55-080 KĄTY WROCŁAWSKIE, Poland
- info@erowa.com.pl
- www.erowa.pl
Description
We are a world-renowned Swiss manufacturer of clamping systems, measuring systems, automation and production integration.
Our company offers complete solutions for increasing production efficiency in tool shops and other branches of the metal industry.
The wide range of products we offer, as well as their universality and versatility, is an essential and very helpful element in the development of both small tool shops and large production plants.
Our key competences are the 4 areas of cooperation that we can offer: Engineering, Product, Consulting, Service. We offer support worldwide.
Regardless of whether it is a single product or a complete production system, our service is always available to help solve problems.
We also support customers after the implementation. Through training and further education of employees, technical maintenance services and rigorous testing of measuring equipment.
Our company offers complete solutions for increasing production efficiency in tool shops and other branches of the metal industry.
The wide range of products we offer, as well as their universality and versatility, is an essential and very helpful element in the development of both small tool shops and large production plants.
Our key competences are the 4 areas of cooperation that we can offer: Engineering, Product, Consulting, Service. We offer support worldwide.
Regardless of whether it is a single product or a complete production system, our service is always available to help solve problems.
We also support customers after the implementation. Through training and further education of employees, technical maintenance services and rigorous testing of measuring equipment.
Download
-
Erowa-ProduktOverview-PL-2025.pdffile size: 3.45 MB
-
Progress-in-manufacturing-PL-small.pdffile size: 2.83 MB
-
158349-EROWA-Manual-Workpiece-Handling-LIFT-PL-small.pdffile size: 1.14 MB
-
079379-EROWA-CMM-Qi-small.pdffile size: 2.10 MB
-
158288-Robot-Dynamic-Family-defipl-min.pdffile size: 2.53 MB
-
059287-EROWA-PreSet-2D-small.pdffile size: 1.96 MB
Products

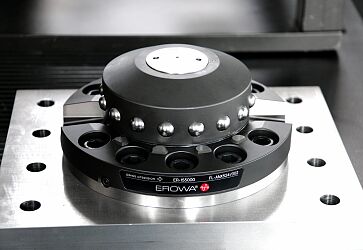

EROWA MTS System (Modular Tooling System)
EROWA MTS System (Modular Tooling System)

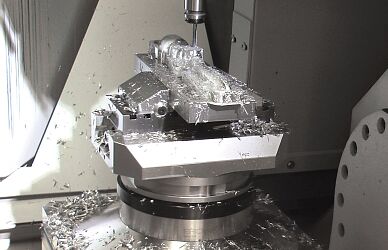

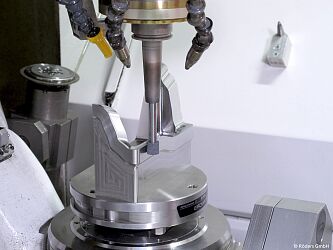

The EROWA MTS is a flexible tooling system. The maximum workpiece size depends on the size of the machine table.
Whether single palletizing with an MTS holder or multiple palletizing with multiple MTS holders or base plates is required – all combinations are possible.
Minimized setup time:
Workpieces and holders are mounted on pallets, allowing them to be placed on the machine as needed without further setup. Inside the machine, the MTS palletizing system holds them in place with precision and stability. Further work is prepared outside the machine.
The MTS system is ideal for automatic pallet changing.
After a workpiece change, the contact surfaces of the holders and clamping pins are automatically cleaned. The MTS pallets are positioned precisely and accurately on the machine table.

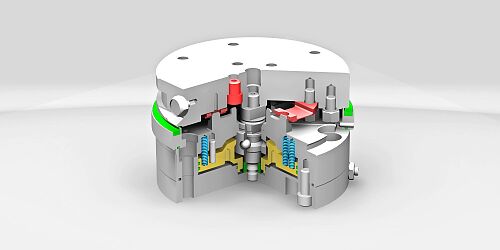

Integrated MTS clamps are distinguished by their following features:
• High safety standards:
In the event of a compressed air failure, the clamp and pallet remain securely clamped.
The clamping mechanism features a self-locking, spring-loaded ball lock.
• Maximum precision:
Thanks to the polished surfaces used, the clamps achieve a repeat accuracy of less than 0.003 mm.
• Durability:
Long service life and performance are achieved thanks to the use of ceramic balls. The clamps are hardened
and can easily withstand the high demands of a production environment for many years.
• Performance:
The clamps have a clamping force of up to 20 kN with a clamping force of 60 kN. The spiral springs used
ensure a uniform and high clamping force.
• Monitoring:
Integrated MTS clamps are available with presence and closing control, opening control
and a cleaning function. • Highly versatile:
MTS chucks can be mounted on base plates, machine tables, adapter pallets,
mineral cast towers. The clamps are suitable for use on milling machines, machining centers,
mill-turn machines (depending on the model), grinding and EDM machines, and process measurement machines.
• High safety standards:
In the event of a compressed air failure, the clamp and pallet remain securely clamped.
The clamping mechanism features a self-locking, spring-loaded ball lock.
• Maximum precision:
Thanks to the polished surfaces used, the clamps achieve a repeat accuracy of less than 0.003 mm.
• Durability:
Long service life and performance are achieved thanks to the use of ceramic balls. The clamps are hardened
and can easily withstand the high demands of a production environment for many years.
• Performance:
The clamps have a clamping force of up to 20 kN with a clamping force of 60 kN. The spiral springs used
ensure a uniform and high clamping force.
• Monitoring:
Integrated MTS clamps are available with presence and closing control, opening control
and a cleaning function. • Highly versatile:
MTS chucks can be mounted on base plates, machine tables, adapter pallets,
mineral cast towers. The clamps are suitable for use on milling machines, machining centers,
mill-turn machines (depending on the model), grinding and EDM machines, and process measurement machines.

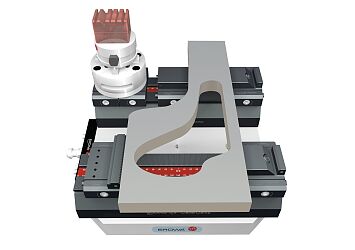

Clever Clamp
Clever Clamp

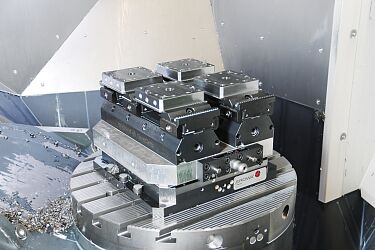

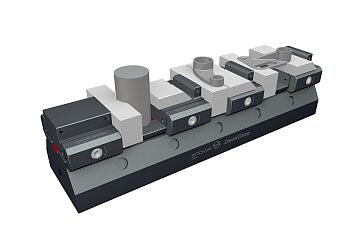

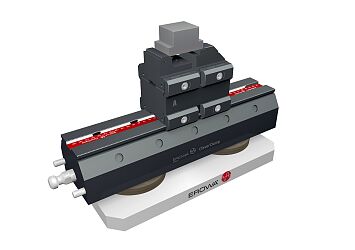

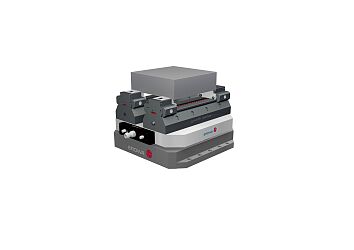

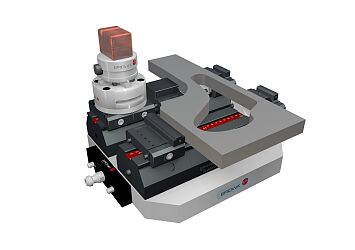

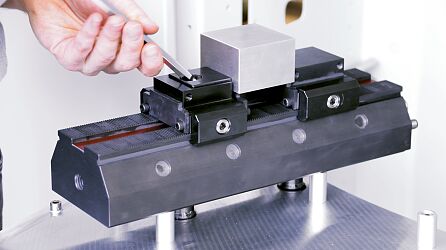

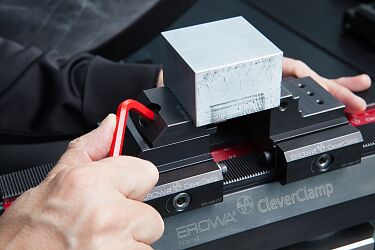

The EROWA CleverClamp system is a modular and versatile workpiece clamping system suitable for single-part and small-batch production.
It is simple to operate and versatile. Setup times are reduced, machine runtime is increased, and productivity is increased.

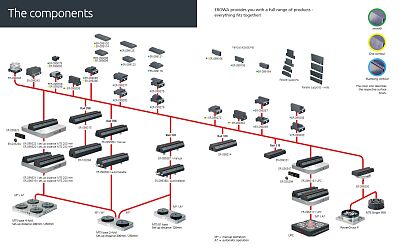

The base rails form the foundation of the CleverClamp workpiece clamping system. They can be used horizontally or vertically.
Depending on the material and workpiece, the appropriate clamping surfaces can be selected.
The serrated clamping jaws are ideal for clamping workpieces requiring minimal clamping height.
The CleverClamp base rail can be directly automated. The robot positions the workpiece holder on the machine quickly and precisely.
Technical data - pull-down clamping elements:
Clamping range: 0-4,1 mm
Clamping power: up to 28 kN
Technical data - linear clamping elements:
Clamping range: 0-5 mm
Clamping power: do 16 kN
Clamping range: 0-4,1 mm
Clamping power: up to 28 kN
Technical data - linear clamping elements:
Clamping range: 0-5 mm
Clamping power: do 16 kN

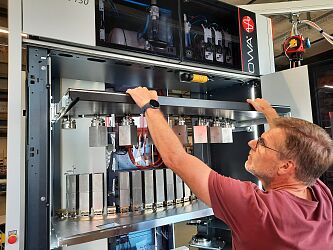

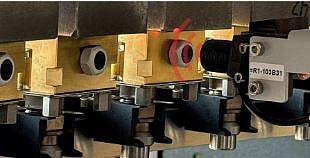

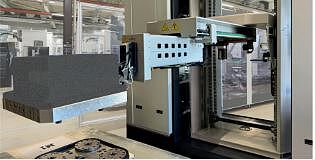

Erowa Robot Compact 150
Erowa Robot Compact 150
Smart automation for all manufacturing technologies

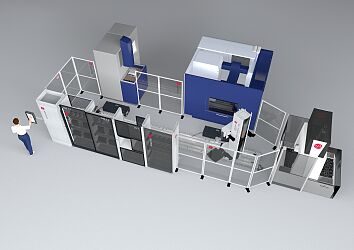

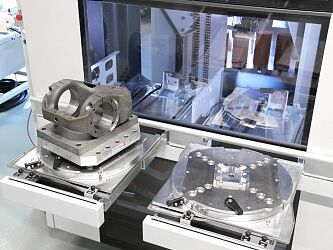

The new EROWA Robot Compact 150 impresses with its wide range of functions and a transfer weight of up to 150 kg.
It is the perfect automation solution for flexible loading of up to two production machines for all processing technologies - from milling to eroding.
Thanks to its innovative design, the loader offers an impressive magazine density with a small footprint.
Even large EROWA MTS 400 pallets with a transfer weight of up to 150 kg and a workpiece height of up to 400 mm are loaded precisely onto the machine.
The two independent drives of the X-axis enable compact magazine handling and high magazine density. This also enables a long reach and a minimal interfering contour to the machine.

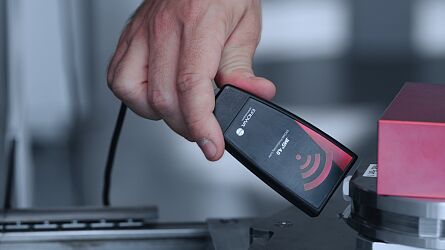

The EROWA EWIS™ chip identification system (option) is based on RFID technology. It enables the unique identification of pallets and holders

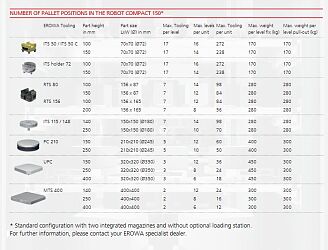

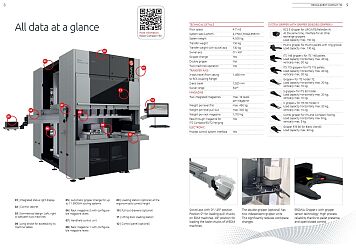

Technical data can be found in photos 2 and 3

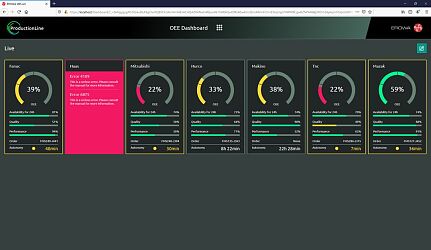

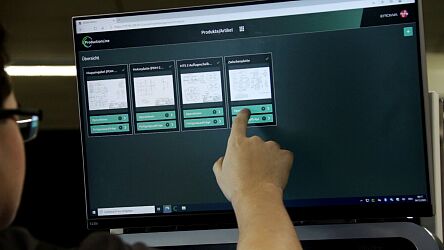

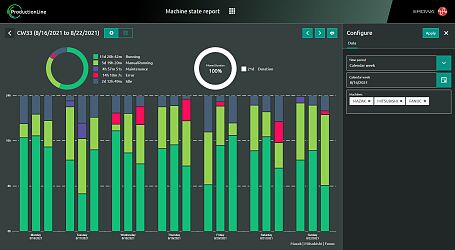

Process control JMS 4.0
Process control JMS 4.0

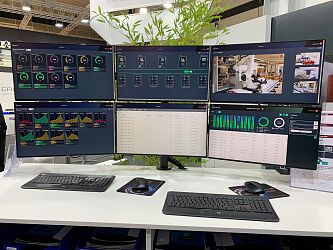

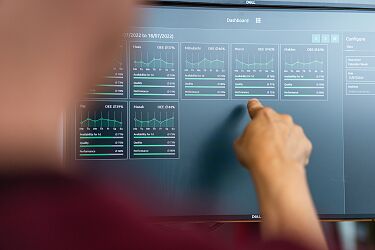

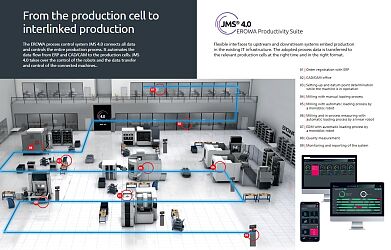

The EROWA JMS 4.0 process control system combines all data and controls the entire production process.
Welcome to the future of production - the JMS 4.0 process control system opens the door to a new era of efficiency and control. This innovative process control system, which has already been successfully installed at over 2000 customers, not only connects all data and controls the entire production process, but also sets standards in terms of user-friendliness and responsiveness. With its automated data flow and real-time monitoring of your production processes, JMS 4.0 provides the basis for a seamless workflow that revolutionises the production process.
The flexible interfaces of the JMS 4.0 to upstream and downstream systems embed production in the existing IT infrastructure.
Detailed information can be found in the product catalog.

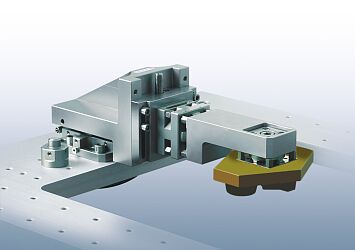

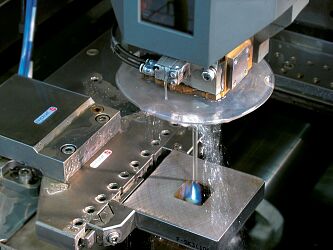

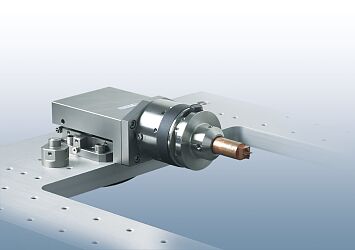

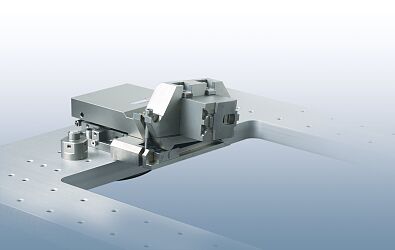

WEDM mounting system
WEDM mounting system
Modular Clamping System for WEDM

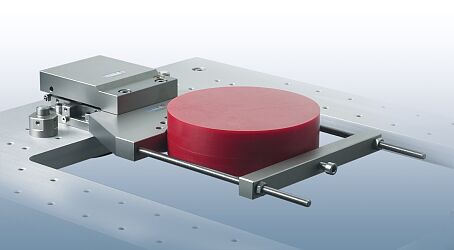

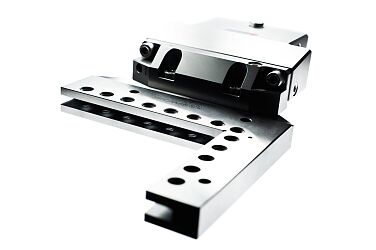

The EROWA WEDM tooling system minimizes unproductive setup and workpiece preparation time for WEDM machining.

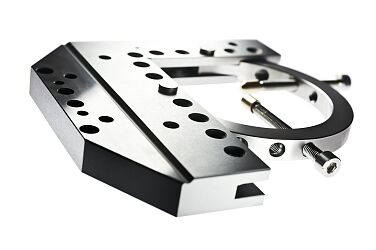

A sophisticated combination of vises, clamping elements, and clamping beams allows for the correct clamping of all possible workpieces.
The repeatability of the Wire EDM tooling system allows for pre-setting outside the machine and safe, automated loading operations.
EROWA flat chucks on the machine table provide a flexible interface with workpiece holders.
The EROWA Wire EDM tooling system is suitable for both single palletizing and multiple palletizing in a clamping frame.
Suitable and flexible clamping elements are available for every workpiece size and type.
• Full accessibility to the machined surface
• For large and small workpieces
• Z=0 for process reliability
• Clamping of all workpieces
• Customized solutions
• 3-axis workpiece alignment
• For large and small workpieces
• Z=0 for process reliability
• Clamping of all workpieces
• Customized solutions
• 3-axis workpiece alignment

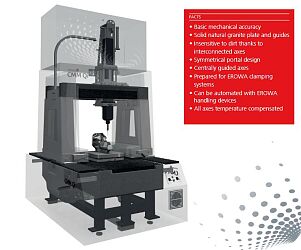

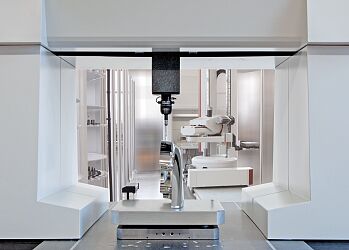

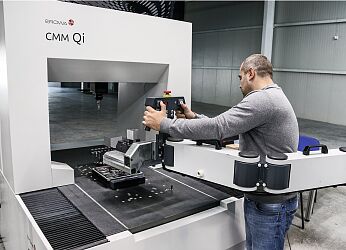

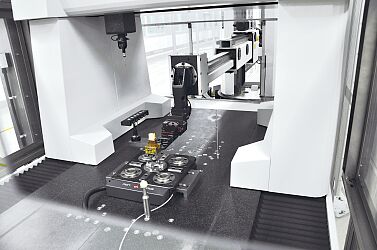

CMM Qi measuring machine

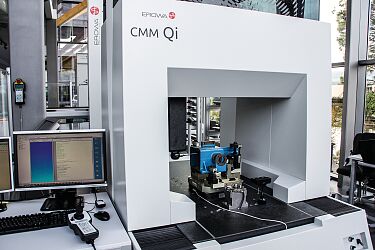

CMM Qi measuring machine
Quality measurement of the highest precision.

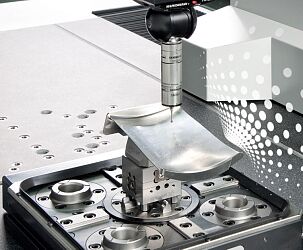

The EROWA CMM Qi portal measuring machine provides the highest mechanical accuracy for the efficient completion of any presetting jobs, as well as quality measurements.
The measuring machine has been prepared for automatic loading and can therefore be integrated into automatic production without any problems.
Only choice components were used for the construction of the measuring machine.

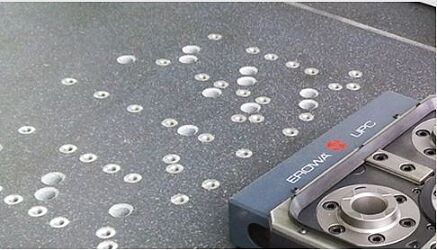

The solid granite table and the specially cast portal constitute the basis for the precision of the measuring portal and the selected tooling systems.
The stable axes are moved on high-precision rails with air bearings. In combination with the centrally arranged drives, mechanical accuracy is quite remarkable even with fluctuating temperatures.
The technical data is shown in the drawing in photo no. 3.

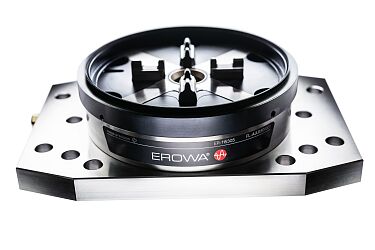

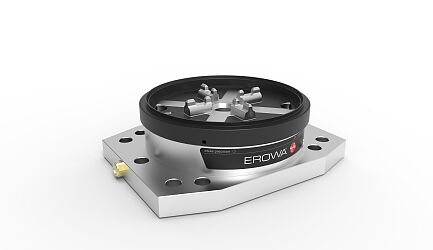

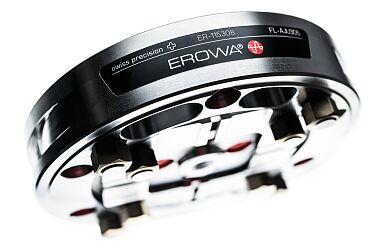

Erowa Power Chuck P
Erowa Power Chuck P
Powerful, flexible, innovative

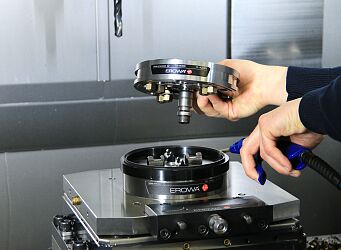

The proven EROWA PowerChuck P workpiece palletizing system clamps a wide variety of workpiece carriers simply, quickly and reliably. In the new design, the PowerChuck P not only looks impressive, it also stands out as a result of its added benefits.
The 10,000 N clamping force of the PowerChuck P ensures a powerful and reliable hold during workpiece machining. The compact design and low profile height of the clamping system leave plenty of space for workpieces and their machining.
The extremely low-wear ceramic balls in the lock ensure consistent and low-maintenance performance over an even longer period of time.
The PowerChuck P workpiece palletizing system can be automated. EROWA offers the right handling facility for every field of application, and for all technologies. Sealing rings protect the chucks and ensure safe automatic loading.
