Description
Machine Tools and Production Systems from EMAG – Our Specialty
As a manufacturer of CNC machine tools the EMAG Group masters all the processes involved in the soft and hard machining of metals. EMAG draws on an enormous range of technologies to achieve this – from turning, drilling, milling, gear cutting and grinding to laser welding and heat shrink assembly all the way to electro-chemical machining.
As a manufacturer of CNC machine tools the EMAG Group masters all the processes involved in the soft and hard machining of metals. EMAG draws on an enormous range of technologies to achieve this – from turning, drilling, milling, gear cutting and grinding to laser welding and heat shrink assembly all the way to electro-chemical machining.
Products
VTC 100 GT
VTC 100 GT
EMAG VTC-Machines: A Joint “Attack” on Shafts
VTC vertical turning and grinding machines from EMAG ensure fast processes when turning and grinding operations come together. More flexibility isn't available; almost the entire finishing process is carried out in the VTC vertical turning and grinding machine. Hard and soft turning, scroll-free turning, grinding and simultaneous grinding, synchronous support grinding and non-circular grinding are all possible on a single machine.
In short: VTC vertical turning and grinding machines guarantee efficient shaft production with reliable processes.
Workpiece dia., max. 100 mm
Workpiece length, max. 400 mm
Chuck dia., max. 210 mm
X-axis travel 150 mm
Z-axis travel 660 mm
Workpiece length, max. 400 mm
Chuck dia., max. 210 mm
X-axis travel 150 mm
Z-axis travel 660 mm

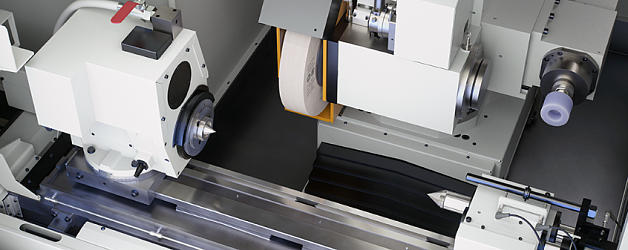

UG series
UG series
EMAG UG series - Universal grinding machines for maximum precision and flexible applications
The UG series from EMAG represents universal cylindrical grinding at the highest technical level. These machines combine precision, flexibility and process reliability in a compact design - ideal for internal, external out-of-round and face-grinding of a wide range of workpieces. With grinding lengths ranging from 400 to 1,500 millimetres, the machine series covers a wide range of applications - from short precision parts to long shafts or complex geometries.
Grinding length, max. 1.000 mm
Center height 175 / 225 mm
Workpiece weight, max. 120 kg
Spindle Power OD 7.5 / 11 kw
Grindin wheel dia. 500 x 63
Peripheral speed 50 m/s
B-axis -15° to +225°, +/- 2"
Z-axis 1.240 mm
X-axis 320 mm
Center height 175 / 225 mm
Workpiece weight, max. 120 kg
Spindle Power OD 7.5 / 11 kw
Grindin wheel dia. 500 x 63
Peripheral speed 50 m/s
B-axis -15° to +225°, +/- 2"
Z-axis 1.240 mm
X-axis 320 mm
