AGROTECH (13-15.03.2026)

31st International Fair of Agricultural Techniques

Description

SCHMIDT specializes in the sale of high-quality wheel loaders, offering a wide range of solutions tailored to the needs of various sectors, such as construction, agriculture, industry, and municipal services. As a supplier of construction machinery, the company focuses on modern technologies, durability, and efficiency, resulting in high customer satisfaction and reliable everyday performance.

SCHMIDT’s product range includes mini excavators and wheel loaders with various technical specifications, distinguished by their versatility, ease of operation, and low operating costs. Through cooperation with leading machinery manufacturers, the company delivers equipment that meets the highest quality standards. SCHMIDT also provides comprehensive after-sales support, including service and access to spare parts, ensuring the reliability of its loaders.

Thanks to many years of experience and an individual approach to each client, SCHMIDT has built a reputation as a reliable partner in delivering solutions that increase work efficiency and operator comfort. The company’s commitment to quality and innovation makes it a frequent choice for farmers and businesses seeking dependable wheel loaders tailored to their needs.

Download

file size: 419.48 KB
file size: 462.70 KB
file size: 406.06 KB
file size: 401.76 KB
file size: 625.27 KB
file size: 451.90 KB

Products

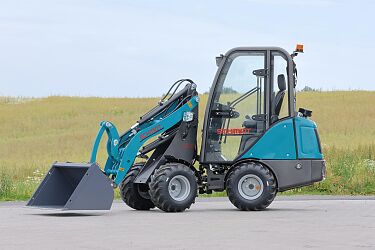

Mini loader Schmidt 3530

The 3530 model combines performance, maneuverability, and reliability, making it ideal for construction sites, farms, and maintenance work. It is equipped with a Kubota D1105-EF02 engine rated at 18.2 kW, compliant with EURO 5 emission standards. Compact dimensions and a turning radius of 2220 mm allow operation in tight spaces, while a 174 mm ground clearance and durable tires ensure stability on various terrains. The hydrostatic drive and ergonomic joystick provide precise control. A lifting capacity of up to 1100 kg and a top speed of 12 km/h enhance productivity. Operator comfort is ensured by a spacious cab with excellent visibility and LED lighting.

Engine
KUBOTA D1105-EF02
Emission standard: EURO 5
Power: 18.2 kW (at 3000 rpm)
Max torque: 71.4 Nm / 1600 rpm
Number of cylinders: 3
Displacement: 1123 cm³
Cooling system: Water-cooled
Operating voltage: 12 V
Battery capacity: 60 Ah

Weight and Lifting Capacity
Operating weight: 1835–1855 kg
Maximum lifting force: 1100 kg

Rated load with bucket (ISO 14397):

With raised boom, straight position:
Boom 260 cm: 1000 kg
Boom 290 cm: 850 kg

With raised boom, articulated position:
Boom 260 cm: 750 kg
Boom 290 cm: 550 kg

Rated load with pallet forks (ISO 14397):

With raised boom, straight position:
Boom 260 cm: 780 kg
Boom 290 cm: 600 kg

With raised boom, articulated position:
Boom 260 cm: 520 kg
Boom 290 cm: 420 kg

Operating Data
Travel speed: 0–12 km/h
Fuel tank capacity: 26 L
Hydraulic oil tank capacity: 40 L

Hydraulic System

Hydraulic drive:
Flow rate: 84 L/min
Working pressure: 300 bar

Hydraulic control system:
Flow rate: 32 L/min
Working pressure: 180 bar

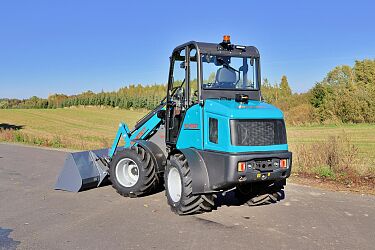

SCHMiDT 3650A Loader

Model 3650A is a modern, compact loader that combines high performance with excellent mobility. Equipped with a Kubota Euro 5 engine rated at 18.5 kW or 27.6 kW, it delivers low fuel consumption and reliable operation. With an operating weight of 2800 kg, a lifting force of up to 2000 kg, and a payload capacity of 1600 kg, it offers great versatility for everyday tasks. Its articulated design and 45° steering angle ensure outstanding maneuverability, while a travel speed of up to 21 km/h allows for efficient movement on site. The loader features a 0.4 m³ bucket, a 72 l/min hydraulic system, and a comfortable cab with a height of 2390 mm. A compact width of 1300 or 1600 mm makes it ideal for agricultural, municipal, and construction applications.

Engine
KUBOTA D1703
Displacement: 1647 ml
Emission certification: EURO 5
Power output: 18.5 kW at 2200 rpm
Max. torque: 97.4 N·m at 1500 rpm
Cooling system: water-cooled

KUBOTA D1803
Displacement: 1826 ml
Emission certification: EURO 5
Power output: 27.6 kW at 2700 rpm
Max. torque: 112.4 N·m at 1600 rpm
Cooling system: water-cooled

Transmission
Type: hydraulic, electromagnetic
Number of gears: 2

Electrical system
Operating voltage: 12 V
Battery: 80 Ah

Weight and lifting capacity
Operating weight: 2770–2800 kg
Maximum lifting force: 2000 kg

Tipping load with bucket (ISO 14397):
– Boom raised horizontally, straight ahead: 1600 kg
– Boom raised horizontally, articulated turn: 1050 kg

Rated load with pallet forks (ISO 14379):
– Boom raised horizontally, straight ahead: 1400 kg
– Boom raised horizontally, articulated turn: 850 kg

Vehicle parameters
Travel speed:
– D1703: L: 0–7 km/h | H: 0–15 km/h
– D1803: L: 0–10 km/h | H: 0–21 km/h

Bucket capacity: 0.4 m³
Fuel tank capacity: 50 l
Hydraulic oil capacity: 50 l

Hydraulic system
Hydrostatic drive – flow rate: 72 l/min
Operating pressure (drive): 380 bar

Auxiliary hydraulics:
– D1703: 44 l/min
– D1803: 50 l/min

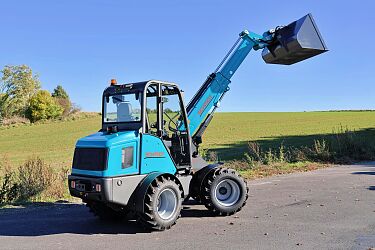

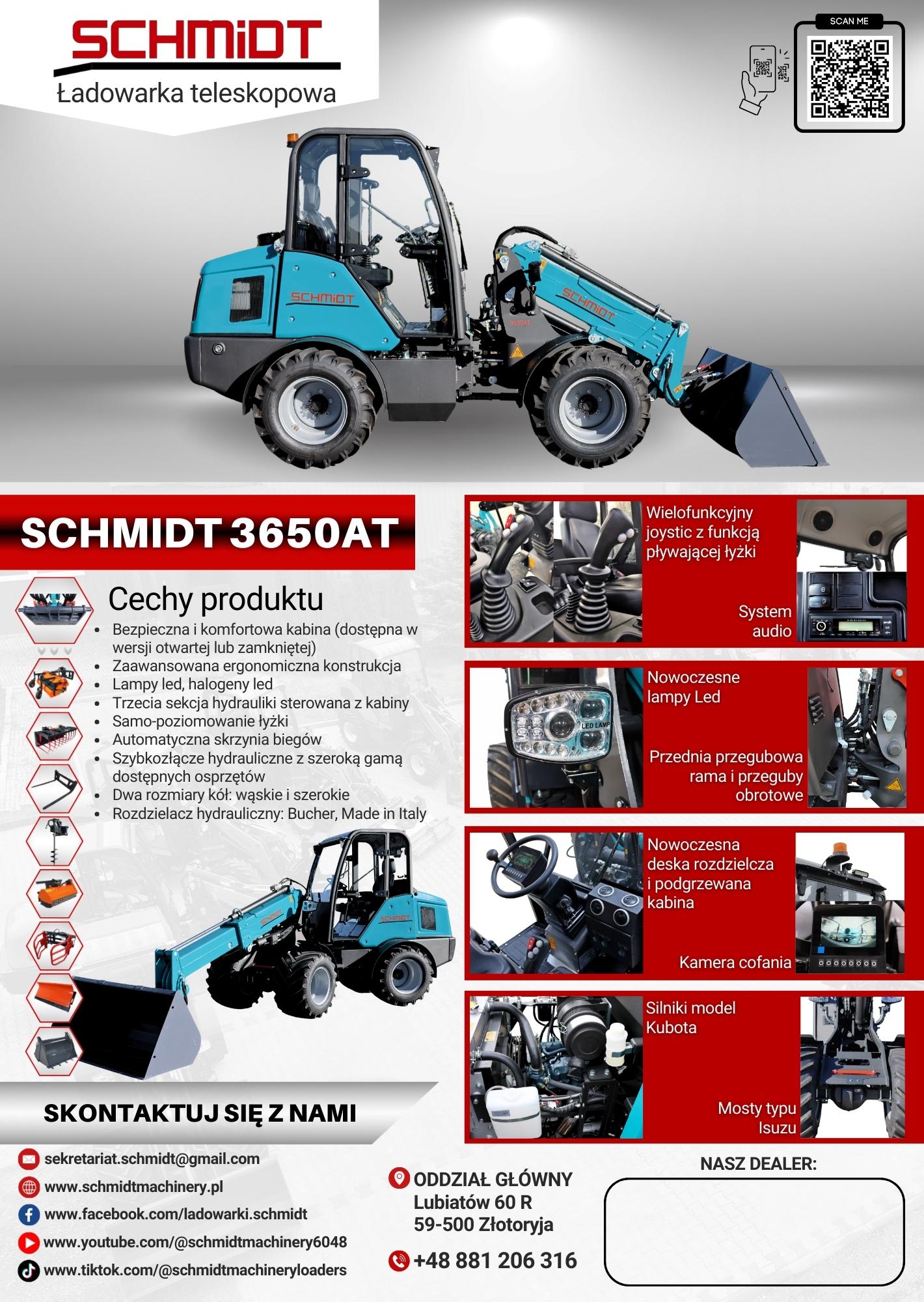

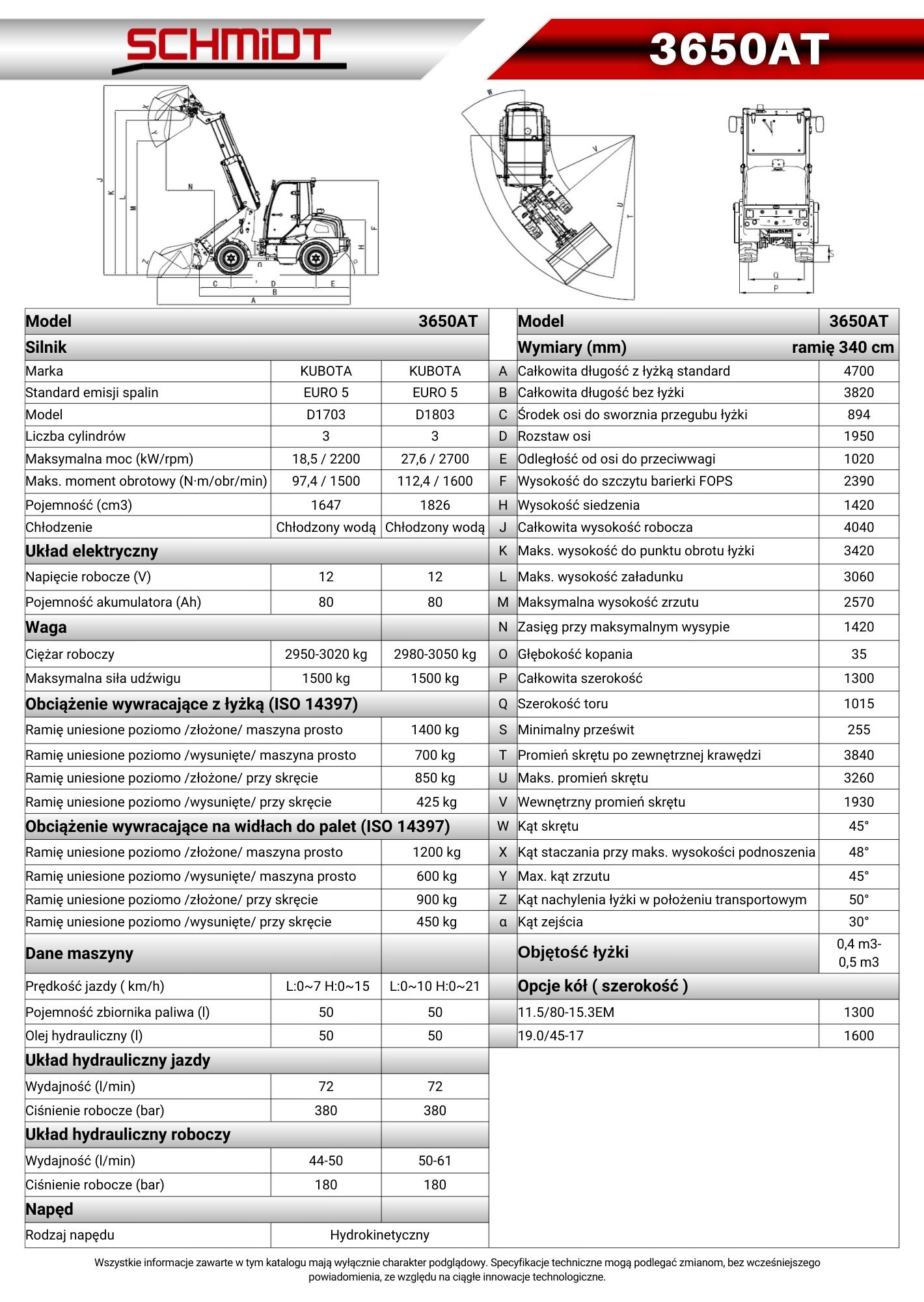

Schmidt 3650AT telescopic loader

The 3650AT is a compact, modern telescopic loader designed for efficiency and mobility. Equipped with a Euro 5 Kubota engine delivering 18.5 or 27.6 kW, it combines low fuel consumption with reliability. With an operating weight of 2,900 kg, it can lift up to 1,400 kg, and its articulated design with a 45° steering angle ensures exceptional maneuverability. Travel speeds of up to 21 km/h allow work pace to adapt to different terrains. The model is available with a 0.4 or 0.5 m³ bucket, an efficient 72 l/min hydraulic system, and a spacious 2,390 mm cabin. Its compact dimensions (1,300 or 1,600 mm wide) make it ideal for agriculture, municipal work, and construction sites.

Engine
Variant 1 – KUBOTA D1703
Emission standard: EURO 5
Number of cylinders: 3
Maximum power: 18.5 kW at 2,200 rpm
Maximum torque: 97.4 N·m at 1,500 rpm
Displacement: 1,647 cm³
Cooling: water-cooled

Variant 2 – KUBOTA D1803
Emission standard: EURO 5
Number of cylinders: 3
Maximum power: 27.6 kW at 2,700 rpm
Maximum torque: 112.4 N·m at 1,600 rpm
Displacement: 1,826 cm³
Cooling: water-cooled

Electrical system:
Operating voltage: 12 V
Battery capacity: 80 Ah

Weight and lifting capacity
Operating weight:
D1703: 2,950–3,020 kg
D1803: 2,980–3,050 kg
Maximum lifting capacity: 1,500 kg

Tipping load with bucket (ISO 14397)
Horizontal arm, retracted, straight: 1,400 kg
Horizontal arm, extended, straight: 700 kg
Horizontal arm, retracted, with turn: 850 kg
Horizontal arm, extended, with turn: 425 kg
Tipping load with pallet forks (ISO 14397)
Horizontal arm, retracted, straight: 1,200 kg
Horizontal arm, extended, straight: 600 kg
Horizontal arm, retracted, with turn: 900 kg
Horizontal arm, extended, with turn: 450 kg

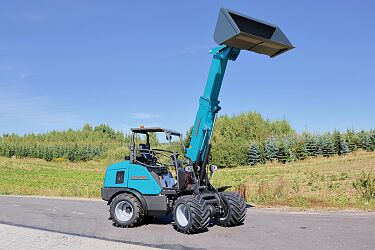

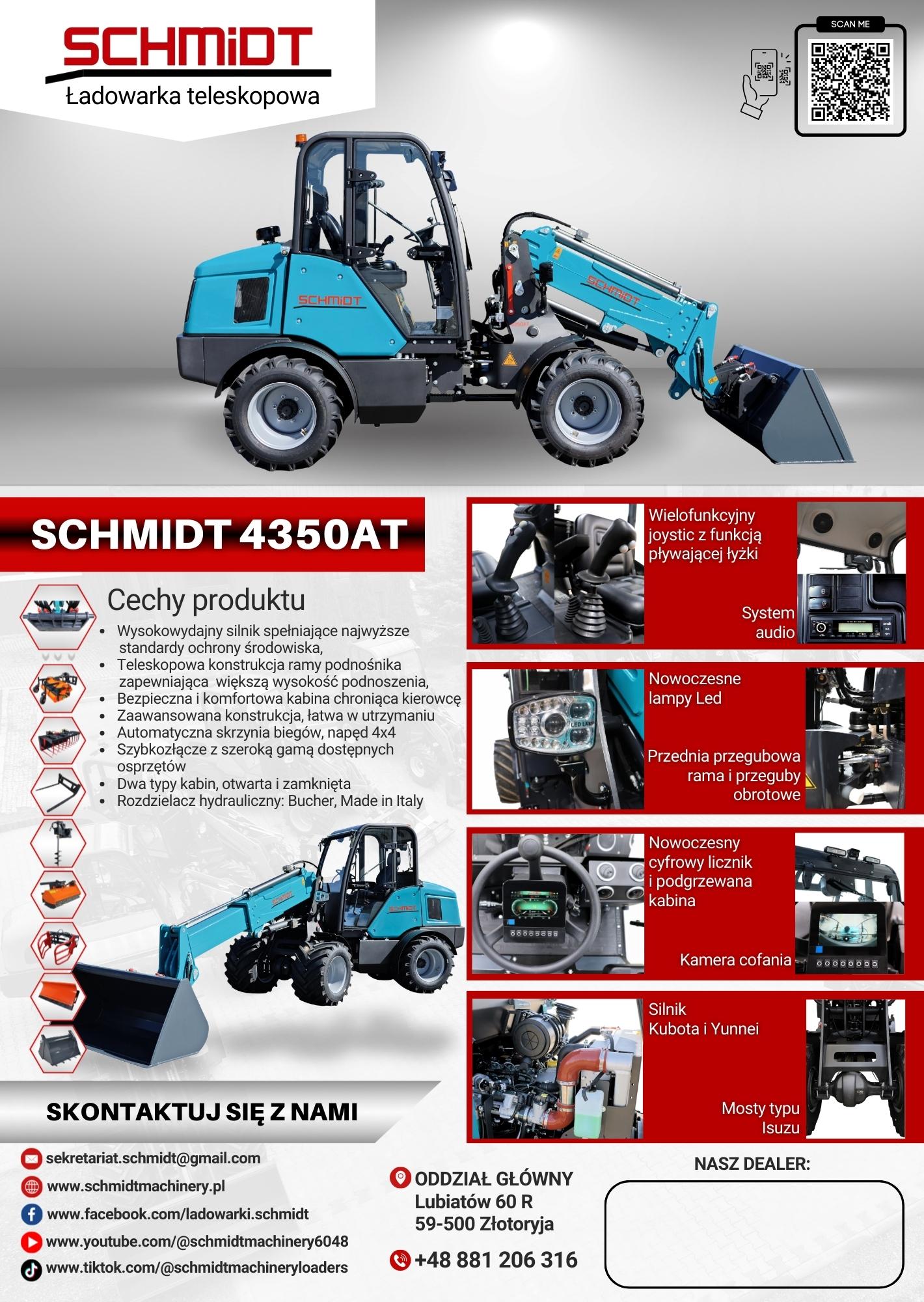

Schmidt 4350AT telescopic loader

The 4350AT loader features an impressive reach thanks to its telescopic boom design. The machine combines high power with excellent performance – a lifting capacity of 1,760 kg with the boom retracted and 1,000 kg at full extension allows handling heavy materials with ease. With an efficient 65 l/min hydraulic pump and a precise Bucher distributor, attachment operation is smooth, fast, and fully controlled. Telescopic boom design providing excellent lifting height Machine weight: 3,500 kg Maximum lifting capacity: 2,100 kg Maximum lifting height: 4,180 mm Kubota engine with 50 HP Intuitive operation via multifunction joystick and steering wheel-mounted display Hydraulic quick coupler Powerful LED lighting Two tire widths available Italian Bucher hydraulic distributor

Engine
Brand: Kubota
Model: V2403
Emission standard: EURO 5
Number of cylinders: 4
Maximum power: 36.8 kW at 2,700 rpm
Maximum torque: 159.8 Nm at 1,600 rpm
Cooling: Water-cooled
Displacement: 2,400 cm³

Brand: Yunnei
Model: DEF20CFG4
Emission standard: EURO 5
Number of cylinders: 4
Maximum power: 36.8 kW at 2,500 rpm
Maximum torque: 183 Nm at 1,850 rpm
Cooling: Water-cooled
Displacement: 1,999 cm³

Electrical system
Operating voltage: 12 V
Battery capacity: 120 Ah
Current: 70 A

Weight and lifting capacity
Operating weight (standard): 3,500 kg
Maximum lifting capacity: 2,100 kg

Chassis
Travel speed: 0–10 km/h; 0–24 km/h
Fuel tank capacity: 50 L
Hydraulic oil capacity: 50 L

Hydraulic system
Working pressure: 180 bar
Pump capacity:

Main: 65 L/min

Telescopic: 52 L/min

Tipping load (ISO 14397) with bucket:
Horizontal arm, retracted, machine straight: 1,760 kg
Horizontal arm, extended, machine straight: 1,000 kg
Horizontal arm, retracted, with turn: 1,430 kg
Horizontal arm, extended, with turn: 790 kg

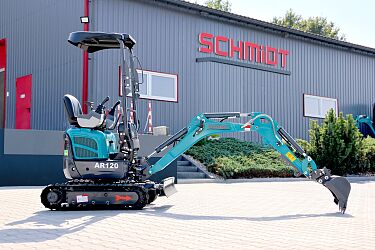

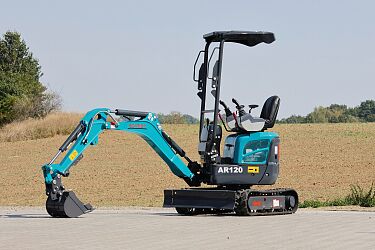

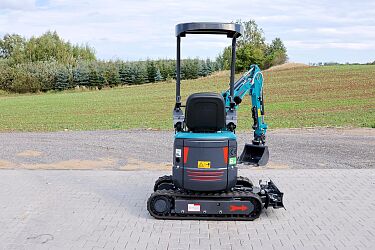

AR120 Mini Excavator

The AR120 excavator is a versatile and efficient machine, ideal for gardens, farms, and landscaping work. The Kubota D722 engine with a displacement of 719 cm³ delivers 10.2 kW at 2,500 rpm, while the 1,200 kg operating weight ensures easy maneuverability in confined spaces. Rubber tracks and 140 mm ground clearance allow operation on various surfaces without causing damage. A maximum digging depth of 1,805 mm and a dump height of 2,225 mm expand its range of applications. The hydraulic system, equipped with a 21 L/min pump and 17.2 MPa operating pressure, guarantees performance and reliability. The adjustable dozer blade (750/990 mm, height 200 mm) further enhances the machine’s functionality.

Engine
Brand: Kubota
Model: D722
Emission standard: EURO 5
Maximum power: 10.2 kW / 13.8 HP / 2500 rpm

Type and Dimensions
Cab type: Open cab
Bucket capacity: 0.024 m³ (398 mm)
Operating weight: 1200 kg
Overall length: 2965 mm
Overall height: 2230 mm
Overall width: 750 / 990 mm
Minimum ground clearance: 140 mm
Boom swing angle (left/right): 55° / 55°

Undercarriage and Tracks
Track type: Rubber tracks
Track width: 180 mm
Track length: 1310 mm
Travel speed: 2–4 km/h
Gradeability: 58° / 30°
Ground pressure: 29 kPa

Working Ranges
Maximum digging height: 3079 mm
Maximum dumping height: 2225 mm
Maximum digging depth: 1805 mm
Maximum digging reach: 3390 mm
Minimum turning radius: 1273 mm
Maximum digging force (arm): 5.4 kN
Maximum digging force (bucket): 10.4 kN
Swing speed: 8.3 rpm

Hydraulic System
Control valve: TaiFeng brand
Hydraulic pump: Shimadzu gear pump (Japan)
Flow rate / Pressure: 21 L/min / 17.2 MPa
Swing motor: Ningbo Zhongyi piston motor
Flow rate / Pressure: 3.1 L/min / 3.9 MPa
Travel motor: LKC piston motor

Tank Capacities
Fuel tank: 12 L
Hydraulic oil tank: 12.6 L

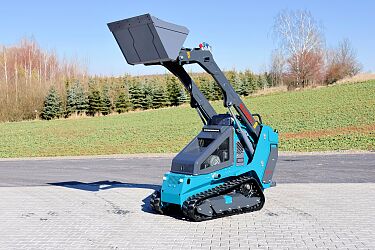

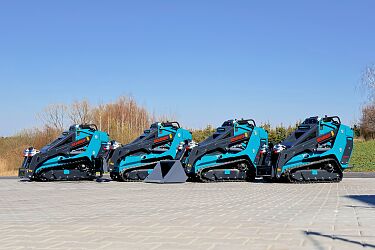

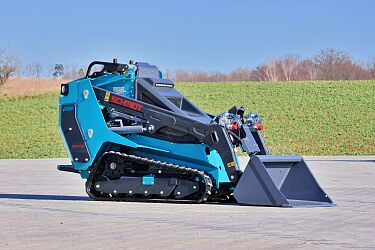

AR100 Mini Loader

The AR 100 tracked mini loader combines compact dimensions with impressive performance, offering a lifting capacity of 454 kg with an operating weight of 1,350 kg and a lifting height of up to 2,110 mm. Equipped with an 18.2 kW Kubota engine and an Italian control valve, it guarantees reliability and long service life. Intuitive operation is ensured by a 7-inch display, while the ergonomic console enhances working comfort. Operator safety is protected by a password-secured keyless start system and an automatic machine lock. Thanks to the preheating system and a 50-liter fuel tank, the machine is ready for intensive work in all conditions.

Engine
Kubota D1105
Emission standard: Tier 4 / Stage V (E5)
Number of cylinders: 3
Maximum power: 18.2 kW at 3000 rpm
Maximum torque: 70.4 Nm at 2200 rpm
Displacement: 1123 cm³
Cooling: Water-cooled

Electrical System
Operating voltage: 12 V
Battery capacity: 45 Ah

Weight
Operating weight: 1350 kg
Tipping load: 1285 kg
Rated load: 454 kg
Operating capacity: 650 kg

Vehicle Data
Drive type: Rubber tracks
Track width: 200 / 230 mm
Ground pressure: 31.5 / 27.4 kPa
Travel speed: 6.2 km/h
Tractive force: 1200 daN
Fuel tank capacity: 50 L
Hydraulic oil capacity: 30 L

Travel Hydraulic System
Flow rate: 2 × 40 L/min
Operating pressure: 210 bar

Working Hydraulic System
Flow rate: 2 × 33 L/min
Operating pressure: 195 bar

Drive System
Drive type: Hydrostatic

Dimensions
A: Overall operating height: 2870 mm
B: Overall height: 1380 mm
C: Rear departure angle: 12.5°
D: Ground clearance: 200 mm
E: Wheelbase: 1130 mm
F: Length without bucket: 2160 mm
G: Length with bucket: 2800 mm
I: Dump reach: 335 mm
J: Dump angle: 50.5°
K: Maximum rollback at full height: 84.5°
L: Maximum tilt from ground: 26°
M: Dump height: 1650 mm

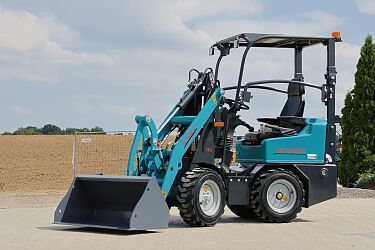

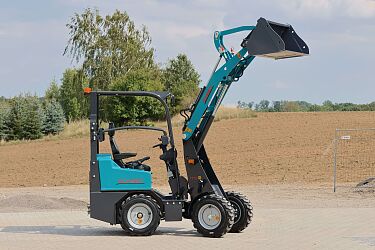

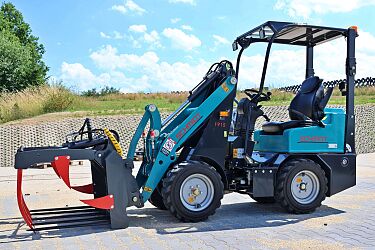

Schmidt 1915 Mini Loader

The Schmidt 1915 mini loader is a compact machine that combines power, precision, and versatility. Thanks to its exceptional maneuverability, it performs perfectly in areas where space is highly limited and every movement requires full control. The hydrostatic drive significantly improves smooth operation, makes complex maneuvers easier, and enhances safety. The robust hydraulic system from the Italian brand Bondioli & Pavesi enables the use of high-performance attachments, ensuring efficient completion of even the most demanding tasks. Whether you work on a construction site, on a farm, or in forestry, the 1915 mini loader allows you to complete jobs faster, more efficiently, and with greater comfort.

Engine
Kubota D902-EF03
Emission certification: EU Stage V
Maximum power: 15.9 kW
Number of cylinders: 3
Displacement: 0.898 L
Cooling: Water-cooled
Operating voltage: 12 V
Battery: 45 Ah

Weight and Lifting Capacity (210 cm boom)
Operating weight (standard): 1210–1250 kg
Maximum lifting force: 700 kg

Rated load with bucket:
With raised boom, straight position: 700 kg
With raised boom, articulated position: 480 kg

Drive and Hydraulic System
Drive: Hydraulic
Travel speed: 12 km/h
Fuel tank capacity: 25 L
Hydraulic oil capacity: 32 L

Working Hydraulic System
Flow rate: 54 L/min
Working pressure: 250 bar

Hydraulic Control System
Flow rate: 25 L/min
Working pressure: 180 bar

Operating Parameters
Maximum lifting height: 2608 mm
Maximum height to bucket pivot point: 2556 mm
Maximum lifting height (horizontal): 2238 mm
Maximum dump height: 1694 mm
Reach at maximum lifting height: 482 mm
Digging depth: 58 mm

Tires
Size: 23 x 8.5 – 12NHS
Width: 930 mm

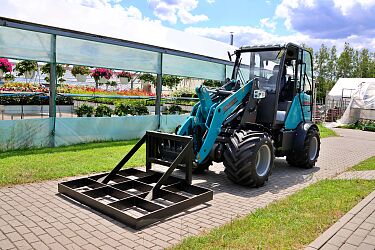

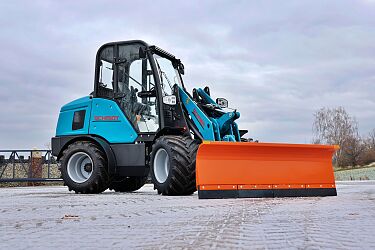

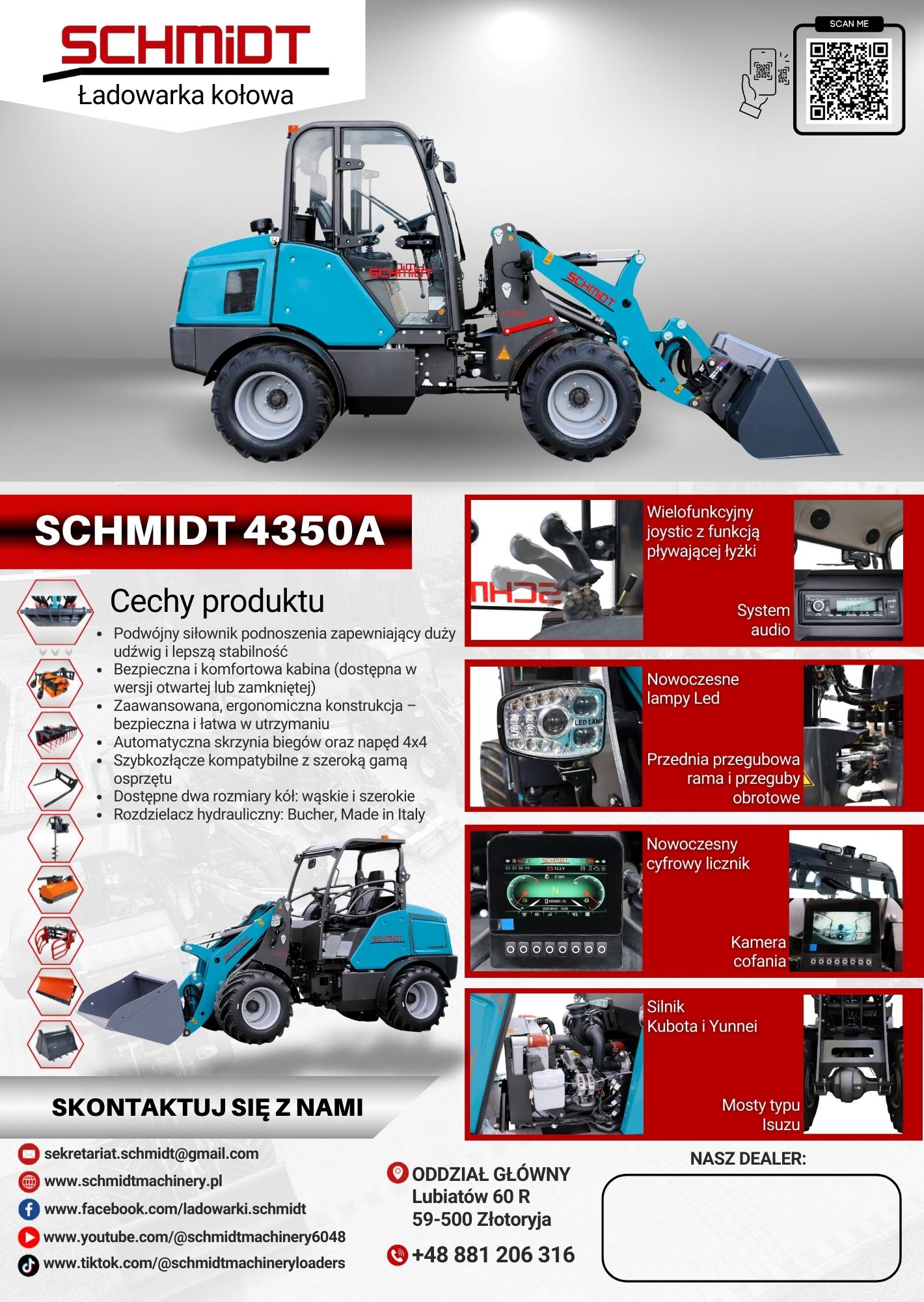

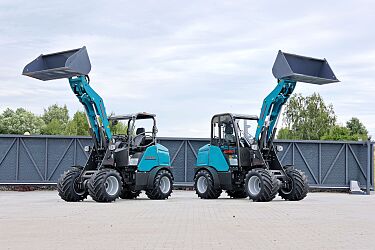

SCHMIDT 4350A loader

Meet the new, upgraded version of the Schmidt 4350A loader – a versatile, powerful, and reliable machine built for tough farm and construction work. With a lifting capacity of 2 tons, a maximum lift height of 3.2 meters, and an operating weight of 3,400 kg, it can handle even the most demanding tasks. Its compact dimensions (1.3–1.6 m wide) and 4×4 drive provide excellent maneuverability. The modern cabin features an innovative virtual cockpit, a suspended seat, joystick controls, and a rearview camera, ensuring maximum comfort during long working hours. Equipped with a 50 HP Kubota engine meeting EURO 5 standards and a hydraulic quick coupler, it allows efficient year-round operation with various attachments. The Schmidt 4350A is a machine that works hard and earns for you.

Engine
Brand: Kubota
Model: V2403
Emission standard: EURO 5
Number of cylinders: 4
Maximum power: 36.8 kW at 2,700 rpm
Maximum torque: 159.8 Nm at 1,600 rpm
Cooling: Water-cooled
Displacement: 2,400 cm³

Brand: Yunnei
Model: DEF20CFG4
Emission standard: EURO 5
Number of cylinders: 4
Maximum power: 36.8 kW at 2,500 rpm
Maximum torque: 183 Nm at 1,850 rpm
Cooling: Water-cooled
Displacement: 1,999 cm³

Electrical system:
Operating voltage: 12 V
Battery capacity: 80 Ah
Current: 65 A

Weight and lifting capacity:
Operating weight: 3,400 kg
Maximum lifting capacity: 2,480 kg

Tipping load (ISO 14397) with bucket:
Horizontal arm, retracted, machine straight: 2,060 kg
Horizontal arm, retracted, with turn: 1,700 kg

Tipping load (ISO 14397) with pallet forks:
Horizontal arm, retracted, machine straight: 1,680 kg
Horizontal arm, retracted, with turn: 1,400 kg

Drive and hydraulic system:
Drive type: Hydrokinetic transmission
Travel speed: 0–10 km/h; 0–24 km/h
Fuel tank capacity: 50 L
Hydraulic oil capacity: 50 L

Working hydraulic system:
Flow rate: 58 L/min
Working pressure: 180 bar
