Description
REGUPOL has been developing sustainable high-performance solutions made from recycled elastic materials since 1954. As an internationally active, family-owned company, REGUPOL stands for resource-efficient products based on the principles of the circular economy. The product portfolio comprises high-performance solutions for applications in construction, acoustics, sports, leisure and load securing.
Within the construction sector, REGUPOL provides system solutions for a wide range of requirements. For the solar industry, specially developed protection mats are used to reliably safeguard roof waterproofing systems and to support the long-term operation of photovoltaic installations on flat roofs. By processing more than 90,000 tonnes of recycled elastomers each year and drawing on extensive material expertise, REGUPOL contributes to sustainable energy generation and climate-friendly construction. Guided by the aim of making the built environment more sustainable, safer and more liveable, REGUPOL combines innovation, reliable product quality and comprehensive service.
Product description

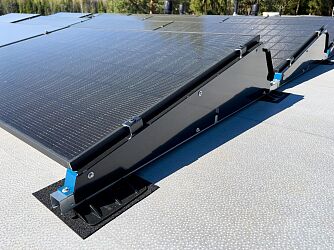

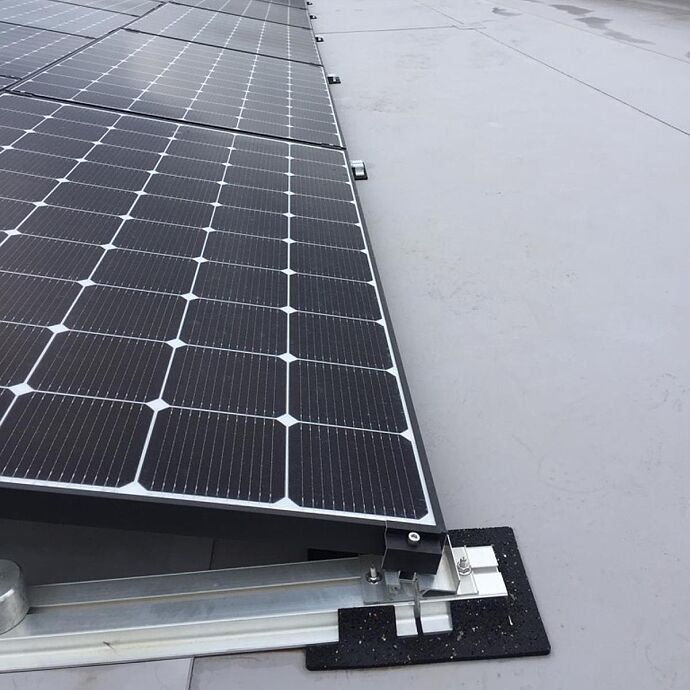

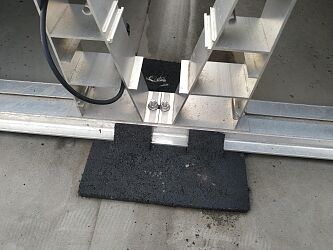

REGUPOL protective layers for photovoltaic and solar installations on flat roofs are developed in accordance with DIN 18531. They reliably protect roof waterproofing membranes against mechanical loads during installation and operation, thereby extending the service life of the waterproofing system.
The protective layers are available in various versions, including the following:
• Flame-retardant design (BROOF(t1)) for projects with increased fire protection requirements
• With aluminium lamination, acting as a separation layer for non-rubber-compatible waterproofing membranes and preventing plasticiser migration
• Self-adhesive version for fast and secure positioning, even on complex roof structures
In addition, individual cut-to-size solutions and custom fabrications are available to ensure optimal adaptation to the respective mounting system or substructure.
Within the construction sector, REGUPOL provides system solutions for a wide range of requirements. For the solar industry, specially developed protection mats are used to reliably safeguard roof waterproofing systems and to support the long-term operation of photovoltaic installations on flat roofs. By processing more than 90,000 tonnes of recycled elastomers each year and drawing on extensive material expertise, REGUPOL contributes to sustainable energy generation and climate-friendly construction. Guided by the aim of making the built environment more sustainable, safer and more liveable, REGUPOL combines innovation, reliable product quality and comprehensive service.
Product description
REGUPOL protective layers for photovoltaic and solar installations on flat roofs are developed in accordance with DIN 18531. They reliably protect roof waterproofing membranes against mechanical loads during installation and operation, thereby extending the service life of the waterproofing system.
The protective layers are available in various versions, including the following:
• Flame-retardant design (BROOF(t1)) for projects with increased fire protection requirements
• With aluminium lamination, acting as a separation layer for non-rubber-compatible waterproofing membranes and preventing plasticiser migration
• Self-adhesive version for fast and secure positioning, even on complex roof structures
In addition, individual cut-to-size solutions and custom fabrications are available to ensure optimal adaptation to the respective mounting system or substructure.
Products

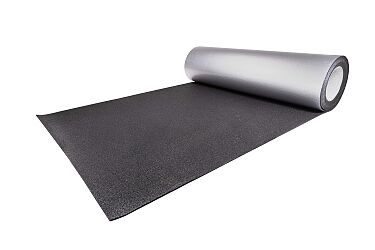

REGUPOL solar alu
REGUPOL solar alu
REGUPOL solar alu is a protective layer for photovoltaic and solar installations on flat roofs with non-rubber-compatible waterproofing. The product complies with DIN 18531 and the Flat Roof Guidelines. An aluminium triplex foil laminated to the underside prevents unwanted interactions such as plasticiser migration, including with PVC-P waterproofing membranes. The protective layer reliably protects roof waterproofing against mechanical and thermal influences. REGUPOL solar alu is pressure-resistant, permanently elastic, resistant to microbes, temperature and ageing, vapour-permeable and rot-proof. The product can be individually adapted to the mounting system and consists of up to 95 percent PUR-bonded rubber granules made from recycled tyres.
REGUPOL solar alu is an elastic prefabricated protective mat designed for use on flat roofs and underneath photovoltaic and solar systems. The black protective layer is made from selected rubber granules bound with polyurethane and features a triplex aluminium foil laminated to the underside, ensuring compatibility with non-rubber-compatible waterproofing systems. REGUPOL solar alu is available in various thicknesses, which can be individually adapted to project requirements and the respective mounting system; a standard thickness of 8 mm is commonly used. The product has a specific weight of 780 kg/m³ and a surface weight of 6.24 kg/m². According to DIN EN ISO 1798, the material (without lamination) achieves a tensile strength of 0.65 N/mm² and an elongation at break of 55 percent. The compressive stress at 25 percent compression is 0.70 N/mm² in accordance with DIN EN ISO 3386-2. REGUPOL solar alu is temperature-resistant from –40 °C up to +90 °C and classified as fire resistance class E according to DIN EN 13501-1. The product is Cradle to Cradle Certified® at the Bronze level, highlighting its sustainable material concept and contribution to circular economy principles.
REGUPOL solar fire
REGUPOL solar fire
REGUPOL solar fire is a protective layer for photovoltaic installations on flat roofs with increased fire protection requirements. The product complies with DIN 18531, the Flat Roof Guidelines and holds a General Building Authority Test Certificate (AbP). At a thickness of ≥ 8 mm, it achieves fire classification BROOF (t1) according to DIN EN 13501-5, providing resistance to flying sparks and radiant heat. The protective layer reliably protects roof waterproofing and thermal insulation against mechanical and thermal influences. REGUPOL solar fire consists of up to 95 percent PUR-bonded rubber granules made from recycled tyres.
REGUPOL solar fire is a flame-retardant elastic prefabricated protective mat for use on flat roofs and underneath photovoltaic systems. The black protective layer is made from selected rubber granules bound with polyurethane and is designed for applications with increased fire protection requirements. REGUPOL solar fire is available in various thicknesses adapted to project requirements; a standard thickness of 8 mm is commonly used. The product has a specific weight of 765 kg/m³ and a surface weight of 6.12 kg/m². According to DIN EN ISO 1798, it achieves a tensile strength of 0.50 N/mm² and an elongation at break of 40 percent. The compressive stress at 25 percent compression is 0.70 N/mm² in accordance with DIN EN ISO 3386-2. REGUPOL solar fire is temperature-resistant from –40 °C up to +115 °C and classified as fire resistance class BROOF (t1) according to DIN EN 13501-5. The product is Cradle to Cradle Certified® at the Bronze level. Technical values are based on periodic laboratory testing.

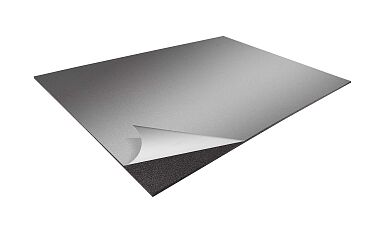

REGUPOL solar glue
REGUPOL solar glue
REGUPOL solar glue is a protective layer for photovoltaic and solar installations on flat roofs, compliant with DIN 18531 and the Flat Roof Guidelines. The product features a self-adhesive backing that supports fast and easy installation and stabilises the protective layer in position. REGUPOL solar glue reliably protects roof waterproofing and thermal insulation against mechanical, thermal and chemical influences. It is pressure-resistant, permanently elastic, resistant to microbes, temperature and ageing, vapour-permeable, water-permeable and rot-proof. The product can be individually adapted to the mounting system and consists of up to 95 percent PUR-bonded rubber granules made from recycled tyres, representing a practical example of circular economy.
REGUPOL solar glue is an elastic prefabricated protective mat designed for use on flat roofs underneath photovoltaic and solar systems. The black protective layer is made from selected rubber granules bound with polyurethane and features a self-adhesive lamination that supports fast and secure installation. REGUPOL solar glue is available in various thicknesses adapted to project requirements, with a standard thickness of 8 mm. The product has a specific weight of 780 kg/m³ and a surface weight of 6.24 kg/m². According to DIN EN ISO 1798, the material (without lamination) achieves a tensile strength of 0.65 N/mm² and an elongation at break of 55 percent. The compressive stress at 25 percent compression is 0.70 N/mm² in accordance with DIN EN ISO 3386-2. REGUPOL solar glue is temperature-resistant from –40 °C up to +90 °C and classified as fire resistance class E according to DIN EN 13501-1. The product is Cradle to Cradle Certified® at the Bronze level, highlighting its sustainable material concept and contribution to circular economy principles.

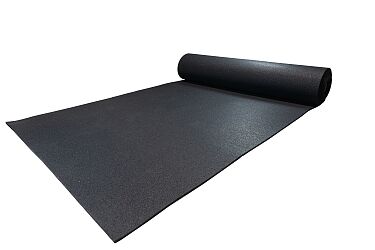

REGUPOL solar standard
REGUPOL solar standard
REGUPOL solar standard is a protective layer for photovoltaic and solar installations on flat roofs, compliant with DIN 18531 and the Flat Roof Guidelines. The product is designed and fabricated to match the respective mounting system. During installation and operation of PV systems, it reliably protects roof waterproofing against mechanical damage and temperature influences, extending its service life. The protective layer is pressure-resistant, permanently elastic, resistant to microbes, temperature and ageing, water-permeable, vapour-permeable and rot-proof. REGUPOL solar standard consists of up to 95 percent PUR-bonded rubber granules made from recycled tyres.
REGUPOL solar standard is a black elastic prefabricated protective mat made from selected rubber granules bound with polyurethane. The product is available in various thicknesses, which can be individually adapted to project requirements and the respective mounting system. With a standard thickness of 8 mm, the mat combines high mechanical stability with durable elasticity. It has a specific weight of 780 kg/m³ and a surface weight of 6.24 kg/m². According to DIN EN ISO 1798, REGUPOL solar standard achieves a tensile strength of 0.65 N/mm² and an elongation at break of 55 percent, ensuring reliable performance under load. The compressive stress at 25 percent compression is 0.70 N/mm² in accordance with DIN EN ISO 3386-2. The material is temperature-resistant from –40 °C up to +115 °C and classified as fire resistance class E according to DIN EN 13501-1. REGUPOL solar standard is Cradle to Cradle Certified® at the Bronze level, underlining its sustainable material concept and contribution to circular economy principles.
