PV Protector®
- Bismarckstraße 2/1, 71139 Ehningen, Germany
- 015566481660
- info@pyramidi.de
- www.pv-protector.com
Description
PV Protector® is a professional bird protection system designed specifically for photovoltaic installations, developed and distributed by Pyramidi GmbH (Germany). The system effectively prevents birds from nesting underneath PV modules, protecting system performance, cabling, and roof structures.
PV Protector® consists of perimeter segments, C-clips, and cable ties, enabling fast, tool-free outer-edge installation without drilling, screwing, or adhesive bonding. Its non-metallic design ensures no contact with the module frame, eliminating the risk of frame damage and warranty issues.
Manufactured using UV-stabilized and weather-resistant materials, PV Protector® is engineered for long-term outdoor durability. The system is compatible with most common PV module frame heights and is suitable for residential, commercial, and industrial photovoltaic installations, both for new projects and retrofit applications.
PV Protector® consists of perimeter segments, C-clips, and cable ties, enabling fast, tool-free outer-edge installation without drilling, screwing, or adhesive bonding. Its non-metallic design ensures no contact with the module frame, eliminating the risk of frame damage and warranty issues.
Manufactured using UV-stabilized and weather-resistant materials, PV Protector® is engineered for long-term outdoor durability. The system is compatible with most common PV module frame heights and is suitable for residential, commercial, and industrial photovoltaic installations, both for new projects and retrofit applications.
Download
-
PV-Protector-Brochure-Version-2.0-Issued-2026-02-A4-EN.pdffile size: 3.48 MB
-
PV-Protector-Brochure-Version-2.0-Issued-2026-02-A4-PL.pdffile size: 3.54 MB
-
PV-Protector-Datasheet-2026-A.pdffile size: 1.90 MB
-
PV-Protector-Installation-Manual.pdffile size: 3.96 MB
Products

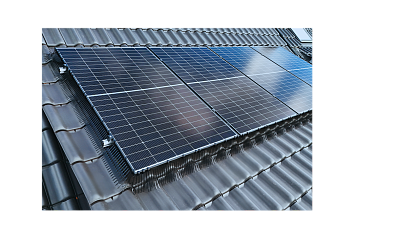

PV Protector® Professional Bird Barrier System for PV Systems
PV Protector® Professional Bird Barrier System for PV Systems
PV Protector® is a bird protection system designed for installation along the perimeter of photovoltaic modules. It prevents birds from nesting underneath PV arrays, helping to protect system performance, cabling, and roof structures.
The system consists of perimeter segments, C-clips, and cable ties, enabling fast, tool-free installation without drilling, screwing, or adhesive bonding. Its non-metallic design ensures no contact with the module frame, reducing the risk of damage and warranty issues.
Manufactured from UV-stabilized and weather-resistant materials, PV Protector® is suitable for long-term outdoor use. The system is compatible with most common PV module frame heights and is intended for residential, commercial, and industrial photovoltaic installations, including both new projects and retrofit applications.
PV Protector® is a perimeter protection system designed for installation along the outer edges of photovoltaic modules. The system prevents birds from nesting underneath PV panels, reducing the risk of soiling, cable damage, and performance losses.
System components:
– perimeter segments
– C-type mounting clips
– cable ties
Technical data:
– segment length: 502 mm
– segment height: 150 mm / 200 mm (variants)
– kit lengths: 30 m / 40 m
Materials:
Perimeter segments made of UV-stabilized HDPE, mounting clips manufactured from UV-resistant polymer, and cable ties made of PA66 polyamide, suitable for outdoor use.
Installation:
Tool-free installation without drilling, screwing, or adhesive bonding. Mounted on the outer edge of the PV module. No metal parts are in contact with the module frame.
Application:
Compatible with most common PV module frame heights (30 mm / 35 mm / 40 mm). Suitable for residential, commercial, and industrial photovoltaic installations, including both new projects and retrofit applications.
Durability:
UV- and weather-resistant materials. Designed service life: 10 years.
System components:
– perimeter segments
– C-type mounting clips
– cable ties
Technical data:
– segment length: 502 mm
– segment height: 150 mm / 200 mm (variants)
– kit lengths: 30 m / 40 m
Materials:
Perimeter segments made of UV-stabilized HDPE, mounting clips manufactured from UV-resistant polymer, and cable ties made of PA66 polyamide, suitable for outdoor use.
Installation:
Tool-free installation without drilling, screwing, or adhesive bonding. Mounted on the outer edge of the PV module. No metal parts are in contact with the module frame.
Application:
Compatible with most common PV module frame heights (30 mm / 35 mm / 40 mm). Suitable for residential, commercial, and industrial photovoltaic installations, including both new projects and retrofit applications.
Durability:
UV- and weather-resistant materials. Designed service life: 10 years.
