RAZORTEK CNC Co.,Ltd.
- Room 2206, Building 8, Shangang Xintiandi, No. 61-11 Gongye, PRC-250000 JINAN, China
- +8615254150505
- 396509223@qq.com
- www.razortekcnc.com
Description
our core focus is the laser machine industries. Include fiber laser cutting machine, fiber laser welding machine, fiber laser cleaning machine. Razortek focused on quality and support.
All of our machines pass the European Union CE authentication and American FDAcertificate.Our growing list of resellers currently include France, England, Spain, the Republic of Lithuania, Netherlands,Russia, Mexico, South Africa, our focus on quality and supporthas earned customers in almost every country around the world.
All of our machines pass the European Union CE authentication and American FDAcertificate.Our growing list of resellers currently include France, England, Spain, the Republic of Lithuania, Netherlands,Russia, Mexico, South Africa, our focus on quality and supporthas earned customers in almost every country around the world.
Download
-
RAZORTEK-2.pdffile size: 4.05 MB
Products

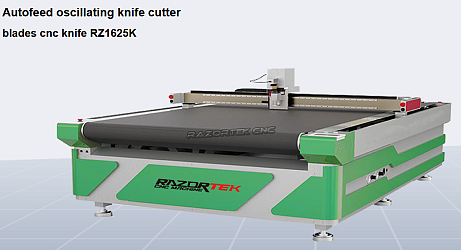

Autofeed Oscillating Knife Cutter
Autofeed Oscillating Knife Cutter
CNC oscillating knife cutter leather sofa cutting, ruida 6565 controller, taiwan delta servo motor driver, vacuum table, good at leather, various garment flexible materials, KT board.
Model: RZ1625K
Category: Digital knife cutter
Brand: RAZORTEK
Model: RZ1625K/RZ1825K
Max.cutting size: 1600*2500mm/1800*2500mm
Power: 11Kw
Multifunction tool head: Oscillating straight knife/round knife/pneumatic knife/identification roller/marker pen holder/punching hole device/V-groove cut tool/CCD camera/tangential knife/drilling tool/projector
Security device: High sensitive infrared induction
Cutting speed: Max.1200mm/s(can be set up according to different materials)
Movement speed: Maximum 1500mm/s
Cutting material: Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive sticker
Cutting thickness: Maximum 20mm(set according to different materials and tools)
Material fixing method: High power vacuum absorption with felt
Repeated positioning accuracy: +-0.05mm
Mechanical precision: Maximum 0.05mm
Drive system: Taiwan Delta servo motor, Taiwan PMI linear guide rails
Control system: Chinese brand RD control system
Data transmission method: USB port or Ethernet Support file: DXF, PLT, AI SVG, PDF, NC, DST, DSB, etc.
Max.cutting size: 1600*2500mm/1800*2500mm
Power: 11Kw
Multifunction tool head: Oscillating straight knife/round knife/pneumatic knife/identification roller/marker pen holder/punching hole device/V-groove cut tool/CCD camera/tangential knife/drilling tool/projector
Security device: High sensitive infrared induction
Cutting speed: Max.1200mm/s(can be set up according to different materials)
Movement speed: Maximum 1500mm/s
Cutting material: Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive sticker
Cutting thickness: Maximum 20mm(set according to different materials and tools)
Material fixing method: High power vacuum absorption with felt
Repeated positioning accuracy: +-0.05mm
Mechanical precision: Maximum 0.05mm
Drive system: Taiwan Delta servo motor, Taiwan PMI linear guide rails
Control system: Chinese brand RD control system
Data transmission method: USB port or Ethernet Support file: DXF, PLT, AI SVG, PDF, NC, DST, DSB, etc.

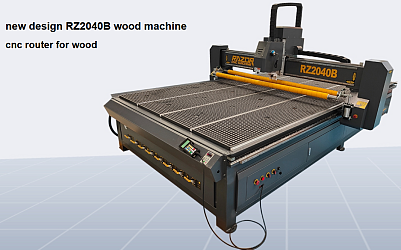

New Design RZ2040B Wood Machine
New Design RZ2040B Wood Machine
High end new design CNC router with full metal cover, safety plug with CE standard, NK105 DSP controller, Taiwan KETEC gear transmission, auto oil lubrication.
Model: RZ2040B
Category: 3 Axis CNC
Brand: RAZORTEK
Model: RZ1325B/RZ1530B/RZ2030B/RZ2040B
Working area/mm: 1300*2500*200(X*Y*Z)/1500*300*200/2000*3000*200/2000*4000*200
Spindle motor: 3.5Kw/4.5Kw/6Kw air cooling spindle
Working mode: LEADSHINE driver and stepper motor
Control system: NK105 DSP control system
Drive mechanism: Rack and pinion on x,y axis, z axis Taiwan TBI ball screw
Table surface: Vacuum&T-slot table/T slot table
Frame: steel structure
Motion positioning accuracy: +-0.03/300mm
Repositioning accuracy: +-0.05mm
Max motion speed: 50000mm/min
Max engraving speed:30000mm/min
Rotating speed of spindle: 18000rpm
Z-axis setting: Auto Z origin tool sensor
Dictate format: G code, *.u00, *mmg, *.plt.
Working area/mm: 1300*2500*200(X*Y*Z)/1500*300*200/2000*3000*200/2000*4000*200
Spindle motor: 3.5Kw/4.5Kw/6Kw air cooling spindle
Working mode: LEADSHINE driver and stepper motor
Control system: NK105 DSP control system
Drive mechanism: Rack and pinion on x,y axis, z axis Taiwan TBI ball screw
Table surface: Vacuum&T-slot table/T slot table
Frame: steel structure
Motion positioning accuracy: +-0.03/300mm
Repositioning accuracy: +-0.05mm
Max motion speed: 50000mm/min
Max engraving speed:30000mm/min
Rotating speed of spindle: 18000rpm
Z-axis setting: Auto Z origin tool sensor
Dictate format: G code, *.u00, *mmg, *.plt.

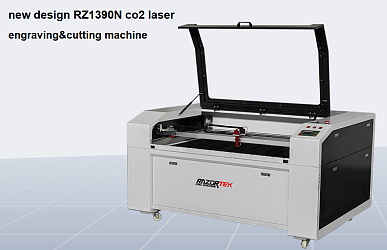

New Design RZ1390N CO2 Laser Engraving&Cutting Machine
New Design RZ1390N CO2 Laser Engraving&Cutting Machine
1300*900mm working area, full close design, 90w 100w 130w laser tube, engraving and cutting for almost all non-metal
Model: RZ6090N/RZ1390N/RZ1610N
Category: CO2 Laser
Brand: RAZORTEK
Model: RZ9060N/RZ1390N/RZ1610N
Working area: 900x600mm/1300x900mm/1600x1000mm
Worktable: Knife table/Honeycomb table
Laser power: 80w/90w/100w/130w/180w
Power supply: 110v/220v/50HZ/60HZ
Min line width: ≤0.15mm
Position accuracy: 0.01mm
Repetition accuracy: 0.02mm
Cutting speed: 150mm/s
Guide rail: Twaiwan HIWIN linear guide rail 30mm
Transmission method: Belt transmission
Drive system: 3 phase stepper motor and driver
Cooling way: water cooling
Control system: Ruida(USB interface)
Control software: RDCAM, Coreldraw, Photoshop, AutoCAD, Tajima
Graphic format support: PLT, DXF, BMP, JPG, AI
Cutting speed: 0-20000mm/min
Engraving speed: 0-40000mm/min
Working area: 900x600mm/1300x900mm/1600x1000mm
Worktable: Knife table/Honeycomb table
Laser power: 80w/90w/100w/130w/180w
Power supply: 110v/220v/50HZ/60HZ
Min line width: ≤0.15mm
Position accuracy: 0.01mm
Repetition accuracy: 0.02mm
Cutting speed: 150mm/s
Guide rail: Twaiwan HIWIN linear guide rail 30mm
Transmission method: Belt transmission
Drive system: 3 phase stepper motor and driver
Cooling way: water cooling
Control system: Ruida(USB interface)
Control software: RDCAM, Coreldraw, Photoshop, AutoCAD, Tajima
Graphic format support: PLT, DXF, BMP, JPG, AI
Cutting speed: 0-20000mm/min
Engraving speed: 0-40000mm/min

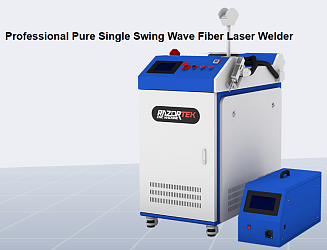

Professional Pure Single Swing Wave Fiber Laser Welder
Professional Pure Single Swing Wave Fiber Laser Welder
Razortek handheld fiber laser welder mainly for carbon steel, stainless, aluminum, metallic titanium etc welding, 1.5kw welding ability 0.3-4mm, 2kw 0.3-6mm, 3kw max7.5mm. handheld cutting around 5-6mm.the wire feeding system with single/double wire optional.
Model: RZ1500H/RZ2000H/RZ3000H
Category: Fiber Laser Welder
Brand: RAZORTEK
Laser type: CW Fiber Laser
Laser Head: SUPLASER
Laser Source Power(W): 1.5Kw/2Kw/3Kw
Average Power(W), Output Range(If adjustable): 0-3000
Laser wavelength: 1080+-5nm
Scanning Width(mm): 0-6nm
Fiber Cable Length(m): 10m
Cooling Type: Water cooling
Input Power: 220V, 380V 50/60H
Current: 14A
Power consumption(W): 6000W(including chiller)
Laser Head: SUPLASER
Laser Source Power(W): 1.5Kw/2Kw/3Kw
Average Power(W), Output Range(If adjustable): 0-3000
Laser wavelength: 1080+-5nm
Scanning Width(mm): 0-6nm
Fiber Cable Length(m): 10m
Cooling Type: Water cooling
Input Power: 220V, 380V 50/60H
Current: 14A
Power consumption(W): 6000W(including chiller)

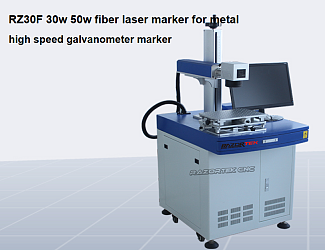

RZ30F 30w 50w Fiber Laser Marker For Metal
RZ30F 30w 50w Fiber Laser Marker For Metal
30w 50w desktop model fiber laser marker with PC, mainly marking on metal with thin laser beam, high precision and ezcad software, easy to learn for new user.
Model: RZ30F
Category: Fiber Laser Marker
Brand: RAZORTEK
Model: RZ30F/RZ50F
Laser power: Raycus/JPT/IPG Fiber 30w/50w
Working area: 200x200mm(300x300mm optional)
Laser wavelength: 1064mm
Response time: 0.5ms
Frequency of pulse: 20-100Khz
Max marking depth: ≤0.8mm
Marking lines: 1-10 lines(in the marking area)
Minimum line width: 10um
Minimum character: 0.15mm
Repeatability accuracy: +-0.002mm
Resolution ratio: 0.1mm
Marking content: Text, pattern, date, barcode, etc.
Operation system: Windows XP and win7, win8 and win10
Control software: EZCAD control software
Graphic format supported: bmp, jpg, gif, tga. png, tif, ai, dxf, dst, plt, etc
Laser power: Raycus/JPT/IPG Fiber 30w/50w
Working area: 200x200mm(300x300mm optional)
Laser wavelength: 1064mm
Response time: 0.5ms
Frequency of pulse: 20-100Khz
Max marking depth: ≤0.8mm
Marking lines: 1-10 lines(in the marking area)
Minimum line width: 10um
Minimum character: 0.15mm
Repeatability accuracy: +-0.002mm
Resolution ratio: 0.1mm
Marking content: Text, pattern, date, barcode, etc.
Operation system: Windows XP and win7, win8 and win10
Control software: EZCAD control software
Graphic format supported: bmp, jpg, gif, tga. png, tif, ai, dxf, dst, plt, etc
Multi Heads CNC Router RZ1630-6R
Multi Heads CNC Router RZ1630-6R
1600*3000mm working area, 6 spindle with 6 pcs 4th axis rotary, T slot table can be removable cnc router, engraving flat sheet and cylinder object.
Model: RZ1630-6R
Category: 4 Axis CNC
Brand: RAZORTEK
Model: RZ1630-6R
Body material: Stable duty frame
Guide way: X/Y/Z-axis use Taiwan Hiwin guide rail
Driving mode: XY gear and rack: Z-axis ball screw
X/Y-axis working area: 1600*3000mm
Z-axis working area: 300mm
Max.feeding height: 300mm
Cutting thickness of material: ≤40mm
Max.travelling speed: 3000mm/min
Engraving speed: 0-15000mm/min
Engraving speed: 0-15000mm/min
Mechanical precision: 0.01mm
Compatible software: Type 3 software, Artcut software, Artcam software
Max.power consumption: 9.2kw
Power source: AC220/50-60Hz/380V
Driving system: Stepper motor and driver
Spindle: 2.2KW
Spindle speed: 0-24000RPM
Blade diameter: 3.175-12.7mm
Control system: DSP A11
Command: G code, Uoo, mmg, plt, HPGL
Body material: Stable duty frame
Guide way: X/Y/Z-axis use Taiwan Hiwin guide rail
Driving mode: XY gear and rack: Z-axis ball screw
X/Y-axis working area: 1600*3000mm
Z-axis working area: 300mm
Max.feeding height: 300mm
Cutting thickness of material: ≤40mm
Max.travelling speed: 3000mm/min
Engraving speed: 0-15000mm/min
Engraving speed: 0-15000mm/min
Mechanical precision: 0.01mm
Compatible software: Type 3 software, Artcut software, Artcam software
Max.power consumption: 9.2kw
Power source: AC220/50-60Hz/380V
Driving system: Stepper motor and driver
Spindle: 2.2KW
Spindle speed: 0-24000RPM
Blade diameter: 3.175-12.7mm
Control system: DSP A11
Command: G code, Uoo, mmg, plt, HPGL

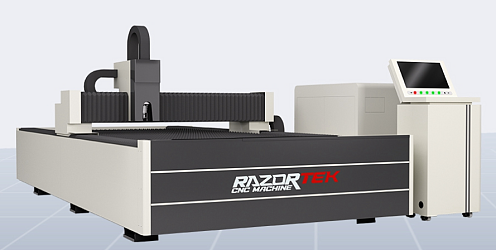

RZ1530F2 Heavy Duty Fiber Laser Cutter-F2 Series
RZ1530F2 Heavy Duty Fiber Laser Cutter-F2 Series
Metal plate welding structure, independent controller cabinet. Precise and repeatable high quality, high speed cutting. Raycus CE version laser source, 2 years global warranty. Autofocus laser head, Cypcut controller, Powerful servo motor with stability.
Model: RZ1530F2
Category: Fiber Laser Cutter
Brand: RAZORTEK
Working area: 1500x3000mm
Control system: Raytools controller with wireless DSP
Laser head: Autofocus
Guide rail: Twaiwan HIWIN linear guide rail 30mm
Transmission: Rack and pinion transmission
Electronic components: French Schneider
Motor: Japan FUJI motor, X axis850W, Y axis 1300W, Z axis 400W
Max cutting speed: 35m/min
X axis max speed: 65m/min
Y axis max speed: 70m/min
Z axis max speed: 30m/min
X axis max acceleration: 1.5G
Y axis max acceleration: 1.5G
Cooling way: water cooling
Min line width: 0.1mm
Power requirements: 220V/380V, 50/60HZ, 3P
Control system: Raytools controller with wireless DSP
Laser head: Autofocus
Guide rail: Twaiwan HIWIN linear guide rail 30mm
Transmission: Rack and pinion transmission
Electronic components: French Schneider
Motor: Japan FUJI motor, X axis850W, Y axis 1300W, Z axis 400W
Max cutting speed: 35m/min
X axis max speed: 65m/min
Y axis max speed: 70m/min
Z axis max speed: 30m/min
X axis max acceleration: 1.5G
Y axis max acceleration: 1.5G
Cooling way: water cooling
Min line width: 0.1mm
Power requirements: 220V/380V, 50/60HZ, 3P
